yaze::cli::anonymous_namespace{rom_compare_commands.cc} Namespace Reference

Classes
struct	RomRegion

Functions
uint32_t	CalculateChecksum (const std::vector< uint8_t > &data)
RomCompareResult::RomInfo	AnalyzeRom (const std::vector< uint8_t > &data, const std::string &name)
std::string	GetVersionString (uint8_t version)
void	FindDiffRegions (const std::vector< uint8_t > &target, const std::vector< uint8_t > &baseline, RomCompareResult &result, bool smart_diff, const std::string &region_filter, bool scan_all)
void	OutputRomInfoJson (resources::OutputFormatter &formatter, const std::string &prefix, const RomCompareResult::RomInfo &info)
void	OutputTextBanner (bool is_json)
void	OutputTextRomInfo (const RomCompareResult &result)
void	OutputTextDiffSummary (const RomCompareResult &result)
void	OutputTextDetailedDiff (const std::vector< uint8_t > &target, const std::vector< uint8_t > &baseline, const RomCompareResult::DiffRegion &region, int max_samples)
void	OutputTextAssessment (const RomCompareResult &result)

Variables
const RomRegion	kCriticalRegions []

Function Documentation

CalculateChecksum()

uint32_t yaze::cli::anonymous_namespace{rom_compare_commands.cc}::CalculateChecksum

(

const std::vector< uint8_t > &

data

)

Definition at line 53 of file rom_compare_commands.cc.

References CalculateChecksum().

Referenced by AnalyzeRom(), and CalculateChecksum().

Here is the call graph for this function:

AnalyzeRom()

RomCompareResult::RomInfo yaze::cli::anonymous_namespace{rom_compare_commands.cc}::AnalyzeRom	(	const std::vector< uint8_t > &	data,
		const std::string &	name )

Definition at line 65 of file rom_compare_commands.cc.

References AnalyzeRom(), CalculateChecksum(), yaze::cli::RomCompareResult::RomInfo::checksum, yaze::cli::RomCompareResult::RomInfo::filename, yaze::cli::RomCompareResult::RomInfo::has_expanded_tile16, yaze::cli::RomCompareResult::RomInfo::has_expanded_tile32, yaze::cli::kMap16ExpandedFlagPos, yaze::cli::kMap32ExpandedFlagPos, yaze::cli::kZSCustomVersionPos, yaze::cli::RomCompareResult::RomInfo::size, and yaze::cli::RomCompareResult::RomInfo::zs_version.

Referenced by AnalyzeRom().

Here is the call graph for this function:

GetVersionString()

std::string yaze::cli::anonymous_namespace{rom_compare_commands.cc}::GetVersionString

(

uint8_t

version

)

Definition at line 91 of file rom_compare_commands.cc.

References GetVersionString().

Referenced by GetVersionString(), OutputRomInfoJson(), and OutputTextRomInfo().

Here is the call graph for this function:

FindDiffRegions()

void yaze::cli::anonymous_namespace{rom_compare_commands.cc}::FindDiffRegions	(	const std::vector< uint8_t > &	target,
		const std::vector< uint8_t > &	baseline,
		RomCompareResult &	result,
		bool	smart_diff,
		const std::string &	region_filter,
		bool	scan_all )

Definition at line 98 of file rom_compare_commands.cc.

References yaze::cli::RomCompareResult::DiffRegion::critical, yaze::cli::RomCompareResult::DiffRegion::diff_count, yaze::cli::RomCompareResult::diff_regions, yaze::cli::RomCompareResult::DiffRegion::end, FindDiffRegions(), yaze::cli::kChecksumComplementPos, yaze::cli::kChecksumPos, kCriticalRegions, yaze::cli::RomCompareResult::DiffRegion::region_name, yaze::cli::RomCompareResult::DiffRegion::start, and yaze::cli::RomCompareResult::total_diff_bytes.

Referenced by FindDiffRegions().

Here is the call graph for this function:

OutputRomInfoJson()

void yaze::cli::anonymous_namespace{rom_compare_commands.cc}::OutputRomInfoJson	(	resources::OutputFormatter &	formatter,
		const std::string &	prefix,
		const RomCompareResult::RomInfo &	info )

Definition at line 183 of file rom_compare_commands.cc.

References yaze::cli::resources::OutputFormatter::AddField(), yaze::cli::resources::OutputFormatter::AddHexField(), yaze::cli::RomCompareResult::RomInfo::checksum, yaze::cli::RomCompareResult::RomInfo::filename, GetVersionString(), yaze::cli::RomCompareResult::RomInfo::has_expanded_tile16, yaze::cli::RomCompareResult::RomInfo::has_expanded_tile32, OutputRomInfoJson(), yaze::cli::RomCompareResult::RomInfo::size, and yaze::cli::RomCompareResult::RomInfo::zs_version.

Referenced by OutputRomInfoJson().

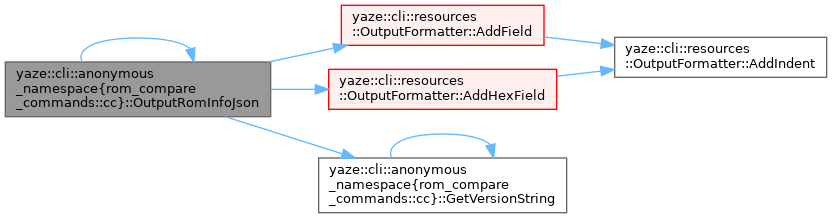

Here is the call graph for this function:

OutputTextBanner()

void yaze::cli::anonymous_namespace{rom_compare_commands.cc}::OutputTextBanner

(

bool

is_json

)

Definition at line 194 of file rom_compare_commands.cc.

OutputTextRomInfo()

void yaze::cli::anonymous_namespace{rom_compare_commands.cc}::OutputTextRomInfo

(

const RomCompareResult &

result

)

Definition at line 209 of file rom_compare_commands.cc.

References yaze::cli::RomCompareResult::baseline, yaze::cli::RomCompareResult::RomInfo::checksum, GetVersionString(), yaze::cli::RomCompareResult::RomInfo::has_expanded_tile16, yaze::cli::RomCompareResult::RomInfo::has_expanded_tile32, OutputTextRomInfo(), yaze::cli::RomCompareResult::RomInfo::size, yaze::cli::RomCompareResult::target, and yaze::cli::RomCompareResult::RomInfo::zs_version.

Referenced by OutputTextRomInfo().

Here is the call graph for this function:

OutputTextDiffSummary()

void yaze::cli::anonymous_namespace{rom_compare_commands.cc}::OutputTextDiffSummary

(

const RomCompareResult &

result

)

Definition at line 231 of file rom_compare_commands.cc.

References yaze::cli::RomCompareResult::diff_regions, OutputTextDiffSummary(), and yaze::cli::RomCompareResult::total_diff_bytes.

Referenced by OutputTextDiffSummary().

Here is the call graph for this function:

OutputTextDetailedDiff()

void yaze::cli::anonymous_namespace{rom_compare_commands.cc}::OutputTextDetailedDiff	(	const std::vector< uint8_t > &	target,
		const std::vector< uint8_t > &	baseline,
		const RomCompareResult::DiffRegion &	region,
		int	max_samples )

Definition at line 251 of file rom_compare_commands.cc.

References yaze::cli::RomCompareResult::DiffRegion::diff_count, yaze::cli::RomCompareResult::DiffRegion::end, OutputTextDetailedDiff(), yaze::cli::RomCompareResult::DiffRegion::region_name, and yaze::cli::RomCompareResult::DiffRegion::start.

Referenced by OutputTextDetailedDiff().

Here is the call graph for this function:

OutputTextAssessment()

void yaze::cli::anonymous_namespace{rom_compare_commands.cc}::OutputTextAssessment

(

const RomCompareResult &

result

)

Definition at line 275 of file rom_compare_commands.cc.

References yaze::cli::RomCompareResult::diff_regions, OutputTextAssessment(), and yaze::cli::RomCompareResult::sizes_match.

Referenced by OutputTextAssessment().

Here is the call graph for this function:

Variable Documentation

kCriticalRegions

const RomRegion yaze::cli::anonymous_namespace{rom_compare_commands.cc}::kCriticalRegions[]

Initial value:

= {
    {"Map32 Ptr Low", 0x1794D, 0x17B2D, true, "overworld"},
    {"Map32 Ptr High", 0x17B2D, 0x17D0D, true, "overworld"},
    {"Overworld Data", 0x70000, 0x78000, true, "overworld"},
    {"Tile16 Vanilla", 0x78000, 0x78000 + (3752 * 8), false, "overworld"},
    {"Tile16 Expanded", 0x1E8000, 0x1F0000, false, "overworld"},
    {"Tile32 BL Expanded", 0x1F0000, 0x1F8000, false, "overworld"},
    {"Tile32 BR Expanded", 0x1F8000, 0x200000, false, "overworld"},
    {"Dungeon Ptr Table", 0x01F800, 0x01FB00, true, "dungeon"},
    {"Dungeon Room Data", 0x1D8000, 0x1E8000, true, "dungeon"},
    {"Message Data", 0x1C0000, 0x1D8000, false, "text"},
    {"ZSCustom Tables", 0x140000, 0x142000, false, "system"},
    {"Overlay Space", 0x120000, 0x130000, false, "overworld"},
    {"SNES Header", 0x7FC0, 0x8000, true, "system"},
    {"Bank 00 Code", 0x000000, 0x008000, true, "code"},
    {"Bank 01 Code", 0x008000, 0x010000, true, "code"},
    {"Bank 02 Code", 0x010000, 0x018000, true, "code"},
}

Definition at line 30 of file rom_compare_commands.cc.

Referenced by FindDiffRegions().
