Manages ImGui DockBuilder layouts for each editor type. More...

#include <layout_manager.h>

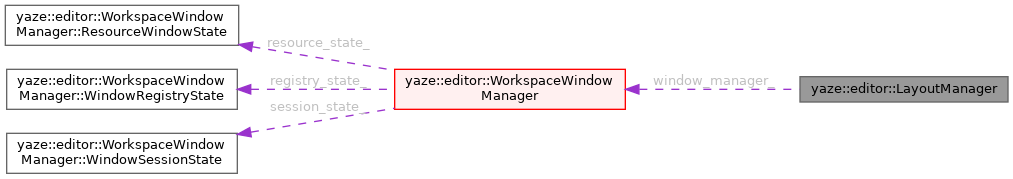

Collaboration diagram for yaze::editor::LayoutManager:

[legend]

Classes
struct	SessionSnapshot

Public Member Functions
	LayoutManager ()=default

	~LayoutManager ()=default

void	SetWindowManager (WorkspaceWindowManager *manager)
	Set the window manager for window title lookups.

WorkspaceWindowManager *	window_manager () const
	Get the window manager.

void	InitializeEditorLayout (EditorType type, ImGuiID dockspace_id)
	Initialize the default layout for a specific editor type.

void	RebuildLayout (EditorType type, ImGuiID dockspace_id)
	Force rebuild of layout for a specific editor type.

void	SaveCurrentLayout (const std::string &name, bool persist=true)
	Save the current layout with a custom name.

void	LoadLayout (const std::string &name)
	Load a saved layout by name.

void	CaptureTemporarySessionLayout (size_t session_id)
	Capture the current workspace as a temporary session layout.

bool	RestoreTemporarySessionLayout (size_t session_id, bool clear_after_restore=false)
	Restore the temporary session layout if one has been captured.

bool	HasTemporarySessionLayout () const
	Whether a temporary session layout is available.

void	ClearTemporarySessionLayout ()
	Clear temporary session layout snapshot state.

bool	SaveNamedSnapshot (const std::string &name, size_t session_id)
	Capture the current workspace under a named, session-scoped slot.

bool	RestoreNamedSnapshot (const std::string &name, size_t session_id, bool remove_after_restore=false)
	Restore a named snapshot by name.

bool	DeleteNamedSnapshot (const std::string &name)
	Delete a named snapshot. Returns true if an entry was removed.

std::vector< std::string >	ListNamedSnapshots (size_t session_id) const
	List all named snapshots for the given session.

bool	HasNamedSnapshot (const std::string &name) const
	Whether a named snapshot with the given name exists.

bool	DeleteLayout (const std::string &name)
	Delete a saved layout by name.

bool	ApplyBuiltInProfile (const std::string &profile_id, size_t session_id, EditorType editor_type, LayoutProfile *out_profile=nullptr)
	Apply a built-in layout profile by profile ID.

std::vector< std::string >	GetSavedLayoutNames () const
	Get list of all saved layout names.

bool	HasLayout (const std::string &name) const
	Check if a layout exists.

void	LoadLayoutsFromDisk ()
	Load layouts for the active scope (global + optional project)

void	SetProjectLayoutKey (const std::string &key)
	Set the active project layout key (enables project scope)

void	UseGlobalLayouts ()
	Clear project scope and return to global layouts only.

LayoutScope	GetActiveScope () const
	Get the active layout scope.

void	ResetToDefaultLayout (EditorType type)
	Reset the layout for an editor to its default.

bool	IsLayoutInitialized (EditorType type) const
	Check if a layout has been initialized for an editor.

void	MarkLayoutInitialized (EditorType type)
	Mark a layout as initialized.

void	ClearInitializationFlags ()
	Clear all initialization flags (for testing)

void	SetLayoutType (LayoutType type)
	Set the current layout type for rebuild.

LayoutType	GetLayoutType () const
	Get the current layout type.

void	RequestRebuild ()
	Request a layout rebuild on next frame.

bool	IsRebuildRequested () const
	Check if rebuild was requested.

void	ClearRebuildRequest ()
	Clear rebuild request flag.

std::string	GetWindowTitle (const std::string &card_id) const
	Get window title for a card ID from registry.

absl::Status	ApplyDockTree (const layout_designer::DockTree &tree, ImGuiID dockspace_id)
	Apply a DockTree to the given dockspace.

void	SetMainDockspaceId (ImGuiID id)
	Record the ImGui ID of the main dockspace from its authoring scope.

ImGuiID	GetMainDockspaceId () const
	Get the cached main dockspace ID.

void	reset_startup_layout_consumed_for_test ()
	Test-only: reset the one-shot startup-reapply guard so a single test fixture can drive `MaybeReapplyStartupLayout` through multiple scenarios without standing up a fresh manager each time.

bool	startup_layout_consumed_for_test () const

bool	startup_reapply_pending_protection_for_test () const

void	set_current_editor_type_for_test (EditorType type)

absl::Status	MaybeReapplyStartupLayout (UserSettings *settings)
	One-shot startup hook that re-applies the user's last applied named layout, if any.

absl::StatusOr< layout_designer::DockTree >	CaptureDockTree (ImGuiID dockspace_id) const
	Capture the current docking state into a DockTree.

Static Public Member Functions
static std::vector< LayoutProfile >	GetBuiltInProfiles ()
	Get built-in layout profiles.

Private Member Functions
void	BuildLayoutFromPreset (EditorType type, ImGuiID dockspace_id)

void	LoadLayoutsFromDiskInternal (LayoutScope scope, bool merge)

void	SaveLayoutsToDisk (LayoutScope scope) const

void	BuildOverworldLayout (ImGuiID dockspace_id)

void	BuildDungeonLayout (ImGuiID dockspace_id)

void	BuildGraphicsLayout (ImGuiID dockspace_id)

void	BuildPaletteLayout (ImGuiID dockspace_id)

void	BuildScreenLayout (ImGuiID dockspace_id)

void	BuildMusicLayout (ImGuiID dockspace_id)

void	BuildSpriteLayout (ImGuiID dockspace_id)

void	BuildMessageLayout (ImGuiID dockspace_id)

void	BuildAssemblyLayout (ImGuiID dockspace_id)

void	BuildSettingsLayout (ImGuiID dockspace_id)

void	BuildEmulatorLayout (ImGuiID dockspace_id)

Private Attributes
std::unordered_map< EditorType, bool >	layouts_initialized_

WorkspaceWindowManager *	window_manager_ = nullptr

LayoutType	current_layout_type_ = LayoutType::kDefault

bool	rebuild_requested_ = false

ImGuiID	last_dockspace_id_ = 0

ImGuiID	main_dockspace_id_ = 0

bool	startup_layout_consumed_ = false

bool	startup_reapply_pending_protection_ = false

EditorType	current_editor_type_ = EditorType::kUnknown

std::unordered_map< std::string, std::unordered_map< std::string, bool > >	saved_layouts_

bool	has_temp_session_layout_ = false

size_t	temp_session_id_ = 0

std::unordered_map< std::string, bool >	temp_session_visibility_

std::unordered_map< std::string, bool >	temp_session_pinned_

std::string	temp_session_imgui_layout_

std::unordered_map< std::string, SessionSnapshot >	named_snapshots_

std::unordered_map< std::string, std::string >	saved_imgui_layouts_

std::unordered_map< std::string, std::unordered_map< std::string, bool > >	saved_pinned_layouts_

std::unordered_map< std::string, LayoutScope >	layout_scopes_

std::string	project_layout_key_

Detailed Description

Manages ImGui DockBuilder layouts for each editor type.

Provides professional default layouts using ImGui's DockBuilder API, similar to VSCode's workspace layouts. Each editor type has a custom layout optimized for its workflow.

Features:

Per-editor default layouts (Overworld, Dungeon, Graphics, etc.)
Layout persistence and restoration
Workspace presets (Developer, Designer, Modder)
Dynamic layout initialization on first editor switch
Panel manager integration for window title lookups

Definition at line 72 of file layout_manager.h.

Constructor & Destructor Documentation

◆ LayoutManager()

yaze::editor::LayoutManager::LayoutManager ( )

default

◆ ~LayoutManager()

yaze::editor::LayoutManager::~LayoutManager ( )

default

Member Function Documentation

◆ SetWindowManager()

void yaze::editor::LayoutManager::SetWindowManager ( WorkspaceWindowManager * manager )

inline

Set the window manager for window title lookups.

Parameters

manager Pointer to the WorkspaceWindowManager

Definition at line 81 of file layout_manager.h.

References window_manager_.

◆ window_manager()

WorkspaceWindowManager * yaze::editor::LayoutManager::window_manager ( ) const

inline

Get the window manager.

Returns: Pointer to the WorkspaceWindowManager

Definition at line 89 of file layout_manager.h.

References window_manager_.

◆ InitializeEditorLayout()

void yaze::editor::LayoutManager::InitializeEditorLayout	(	EditorType	type,
		ImGuiID	dockspace_id )

Initialize the default layout for a specific editor type.

Parameters

type	The editor type to initialize
dockspace_id	The ImGui dockspace ID to build the layout in

Definition at line 170 of file layout_manager.cc.

References BuildLayoutFromPreset(), current_editor_type_, yaze::gui::DockSpaceRenderer::GetLastDockspaceSize(), IsLayoutInitialized(), last_dockspace_id_, LOG_INFO, MarkLayoutInitialized(), startup_reapply_pending_protection_, and window_manager_.

Referenced by yaze::editor::EditorActivator::HandleNonEditorClassSwitch(), and yaze::editor::EditorActivator::InitializeEditorLayout().

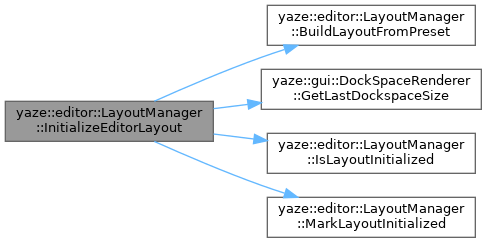

Here is the call graph for this function:

◆ RebuildLayout()

void yaze::editor::LayoutManager::RebuildLayout	(	EditorType	type,
		ImGuiID	dockspace_id )

Force rebuild of layout for a specific editor type.

Parameters

type	The editor type to rebuild
dockspace_id	The ImGui dockspace ID to build the layout in

This method rebuilds the layout even if it was already initialized. Useful for resetting layouts to their default state.

Definition at line 233 of file layout_manager.cc.

References BuildLayoutFromPreset(), current_editor_type_, yaze::gui::DockSpaceRenderer::GetLastDockspaceSize(), last_dockspace_id_, layouts_initialized_, LOG_ERROR, LOG_INFO, MarkLayoutInitialized(), and window_manager_.

Referenced by yaze::editor::LayoutCoordinator::ProcessLayoutRebuild(), and yaze::editor::LayoutCoordinator::ResetWorkspaceLayout().

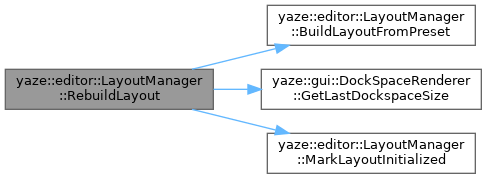

Here is the call graph for this function:

◆ SaveCurrentLayout()

void yaze::editor::LayoutManager::SaveCurrentLayout	(	const std::string &	name,
		bool	persist = true )

Save the current layout with a custom name.

Parameters

name	The name to save the layout under
persist	Whether to write the layout to disk

Definition at line 732 of file layout_manager.cc.

References LOG_INFO, and LOG_WARN.

Referenced by yaze::editor::WorkspaceManager::SaveWorkspaceLayout(), and yaze::editor::WorkspaceManager::SaveWorkspacePreset().

◆ LoadLayout()

void yaze::editor::LayoutManager::LoadLayout ( const std::string & name )

Load a saved layout by name.

Parameters

name	The name of the layout to load

Definition at line 767 of file layout_manager.cc.

References LOG_INFO, and LOG_WARN.

Referenced by yaze::editor::WorkspaceManager::LoadWorkspaceLayout(), and yaze::editor::WorkspaceManager::LoadWorkspacePreset().

◆ CaptureTemporarySessionLayout()

void yaze::editor::LayoutManager::CaptureTemporarySessionLayout ( size_t session_id )

Capture the current workspace as a temporary session layout.

Temporary layouts are held in memory only and are never persisted to disk.

Definition at line 802 of file layout_manager.cc.

References LOG_INFO.

◆ RestoreTemporarySessionLayout()

bool yaze::editor::LayoutManager::RestoreTemporarySessionLayout	(	size_t	session_id,
		bool	clear_after_restore = false )

Restore the temporary session layout if one has been captured.

Returns: true when a captured layout was restored

Definition at line 827 of file layout_manager.cc.

References LOG_INFO, and LOG_WARN.

◆ HasTemporarySessionLayout()

bool yaze::editor::LayoutManager::HasTemporarySessionLayout ( ) const

inline

Whether a temporary session layout is available.

Definition at line 138 of file layout_manager.h.

References has_temp_session_layout_.

◆ ClearTemporarySessionLayout()

void yaze::editor::LayoutManager::ClearTemporarySessionLayout ( )

Clear temporary session layout snapshot state.

Definition at line 858 of file layout_manager.cc.

◆ SaveNamedSnapshot()

bool yaze::editor::LayoutManager::SaveNamedSnapshot	(	const std::string &	name,
		size_t	session_id )

Capture the current workspace under a named, session-scoped slot.

Named snapshots are held in memory only (never persisted) and identified by the caller-supplied name. Names are used as the stable lookup key; duplicate saves overwrite the existing entry.

Definition at line 866 of file layout_manager.cc.

References yaze::editor::LayoutManager::SessionSnapshot::imgui_layout, LOG_INFO, yaze::editor::LayoutManager::SessionSnapshot::pinned, yaze::editor::LayoutManager::SessionSnapshot::session_id, and yaze::editor::LayoutManager::SessionSnapshot::visibility.

◆ RestoreNamedSnapshot()

bool yaze::editor::LayoutManager::RestoreNamedSnapshot	(	const std::string &	name,
		size_t	session_id,
		bool	remove_after_restore = false )

Restore a named snapshot by name.

Definition at line 886 of file layout_manager.cc.

References yaze::editor::LayoutManager::SessionSnapshot::imgui_layout, yaze::editor::LayoutManager::SessionSnapshot::pinned, yaze::editor::LayoutManager::SessionSnapshot::session_id, and yaze::editor::LayoutManager::SessionSnapshot::visibility.

◆ DeleteNamedSnapshot()

bool yaze::editor::LayoutManager::DeleteNamedSnapshot ( const std::string & name )

Delete a named snapshot. Returns true if an entry was removed.

Definition at line 913 of file layout_manager.cc.

◆ ListNamedSnapshots()

std::vector< std::string > yaze::editor::LayoutManager::ListNamedSnapshots ( size_t session_id ) const

List all named snapshots for the given session.

Definition at line 922 of file layout_manager.cc.

◆ HasNamedSnapshot()

bool yaze::editor::LayoutManager::HasNamedSnapshot ( const std::string & name ) const

Whether a named snapshot with the given name exists.

Definition at line 935 of file layout_manager.cc.

◆ DeleteLayout()

bool yaze::editor::LayoutManager::DeleteLayout ( const std::string & name )

Delete a saved layout by name.

Parameters

name	The name of the layout to delete

Returns: true if layout was deleted, false if not found

Definition at line 939 of file layout_manager.cc.

References LOG_INFO, and LOG_WARN.

◆ GetBuiltInProfiles()

std::vector< LayoutProfile > yaze::editor::LayoutManager::GetBuiltInProfiles ( )

static

Get built-in layout profiles.

Definition at line 964 of file layout_manager.cc.

◆ ApplyBuiltInProfile()

bool yaze::editor::LayoutManager::ApplyBuiltInProfile	(	const std::string &	profile_id,
		size_t	session_id,
		EditorType	editor_type,
		LayoutProfile *	out_profile = nullptr )

Apply a built-in layout profile by profile ID.

Parameters

profile_id	Stable profile id from GetBuiltInProfiles()
session_id	Active session id
editor_type	Current editor type (for context-sensitive profiles)
out_profile	Optional resolved profile metadata

Returns: true when a matching profile was applied

Definition at line 989 of file layout_manager.cc.

References yaze::editor::PanelLayoutPreset::default_visible_panels, LOG_INFO, LOG_WARN, and yaze::editor::LayoutProfile::preset_name.

◆ GetSavedLayoutNames()

std::vector< std::string > yaze::editor::LayoutManager::GetSavedLayoutNames ( ) const

Get list of all saved layout names.

Returns: Vector of layout names

Definition at line 1045 of file layout_manager.cc.

◆ HasLayout()

bool yaze::editor::LayoutManager::HasLayout ( const std::string & name ) const

Check if a layout exists.

Parameters

name	The layout name to check

Returns: true if layout exists

Definition at line 1054 of file layout_manager.cc.

Referenced by yaze::editor::WorkspaceManager::LoadWorkspaceLayout(), and yaze::editor::WorkspaceManager::LoadWorkspacePreset().

◆ LoadLayoutsFromDisk()

void yaze::editor::LayoutManager::LoadLayoutsFromDisk ( )

Load layouts for the active scope (global + optional project)

Definition at line 1058 of file layout_manager.cc.

◆ SetProjectLayoutKey()

void yaze::editor::LayoutManager::SetProjectLayoutKey ( const std::string & key )

Set the active project layout key (enables project scope)

Parameters

key	Stable project storage key (sanitized)

Definition at line 1070 of file layout_manager.cc.

◆ UseGlobalLayouts()

void yaze::editor::LayoutManager::UseGlobalLayouts ( )

Clear project scope and return to global layouts only.

Definition at line 1079 of file layout_manager.cc.

◆ GetActiveScope()

LayoutScope yaze::editor::LayoutManager::GetActiveScope ( ) const

Get the active layout scope.

Definition at line 1084 of file layout_manager.cc.

◆ ResetToDefaultLayout()

void yaze::editor::LayoutManager::ResetToDefaultLayout ( EditorType type )

Reset the layout for an editor to its default.

Parameters

type	The editor type to reset

Definition at line 1208 of file layout_manager.cc.

References LOG_INFO.

Referenced by yaze::editor::LayoutCoordinator::ResetCurrentEditorLayout(), and yaze::editor::WorkspaceManager::ResetWorkspaceLayout().

◆ IsLayoutInitialized()

bool yaze::editor::LayoutManager::IsLayoutInitialized ( EditorType type ) const

Check if a layout has been initialized for an editor.

Parameters

type	The editor type to check

Returns: True if layout is initialized

Definition at line 1214 of file layout_manager.cc.

Referenced by yaze::editor::EditorActivator::ActivatePanelBasedEditor(), yaze::editor::EditorActivator::HandleNonEditorClassSwitch(), yaze::editor::LayoutCoordinator::InitializeEditorLayout(), yaze::editor::EditorActivator::InitializeEditorLayout(), and InitializeEditorLayout().

◆ MarkLayoutInitialized()

void yaze::editor::LayoutManager::MarkLayoutInitialized ( EditorType type )

Mark a layout as initialized.

Parameters

type	The editor type to mark

Definition at line 1219 of file layout_manager.cc.

References LOG_INFO.

Referenced by InitializeEditorLayout(), and RebuildLayout().

◆ ClearInitializationFlags()

void yaze::editor::LayoutManager::ClearInitializationFlags ( )

Clear all initialization flags (for testing)

Definition at line 1225 of file layout_manager.cc.

References LOG_INFO.

Referenced by yaze::editor::LayoutCoordinator::ResetWorkspaceLayout(), and yaze::editor::WorkspaceManager::ResetWorkspaceLayout().

◆ SetLayoutType()

void yaze::editor::LayoutManager::SetLayoutType ( LayoutType type )

inline

Set the current layout type for rebuild.

Parameters

type	The layout type to set

Definition at line 261 of file layout_manager.h.

References current_layout_type_.

Referenced by yaze::editor::LayoutOrchestrator::ApplyDockLayout().

◆ GetLayoutType()

LayoutType yaze::editor::LayoutManager::GetLayoutType ( ) const

inline

Get the current layout type.

Definition at line 266 of file layout_manager.h.

References current_layout_type_.

◆ RequestRebuild()

void yaze::editor::LayoutManager::RequestRebuild ( )

inline

Request a layout rebuild on next frame.

Definition at line 271 of file layout_manager.h.

References rebuild_requested_.

Referenced by yaze::editor::LayoutOrchestrator::ApplyDockLayout(), yaze::editor::LayoutCoordinator::ApplyLayoutPreset(), yaze::editor::LayoutOrchestrator::RequestLayoutRebuild(), yaze::editor::LayoutCoordinator::ResetCurrentEditorLayout(), yaze::editor::LayoutCoordinator::ResetWorkspaceLayout(), and yaze::editor::WorkspaceManager::ResetWorkspaceLayout().

◆ IsRebuildRequested()

bool yaze::editor::LayoutManager::IsRebuildRequested ( ) const

inline

Check if rebuild was requested.

Definition at line 276 of file layout_manager.h.

References rebuild_requested_.

Referenced by yaze::editor::LayoutCoordinator::ProcessLayoutRebuild().

◆ ClearRebuildRequest()

void yaze::editor::LayoutManager::ClearRebuildRequest ( )

inline

Clear rebuild request flag.

Definition at line 281 of file layout_manager.h.

References rebuild_requested_.

Referenced by yaze::editor::LayoutCoordinator::ProcessLayoutRebuild().

◆ GetWindowTitle()

std::string yaze::editor::LayoutManager::GetWindowTitle ( const std::string & card_id ) const

Get window title for a card ID from registry.

Parameters

card_id The card ID to look up

Returns: Window title or empty string if not found

Definition at line 1230 of file layout_manager.cc.

◆ ApplyDockTree()

absl::Status yaze::editor::LayoutManager::ApplyDockTree	(	const layout_designer::DockTree &	tree,
		ImGuiID	dockspace_id )

Apply a DockTree to the given dockspace.

Removes and rebuilds dockspace_id from scratch, walking the tree and calling DockBuilder{SplitNode,DockWindow,Finish}.

Side effects beyond DockBuilder, added in Phase 8 review (2026-04-24):

Calls WorkspaceWindowManager::OpenWindow(panel_id) for every panel referenced in the tree, so the user actually sees the panels they docked rather than empty slots.
Marks every EditorType's layout as initialized so the lazy InitializeEditorLayout path in EditorActivator doesn't blow the custom layout away on the first panel-based editor activation. The Layout Designer's apply is an explicit "this is my workspace" — the per-editor preset must yield to it.

Panels in the tree whose panel_id is not registered against the bound WorkspaceWindowManager are skipped with a best-effort fallback that reconstructs the window title from the PanelEntry's cached icon + display_name + id.

Parameters

tree	Tree to apply. Must pass `Validate()`.
dockspace_id	ImGui dockspace to rebuild.

Returns: FailedPrecondition when no WorkspaceWindowManager is bound; InvalidArgument when the tree fails validation; OK otherwise.

Definition at line 1390 of file layout_manager.cc.

References yaze::editor::layout_designer::DockTree::root, and yaze::editor::layout_designer::DockTree::Validate().

Referenced by yaze::editor::layout_designer::LayoutDesignerPanel::ApplyCurrentTreeToLiveDockspace(), and yaze::editor::SettingsPanel::ApplyNamedLayoutToDockspace().

Here is the call graph for this function:

◆ SetMainDockspaceId()

void yaze::editor::LayoutManager::SetMainDockspaceId ( ImGuiID id )

inline

Record the ImGui ID of the main dockspace from its authoring scope.

ImGui IDs are salted by the current window's ID stack, so ImGui::GetID("MainDockSpace") only resolves to the live dockspace when called from inside the window that hosts it (see controller.cc::Render). Panels drawn in other windows (e.g. the Layout Designer, which lives in its own PanelWindow) would hash a different ID and end up driving an orphan dock node. The controller calls this setter every frame from the correct scope; consumers read via GetMainDockspaceId().

Definition at line 336 of file layout_manager.h.

References main_dockspace_id_.

◆ GetMainDockspaceId()

ImGuiID yaze::editor::LayoutManager::GetMainDockspaceId ( ) const

inline

Get the cached main dockspace ID.

Returns: The ID cached by SetMainDockspaceId, or 0 before the first frame of the DockSpaceWindow has rendered.

Definition at line 343 of file layout_manager.h.

References main_dockspace_id_.

Referenced by yaze::editor::layout_designer::LayoutDesignerPanel::ApplyCurrentTreeToLiveDockspace(), and yaze::editor::SettingsPanel::ApplyNamedLayoutToDockspace().

◆ reset_startup_layout_consumed_for_test()

void yaze::editor::LayoutManager::reset_startup_layout_consumed_for_test ( )

inline

Test-only: reset the one-shot startup-reapply guard so a single test fixture can drive MaybeReapplyStartupLayout through multiple scenarios without standing up a fresh manager each time.

Definition at line 351 of file layout_manager.h.

References startup_layout_consumed_.

◆ startup_layout_consumed_for_test()

bool yaze::editor::LayoutManager::startup_layout_consumed_for_test ( ) const

inline

Definition at line 354 of file layout_manager.h.

References startup_layout_consumed_.

◆ startup_reapply_pending_protection_for_test()

bool yaze::editor::LayoutManager::startup_reapply_pending_protection_for_test ( ) const

inline

Definition at line 357 of file layout_manager.h.

References startup_reapply_pending_protection_.

◆ set_current_editor_type_for_test()

void yaze::editor::LayoutManager::set_current_editor_type_for_test ( EditorType type )

inline

Definition at line 360 of file layout_manager.h.

References current_editor_type_.

◆ MaybeReapplyStartupLayout()

absl::Status yaze::editor::LayoutManager::MaybeReapplyStartupLayout ( UserSettings * settings )

One-shot startup hook that re-applies the user's last applied named layout, if any.

Drives idempotently from UserSettings::last_applied_layout_name

named_layouts. The first frame this is called with a valid main_dockspace_id_ (i.e. after the controller has rendered at least one DockSpaceWindow), the matching layout is parsed, validated, and applied to the live dockspace; subsequent calls are no-ops.

Failure modes are absorbed (logged, internally consumed) rather than propagated, because there is no useful caller-side recovery for "the layout the user picked yesterday no longer parses": the editor falls through to whatever default layout the workspace shell already built. The Status return is for observability and tests.

Skipped paths (return OK, leave the consumed flag clear so the caller can retry next frame):

main_dockspace_id_ == 0 (dockspace not bound yet).

Skipped paths (return OK, set consumed):

settings == nullptr.
last_applied_layout_name is empty.

Failure paths (return error status, set consumed):

The named layout is missing from named_layouts.
Its body fails to parse / validate.
ApplyDockTree returns non-OK.

Parameters

settings UserSettings to read named_layouts and last_applied_layout_name from. May be null.

Returns: OK on legitimate skip or successful apply; the underlying error otherwise.

Definition at line 1482 of file layout_manager.cc.

References yaze::editor::UserSettings::Preferences::last_applied_layout_name, yaze::util::logf(), yaze::editor::UserSettings::Preferences::named_layouts, and yaze::editor::UserSettings::prefs().

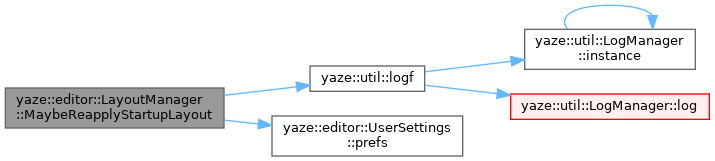

Here is the call graph for this function:

◆ CaptureDockTree()

absl::StatusOr< layout_designer::DockTree > yaze::editor::LayoutManager::CaptureDockTree ( ImGuiID dockspace_id ) const

Capture the current docking state into a DockTree.

Walks ImGui's internal dock node tree rooted at dockspace_id and samples splits + leaf windows. Unknown windows (those not registered against the bound WorkspaceWindowManager) are dropped. Split ratios are recovered from measured node sizes; X-axis splits always emit SplitDirection::kLeft and Y-axis splits emit kUp (direction is lossy, since a 0.4 right-placed split is visually identical to a 0.4 left-placed split).

Parameters

dockspace_id ImGui dockspace to sample.

Returns: FailedPrecondition when no WorkspaceWindowManager is bound; NotFound when no node exists at dockspace_id; the captured tree otherwise.

Definition at line 1557 of file layout_manager.cc.

References yaze::editor::layout_designer::DockTree::root.

◆ BuildLayoutFromPreset()

void yaze::editor::LayoutManager::BuildLayoutFromPreset	(	EditorType	type,
		ImGuiID	dockspace_id )

private

Definition at line 575 of file layout_manager.cc.

References LOG_WARN.

Referenced by InitializeEditorLayout(), and RebuildLayout().

◆ LoadLayoutsFromDiskInternal()

void yaze::editor::LayoutManager::LoadLayoutsFromDiskInternal	(	LayoutScope	scope,
		bool	merge )

private

Definition at line 1089 of file layout_manager.cc.

References yaze::Json::contains(), yaze::Json::is_object(), yaze::Json::items(), LOG_INFO, and LOG_WARN.

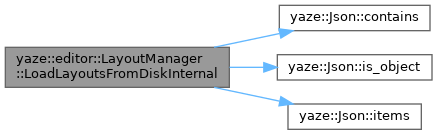

Here is the call graph for this function:

◆ SaveLayoutsToDisk()

void yaze::editor::LayoutManager::SaveLayoutsToDisk ( LayoutScope scope ) const

private

Definition at line 1152 of file layout_manager.cc.

References yaze::Json::dump(), yaze::util::PlatformPaths::EnsureDirectoryExists(), LOG_WARN, and yaze::Json::object().

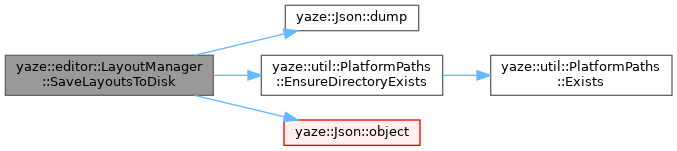

Here is the call graph for this function:

◆ BuildOverworldLayout()

void yaze::editor::LayoutManager::BuildOverworldLayout ( ImGuiID dockspace_id )

private

Definition at line 698 of file layout_manager.cc.

◆ BuildDungeonLayout()

void yaze::editor::LayoutManager::BuildDungeonLayout ( ImGuiID dockspace_id )

private

Definition at line 701 of file layout_manager.cc.

◆ BuildGraphicsLayout()

void yaze::editor::LayoutManager::BuildGraphicsLayout ( ImGuiID dockspace_id )

private

Definition at line 704 of file layout_manager.cc.

◆ BuildPaletteLayout()

void yaze::editor::LayoutManager::BuildPaletteLayout ( ImGuiID dockspace_id )

private

Definition at line 707 of file layout_manager.cc.

◆ BuildScreenLayout()

void yaze::editor::LayoutManager::BuildScreenLayout ( ImGuiID dockspace_id )

private

Definition at line 710 of file layout_manager.cc.

◆ BuildMusicLayout()

void yaze::editor::LayoutManager::BuildMusicLayout ( ImGuiID dockspace_id )

private

Definition at line 713 of file layout_manager.cc.

◆ BuildSpriteLayout()

void yaze::editor::LayoutManager::BuildSpriteLayout ( ImGuiID dockspace_id )

private

Definition at line 716 of file layout_manager.cc.

◆ BuildMessageLayout()

void yaze::editor::LayoutManager::BuildMessageLayout ( ImGuiID dockspace_id )

private

Definition at line 719 of file layout_manager.cc.

◆ BuildAssemblyLayout()

void yaze::editor::LayoutManager::BuildAssemblyLayout ( ImGuiID dockspace_id )

private

Definition at line 722 of file layout_manager.cc.

◆ BuildSettingsLayout()

void yaze::editor::LayoutManager::BuildSettingsLayout ( ImGuiID dockspace_id )

private

Definition at line 725 of file layout_manager.cc.

◆ BuildEmulatorLayout()

void yaze::editor::LayoutManager::BuildEmulatorLayout ( ImGuiID dockspace_id )

private

Definition at line 728 of file layout_manager.cc.

Member Data Documentation

◆ layouts_initialized_

std::unordered_map<EditorType, bool> yaze::editor::LayoutManager::layouts_initialized_

private

Definition at line 442 of file layout_manager.h.

Referenced by RebuildLayout().

◆ window_manager_

WorkspaceWindowManager* yaze::editor::LayoutManager::window_manager_ = nullptr

private

Definition at line 445 of file layout_manager.h.

Referenced by InitializeEditorLayout(), RebuildLayout(), SetWindowManager(), and window_manager().

◆ current_layout_type_

LayoutType yaze::editor::LayoutManager::current_layout_type_ = LayoutType::kDefault

private

Definition at line 448 of file layout_manager.h.

Referenced by GetLayoutType(), and SetLayoutType().

◆ rebuild_requested_

bool yaze::editor::LayoutManager::rebuild_requested_ = false

private

Definition at line 451 of file layout_manager.h.

Referenced by ClearRebuildRequest(), IsRebuildRequested(), and RequestRebuild().

◆ last_dockspace_id_

ImGuiID yaze::editor::LayoutManager::last_dockspace_id_ = 0

private

Definition at line 454 of file layout_manager.h.

Referenced by InitializeEditorLayout(), and RebuildLayout().

◆ main_dockspace_id_

ImGuiID yaze::editor::LayoutManager::main_dockspace_id_ = 0

private

Definition at line 459 of file layout_manager.h.

Referenced by GetMainDockspaceId(), and SetMainDockspaceId().

◆ startup_layout_consumed_

bool yaze::editor::LayoutManager::startup_layout_consumed_ = false

private

Definition at line 464 of file layout_manager.h.

Referenced by reset_startup_layout_consumed_for_test(), and startup_layout_consumed_for_test().

◆ startup_reapply_pending_protection_

bool yaze::editor::LayoutManager::startup_reapply_pending_protection_ = false

private

Definition at line 474 of file layout_manager.h.

Referenced by InitializeEditorLayout(), and startup_reapply_pending_protection_for_test().

◆ current_editor_type_

EditorType yaze::editor::LayoutManager::current_editor_type_ = EditorType::kUnknown

private

Definition at line 477 of file layout_manager.h.

Referenced by InitializeEditorLayout(), RebuildLayout(), and set_current_editor_type_for_test().

◆ saved_layouts_

std::unordered_map<std::string, std::unordered_map<std::string, bool> > yaze::editor::LayoutManager::saved_layouts_

private

Definition at line 481 of file layout_manager.h.

◆ has_temp_session_layout_

bool yaze::editor::LayoutManager::has_temp_session_layout_ = false

private

Definition at line 484 of file layout_manager.h.

Referenced by HasTemporarySessionLayout().

◆ temp_session_id_

size_t yaze::editor::LayoutManager::temp_session_id_ = 0

private

Definition at line 485 of file layout_manager.h.

◆ temp_session_visibility_

std::unordered_map<std::string, bool> yaze::editor::LayoutManager::temp_session_visibility_

private

Definition at line 486 of file layout_manager.h.

◆ temp_session_pinned_

std::unordered_map<std::string, bool> yaze::editor::LayoutManager::temp_session_pinned_

private

Definition at line 487 of file layout_manager.h.

◆ temp_session_imgui_layout_

std::string yaze::editor::LayoutManager::temp_session_imgui_layout_

private

Definition at line 488 of file layout_manager.h.

◆ named_snapshots_

std::unordered_map<std::string, SessionSnapshot> yaze::editor::LayoutManager::named_snapshots_

private

Definition at line 498 of file layout_manager.h.

◆ saved_imgui_layouts_

std::unordered_map<std::string, std::string> yaze::editor::LayoutManager::saved_imgui_layouts_

private

Definition at line 501 of file layout_manager.h.

◆ saved_pinned_layouts_

std::unordered_map<std::string, std::unordered_map<std::string, bool> > yaze::editor::LayoutManager::saved_pinned_layouts_

private

Definition at line 505 of file layout_manager.h.

◆ layout_scopes_

std::unordered_map<std::string, LayoutScope> yaze::editor::LayoutManager::layout_scopes_

private

Definition at line 508 of file layout_manager.h.

◆ project_layout_key_

std::string yaze::editor::LayoutManager::project_layout_key_

private

Definition at line 511 of file layout_manager.h.

The documentation for this class was generated from the following files:

src/app/editor/layout/layout_manager.h
src/app/editor/layout/layout_manager.cc

	yaze 0.3.2 Link to the Past ROM Editor

Classes

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ LayoutManager()

◆ ~LayoutManager()

Member Function Documentation

◆ SetWindowManager()

◆ window_manager()

◆ InitializeEditorLayout()

◆ RebuildLayout()

◆ SaveCurrentLayout()

◆ LoadLayout()

◆ CaptureTemporarySessionLayout()

◆ RestoreTemporarySessionLayout()

◆ HasTemporarySessionLayout()

◆ ClearTemporarySessionLayout()

◆ SaveNamedSnapshot()

◆ RestoreNamedSnapshot()

◆ DeleteNamedSnapshot()

◆ ListNamedSnapshots()

◆ HasNamedSnapshot()

◆ DeleteLayout()

◆ GetBuiltInProfiles()

◆ ApplyBuiltInProfile()

◆ GetSavedLayoutNames()

◆ HasLayout()

◆ LoadLayoutsFromDisk()

◆ SetProjectLayoutKey()

◆ UseGlobalLayouts()

◆ GetActiveScope()

◆ ResetToDefaultLayout()

◆ IsLayoutInitialized()

◆ MarkLayoutInitialized()

◆ ClearInitializationFlags()

◆ SetLayoutType()

◆ GetLayoutType()

◆ RequestRebuild()

◆ IsRebuildRequested()

◆ ClearRebuildRequest()

◆ GetWindowTitle()

◆ ApplyDockTree()

◆ SetMainDockspaceId()

◆ GetMainDockspaceId()

◆ reset_startup_layout_consumed_for_test()

◆ startup_layout_consumed_for_test()

◆ startup_reapply_pending_protection_for_test()

◆ set_current_editor_type_for_test()

◆ MaybeReapplyStartupLayout()

◆ CaptureDockTree()

◆ BuildLayoutFromPreset()

◆ LoadLayoutsFromDiskInternal()

◆ SaveLayoutsToDisk()

◆ BuildOverworldLayout()

◆ BuildDungeonLayout()

◆ BuildGraphicsLayout()

◆ BuildPaletteLayout()

◆ BuildScreenLayout()

◆ BuildMusicLayout()

◆ BuildSpriteLayout()

◆ BuildMessageLayout()

◆ BuildAssemblyLayout()

◆ BuildSettingsLayout()

◆ BuildEmulatorLayout()

Member Data Documentation

◆ layouts_initialized_

◆ window_manager_

◆ current_layout_type_

◆ rebuild_requested_

◆ last_dockspace_id_

◆ main_dockspace_id_

◆ startup_layout_consumed_

◆ startup_reapply_pending_protection_

◆ current_editor_type_

◆ saved_layouts_

◆ has_temp_session_layout_

◆ temp_session_id_
