yaze::gfx::SDL2Renderer Class Reference

A concrete implementation of the IRenderer interface using SDL2. More...

#include <sdl2_renderer.h>

Inheritance diagram for yaze::gfx::SDL2Renderer:

Collaboration diagram for yaze::gfx::SDL2Renderer:

Public Member Functions
	SDL2Renderer ()
	~SDL2Renderer () override
bool	Initialize (SDL_Window *window) override
	Initializes the SDL2 renderer. This function creates an accelerated SDL2 renderer and attaches it to the given window.
void	Shutdown () override
	Shuts down the renderer. The underlying SDL_Renderer is managed by a unique_ptr, so its destruction is handled automatically.
TextureHandle	CreateTexture (int width, int height) override
	Creates an SDL_Texture. The texture is created with streaming access, which is suitable for textures that are updated frequently.
TextureHandle	CreateRenderTargetTexture (int width, int height) override
	Creates a texture intended to be used as a render target.
TextureHandle	CreateTextureWithFormat (int width, int height, uint32_t format, int access) override
	Creates an SDL_Texture with a specific pixel format and access pattern. This is useful for specialized textures like emulator PPU output.
void	UpdateTexture (TextureHandle texture, const Bitmap &bitmap) override
	Updates an SDL_Texture with data from a Bitmap. This involves converting the bitmap's surface to the correct format and updating the texture.
void	DestroyTexture (TextureHandle texture) override
	Destroys an SDL_Texture.
bool	LockTexture (TextureHandle texture, SDL_Rect *rect, void **pixels, int *pitch) override
void	UnlockTexture (TextureHandle texture) override
void	Clear () override
	Clears the screen with the current draw color.
void	Present () override
	Presents the rendered frame to the screen.
void	RenderCopy (TextureHandle texture, const SDL_Rect *srcrect, const SDL_Rect *dstrect) override
	Copies a texture to the render target.
void	SetRenderTarget (TextureHandle texture) override
	Sets the render target.
void	SetDrawColor (SDL_Color color) override
	Sets the draw color.
void *	GetBackendRenderer () override
	Provides access to the underlying SDL_Renderer*.
Public Member Functions inherited from yaze::gfx::IRenderer
virtual	~IRenderer ()=default

Private Attributes
std::unique_ptr< SDL_Renderer, util::SDL_Deleter >	renderer_

Detailed Description

A concrete implementation of the IRenderer interface using SDL2.

This class encapsulates all rendering logic that is specific to the SDL2_render API. It translates the abstract calls from the IRenderer interface into concrete SDL2 commands. This is the first step in abstracting the renderer, allowing the rest of the application to be independent of SDL2.

Definition at line 18 of file sdl2_renderer.h.

Constructor & Destructor Documentation

SDL2Renderer()

yaze::gfx::SDL2Renderer::SDL2Renderer ( )

default

~SDL2Renderer()

yaze::gfx::SDL2Renderer::~SDL2Renderer ( )

override

Definition at line 12 of file sdl2_renderer.cc.

References Shutdown().

Here is the call graph for this function:

Member Function Documentation

Initialize()

bool yaze::gfx::SDL2Renderer::Initialize ( SDL_Window * window )

overridevirtual

Initializes the SDL2 renderer. This function creates an accelerated SDL2 renderer and attaches it to the given window.

Implements yaze::gfx::IRenderer.

Definition at line 21 of file sdl2_renderer.cc.

References yaze::platform::CreateRenderer(), renderer_, and yaze::platform::SetRenderVSync().

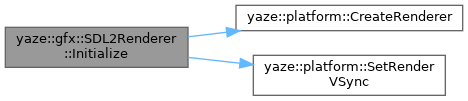

Here is the call graph for this function:

Shutdown()

void yaze::gfx::SDL2Renderer::Shutdown ( )

overridevirtual

Shuts down the renderer. The underlying SDL_Renderer is managed by a unique_ptr, so its destruction is handled automatically.

Implements yaze::gfx::IRenderer.

Definition at line 45 of file sdl2_renderer.cc.

References renderer_.

Referenced by ~SDL2Renderer().

CreateTexture()

TextureHandle yaze::gfx::SDL2Renderer::CreateTexture ( int width, int height )

overridevirtual

Creates an SDL_Texture. The texture is created with streaming access, which is suitable for textures that are updated frequently.

Implements yaze::gfx::IRenderer.

Definition at line 54 of file sdl2_renderer.cc.

References renderer_.

CreateRenderTargetTexture()

TextureHandle yaze::gfx::SDL2Renderer::CreateRenderTargetTexture ( int width, int height )

overridevirtual

Creates a texture intended to be used as a render target.

Parameters

width	The width of the texture in pixels.
height	The height of the texture in pixels.

Returns

An abstract TextureHandle to the newly created texture, or nullptr on failure.

Implements yaze::gfx::IRenderer.

Definition at line 69 of file sdl2_renderer.cc.

References renderer_.

CreateTextureWithFormat()

TextureHandle yaze::gfx::SDL2Renderer::CreateTextureWithFormat ( int width, int height, uint32_t format, int access )

overridevirtual

Creates an SDL_Texture with a specific pixel format and access pattern. This is useful for specialized textures like emulator PPU output.

Implements yaze::gfx::IRenderer.

Definition at line 85 of file sdl2_renderer.cc.

References renderer_.

UpdateTexture()

void yaze::gfx::SDL2Renderer::UpdateTexture ( TextureHandle texture, const Bitmap & bitmap )

overridevirtual

Updates an SDL_Texture with data from a Bitmap. This involves converting the bitmap's surface to the correct format and updating the texture.

Implements yaze::gfx::IRenderer.

Definition at line 97 of file sdl2_renderer.cc.

References yaze::platform::ConvertSurfaceFormat(), and yaze::gfx::Bitmap::surface().

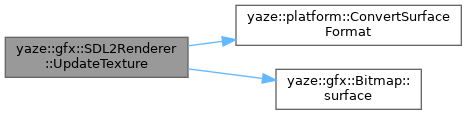

Here is the call graph for this function:

DestroyTexture()

void yaze::gfx::SDL2Renderer::DestroyTexture ( TextureHandle texture )

overridevirtual

Destroys an SDL_Texture.

Implements yaze::gfx::IRenderer.

Definition at line 128 of file sdl2_renderer.cc.

LockTexture()

bool yaze::gfx::SDL2Renderer::LockTexture ( TextureHandle texture, SDL_Rect * rect, void ** pixels, int * pitch )

overridevirtual

Implements yaze::gfx::IRenderer.

Definition at line 134 of file sdl2_renderer.cc.

UnlockTexture()

void yaze::gfx::SDL2Renderer::UnlockTexture ( TextureHandle texture )

overridevirtual

Implements yaze::gfx::IRenderer.

Definition at line 140 of file sdl2_renderer.cc.

Clear()

void yaze::gfx::SDL2Renderer::Clear ( )

overridevirtual

Clears the screen with the current draw color.

Implements yaze::gfx::IRenderer.

Definition at line 147 of file sdl2_renderer.cc.

References renderer_.

Present()

void yaze::gfx::SDL2Renderer::Present ( )

overridevirtual

Presents the rendered frame to the screen.

Implements yaze::gfx::IRenderer.

Definition at line 154 of file sdl2_renderer.cc.

References renderer_.

RenderCopy()

void yaze::gfx::SDL2Renderer::RenderCopy ( TextureHandle texture, const SDL_Rect * srcrect, const SDL_Rect * dstrect )

overridevirtual

Copies a texture to the render target.

Implements yaze::gfx::IRenderer.

Definition at line 161 of file sdl2_renderer.cc.

References renderer_, and yaze::platform::RenderTexture().

Here is the call graph for this function:

SetRenderTarget()

void yaze::gfx::SDL2Renderer::SetRenderTarget ( TextureHandle texture )

overridevirtual

Sets the render target.

Implements yaze::gfx::IRenderer.

Definition at line 170 of file sdl2_renderer.cc.

References renderer_.

SetDrawColor()

void yaze::gfx::SDL2Renderer::SetDrawColor ( SDL_Color color )

overridevirtual

Sets the draw color.

Implements yaze::gfx::IRenderer.

Definition at line 177 of file sdl2_renderer.cc.

References renderer_.

GetBackendRenderer()

void * yaze::gfx::SDL2Renderer::GetBackendRenderer ( )

inlineoverridevirtual

Provides access to the underlying SDL_Renderer*.

Returns

A void pointer that can be safely cast to an SDL_Renderer*.

Implements yaze::gfx::IRenderer.

Definition at line 52 of file sdl2_renderer.h.

References renderer_.

Member Data Documentation

renderer_

std::unique_ptr<SDL_Renderer, util::SDL_Deleter> yaze::gfx::SDL2Renderer::renderer_

private

Definition at line 57 of file sdl2_renderer.h.

Referenced by Clear(), CreateRenderTargetTexture(), CreateTexture(), CreateTextureWithFormat(), GetBackendRenderer(), Initialize(), Present(), RenderCopy(), SetDrawColor(), SetRenderTarget(), and Shutdown().

---

The documentation for this class was generated from the following files:

• src/app/gfx/backend/sdl2_renderer.h
• src/app/gfx/backend/sdl2_renderer.cc
