yaze::zelda3::OverworldUpgradeSystem Class Reference

Service responsible for applying the ZSCustomOverworld ASM patch and updating ROM version markers for A Link to the Past. More...

#include <overworld_upgrade_system.h>

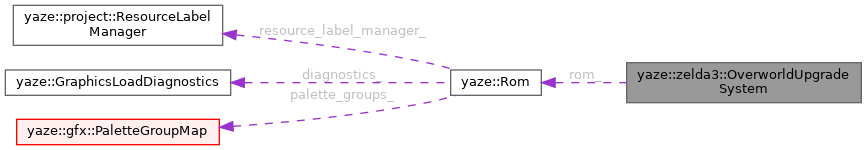

Collaboration diagram for yaze::zelda3::OverworldUpgradeSystem:

Public Member Functions
	OverworldUpgradeSystem (Rom &rom)
	Constructs the upgrade system.
absl::Status	ApplyZSCustomOverworldASM (int target_version)
	Apply ZSCustomOverworld ASM patch to upgrade ROM version.

Private Member Functions
absl::Status	UpdateROMVersionMarkers (int target_version)
	Update ROM version markers and feature flags after ASM patching. This is an internal sub-step of the upgrade process.

Private Attributes
Rom &	rom_

Detailed Description

Service responsible for applying the ZSCustomOverworld ASM patch and updating ROM version markers for A Link to the Past.

This system encapsulates the destructive logic of upgrading a vanilla ROM to support expanded overworld features (v2 and v3).

Definition at line 19 of file overworld_upgrade_system.h.

Constructor & Destructor Documentation

OverworldUpgradeSystem()

yaze::zelda3::OverworldUpgradeSystem::OverworldUpgradeSystem ( Rom & rom )

explicit

Constructs the upgrade system.

Parameters

rom	The ROM to be mutated. Must be valid for the lifetime of this object.

Definition at line 18 of file overworld_upgrade_system.cc.

Member Function Documentation

ApplyZSCustomOverworldASM()

absl::Status yaze::zelda3::OverworldUpgradeSystem::ApplyZSCustomOverworldASM

(

int

target_version

)

Apply ZSCustomOverworld ASM patch to upgrade ROM version.

Parameters

target_version

Target version (2 for v2, 3 for v3).

Returns

OK if the patch was successful, or an error detailing the ASM failure.

Definition at line 20 of file overworld_upgrade_system.cc.

References yaze::util::GetResourcePath(), yaze::Rom::LoadFromData(), LOG_DEBUG, LOG_ERROR, yaze::zelda3::OverworldCustomASMHasBeenApplied, RETURN_IF_ERROR, rom_, UpdateROMVersionMarkers(), and yaze::Rom::vector().

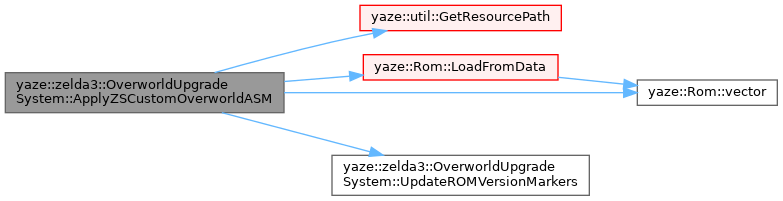

Here is the call graph for this function:

UpdateROMVersionMarkers()

absl::Status yaze::zelda3::OverworldUpgradeSystem::UpdateROMVersionMarkers ( int target_version )

private

Update ROM version markers and feature flags after ASM patching. This is an internal sub-step of the upgrade process.

Definition at line 119 of file overworld_upgrade_system.cc.

References yaze::zelda3::kOverworldScreenSize, yaze::zelda3::LargeArea, LOG_DEBUG, yaze::zelda3::OverworldCustomAnimatedGFXEnabled, yaze::zelda3::OverworldCustomAreaSpecificBGEnabled, yaze::zelda3::OverworldCustomASMHasBeenApplied, yaze::zelda3::OverworldCustomMainPaletteEnabled, yaze::zelda3::OverworldCustomMosaicEnabled, yaze::zelda3::OverworldCustomSubscreenOverlayEnabled, yaze::zelda3::OverworldCustomTileGFXGroupEnabled, rom_, and yaze::zelda3::SmallArea.

Referenced by ApplyZSCustomOverworldASM().

Member Data Documentation

rom_

Rom& yaze::zelda3::OverworldUpgradeSystem::rom_

private

Definition at line 41 of file overworld_upgrade_system.h.

Referenced by ApplyZSCustomOverworldASM(), and UpdateROMVersionMarkers().

---

The documentation for this class was generated from the following files:

• src/zelda3/overworld/overworld_upgrade_system.h
• src/zelda3/overworld/overworld_upgrade_system.cc
