yaze::zelda3::GraphicsSheetStore::Edit Class Reference

#include <graphics_sheet_store.h>

Collaboration diagram for yaze::zelda3::GraphicsSheetStore::Edit:

Public Member Functions
	Edit (GraphicsSheetStore &store, uint16_t sheet)
	ok() is false when store does not hold sheet.
	~Edit ()
	Edit (const Edit &)=delete
Edit &	operator= (const Edit &)=delete
bool	ok () const
uint16_t	sheet () const
uint8_t	Get (int x, int y) const
	The pixel at (x, y), or 0 outside the sheet.
bool	Set (int x, int y, uint8_t index)
const std::vector< uint8_t > &	before () const
	The sheet as it was when the Edit began.
absl::Span< const uint8_t >	pixels () const
	The sheet now, including uncommitted pixels.
void	Commit ()
	Bumps the revision once if any pixel changed since the last commit.

Static Public Member Functions
static constexpr int	width ()
static constexpr int	height ()

Private Attributes
GraphicsSheetStore *	store_ = nullptr
uint16_t	sheet_ = 0
std::vector< uint8_t >	before_
bool	uncommitted_ = false

Detailed Description

One stroke on one sheet. Set() changes the store's pixels at once, so every reader sees them; the sheet's revision changes once, on Commit() or when the Edit ends. An Edit points into its store: keep it no longer than the stroke.

Definition at line 69 of file graphics_sheet_store.h.

Constructor & Destructor Documentation

Edit() [1/2]

yaze::zelda3::GraphicsSheetStore::Edit::Edit	(	GraphicsSheetStore &	store,
		uint16_t	sheet )

ok() is false when store does not hold sheet.

Definition at line 78 of file graphics_sheet_store.cc.

References before_, yaze::zelda3::GraphicsSheetStore::HasSheet(), sheet(), yaze::zelda3::GraphicsSheetStore::Sheet(), and store_.

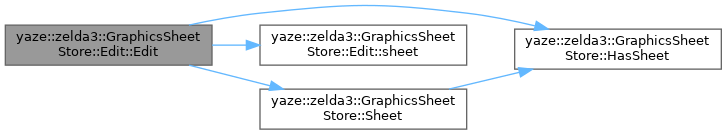

Here is the call graph for this function:

~Edit()

yaze::zelda3::GraphicsSheetStore::Edit::~Edit

(

)

Definition at line 88 of file graphics_sheet_store.cc.

Edit() [2/2]

yaze::zelda3::GraphicsSheetStore::Edit::Edit ( const Edit & )

delete

Member Function Documentation

operator=()

Edit & yaze::zelda3::GraphicsSheetStore::Edit::operator= ( const Edit & )

delete

ok()

bool yaze::zelda3::GraphicsSheetStore::Edit::ok ( ) const

inline

Definition at line 77 of file graphics_sheet_store.h.

References store_.

sheet()

uint16_t yaze::zelda3::GraphicsSheetStore::Edit::sheet ( ) const

inline

Definition at line 78 of file graphics_sheet_store.h.

References sheet_.

Referenced by Edit().

width()

static constexpr int yaze::zelda3::GraphicsSheetStore::Edit::width ( )

inlinestaticconstexpr

Definition at line 79 of file graphics_sheet_store.h.

References yaze::zelda3::GraphicsSheetStore::kSheetWidth.

height()

static constexpr int yaze::zelda3::GraphicsSheetStore::Edit::height ( )

inlinestaticconstexpr

Definition at line 80 of file graphics_sheet_store.h.

References yaze::zelda3::GraphicsSheetStore::kSheetHeight.

Get()

uint8_t yaze::zelda3::GraphicsSheetStore::Edit::Get	(	int	x,
		int	y ) const

The pixel at (x, y), or 0 outside the sheet.

Definition at line 92 of file graphics_sheet_store.cc.

References yaze::zelda3::GraphicsSheetStore::kSheetBytes, and yaze::zelda3::GraphicsSheetStore::kSheetWidth.

Set()

bool yaze::zelda3::GraphicsSheetStore::Edit::Set	(	int	x,
		int	y,
		uint8_t	index )

Writes one pixel; ignores coordinates outside the sheet. Returns true when the pixel changed.

Definition at line 99 of file graphics_sheet_store.cc.

References yaze::zelda3::GraphicsSheetStore::kSheetBytes, and yaze::zelda3::GraphicsSheetStore::kSheetWidth.

before()

const std::vector< uint8_t > & yaze::zelda3::GraphicsSheetStore::Edit::before ( ) const

inline

The sheet as it was when the Edit began.

Definition at line 88 of file graphics_sheet_store.h.

References before_.

pixels()

absl::Span< const uint8_t > yaze::zelda3::GraphicsSheetStore::Edit::pixels

(

)

const

The sheet now, including uncommitted pixels.

Definition at line 112 of file graphics_sheet_store.cc.

Commit()

void yaze::zelda3::GraphicsSheetStore::Edit::Commit

(

)

Bumps the revision once if any pixel changed since the last commit.

Definition at line 116 of file graphics_sheet_store.cc.

Member Data Documentation

store_

GraphicsSheetStore* yaze::zelda3::GraphicsSheetStore::Edit::store_ = nullptr

private

Definition at line 95 of file graphics_sheet_store.h.

Referenced by Edit(), and ok().

sheet_

uint16_t yaze::zelda3::GraphicsSheetStore::Edit::sheet_ = 0

private

Definition at line 96 of file graphics_sheet_store.h.

Referenced by sheet().

before_

std::vector<uint8_t> yaze::zelda3::GraphicsSheetStore::Edit::before_

private

Definition at line 97 of file graphics_sheet_store.h.

Referenced by before(), and Edit().

uncommitted_

bool yaze::zelda3::GraphicsSheetStore::Edit::uncommitted_ = false

private

Definition at line 98 of file graphics_sheet_store.h.

---

The documentation for this class was generated from the following files:

• src/zelda3/graphics_sheet_store.h
• src/zelda3/graphics_sheet_store.cc
