#include <graphics_sheet_store.h>

Classes
class	Edit

Public Member Functions
const std::vector< uint8_t > &	pixels () const

std::vector< uint8_t > &	mutable_pixels ()
	For the `graphics_buffer` alias and the loader only.

bool	HasSheet (uint16_t sheet) const
	True when the buffer holds all 4096 bytes of `sheet`.

absl::Span< const uint8_t >	Sheet (uint16_t sheet) const
	The sheet's 4096 pixels, or an empty span when it is not held.

uint64_t	Revision (uint16_t sheet) const

absl::Status	WriteSheet (uint16_t sheet, absl::Span< const uint8_t > pixels, uint8_t max_index=0x0F)

void	MarkAllSheetsChanged ()
	Call after the loader refills the buffer: bumps every revision.

void	Clear ()
	Empties the buffer and bumps every revision.

Static Public Attributes
static constexpr uint16_t	kSheetCount = 223

static constexpr size_t	kSheetWidth = 128

static constexpr size_t	kSheetHeight = 32

static constexpr size_t	kSheetBytes = kSheetWidth * kSheetHeight

Private Attributes
std::vector< uint8_t >	pixels_

std::array< uint64_t, kSheetCount >	revisions_ {}

Detailed Description

Definition at line 33 of file graphics_sheet_store.h.

Member Function Documentation

◆ pixels()

const std::vector< uint8_t > & yaze::zelda3::GraphicsSheetStore::pixels ( ) const

inline

The whole buffer, graphics_buffer layout. May hold fewer than 223 sheets while a load is in progress or after Clear().

Definition at line 42 of file graphics_sheet_store.h.

References pixels_.

Referenced by WriteSheet().

◆ mutable_pixels()

std::vector< uint8_t > & yaze::zelda3::GraphicsSheetStore::mutable_pixels ( )

inline

For the graphics_buffer alias and the loader only.

Definition at line 44 of file graphics_sheet_store.h.

References pixels_.

◆ HasSheet()

bool yaze::zelda3::GraphicsSheetStore::HasSheet ( uint16_t sheet ) const

True when the buffer holds all 4096 bytes of sheet.

Definition at line 20 of file graphics_sheet_store.cc.

References kSheetBytes, kSheetCount, and pixels_.

Referenced by yaze::editor::GfxGroupEditor::DrawSheetPicker(), yaze::zelda3::GraphicsSheetStore::Edit::Edit(), yaze::editor::GfxGroupEditor::EditGraphicsSheet(), yaze::editor::DungeonEditorV2::EditRoomGraphicsSheet(), yaze::editor::sprite_graphics_context::Make(), yaze::editor::GraphicsEditor::OpenInContext(), yaze::editor::PlanPalettePixelPermutation(), yaze::editor::GfxGroupEditor::PrepareSheetPreview(), yaze::editor::RomSession::ReloadGraphicsDisplay(), yaze::editor::ResolveOverworldQuadrantTarget(), Sheet(), and WriteSheet().

◆ Sheet()

absl::Span< const uint8_t > yaze::zelda3::GraphicsSheetStore::Sheet ( uint16_t sheet ) const

The sheet's 4096 pixels, or an empty span when it is not held.

Definition at line 25 of file graphics_sheet_store.cc.

References HasSheet(), kSheetBytes, and pixels_.

Referenced by yaze::zelda3::GraphicsSheetStore::Edit::Edit(), yaze::editor::ScreenEditor::Load(), yaze::editor::SpriteEditor::LoadSpriteGraphicsBuffer(), yaze::editor::PlanPalettePixelPermutation(), yaze::editor::GfxGroupEditor::PrepareSheetPreview(), yaze::editor::ScreenEditor::RefreshDungeonMapGraphicsFromSession(), yaze::editor::RomSession::ReloadGraphicsDisplay(), yaze::editor::RenderDungeonMapTilesGfxPreview(), and yaze::editor::usage_preview::SnapshotSessionSheets().

Here is the call graph for this function:

◆ Revision()

uint64_t yaze::zelda3::GraphicsSheetStore::Revision ( uint16_t sheet ) const

Changes each time the store replaces this sheet's pixels; 0 for a sheet out of range.

Definition at line 32 of file graphics_sheet_store.cc.

References kSheetCount, and revisions_.

Referenced by yaze::editor::AttachSheetStore(), yaze::editor::PaletteReorderControl::Begin(), yaze::editor::GraphicsEditor::BuildContextSnapshot(), yaze::editor::UsagePreviewView::HashWatchedSheets(), yaze::editor::sprite_graphics_context::Make(), yaze::editor::MakeDungeonMapTilesGfxEditContext(), yaze::zelda3::Room::RecordSourceSheet(), yaze::zelda3::OverworldMap::RecordSourceSheetRevisions(), yaze::editor::SpriteEditor::RefreshSpritePreviewGraphics(), yaze::editor::UsagePreviewView::SharedUsesHash(), yaze::zelda3::anonymous_namespace{resolved_graphics_context.cc}::SheetRevision(), yaze::zelda3::Overworld::SheetRevisionsForKey(), yaze::editor::PaletteReorderControl::SourceChanged(), yaze::zelda3::Room::SourceSheetsChanged(), and yaze::zelda3::OverworldMap::SourceSheetsChanged().

◆ WriteSheet()

absl::Status yaze::zelda3::GraphicsSheetStore::WriteSheet	(	uint16_t	sheet,
		absl::Span< const uint8_t >	pixels,
		uint8_t	max_index = 0x0F )

Replaces one sheet's pixels and bumps its revision. Refuses a sheet outside the buffer, the wrong size, or indices above max_index. Writing identical pixels changes nothing, including the revision.

Definition at line 36 of file graphics_sheet_store.cc.

References HasSheet(), kSheetBytes, kSheetWidth, pixels(), pixels_, and revisions_.

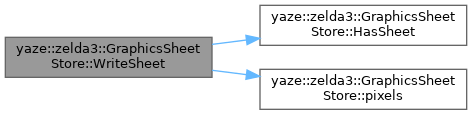

Here is the call graph for this function:
