Dedicated view for editing dungeon palette sets. More...

#include <paletteset_editor_view.h>

Inheritance diagram for yaze::editor::PalettesetEditorView:

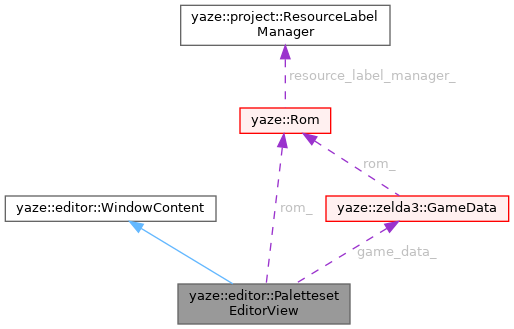

Collaboration diagram for yaze::editor::PalettesetEditorView:

[legend]

Public Member Functions
std::string	GetId () const override
	Unique identifier for this panel.

std::string	GetDisplayName () const override
	Human-readable name shown in menus and title bars.

std::string	GetIcon () const override
	Material Design icon for this panel.

std::string	GetEditorCategory () const override
	Editor category this panel belongs to.

int	GetPriority () const override
	Get display priority for menu ordering.

float	GetPreferredWidth () const override
	Get preferred width for this panel (optional)

void	Draw (bool *p_open) override
	Draw the panel content.

absl::Status	Update ()

void	SetRom (Rom *rom)

Rom *	rom () const

void	SetGameData (zelda3::GameData *data)

zelda3::GameData *	game_data () const

Public Member Functions inherited from yaze::editor::WindowContent
virtual	~WindowContent ()=default

virtual void	OnFirstDraw ()
	Called once before the first Draw() in a session.

virtual bool	RequiresLazyInit () const
	Whether this panel uses lazy initialization.

void	InvalidateLazyInit ()
	Reset lazy init state so OnFirstDraw() runs again.

virtual void	OnOpen ()
	Called when panel becomes visible.

virtual void	OnClose ()
	Called when panel is hidden.

virtual void	OnFocus ()
	Called when panel receives focus.

virtual WindowLifecycle	GetWindowLifecycle () const
	Get the lifecycle category for this window.

virtual WindowContextScope	GetContextScope () const
	Optional context binding for this window (room/selection/etc)

virtual WindowScope	GetScope () const
	Get the registration scope for this window.

virtual bool	IsEnabled () const
	Check if this panel is currently enabled.

virtual std::string	GetDisabledTooltip () const
	Get tooltip text when panel is disabled.

virtual std::string	GetShortcutHint () const
	Get keyboard shortcut hint for display.

virtual std::string	GetWorkflowGroup () const
	Optional workflow group for hack-centric actions.

virtual std::string	GetWorkflowLabel () const
	Optional workflow label for menus/command palette.

virtual std::string	GetWorkflowDescription () const
	Optional workflow description for menus/command palette.

virtual int	GetWorkflowPriority () const
	Optional workflow ordering priority (lower sorts first).

virtual bool	PreferAutoHideTabBar () const
	Whether the dock node hosting this panel should auto-hide its tab bar.

virtual bool	IsVisibleByDefault () const
	Whether this panel should be visible by default.

virtual std::string	GetParentPanelId () const
	Get parent panel ID for cascade behavior.

virtual bool	CascadeCloseChildren () const
	Whether closing this panel should close child panels.

void	DrawWithLazyInit (bool *p_open)
	Execute lazy initialization if needed, then call Draw()

Private Member Functions
void	DrawPalettesetList ()

void	DrawPalettesetEditor ()

void	DrawPalettePreview (gfx::SnesPalette &palette, const char *label)

void	DrawPaletteGrid (gfx::SnesPalette &palette, bool editable=false)

Private Attributes
uint8_t	selected_paletteset_ = 0

bool	show_all_colors_ = false

Rom *	rom_ = nullptr

zelda3::GameData *	game_data_ = nullptr

Additional Inherited Members
Protected Member Functions inherited from yaze::editor::WindowContent
void	InvalidateCache ()
	Invalidate all cached computations.

template<typename T >
T &	GetCached (const std::string &key, std::function< T()> compute)
	Get or compute a cached value.

bool	IsCacheValid () const
	Check if cache has been invalidated.

void	ClearCache ()
	Clear all cached values (more aggressive than InvalidateCache)

Detailed Description

Dedicated view for editing dungeon palette sets.

A paletteset defines which palettes are used together in a dungeon room:

Dungeon Main: The primary background/tileset palette
Sprite Aux 1-3: Three auxiliary sprite palettes for enemies/NPCs

This view allows inspecting and editing these associations, providing a better UX than the combined GfxGroupEditor tab.

Definition at line 27 of file paletteset_editor_view.h.

Member Function Documentation

◆ GetId()

std::string yaze::editor::PalettesetEditorView::GetId ( ) const

inlineoverridevirtual

Unique identifier for this panel.

Returns: Panel ID in format "{category}.{name}" (e.g., "dungeon.room_selector")

IDs should be:

Lowercase with underscores
Prefixed with editor category
Unique across all panels

Implements yaze::editor::WindowContent.

Definition at line 29 of file paletteset_editor_view.h.

◆ GetDisplayName()

std::string yaze::editor::PalettesetEditorView::GetDisplayName ( ) const

inlineoverridevirtual

Human-readable name shown in menus and title bars.

Returns: Display name (e.g., "Room Selector")

Implements yaze::editor::WindowContent.

Definition at line 30 of file paletteset_editor_view.h.

◆ GetIcon()

std::string yaze::editor::PalettesetEditorView::GetIcon ( ) const

inlineoverridevirtual

Material Design icon for this panel.

Returns: Icon constant (e.g., ICON_MD_LIST)

Implements yaze::editor::WindowContent.

Definition at line 31 of file paletteset_editor_view.h.

References ICON_MD_COLOR_LENS.

◆ GetEditorCategory()

std::string yaze::editor::PalettesetEditorView::GetEditorCategory ( ) const

inlineoverridevirtual

Editor category this panel belongs to.

Returns: Category name matching EditorType (e.g., "Dungeon", "Overworld")

Implements yaze::editor::WindowContent.

Definition at line 32 of file paletteset_editor_view.h.

◆ GetPriority()

int yaze::editor::PalettesetEditorView::GetPriority ( ) const

inlineoverridevirtual

Get display priority for menu ordering.

Returns: Priority value (lower = higher in list, default 50)

Reimplemented from yaze::editor::WindowContent.

Definition at line 33 of file paletteset_editor_view.h.

◆ GetPreferredWidth()

float yaze::editor::PalettesetEditorView::GetPreferredWidth ( ) const

inlineoverridevirtual

Get preferred width for this panel (optional)

Returns: Preferred width in pixels, or 0 to use default (250px)

Override this to specify content-based sizing. For example, a tile selector with 8 tiles at 16px × 2.0 scale would return ~276px.

Reimplemented from yaze::editor::WindowContent.

Definition at line 34 of file paletteset_editor_view.h.

◆ Draw()

void yaze::editor::PalettesetEditorView::Draw ( bool * p_open )

overridevirtual

Draw the panel content.

Parameters

p_open Pointer to visibility flag (nullptr if not closable)

Called by WorkspaceWindowManager when the panel is visible. Do NOT call ImGui::Begin/End - the PanelWindow wrapper handles that. Just draw your content directly.

Implements yaze::editor::WindowContent.

Definition at line 37 of file paletteset_editor_view.cc.

References Update().

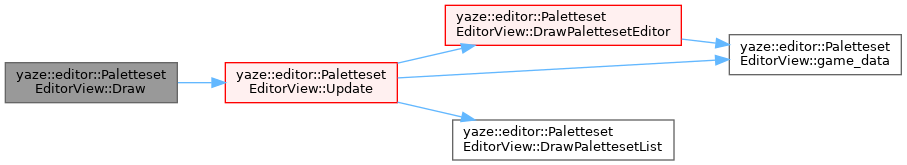

Here is the call graph for this function:
