yaze::editor::WindowContent Class Reference

Base interface for all logical window content components. More...

#include <editor_panel.h>

Inherited by yaze::editor::AboutPanel, yaze::editor::AgentBotProfilesPanel, yaze::editor::AgentBuilderPanel, yaze::editor::AgentChatHistoryPanel, yaze::editor::AgentChatPanel, yaze::editor::AgentConfigurationPanel, yaze::editor::AgentKnowledgeBasePanel, yaze::editor::AgentMesenDebugPanel, yaze::editor::AgentMetricsDashboardPanel, yaze::editor::AgentPromptEditorPanel, yaze::editor::AgentStatusPanel, yaze::editor::AnnotationOverlayPanel, yaze::editor::AnnotationOverlayPanel, yaze::editor::AreaGraphicsPanel, yaze::editor::AreaGraphicsView, yaze::editor::AssemblyBuildOutputPanel, yaze::editor::AssemblyCodeEditorPanel, yaze::editor::AssemblyDisassemblyPanel, yaze::editor::AssemblyFileBrowserPanel, yaze::editor::AssemblySymbolsPanel, yaze::editor::AssemblyToolbarPanel, yaze::editor::ChestEditorPanel, yaze::editor::CustomCollisionPanel, yaze::editor::CustomPalettePanel, yaze::editor::CustomSpriteEditorPanel, yaze::editor::DebugWindowPanel, yaze::editor::DebugWindowView, yaze::editor::DictionaryPanel, yaze::editor::DoorEditorContent, yaze::editor::DungeonEmulatorPreviewPanel, yaze::editor::DungeonEntranceListPanel, yaze::editor::DungeonEntrancesPanel, yaze::editor::DungeonMapPanel, yaze::editor::DungeonMapsPanel, yaze::editor::DungeonSettingsPanel, yaze::editor::DungeonWorkbenchContent, yaze::editor::FeatureFlagEditorEditorPanel, yaze::editor::FontAtlasPanel, yaze::editor::GfxGroupsPanel, yaze::editor::GfxGroupsView, yaze::editor::GraphicsGfxGroupPanel, yaze::editor::GraphicsLinkSpritePanel, yaze::editor::GraphicsPaletteControlsPanel, yaze::editor::GraphicsPalettesetPanel, yaze::editor::GraphicsPixelEditorPanel, yaze::editor::GraphicsPolyhedralPanel, yaze::editor::GraphicsPrototypeViewerPanel, yaze::editor::GraphicsSheetBrowserPanel, yaze::editor::InventoryMenuPanel, yaze::editor::ItemEditorPanel, yaze::editor::LinkSpritePanel, yaze::editor::LinkSpriteView, yaze::editor::ManifestEditorPanel, yaze::editor::MapPropertiesPanel, yaze::editor::MapPropertiesView, yaze::editor::MesenScreenshotEditorPanel, yaze::editor::MessageEditorPanel, yaze::editor::MessageListPanel, yaze::editor::MinecartTrackEditorPanel, yaze::editor::MusicAssemblyPanel, yaze::editor::MusicAudioDebugPanel, yaze::editor::MusicHelpPanel, yaze::editor::MusicInstrumentEditorPanel, yaze::editor::MusicPianoRollPanel, yaze::editor::MusicPlaybackControlPanel, yaze::editor::MusicSampleEditorPanel, yaze::editor::MusicSongBrowserPanel, yaze::editor::NamingScreenPanel, yaze::editor::ObjectEditorContent, yaze::editor::ObjectSelectorContent, yaze::editor::ObjectTileEditorPanel, yaze::editor::OracleMenuInspectorPanel, yaze::editor::OracleMenuInspectorPanel, yaze::editor::OracleRamPanel, yaze::editor::OracleStateLibraryEditorPanel, yaze::editor::OracleValidationPanel, yaze::editor::OracleValidationPanel, yaze::editor::OverlayManagerPanel, yaze::editor::OverworldCanvasPanel, yaze::editor::OverworldCanvasView, yaze::editor::OverworldEntityWorkbench, yaze::editor::OverworldItemListPanel, yaze::editor::OverworldItemListView, yaze::editor::OverworldMapScreenPanel, yaze::editor::PaletteControlPanel, yaze::editor::PaletteControlsPanel, yaze::editor::PaletteControlsView, yaze::editor::PaletteEditorContent, yaze::editor::PaletteGroupPanel, yaze::editor::PalettesetEditorView, yaze::editor::PixelEditorPanel, yaze::editor::PixelEditorView, yaze::editor::PolyhedralEditorPanel, yaze::editor::PolyhedralEditorView, yaze::editor::ProgressionDashboardPanel, yaze::editor::ProgressionDashboardPanel, yaze::editor::PrototypeResearchView, yaze::editor::QuickAccessPalettePanel, yaze::editor::ResourceWindowContent, yaze::editor::ResourceWindowContent, yaze::editor::RoomBrowserContent, yaze::editor::RoomGraphicsContent, yaze::editor::RoomMatrixContent, yaze::editor::RoomTagEditorPanel, yaze::editor::ScratchSpacePanel, yaze::editor::ScratchSpaceView, yaze::editor::ScreenWorkspaceView, yaze::editor::SheetBrowserPanel, yaze::editor::SheetBrowserView, yaze::editor::SpriteEditorPanel, yaze::editor::SramViewerEditorPanel, yaze::editor::StoryEventGraphPanel, yaze::editor::StoryEventGraphPanel, yaze::editor::Tile16EditorPanel, yaze::editor::Tile16EditorView, yaze::editor::Tile16SelectorPanel, yaze::editor::Tile16SelectorView, yaze::editor::Tile8SelectorPanel, yaze::editor::Tile8SelectorView, yaze::editor::TitleScreenPanel, yaze::editor::UsageStatisticsPanel, yaze::editor::UsageStatisticsView, yaze::editor::V3SettingsPanel, yaze::editor::V3SettingsView, yaze::editor::VanillaSpriteEditorPanel, yaze::editor::WaterFillPanel, and yaze::editor::workflow::ProjectWorkflowOutputPanel.

Public Member Functions
virtual	~WindowContent ()=default
virtual std::string	GetId () const =0
	Unique identifier for this panel.
virtual std::string	GetDisplayName () const =0
	Human-readable name shown in menus and title bars.
virtual std::string	GetIcon () const =0
	Material Design icon for this panel.
virtual std::string	GetEditorCategory () const =0
	Editor category this panel belongs to.
virtual void	Draw (bool *p_open)=0
	Draw the panel content.
virtual void	OnFirstDraw ()
	Called once before the first Draw() in a session.
virtual bool	RequiresLazyInit () const
	Whether this panel uses lazy initialization.
void	InvalidateLazyInit ()
	Reset lazy init state so OnFirstDraw() runs again.
virtual void	OnOpen ()
	Called when panel becomes visible.
virtual void	OnClose ()
	Called when panel is hidden.
virtual void	OnFocus ()
	Called when panel receives focus.
virtual WindowLifecycle	GetWindowLifecycle () const
	Get the lifecycle category for this window.
virtual WindowContextScope	GetContextScope () const
	Optional context binding for this window (room/selection/etc)
virtual WindowScope	GetScope () const
	Get the registration scope for this window.
virtual bool	IsEnabled () const
	Check if this panel is currently enabled.
virtual std::string	GetDisabledTooltip () const
	Get tooltip text when panel is disabled.
virtual std::string	GetShortcutHint () const
	Get keyboard shortcut hint for display.
virtual int	GetPriority () const
	Get display priority for menu ordering.
virtual std::string	GetWorkflowGroup () const
	Optional workflow group for hack-centric actions.
virtual std::string	GetWorkflowLabel () const
	Optional workflow label for menus/command palette.
virtual std::string	GetWorkflowDescription () const
	Optional workflow description for menus/command palette.
virtual int	GetWorkflowPriority () const
	Optional workflow ordering priority (lower sorts first).
virtual float	GetPreferredWidth () const
	Get preferred width for this panel (optional)
virtual bool	PreferAutoHideTabBar () const
	Whether the dock node hosting this panel should auto-hide its tab bar.
virtual bool	IsVisibleByDefault () const
	Whether this panel should be visible by default.
virtual std::string	GetParentPanelId () const
	Get parent panel ID for cascade behavior.
virtual bool	CascadeCloseChildren () const
	Whether closing this panel should close child panels.

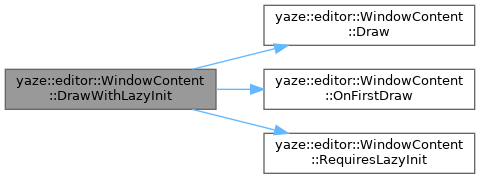

void	DrawWithLazyInit (bool *p_open)
	Execute lazy initialization if needed, then call Draw()

Protected Member Functions
void	InvalidateCache ()
	Invalidate all cached computations.
template<typename T >
T &	GetCached (const std::string &key, std::function< T()> compute)
	Get or compute a cached value.
bool	IsCacheValid () const
	Check if cache has been invalidated.
void	ClearCache ()
	Clear all cached values (more aggressive than InvalidateCache)

Private Attributes
bool	lazy_init_done_ = false
bool	cache_valid_ = false
std::unordered_map< std::string, std::any >	cache_

Detailed Description

Base interface for all logical window content components.

WindowContent represents a logical UI component that draws content within a panel window. This is distinct from PanelWindow (the ImGui wrapper that draws the window chrome/title bar).

The separation allows:

• WorkspaceWindowManager to handle window creation/visibility centrally
• Panel components to focus purely on content drawing
• Consistent window behavior across all editors

Example

class UsageStatisticsPanel : public WindowContent {
 public:
  std::string GetId() const override { return "overworld.usage_stats"; }
  std::string GetDisplayName() const override { return "Usage Statistics"; }
  std::string GetIcon() const override { return ICON_MD_ANALYTICS; }
  std::string GetEditorCategory() const override { return "Overworld"; }

  void Draw(bool* p_open) override {
    // Draw your content here - no ImGui::Begin/End needed
    // WorkspaceWindowManager handles the window wrapper
    DrawUsageGrid();
    DrawUsageStates();
  }
};

See also

PanelWindow - The ImGui window wrapper (draws chrome)

WorkspaceWindowManager - Central registry that manages panel lifecycle

WindowDescriptor - Metadata struct for window registration

Definition at line 89 of file editor_panel.h.

Constructor & Destructor Documentation

~WindowContent()

virtual yaze::editor::WindowContent::~WindowContent ( )

virtualdefault

Member Function Documentation

GetId()

virtual std::string yaze::editor::WindowContent::GetId ( ) const

pure virtual

Unique identifier for this panel.

Returns

Panel ID in format "{category}.{name}" (e.g., "dungeon.room_selector")

IDs should be:

• Lowercase with underscores
• Prefixed with editor category
• Unique across all panels

Implemented in yaze::editor::OracleRamPanel, yaze::editor::AgentConfigurationPanel, yaze::editor::AgentStatusPanel, yaze::editor::AgentPromptEditorPanel, yaze::editor::AgentBotProfilesPanel, yaze::editor::AgentChatHistoryPanel, yaze::editor::AgentMetricsDashboardPanel, yaze::editor::AgentBuilderPanel, yaze::editor::AgentMesenDebugPanel, yaze::editor::AgentKnowledgeBasePanel, yaze::editor::AgentChatPanel, yaze::editor::OracleStateLibraryEditorPanel, yaze::editor::FeatureFlagEditorEditorPanel, yaze::editor::ManifestEditorPanel, yaze::editor::SramViewerEditorPanel, yaze::editor::MesenScreenshotEditorPanel, yaze::editor::AssemblyCodeEditorPanel, yaze::editor::AssemblyFileBrowserPanel, yaze::editor::AssemblySymbolsPanel, yaze::editor::AssemblyBuildOutputPanel, yaze::editor::AssemblyDisassemblyPanel, yaze::editor::AssemblyToolbarPanel, yaze::editor::DoorEditorContent, yaze::editor::ObjectEditorContent, yaze::editor::PaletteEditorContent, yaze::editor::ObjectSelectorContent, yaze::editor::ChestEditorPanel, yaze::editor::CustomCollisionPanel, yaze::editor::DungeonEmulatorPreviewPanel, yaze::editor::DungeonEntranceListPanel, yaze::editor::DungeonEntrancesPanel, yaze::editor::DungeonMapPanel, yaze::editor::DungeonSettingsPanel, yaze::editor::ItemEditorPanel, yaze::editor::MinecartTrackEditorPanel, yaze::editor::ObjectTileEditorPanel, yaze::editor::OverlayManagerPanel, yaze::editor::RoomTagEditorPanel, yaze::editor::SpriteEditorPanel, yaze::editor::WaterFillPanel, yaze::editor::DungeonWorkbenchContent, yaze::editor::RoomBrowserContent, yaze::editor::RoomGraphicsContent, yaze::editor::RoomMatrixContent, yaze::editor::LinkSpritePanel, yaze::editor::PaletteControlsPanel, yaze::editor::GraphicsSheetBrowserPanel, yaze::editor::GraphicsPixelEditorPanel, yaze::editor::GraphicsPaletteControlsPanel, yaze::editor::GraphicsLinkSpritePanel, yaze::editor::GraphicsPolyhedralPanel, yaze::editor::GraphicsGfxGroupPanel, yaze::editor::GraphicsPrototypeViewerPanel, yaze::editor::GraphicsPalettesetPanel, yaze::editor::DungeonMapsPanel, yaze::editor::InventoryMenuPanel, yaze::editor::OverworldMapScreenPanel, yaze::editor::TitleScreenPanel, yaze::editor::NamingScreenPanel, yaze::editor::PixelEditorPanel, yaze::editor::PolyhedralEditorPanel, yaze::editor::SheetBrowserPanel, yaze::editor::SheetBrowserView, yaze::editor::PixelEditorView, yaze::editor::PaletteControlsView, yaze::editor::PalettesetEditorView, yaze::editor::PolyhedralEditorView, yaze::editor::PrototypeResearchView, yaze::editor::DungeonMapsView, yaze::editor::InventoryMenuView, yaze::editor::OverworldMapScreenView, yaze::editor::TitleScreenView, yaze::editor::NamingScreenView, yaze::editor::LinkSpriteView, yaze::editor::AnnotationOverlayPanel, yaze::editor::OracleMenuInspectorPanel, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, yaze::editor::StoryEventGraphPanel, yaze::editor::workflow::ProjectWorkflowOutputPanel, yaze::editor::MessageListPanel, yaze::editor::MessageEditorPanel, yaze::editor::FontAtlasPanel, yaze::editor::DictionaryPanel, yaze::editor::MusicAssemblyPanel, yaze::editor::MusicAudioDebugPanel, yaze::editor::MusicHelpPanel, yaze::editor::MusicInstrumentEditorPanel, yaze::editor::MusicPianoRollPanel, yaze::editor::MusicPlaybackControlPanel, yaze::editor::MusicSampleEditorPanel, yaze::editor::MusicSongBrowserPanel, yaze::editor::AnnotationOverlayPanel, yaze::editor::OracleMenuInspectorPanel, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, yaze::editor::StoryEventGraphPanel, yaze::editor::OverworldEntityWorkbench, yaze::editor::AreaGraphicsPanel, yaze::editor::DebugWindowPanel, yaze::editor::GfxGroupsPanel, yaze::editor::MapPropertiesPanel, yaze::editor::OverworldCanvasPanel, yaze::editor::OverworldItemListPanel, yaze::editor::ScratchSpacePanel, yaze::editor::Tile16EditorPanel, yaze::editor::Tile16SelectorPanel, yaze::editor::Tile8SelectorPanel, yaze::editor::UsageStatisticsPanel, yaze::editor::V3SettingsPanel, yaze::editor::UsageStatisticsView, yaze::editor::OverworldCanvasView, yaze::editor::DebugWindowView, yaze::editor::AreaGraphicsView, yaze::editor::GfxGroupsView, yaze::editor::OverworldItemListView, yaze::editor::MapPropertiesView, yaze::editor::V3SettingsView, yaze::editor::Tile16EditorView, yaze::editor::Tile16SelectorView, yaze::editor::Tile8SelectorView, yaze::editor::ScratchSpaceView, yaze::editor::PaletteControlPanel, yaze::editor::QuickAccessPalettePanel, yaze::editor::CustomPalettePanel, yaze::editor::PaletteGroupPanel, yaze::editor::AboutPanel, yaze::editor::VanillaSpriteEditorPanel, yaze::editor::CustomSpriteEditorPanel, yaze::editor::ResourceWindowContent, and yaze::editor::ResourceWindowContent.

Referenced by yaze::editor::anonymous_namespace{workspace_window_manager.cc}::BuildDescriptorFromPanel(), yaze::editor::anonymous_namespace{workspace_window_manager_state.cc}::BuildDescriptorFromPanel(), and yaze::editor::WorkspaceWindowManager::RegisterPanelDescriptorForSession().

GetDisplayName()

virtual std::string yaze::editor::WindowContent::GetDisplayName ( ) const

pure virtual

Human-readable name shown in menus and title bars.

Returns

Display name (e.g., "Room Selector")

Implemented in yaze::editor::OracleRamPanel, yaze::editor::AgentConfigurationPanel, yaze::editor::AgentStatusPanel, yaze::editor::AgentPromptEditorPanel, yaze::editor::AgentBotProfilesPanel, yaze::editor::AgentChatHistoryPanel, yaze::editor::AgentMetricsDashboardPanel, yaze::editor::AgentBuilderPanel, yaze::editor::AgentMesenDebugPanel, yaze::editor::AgentKnowledgeBasePanel, yaze::editor::AgentChatPanel, yaze::editor::OracleStateLibraryEditorPanel, yaze::editor::FeatureFlagEditorEditorPanel, yaze::editor::ManifestEditorPanel, yaze::editor::SramViewerEditorPanel, yaze::editor::MesenScreenshotEditorPanel, yaze::editor::AssemblyCodeEditorPanel, yaze::editor::AssemblyFileBrowserPanel, yaze::editor::AssemblySymbolsPanel, yaze::editor::AssemblyBuildOutputPanel, yaze::editor::AssemblyDisassemblyPanel, yaze::editor::AssemblyToolbarPanel, yaze::editor::DoorEditorContent, yaze::editor::ObjectEditorContent, yaze::editor::PaletteEditorContent, yaze::editor::ObjectSelectorContent, yaze::editor::ChestEditorPanel, yaze::editor::CustomCollisionPanel, yaze::editor::DungeonEmulatorPreviewPanel, yaze::editor::DungeonEntranceListPanel, yaze::editor::DungeonEntrancesPanel, yaze::editor::DungeonMapPanel, yaze::editor::DungeonSettingsPanel, yaze::editor::ItemEditorPanel, yaze::editor::MinecartTrackEditorPanel, yaze::editor::ObjectTileEditorPanel, yaze::editor::OverlayManagerPanel, yaze::editor::RoomTagEditorPanel, yaze::editor::SpriteEditorPanel, yaze::editor::WaterFillPanel, yaze::editor::DungeonWorkbenchContent, yaze::editor::RoomBrowserContent, yaze::editor::RoomGraphicsContent, yaze::editor::RoomMatrixContent, yaze::editor::LinkSpritePanel, yaze::editor::PaletteControlsPanel, yaze::editor::GraphicsSheetBrowserPanel, yaze::editor::GraphicsPixelEditorPanel, yaze::editor::GraphicsPaletteControlsPanel, yaze::editor::GraphicsLinkSpritePanel, yaze::editor::GraphicsPolyhedralPanel, yaze::editor::GraphicsGfxGroupPanel, yaze::editor::GraphicsPrototypeViewerPanel, yaze::editor::GraphicsPalettesetPanel, yaze::editor::DungeonMapsPanel, yaze::editor::InventoryMenuPanel, yaze::editor::OverworldMapScreenPanel, yaze::editor::TitleScreenPanel, yaze::editor::NamingScreenPanel, yaze::editor::PixelEditorPanel, yaze::editor::PolyhedralEditorPanel, yaze::editor::SheetBrowserPanel, yaze::editor::SheetBrowserView, yaze::editor::PixelEditorView, yaze::editor::PaletteControlsView, yaze::editor::PalettesetEditorView, yaze::editor::PolyhedralEditorView, yaze::editor::PrototypeResearchView, yaze::editor::DungeonMapsView, yaze::editor::InventoryMenuView, yaze::editor::OverworldMapScreenView, yaze::editor::TitleScreenView, yaze::editor::NamingScreenView, yaze::editor::LinkSpriteView, yaze::editor::AnnotationOverlayPanel, yaze::editor::OracleMenuInspectorPanel, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, yaze::editor::StoryEventGraphPanel, yaze::editor::workflow::ProjectWorkflowOutputPanel, yaze::editor::MessageListPanel, yaze::editor::MessageEditorPanel, yaze::editor::FontAtlasPanel, yaze::editor::DictionaryPanel, yaze::editor::MusicAssemblyPanel, yaze::editor::MusicAudioDebugPanel, yaze::editor::MusicHelpPanel, yaze::editor::MusicInstrumentEditorPanel, yaze::editor::MusicPianoRollPanel, yaze::editor::MusicPlaybackControlPanel, yaze::editor::MusicSampleEditorPanel, yaze::editor::MusicSongBrowserPanel, yaze::editor::AnnotationOverlayPanel, yaze::editor::OracleMenuInspectorPanel, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, yaze::editor::StoryEventGraphPanel, yaze::editor::OverworldEntityWorkbench, yaze::editor::AreaGraphicsPanel, yaze::editor::DebugWindowPanel, yaze::editor::GfxGroupsPanel, yaze::editor::MapPropertiesPanel, yaze::editor::OverworldCanvasPanel, yaze::editor::OverworldItemListPanel, yaze::editor::ScratchSpacePanel, yaze::editor::Tile16EditorPanel, yaze::editor::Tile16SelectorPanel, yaze::editor::Tile8SelectorPanel, yaze::editor::UsageStatisticsPanel, yaze::editor::V3SettingsPanel, yaze::editor::UsageStatisticsView, yaze::editor::OverworldCanvasView, yaze::editor::DebugWindowView, yaze::editor::AreaGraphicsView, yaze::editor::GfxGroupsView, yaze::editor::OverworldItemListView, yaze::editor::MapPropertiesView, yaze::editor::V3SettingsView, yaze::editor::Tile16EditorView, yaze::editor::Tile16SelectorView, yaze::editor::Tile8SelectorView, yaze::editor::ScratchSpaceView, yaze::editor::PaletteControlPanel, yaze::editor::QuickAccessPalettePanel, yaze::editor::CustomPalettePanel, yaze::editor::PaletteGroupPanel, yaze::editor::AboutPanel, yaze::editor::VanillaSpriteEditorPanel, yaze::editor::CustomSpriteEditorPanel, yaze::editor::ResourceWindowContent, and yaze::editor::ResourceWindowContent.

Referenced by yaze::editor::anonymous_namespace{workspace_window_manager.cc}::BuildDescriptorFromPanel(), yaze::editor::anonymous_namespace{workspace_window_manager_state.cc}::BuildDescriptorFromPanel(), yaze::editor::WorkspaceWindowManager::DrawAllVisiblePanels(), and GetWorkflowLabel().

GetIcon()

virtual std::string yaze::editor::WindowContent::GetIcon ( ) const

pure virtual

Material Design icon for this panel.

Returns

Icon constant (e.g., ICON_MD_LIST)

Implemented in yaze::editor::OracleRamPanel, yaze::editor::AgentConfigurationPanel, yaze::editor::AgentStatusPanel, yaze::editor::AgentPromptEditorPanel, yaze::editor::AgentBotProfilesPanel, yaze::editor::AgentChatHistoryPanel, yaze::editor::AgentMetricsDashboardPanel, yaze::editor::AgentBuilderPanel, yaze::editor::AgentMesenDebugPanel, yaze::editor::AgentKnowledgeBasePanel, yaze::editor::AgentChatPanel, yaze::editor::OracleStateLibraryEditorPanel, yaze::editor::FeatureFlagEditorEditorPanel, yaze::editor::ManifestEditorPanel, yaze::editor::SramViewerEditorPanel, yaze::editor::MesenScreenshotEditorPanel, yaze::editor::AssemblyCodeEditorPanel, yaze::editor::AssemblyFileBrowserPanel, yaze::editor::AssemblySymbolsPanel, yaze::editor::AssemblyBuildOutputPanel, yaze::editor::AssemblyDisassemblyPanel, yaze::editor::AssemblyToolbarPanel, yaze::editor::DoorEditorContent, yaze::editor::ObjectEditorContent, yaze::editor::PaletteEditorContent, yaze::editor::ObjectSelectorContent, yaze::editor::ChestEditorPanel, yaze::editor::CustomCollisionPanel, yaze::editor::DungeonEmulatorPreviewPanel, yaze::editor::DungeonEntranceListPanel, yaze::editor::DungeonEntrancesPanel, yaze::editor::DungeonMapPanel, yaze::editor::DungeonRoomPanel, yaze::editor::DungeonSettingsPanel, yaze::editor::ItemEditorPanel, yaze::editor::MinecartTrackEditorPanel, yaze::editor::ObjectTileEditorPanel, yaze::editor::OverlayManagerPanel, yaze::editor::RoomTagEditorPanel, yaze::editor::SpriteEditorPanel, yaze::editor::WaterFillPanel, yaze::editor::DungeonWorkbenchContent, yaze::editor::RoomBrowserContent, yaze::editor::RoomGraphicsContent, yaze::editor::RoomMatrixContent, yaze::editor::LinkSpritePanel, yaze::editor::PaletteControlsPanel, yaze::editor::GraphicsSheetBrowserPanel, yaze::editor::GraphicsPixelEditorPanel, yaze::editor::GraphicsPaletteControlsPanel, yaze::editor::GraphicsLinkSpritePanel, yaze::editor::GraphicsPolyhedralPanel, yaze::editor::GraphicsGfxGroupPanel, yaze::editor::GraphicsPrototypeViewerPanel, yaze::editor::GraphicsPalettesetPanel, yaze::editor::DungeonMapsPanel, yaze::editor::InventoryMenuPanel, yaze::editor::OverworldMapScreenPanel, yaze::editor::TitleScreenPanel, yaze::editor::NamingScreenPanel, yaze::editor::PixelEditorPanel, yaze::editor::PolyhedralEditorPanel, yaze::editor::SheetBrowserPanel, yaze::editor::SheetBrowserView, yaze::editor::PixelEditorView, yaze::editor::PaletteControlsView, yaze::editor::PalettesetEditorView, yaze::editor::PolyhedralEditorView, yaze::editor::PrototypeResearchView, yaze::editor::DungeonMapsView, yaze::editor::InventoryMenuView, yaze::editor::OverworldMapScreenView, yaze::editor::TitleScreenView, yaze::editor::NamingScreenView, yaze::editor::LinkSpriteView, yaze::editor::AnnotationOverlayPanel, yaze::editor::OracleMenuInspectorPanel, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, yaze::editor::StoryEventGraphPanel, yaze::editor::workflow::ProjectWorkflowOutputPanel, yaze::editor::MessageListPanel, yaze::editor::MessageEditorPanel, yaze::editor::FontAtlasPanel, yaze::editor::DictionaryPanel, yaze::editor::MusicAssemblyPanel, yaze::editor::MusicAudioDebugPanel, yaze::editor::MusicHelpPanel, yaze::editor::MusicInstrumentEditorPanel, yaze::editor::MusicPianoRollPanel, yaze::editor::MusicPlaybackControlPanel, yaze::editor::MusicSampleEditorPanel, yaze::editor::MusicSongBrowserPanel, yaze::editor::AnnotationOverlayPanel, yaze::editor::OracleMenuInspectorPanel, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, yaze::editor::StoryEventGraphPanel, yaze::editor::OverworldEntityWorkbench, yaze::editor::AreaGraphicsPanel, yaze::editor::DebugWindowPanel, yaze::editor::GfxGroupsPanel, yaze::editor::MapPropertiesPanel, yaze::editor::OverworldCanvasPanel, yaze::editor::OverworldItemListPanel, yaze::editor::ScratchSpacePanel, yaze::editor::Tile16EditorPanel, yaze::editor::Tile16SelectorPanel, yaze::editor::Tile8SelectorPanel, yaze::editor::UsageStatisticsPanel, yaze::editor::V3SettingsPanel, yaze::editor::UsageStatisticsView, yaze::editor::OverworldCanvasView, yaze::editor::DebugWindowView, yaze::editor::AreaGraphicsView, yaze::editor::GfxGroupsView, yaze::editor::OverworldItemListView, yaze::editor::MapPropertiesView, yaze::editor::V3SettingsView, yaze::editor::Tile16EditorView, yaze::editor::Tile16SelectorView, yaze::editor::Tile8SelectorView, yaze::editor::ScratchSpaceView, yaze::editor::PaletteControlPanel, yaze::editor::QuickAccessPalettePanel, yaze::editor::CustomPalettePanel, yaze::editor::PaletteGroupPanel, yaze::editor::OverworldMainPalettePanel, yaze::editor::OverworldAnimatedPalettePanel, yaze::editor::DungeonMainPalettePanel, yaze::editor::SpritePalettePanel, yaze::editor::SpritesAux1PalettePanel, yaze::editor::SpritesAux2PalettePanel, yaze::editor::SpritesAux3PalettePanel, yaze::editor::EquipmentPalettePanel, yaze::editor::AboutPanel, yaze::editor::VanillaSpriteEditorPanel, and yaze::editor::CustomSpriteEditorPanel.

Referenced by yaze::editor::anonymous_namespace{workspace_window_manager.cc}::BuildDescriptorFromPanel(), yaze::editor::anonymous_namespace{workspace_window_manager_state.cc}::BuildDescriptorFromPanel(), and yaze::editor::WorkspaceWindowManager::DrawAllVisiblePanels().

GetEditorCategory()

virtual std::string yaze::editor::WindowContent::GetEditorCategory ( ) const

pure virtual

Editor category this panel belongs to.

Returns

Category name matching EditorType (e.g., "Dungeon", "Overworld")

Implemented in yaze::editor::OracleRamPanel, yaze::editor::AgentConfigurationPanel, yaze::editor::AgentStatusPanel, yaze::editor::AgentPromptEditorPanel, yaze::editor::AgentBotProfilesPanel, yaze::editor::AgentChatHistoryPanel, yaze::editor::AgentMetricsDashboardPanel, yaze::editor::AgentBuilderPanel, yaze::editor::AgentMesenDebugPanel, yaze::editor::AgentKnowledgeBasePanel, yaze::editor::AgentChatPanel, yaze::editor::OracleStateLibraryEditorPanel, yaze::editor::FeatureFlagEditorEditorPanel, yaze::editor::ManifestEditorPanel, yaze::editor::SramViewerEditorPanel, yaze::editor::MesenScreenshotEditorPanel, yaze::editor::AssemblyCodeEditorPanel, yaze::editor::AssemblyFileBrowserPanel, yaze::editor::AssemblySymbolsPanel, yaze::editor::AssemblyBuildOutputPanel, yaze::editor::AssemblyDisassemblyPanel, yaze::editor::AssemblyToolbarPanel, yaze::editor::DoorEditorContent, yaze::editor::ObjectEditorContent, yaze::editor::PaletteEditorContent, yaze::editor::ObjectSelectorContent, yaze::editor::ChestEditorPanel, yaze::editor::CustomCollisionPanel, yaze::editor::DungeonEmulatorPreviewPanel, yaze::editor::DungeonEntranceListPanel, yaze::editor::DungeonEntrancesPanel, yaze::editor::DungeonMapPanel, yaze::editor::DungeonRoomPanel, yaze::editor::DungeonSettingsPanel, yaze::editor::ItemEditorPanel, yaze::editor::MinecartTrackEditorPanel, yaze::editor::ObjectTileEditorPanel, yaze::editor::OverlayManagerPanel, yaze::editor::RoomTagEditorPanel, yaze::editor::SpriteEditorPanel, yaze::editor::WaterFillPanel, yaze::editor::DungeonWorkbenchContent, yaze::editor::RoomBrowserContent, yaze::editor::RoomGraphicsContent, yaze::editor::RoomMatrixContent, yaze::editor::LinkSpritePanel, yaze::editor::PaletteControlsPanel, yaze::editor::GraphicsSheetBrowserPanel, yaze::editor::GraphicsPixelEditorPanel, yaze::editor::GraphicsPaletteControlsPanel, yaze::editor::GraphicsLinkSpritePanel, yaze::editor::GraphicsPolyhedralPanel, yaze::editor::GraphicsGfxGroupPanel, yaze::editor::GraphicsPrototypeViewerPanel, yaze::editor::GraphicsPalettesetPanel, yaze::editor::DungeonMapsPanel, yaze::editor::InventoryMenuPanel, yaze::editor::OverworldMapScreenPanel, yaze::editor::TitleScreenPanel, yaze::editor::NamingScreenPanel, yaze::editor::PixelEditorPanel, yaze::editor::PolyhedralEditorPanel, yaze::editor::SheetBrowserPanel, yaze::editor::SheetBrowserView, yaze::editor::PixelEditorView, yaze::editor::PaletteControlsView, yaze::editor::PalettesetEditorView, yaze::editor::PolyhedralEditorView, yaze::editor::PrototypeResearchView, yaze::editor::DungeonMapsView, yaze::editor::InventoryMenuView, yaze::editor::OverworldMapScreenView, yaze::editor::TitleScreenView, yaze::editor::NamingScreenView, yaze::editor::LinkSpriteView, yaze::editor::AnnotationOverlayPanel, yaze::editor::OracleMenuInspectorPanel, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, yaze::editor::StoryEventGraphPanel, yaze::editor::workflow::ProjectWorkflowOutputPanel, yaze::editor::MessageListPanel, yaze::editor::MessageEditorPanel, yaze::editor::FontAtlasPanel, yaze::editor::DictionaryPanel, yaze::editor::MusicAssemblyPanel, yaze::editor::MusicAudioDebugPanel, yaze::editor::MusicHelpPanel, yaze::editor::MusicInstrumentEditorPanel, yaze::editor::MusicPianoRollPanel, yaze::editor::MusicPlaybackControlPanel, yaze::editor::MusicSampleEditorPanel, yaze::editor::MusicSongBrowserPanel, yaze::editor::AnnotationOverlayPanel, yaze::editor::OracleMenuInspectorPanel, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, yaze::editor::StoryEventGraphPanel, yaze::editor::OverworldEntityWorkbench, yaze::editor::AreaGraphicsPanel, yaze::editor::DebugWindowPanel, yaze::editor::GfxGroupsPanel, yaze::editor::MapPropertiesPanel, yaze::editor::OverworldCanvasPanel, yaze::editor::OverworldItemListPanel, yaze::editor::ScratchSpacePanel, yaze::editor::Tile16EditorPanel, yaze::editor::Tile16SelectorPanel, yaze::editor::Tile8SelectorPanel, yaze::editor::UsageStatisticsPanel, yaze::editor::V3SettingsPanel, yaze::editor::UsageStatisticsView, yaze::editor::OverworldCanvasView, yaze::editor::DebugWindowView, yaze::editor::AreaGraphicsView, yaze::editor::GfxGroupsView, yaze::editor::OverworldItemListView, yaze::editor::MapPropertiesView, yaze::editor::V3SettingsView, yaze::editor::Tile16EditorView, yaze::editor::Tile16SelectorView, yaze::editor::Tile8SelectorView, yaze::editor::ScratchSpaceView, yaze::editor::PaletteControlPanel, yaze::editor::QuickAccessPalettePanel, yaze::editor::CustomPalettePanel, yaze::editor::PaletteGroupPanel, yaze::editor::AboutPanel, yaze::editor::VanillaSpriteEditorPanel, and yaze::editor::CustomSpriteEditorPanel.

Referenced by yaze::editor::anonymous_namespace{workspace_window_manager.cc}::BuildDescriptorFromPanel(), yaze::editor::anonymous_namespace{workspace_window_manager_state.cc}::BuildDescriptorFromPanel(), yaze::editor::WorkspaceWindowManager::DrawAllVisiblePanels(), and yaze::editor::ResourceWindowContent::GetId().

Draw()

virtual void yaze::editor::WindowContent::Draw ( bool * p_open )

pure virtual

Draw the panel content.

Parameters

p_open

Pointer to visibility flag (nullptr if not closable)

Called by WorkspaceWindowManager when the panel is visible. Do NOT call ImGui::Begin/End - the PanelWindow wrapper handles that. Just draw your content directly.

Implemented in yaze::editor::AnnotationOverlayPanel, yaze::editor::StoryEventGraphPanel, yaze::editor::AnnotationOverlayPanel, yaze::editor::StoryEventGraphPanel, yaze::editor::OracleRamPanel, yaze::editor::AgentConfigurationPanel, yaze::editor::AgentStatusPanel, yaze::editor::AgentPromptEditorPanel, yaze::editor::AgentBotProfilesPanel, yaze::editor::AgentChatHistoryPanel, yaze::editor::AgentMetricsDashboardPanel, yaze::editor::AgentBuilderPanel, yaze::editor::AgentMesenDebugPanel, yaze::editor::AgentKnowledgeBasePanel, yaze::editor::AgentChatPanel, yaze::editor::OracleStateLibraryEditorPanel, yaze::editor::FeatureFlagEditorEditorPanel, yaze::editor::ManifestEditorPanel, yaze::editor::SramViewerEditorPanel, yaze::editor::MesenScreenshotEditorPanel, yaze::editor::AssemblyCodeEditorPanel, yaze::editor::AssemblyFileBrowserPanel, yaze::editor::AssemblySymbolsPanel, yaze::editor::AssemblyBuildOutputPanel, yaze::editor::AssemblyDisassemblyPanel, yaze::editor::AssemblyToolbarPanel, yaze::editor::DoorEditorContent, yaze::editor::ObjectEditorContent, yaze::editor::PaletteEditorContent, yaze::editor::ObjectSelectorContent, yaze::editor::ChestEditorPanel, yaze::editor::CustomCollisionPanel, yaze::editor::DungeonEmulatorPreviewPanel, yaze::editor::DungeonEntranceListPanel, yaze::editor::DungeonEntrancesPanel, yaze::editor::DungeonMapPanel, yaze::editor::DungeonRoomPanel, yaze::editor::DungeonSettingsPanel, yaze::editor::ItemEditorPanel, yaze::editor::MinecartTrackEditorPanel, yaze::editor::ObjectTileEditorPanel, yaze::editor::OverlayManagerPanel, yaze::editor::RoomTagEditorPanel, yaze::editor::SpriteEditorPanel, yaze::editor::WaterFillPanel, yaze::editor::DungeonWorkbenchContent, yaze::editor::RoomBrowserContent, yaze::editor::RoomGraphicsContent, yaze::editor::RoomMatrixContent, yaze::editor::LinkSpritePanel, yaze::editor::PaletteControlsPanel, yaze::editor::GraphicsSheetBrowserPanel, yaze::editor::GraphicsPixelEditorPanel, yaze::editor::GraphicsPaletteControlsPanel, yaze::editor::GraphicsLinkSpritePanel, yaze::editor::GraphicsPolyhedralPanel, yaze::editor::GraphicsGfxGroupPanel, yaze::editor::GraphicsPrototypeViewerPanel, yaze::editor::GraphicsPalettesetPanel, yaze::editor::DungeonMapsPanel, yaze::editor::InventoryMenuPanel, yaze::editor::OverworldMapScreenPanel, yaze::editor::TitleScreenPanel, yaze::editor::NamingScreenPanel, yaze::editor::PixelEditorPanel, yaze::editor::PolyhedralEditorPanel, yaze::editor::SheetBrowserPanel, yaze::editor::SheetBrowserView, yaze::editor::PixelEditorView, yaze::editor::PaletteControlsView, yaze::editor::PalettesetEditorView, yaze::editor::PolyhedralEditorView, yaze::editor::PrototypeResearchView, yaze::editor::ScreenWorkspaceView, yaze::editor::LinkSpriteView, yaze::editor::OracleMenuInspectorPanel, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, yaze::editor::workflow::ProjectWorkflowOutputPanel, yaze::editor::MessageListPanel, yaze::editor::MessageEditorPanel, yaze::editor::FontAtlasPanel, yaze::editor::DictionaryPanel, yaze::editor::MusicAssemblyPanel, yaze::editor::MusicAudioDebugPanel, yaze::editor::MusicHelpPanel, yaze::editor::MusicInstrumentEditorPanel, yaze::editor::MusicPianoRollPanel, yaze::editor::MusicPlaybackControlPanel, yaze::editor::MusicSampleEditorPanel, yaze::editor::MusicSongBrowserPanel, yaze::editor::OracleMenuInspectorPanel, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, yaze::editor::OverworldEntityWorkbench, yaze::editor::AreaGraphicsPanel, yaze::editor::DebugWindowPanel, yaze::editor::GfxGroupsPanel, yaze::editor::MapPropertiesPanel, yaze::editor::OverworldCanvasPanel, yaze::editor::OverworldItemListPanel, yaze::editor::ScratchSpacePanel, yaze::editor::Tile16EditorPanel, yaze::editor::Tile16SelectorPanel, yaze::editor::Tile8SelectorPanel, yaze::editor::UsageStatisticsPanel, yaze::editor::V3SettingsPanel, yaze::editor::UsageStatisticsView, yaze::editor::OverworldCanvasView, yaze::editor::DebugWindowView, yaze::editor::AreaGraphicsView, yaze::editor::GfxGroupsView, yaze::editor::OverworldItemListView, yaze::editor::MapPropertiesView, yaze::editor::V3SettingsView, yaze::editor::Tile16EditorView, yaze::editor::Tile16SelectorView, yaze::editor::Tile8SelectorView, yaze::editor::ScratchSpaceView, yaze::editor::PaletteControlPanel, yaze::editor::QuickAccessPalettePanel, yaze::editor::CustomPalettePanel, yaze::editor::PaletteGroupPanel, yaze::editor::AboutPanel, yaze::editor::VanillaSpriteEditorPanel, and yaze::editor::CustomSpriteEditorPanel.

Referenced by DrawWithLazyInit().

OnFirstDraw()

virtual void yaze::editor::WindowContent::OnFirstDraw ( )

inlinevirtual

Called once before the first Draw() in a session.

Use this for expensive one-time initialization that should be deferred until the panel is actually visible. This avoids loading resources for panels that may never be opened.

Note

Reset via InvalidateLazyInit() on session switches if needed.

See also

RequiresLazyInit()

Definition at line 154 of file editor_panel.h.

Referenced by DrawWithLazyInit().

RequiresLazyInit()

virtual bool yaze::editor::WindowContent::RequiresLazyInit ( ) const

inlinevirtual

Whether this panel uses lazy initialization.

Returns

true if OnFirstDraw() should be called before first Draw()

Override to return true if your panel has expensive setup in OnFirstDraw(). When false (default), OnFirstDraw() is skipped for performance.

Definition at line 163 of file editor_panel.h.

Referenced by DrawWithLazyInit().

InvalidateLazyInit()

void yaze::editor::WindowContent::InvalidateLazyInit ( )

inline

Reset lazy init state so OnFirstDraw() runs again.

Call this when panel state needs to be reinitialized (e.g., session switch). The next Draw() will trigger OnFirstDraw() again.

Definition at line 414 of file editor_panel.h.

References lazy_init_done_.

OnOpen()

virtual void yaze::editor::WindowContent::OnOpen ( )

inlinevirtual

Called when panel becomes visible.

Use this to initialize state, load resources, or start animations. Called after the panel is shown but before first Draw().

Reimplemented in yaze::editor::OracleRamPanel, and yaze::editor::ObjectSelectorContent.

Definition at line 179 of file editor_panel.h.

OnClose()

virtual void yaze::editor::WindowContent::OnClose ( )

inlinevirtual

Called when panel is hidden.

Use this to cleanup state, release resources, or save state. Called after the panel is hidden.

Reimplemented in yaze::editor::DoorEditorContent, yaze::editor::ObjectSelectorContent, and yaze::editor::DungeonEmulatorPreviewPanel.

Definition at line 187 of file editor_panel.h.

Referenced by yaze::editor::WorkspaceWindowManager::DrawAllVisiblePanels().

OnFocus()

virtual void yaze::editor::WindowContent::OnFocus ( )

inlinevirtual

Called when panel receives focus.

Use this to update state based on becoming the active panel.

Definition at line 194 of file editor_panel.h.

GetWindowLifecycle()

virtual WindowLifecycle yaze::editor::WindowContent::GetWindowLifecycle ( ) const

inlinevirtual

Get the lifecycle category for this window.

Returns

WindowLifecycle determining visibility behavior on editor switch

Default is EditorBound (hidden when switching editors).

Reimplemented in yaze::editor::OracleRamPanel, yaze::editor::AnnotationOverlayPanel, yaze::editor::OracleMenuInspectorPanel, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, yaze::editor::StoryEventGraphPanel, yaze::editor::workflow::ProjectWorkflowOutputPanel, yaze::editor::AnnotationOverlayPanel, yaze::editor::OracleMenuInspectorPanel, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, yaze::editor::StoryEventGraphPanel, yaze::editor::ResourceWindowContent, and yaze::editor::ResourceWindowContent.

Definition at line 206 of file editor_panel.h.

References yaze::editor::EditorBound.

Referenced by yaze::editor::anonymous_namespace{workspace_window_manager.cc}::BuildDescriptorFromPanel(), and yaze::editor::anonymous_namespace{workspace_window_manager_state.cc}::BuildDescriptorFromPanel().

GetContextScope()

virtual WindowContextScope yaze::editor::WindowContent::GetContextScope ( ) const

inlinevirtual

Optional context binding for this window (room/selection/etc)

Returns

WindowContextScope used by WorkspaceWindowManager policy (default: none)

Definition at line 214 of file editor_panel.h.

References yaze::editor::kNone.

Referenced by yaze::editor::anonymous_namespace{workspace_window_manager.cc}::BuildDescriptorFromPanel(), and yaze::editor::anonymous_namespace{workspace_window_manager_state.cc}::BuildDescriptorFromPanel().

GetScope()

virtual WindowScope yaze::editor::WindowContent::GetScope ( ) const

inlinevirtual

Get the registration scope for this window.

Returns

WindowScope indicating session or global scope

Default is session-scoped.

Reimplemented in yaze::editor::workflow::ProjectWorkflowOutputPanel, and yaze::editor::AboutPanel.

Definition at line 224 of file editor_panel.h.

References yaze::editor::kSession.

Referenced by yaze::editor::anonymous_namespace{workspace_window_manager.cc}::BuildDescriptorFromPanel(), yaze::editor::anonymous_namespace{workspace_window_manager_state.cc}::BuildDescriptorFromPanel(), and yaze::editor::WorkspaceWindowManager::RegisterPanelDescriptorForSession().

IsEnabled()

virtual bool yaze::editor::WindowContent::IsEnabled ( ) const

inlinevirtual

Check if this panel is currently enabled.

Returns

true if panel can be shown, false if disabled

Disabled panels appear grayed out in menus. Override to implement conditional availability (e.g., requires ROM loaded).

Reimplemented in yaze::editor::ScreenWorkspaceView, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, yaze::editor::StoryEventGraphPanel, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, and yaze::editor::StoryEventGraphPanel.

Definition at line 233 of file editor_panel.h.

GetDisabledTooltip()

virtual std::string yaze::editor::WindowContent::GetDisabledTooltip ( ) const

inlinevirtual

Get tooltip text when panel is disabled.

Returns

Explanation of why panel is disabled (e.g., "Requires ROM to be loaded")

Reimplemented in yaze::editor::ScreenWorkspaceView, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, yaze::editor::StoryEventGraphPanel, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, and yaze::editor::StoryEventGraphPanel.

Definition at line 239 of file editor_panel.h.

Referenced by yaze::editor::anonymous_namespace{workspace_window_manager.cc}::BuildDescriptorFromPanel(), and yaze::editor::anonymous_namespace{workspace_window_manager_state.cc}::BuildDescriptorFromPanel().

GetShortcutHint()

virtual std::string yaze::editor::WindowContent::GetShortcutHint ( ) const

inlinevirtual

Get keyboard shortcut hint for display.

Returns

Shortcut string (e.g., "Ctrl+Shift+R")

Reimplemented in yaze::editor::AgentMesenDebugPanel, yaze::editor::OracleStateLibraryEditorPanel, yaze::editor::ScreenWorkspaceView, yaze::editor::OverworldCanvasPanel, yaze::editor::OverworldItemListPanel, yaze::editor::OverworldCanvasView, and yaze::editor::OverworldItemListView.

Definition at line 245 of file editor_panel.h.

Referenced by yaze::editor::anonymous_namespace{workspace_window_manager.cc}::BuildDescriptorFromPanel(), and yaze::editor::anonymous_namespace{workspace_window_manager_state.cc}::BuildDescriptorFromPanel().

GetPriority()

virtual int yaze::editor::WindowContent::GetPriority ( ) const

inlinevirtual

Get display priority for menu ordering.

Returns

Priority value (lower = higher in list, default 50)

Reimplemented in yaze::editor::AgentConfigurationPanel, yaze::editor::AgentStatusPanel, yaze::editor::AgentPromptEditorPanel, yaze::editor::AgentBotProfilesPanel, yaze::editor::AgentChatHistoryPanel, yaze::editor::AgentMetricsDashboardPanel, yaze::editor::AgentBuilderPanel, yaze::editor::AgentMesenDebugPanel, yaze::editor::AgentKnowledgeBasePanel, yaze::editor::AgentChatPanel, yaze::editor::OracleStateLibraryEditorPanel, yaze::editor::FeatureFlagEditorEditorPanel, yaze::editor::ManifestEditorPanel, yaze::editor::SramViewerEditorPanel, yaze::editor::MesenScreenshotEditorPanel, yaze::editor::AssemblyCodeEditorPanel, yaze::editor::AssemblyFileBrowserPanel, yaze::editor::AssemblySymbolsPanel, yaze::editor::AssemblyBuildOutputPanel, yaze::editor::AssemblyDisassemblyPanel, yaze::editor::AssemblyToolbarPanel, yaze::editor::DoorEditorContent, yaze::editor::ObjectEditorContent, yaze::editor::PaletteEditorContent, yaze::editor::ObjectSelectorContent, yaze::editor::ChestEditorPanel, yaze::editor::DungeonEmulatorPreviewPanel, yaze::editor::DungeonEntranceListPanel, yaze::editor::DungeonEntrancesPanel, yaze::editor::DungeonMapPanel, yaze::editor::DungeonRoomPanel, yaze::editor::ItemEditorPanel, yaze::editor::ObjectTileEditorPanel, yaze::editor::OverlayManagerPanel, yaze::editor::RoomTagEditorPanel, yaze::editor::SpriteEditorPanel, yaze::editor::DungeonWorkbenchContent, yaze::editor::RoomBrowserContent, yaze::editor::RoomGraphicsContent, yaze::editor::RoomMatrixContent, yaze::editor::LinkSpritePanel, yaze::editor::PaletteControlsPanel, yaze::editor::GraphicsSheetBrowserPanel, yaze::editor::GraphicsPixelEditorPanel, yaze::editor::GraphicsPaletteControlsPanel, yaze::editor::GraphicsLinkSpritePanel, yaze::editor::GraphicsPolyhedralPanel, yaze::editor::GraphicsGfxGroupPanel, yaze::editor::GraphicsPrototypeViewerPanel, yaze::editor::GraphicsPalettesetPanel, yaze::editor::DungeonMapsPanel, yaze::editor::InventoryMenuPanel, yaze::editor::OverworldMapScreenPanel, yaze::editor::TitleScreenPanel, yaze::editor::NamingScreenPanel, yaze::editor::PixelEditorPanel, yaze::editor::PolyhedralEditorPanel, yaze::editor::SheetBrowserPanel, yaze::editor::SheetBrowserView, yaze::editor::PixelEditorView, yaze::editor::PaletteControlsView, yaze::editor::PalettesetEditorView, yaze::editor::PolyhedralEditorView, yaze::editor::PrototypeResearchView, yaze::editor::DungeonMapsView, yaze::editor::InventoryMenuView, yaze::editor::OverworldMapScreenView, yaze::editor::TitleScreenView, yaze::editor::NamingScreenView, yaze::editor::LinkSpriteView, yaze::editor::MessageListPanel, yaze::editor::MessageEditorPanel, yaze::editor::FontAtlasPanel, yaze::editor::DictionaryPanel, yaze::editor::MusicAssemblyPanel, yaze::editor::MusicAudioDebugPanel, yaze::editor::MusicHelpPanel, yaze::editor::MusicInstrumentEditorPanel, yaze::editor::MusicPianoRollPanel, yaze::editor::MusicPlaybackControlPanel, yaze::editor::MusicSampleEditorPanel, yaze::editor::MusicSongBrowserPanel, yaze::editor::OverworldCanvasPanel, yaze::editor::OverworldItemListPanel, yaze::editor::Tile16EditorPanel, yaze::editor::OverworldCanvasView, yaze::editor::OverworldItemListView, yaze::editor::Tile16EditorView, yaze::editor::PaletteControlPanel, yaze::editor::QuickAccessPalettePanel, yaze::editor::CustomPalettePanel, yaze::editor::PaletteGroupPanel, yaze::editor::OverworldMainPalettePanel, yaze::editor::OverworldAnimatedPalettePanel, yaze::editor::DungeonMainPalettePanel, yaze::editor::SpritePalettePanel, yaze::editor::SpritesAux1PalettePanel, yaze::editor::SpritesAux2PalettePanel, yaze::editor::SpritesAux3PalettePanel, yaze::editor::EquipmentPalettePanel, yaze::editor::VanillaSpriteEditorPanel, and yaze::editor::CustomSpriteEditorPanel.

Definition at line 251 of file editor_panel.h.

Referenced by yaze::editor::anonymous_namespace{workspace_window_manager.cc}::BuildDescriptorFromPanel(), yaze::editor::anonymous_namespace{workspace_window_manager_state.cc}::BuildDescriptorFromPanel(), and GetWorkflowPriority().

GetWorkflowGroup()

virtual std::string yaze::editor::WindowContent::GetWorkflowGroup ( ) const

inlinevirtual

Optional workflow group for hack-centric actions.

Returns

Non-empty group name to surface this panel in hack workflows.

Reimplemented in yaze::editor::AgentMesenDebugPanel, yaze::editor::OracleStateLibraryEditorPanel, yaze::editor::FeatureFlagEditorEditorPanel, yaze::editor::ManifestEditorPanel, yaze::editor::SramViewerEditorPanel, yaze::editor::MesenScreenshotEditorPanel, yaze::editor::AnnotationOverlayPanel, yaze::editor::OracleMenuInspectorPanel, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, yaze::editor::StoryEventGraphPanel, yaze::editor::workflow::ProjectWorkflowOutputPanel, yaze::editor::AnnotationOverlayPanel, yaze::editor::OracleMenuInspectorPanel, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, and yaze::editor::StoryEventGraphPanel.

Definition at line 257 of file editor_panel.h.

Referenced by yaze::editor::anonymous_namespace{workspace_window_manager.cc}::BuildDescriptorFromPanel(), and yaze::editor::anonymous_namespace{workspace_window_manager_state.cc}::BuildDescriptorFromPanel().

GetWorkflowLabel()

virtual std::string yaze::editor::WindowContent::GetWorkflowLabel ( ) const

inlinevirtual

Optional workflow label for menus/command palette.

Returns

Action label to use when surfacing this panel via workflows.

Reimplemented in yaze::editor::OracleStateLibraryEditorPanel, yaze::editor::OracleValidationPanel, and yaze::editor::OracleValidationPanel.

Definition at line 263 of file editor_panel.h.

References GetDisplayName().

Referenced by yaze::editor::anonymous_namespace{workspace_window_manager.cc}::BuildDescriptorFromPanel(), and yaze::editor::anonymous_namespace{workspace_window_manager_state.cc}::BuildDescriptorFromPanel().

Here is the call graph for this function:

GetWorkflowDescription()

virtual std::string yaze::editor::WindowContent::GetWorkflowDescription ( ) const

inlinevirtual

Optional workflow description for menus/command palette.

Reimplemented in yaze::editor::AgentMesenDebugPanel, yaze::editor::OracleStateLibraryEditorPanel, yaze::editor::FeatureFlagEditorEditorPanel, yaze::editor::ManifestEditorPanel, yaze::editor::SramViewerEditorPanel, yaze::editor::MesenScreenshotEditorPanel, yaze::editor::AnnotationOverlayPanel, yaze::editor::OracleMenuInspectorPanel, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, yaze::editor::StoryEventGraphPanel, yaze::editor::workflow::ProjectWorkflowOutputPanel, yaze::editor::AnnotationOverlayPanel, yaze::editor::OracleMenuInspectorPanel, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, and yaze::editor::StoryEventGraphPanel.

Definition at line 268 of file editor_panel.h.

Referenced by yaze::editor::anonymous_namespace{workspace_window_manager.cc}::BuildDescriptorFromPanel(), and yaze::editor::anonymous_namespace{workspace_window_manager_state.cc}::BuildDescriptorFromPanel().

GetWorkflowPriority()

virtual int yaze::editor::WindowContent::GetWorkflowPriority ( ) const

inlinevirtual

Optional workflow ordering priority (lower sorts first).

Reimplemented in yaze::editor::workflow::ProjectWorkflowOutputPanel.

Definition at line 273 of file editor_panel.h.

References GetPriority().

Referenced by yaze::editor::anonymous_namespace{workspace_window_manager.cc}::BuildDescriptorFromPanel(), and yaze::editor::anonymous_namespace{workspace_window_manager_state.cc}::BuildDescriptorFromPanel().

Here is the call graph for this function:

GetPreferredWidth()

virtual float yaze::editor::WindowContent::GetPreferredWidth ( ) const

inlinevirtual

Get preferred width for this panel (optional)

Returns

Preferred width in pixels, or 0 to use default (250px)

Override this to specify content-based sizing. For example, a tile selector with 8 tiles at 16px × 2.0 scale would return ~276px.

Reimplemented in yaze::editor::AssemblyCodeEditorPanel, yaze::editor::AssemblyFileBrowserPanel, yaze::editor::AssemblySymbolsPanel, yaze::editor::AssemblyBuildOutputPanel, yaze::editor::AssemblyDisassemblyPanel, yaze::editor::DoorEditorContent, yaze::editor::ObjectEditorContent, yaze::editor::PaletteEditorContent, yaze::editor::ObjectSelectorContent, yaze::editor::ObjectTileEditorPanel, yaze::editor::RoomGraphicsContent, yaze::editor::RoomMatrixContent, yaze::editor::GraphicsSheetBrowserPanel, yaze::editor::GraphicsPixelEditorPanel, yaze::editor::GraphicsPaletteControlsPanel, yaze::editor::GraphicsLinkSpritePanel, yaze::editor::GraphicsPolyhedralPanel, yaze::editor::GraphicsGfxGroupPanel, yaze::editor::GraphicsPrototypeViewerPanel, yaze::editor::GraphicsPalettesetPanel, yaze::editor::SheetBrowserView, yaze::editor::PixelEditorView, yaze::editor::PaletteControlsView, yaze::editor::PalettesetEditorView, yaze::editor::PrototypeResearchView, yaze::editor::LinkSpriteView, yaze::editor::OracleMenuInspectorPanel, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, yaze::editor::StoryEventGraphPanel, yaze::editor::OracleMenuInspectorPanel, yaze::editor::OracleValidationPanel, yaze::editor::ProgressionDashboardPanel, yaze::editor::StoryEventGraphPanel, yaze::editor::AreaGraphicsPanel, yaze::editor::MapPropertiesPanel, yaze::editor::OverworldItemListPanel, yaze::editor::Tile16EditorPanel, yaze::editor::Tile16SelectorPanel, yaze::editor::Tile8SelectorPanel, yaze::editor::AreaGraphicsView, yaze::editor::OverworldItemListView, yaze::editor::MapPropertiesView, yaze::editor::Tile16EditorView, yaze::editor::Tile16SelectorView, yaze::editor::Tile8SelectorView, yaze::editor::PaletteControlPanel, yaze::editor::QuickAccessPalettePanel, yaze::editor::CustomPalettePanel, yaze::editor::VanillaSpriteEditorPanel, and yaze::editor::CustomSpriteEditorPanel.

Definition at line 282 of file editor_panel.h.

Referenced by yaze::editor::WorkspaceWindowManager::DrawAllVisiblePanels().

PreferAutoHideTabBar()

virtual bool yaze::editor::WindowContent::PreferAutoHideTabBar ( ) const

inlinevirtual

Whether the dock node hosting this panel should auto-hide its tab bar.

Returns

true to prefer ImGuiDockNodeFlags_AutoHideTabBar

This is a node-level hint applied by LayoutManager during DockBuilder setup. It is best used for primary single-panel work areas where the tab bar should disappear until another panel is docked into the same node.

Reimplemented in yaze::editor::OverworldCanvasView, yaze::editor::MapPropertiesView, and yaze::editor::Tile16SelectorView.

Definition at line 292 of file editor_panel.h.

IsVisibleByDefault()

virtual bool yaze::editor::WindowContent::IsVisibleByDefault ( ) const

inlinevirtual

Whether this panel should be visible by default.

Returns

true if panel should be visible when editor first opens

Override this to set panels as visible by default. Most panels default to hidden to reduce UI clutter.

Reimplemented in yaze::editor::AssemblyCodeEditorPanel, yaze::editor::AssemblyFileBrowserPanel, yaze::editor::AssemblyToolbarPanel, yaze::editor::GraphicsSheetBrowserPanel, yaze::editor::GraphicsPixelEditorPanel, yaze::editor::SheetBrowserView, yaze::editor::PixelEditorView, yaze::editor::OverworldCanvasPanel, yaze::editor::Tile16SelectorPanel, yaze::editor::OverworldCanvasView, yaze::editor::Tile16SelectorView, and yaze::editor::VanillaSpriteEditorPanel.

Definition at line 301 of file editor_panel.h.

Referenced by yaze::editor::WorkspaceWindowManager::RegisterPanelDescriptorForSession().

GetParentPanelId()

virtual std::string yaze::editor::WindowContent::GetParentPanelId ( ) const

inlinevirtual

Get parent panel ID for cascade behavior.

Returns

Parent panel ID, or empty string if no parent

If set, this panel may be automatically closed when parent closes (depending on parent's CascadeCloseChildren() setting).

Definition at line 314 of file editor_panel.h.

CascadeCloseChildren()

virtual bool yaze::editor::WindowContent::CascadeCloseChildren ( ) const

inlinevirtual

Whether closing this panel should close child panels.

Returns

true to cascade close to children, false to leave children open

Only affects panels that have this panel as their parent.

Definition at line 322 of file editor_panel.h.

DrawWithLazyInit()

void yaze::editor::WindowContent::DrawWithLazyInit ( bool * p_open )

inline

Execute lazy initialization if needed, then call Draw()

Parameters

p_open

Pointer to visibility flag

Called by WorkspaceWindowManager. Handles OnFirstDraw() invocation automatically.

Definition at line 334 of file editor_panel.h.

References Draw(), lazy_init_done_, OnFirstDraw(), and RequiresLazyInit().

Referenced by yaze::editor::WorkspaceWindowManager::DrawAllVisiblePanels().

Here is the call graph for this function:

InvalidateCache()

void yaze::editor::WindowContent::InvalidateCache ( )

inlineprotected

Invalidate all cached computations.

Call this when the underlying data changes and cached values are stale. Common triggers:

• Session switch (data context changes)
• ROM data modification
• Settings changes that affect computed values

Definition at line 356 of file editor_panel.h.

References cache_valid_.

GetCached()

template<typename T >

T & yaze::editor::WindowContent::GetCached ( const std::string & key, std::function< T()> compute )

inlineprotected

Get or compute a cached value.

Template Parameters

T	The type of the cached value

Parameters

key	Unique identifier for this cached value
compute	Function to compute the value if not cached

Returns

Reference to the cached value

Example usage:

int GetExpensiveResult() {
  return GetCached<int>("expensive_result", [this]() {
    // Expensive computation here
    return ComputeExpensiveValue();
  });
}

Note

The cache is invalidated when InvalidateCache() is called.

Values are stored using std::any, so complex types work fine.

Definition at line 379 of file editor_panel.h.

References cache_, and cache_valid_.

IsCacheValid()

bool yaze::editor::WindowContent::IsCacheValid ( ) const

inlineprotected

Check if cache has been invalidated.

Returns

true if cache is valid, false if InvalidateCache() was called

Definition at line 391 of file editor_panel.h.

References cache_valid_.

ClearCache()

void yaze::editor::WindowContent::ClearCache ( )

inlineprotected

Clear all cached values (more aggressive than InvalidateCache)

Use this when you need to free memory, not just mark values as stale. InvalidateCache() just marks the cache as invalid but keeps values for potential debugging or lazy re-computation.

Definition at line 400 of file editor_panel.h.

References cache_, and cache_valid_.

Member Data Documentation

lazy_init_done_

bool yaze::editor::WindowContent::lazy_init_done_ = false

private

Definition at line 406 of file editor_panel.h.

Referenced by DrawWithLazyInit(), and InvalidateLazyInit().

cache_valid_

bool yaze::editor::WindowContent::cache_valid_ = false

private

Definition at line 409 of file editor_panel.h.

Referenced by ClearCache(), GetCached(), InvalidateCache(), and IsCacheValid().

cache_

std::unordered_map<std::string, std::any> yaze::editor::WindowContent::cache_

private

Definition at line 410 of file editor_panel.h.

Referenced by ClearCache(), and GetCached().

---

The documentation for this class was generated from the following file:

• src/app/editor/system/workspace/editor_panel.h
