Base class for palette group editing cards. More...

#include <palette_group_panel.h>

Inherited by yaze::editor::DungeonMainPalettePanel, yaze::editor::EquipmentPalettePanel, yaze::editor::OverworldAnimatedPalettePanel, yaze::editor::OverworldMainPalettePanel, yaze::editor::SpritePalettePanel, yaze::editor::SpritesAux1PalettePanel, yaze::editor::SpritesAux2PalettePanel, and yaze::editor::SpritesAux3PalettePanel.

Public Member Functions
	PaletteGroupPanel (const std::string &group_name, const std::string &display_name, Rom rom, zelda3::GameData game_data=nullptr)
	Construct a new Palette Group Panel.

void	SetGameData (zelda3::GameData *game_data)

virtual	~PaletteGroupPanel ()=default

void	Draw (bool *p_open) override
	Draw the card's ImGui UI.

void	DrawEmbedded ()

std::string	GetId () const override
	Unique identifier for this panel.

std::string	GetDisplayName () const override
	Human-readable name shown in menus and title bars.

std::string	GetIcon () const override
	Material Design icon for this panel.

std::string	GetEditorCategory () const override
	Editor category this panel belongs to.

WindowPresentationPolicy	GetPresentationPolicy () const override
	How this content is hosted and advertised by workspace chrome.

int	GetPriority () const override
	Get display priority for menu ordering.

void	Show ()

void	Hide ()

bool	IsVisible () const

bool *	visibility_flag ()

void	SetToastManager (ToastManager *toast_manager)

void	SetProject (const project::YazeProject *project)

bool	IsOwnedByRom (const Rom *rom) const

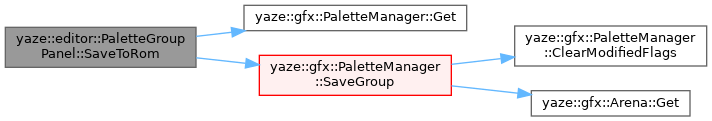

absl::Status	SaveToRom ()
	Save all modified palettes to ROM.

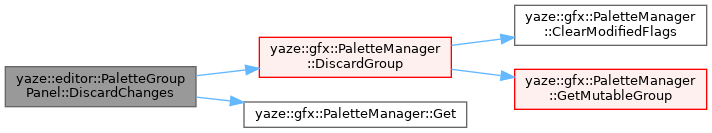

void	DiscardChanges ()
	Discard all unsaved changes.

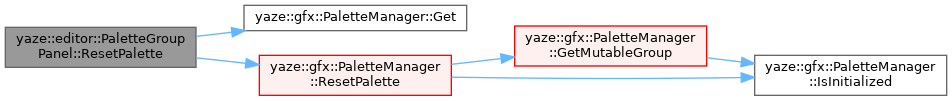

void	ResetPalette (int palette_index)
	Reset a specific palette to original ROM values.

void	ResetColor (int palette_index, int color_index)
	Reset a specific color to original ROM value.

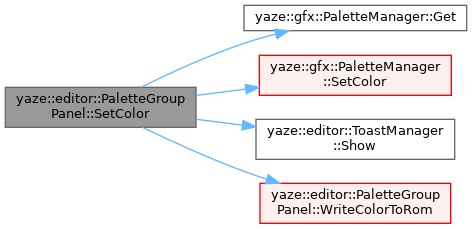

void	SetColor (int palette_index, int color_index, const gfx::SnesColor &new_color)
	Set a color value (records change for undo)

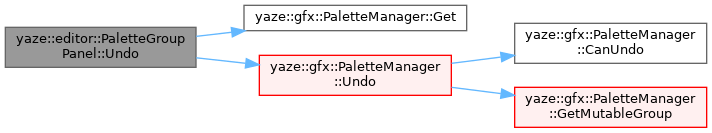

void	Undo ()

void	Redo ()

bool	CanUndo () const

bool	CanRedo () const

void	ClearHistory ()

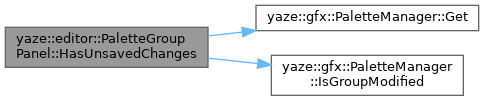

bool	HasUnsavedChanges () const

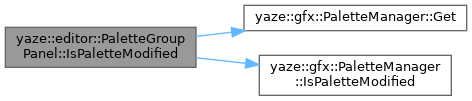

bool	IsPaletteModified (int palette_index) const

bool	IsColorModified (int palette_index, int color_index) const

int	GetSelectedPaletteIndex () const

void	SetSelectedPaletteIndex (int index)

int	GetSelectedColorIndex () const

void	SetSelectedColorIndex (int index)

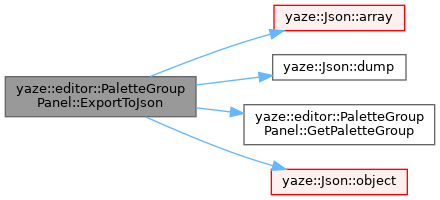

std::string	ExportToJson () const

absl::Status	ImportFromJson (const std::string &json)

std::string	ExportToClipboard () const

absl::Status	ImportFromClipboard ()

Public Member Functions inherited from yaze::editor::WindowContent
virtual	~WindowContent ()=default

virtual void	OnFirstDraw ()
	Called once before the first Draw() in a session.

virtual bool	RequiresLazyInit () const
	Whether this panel uses lazy initialization.

void	InvalidateLazyInit ()
	Reset lazy init state so OnFirstDraw() runs again.

virtual void	OnOpen ()
	Called when panel becomes visible.

virtual void	OnClose ()
	Called when panel is hidden.

virtual void	OnFocus ()
	Called when panel receives focus.

virtual WindowLifecycle	GetWindowLifecycle () const
	Get the lifecycle category for this window.

virtual WindowContextScope	GetContextScope () const
	Optional context binding for this window (room/selection/etc)

virtual WindowScope	GetScope () const
	Get the registration scope for this window.

virtual bool	IsEnabled () const
	Check if this panel is currently enabled.

virtual std::string	GetDisabledTooltip () const
	Get tooltip text when panel is disabled.

virtual std::string	GetShortcutHint () const
	Get keyboard shortcut hint for display.

virtual std::string	GetWorkflowGroup () const
	Optional workflow group for hack-centric actions.

virtual std::string	GetWorkflowLabel () const
	Optional workflow label for menus/command palette.

virtual std::string	GetWorkflowDescription () const
	Optional workflow description for menus/command palette.

virtual int	GetWorkflowPriority () const
	Optional workflow ordering priority (lower sorts first).

virtual float	GetPreferredWidth () const
	Get preferred width for this panel (optional)

virtual bool	HasExactPreferredWidth () const
	Whether GetPreferredWidth() is an exact content width.

virtual float	GetPreferredHeight () const
	Get preferred height for this panel (optional)

virtual bool	PrefersFloating () const

virtual bool	PreferAutoHideTabBar () const
	Whether the dock node hosting this panel should auto-hide its tab bar.

virtual bool	IsVisibleByDefault () const
	Whether this panel should be visible by default.

virtual std::string	GetParentPanelId () const
	Get parent panel ID for cascade behavior.

virtual bool	CascadeCloseChildren () const
	Whether closing this panel should close child panels.

void	DrawWithLazyInit (bool *p_open)
	Execute lazy initialization if needed, then call Draw()

Protected Member Functions
virtual gfx::PaletteGroup *	GetPaletteGroup ()=0
	Get the palette group for this card.

virtual const gfx::PaletteGroup *	GetPaletteGroup () const =0

virtual const PaletteGroupMetadata &	GetMetadata () const =0
	Get metadata for this palette group.

void	DrawPaletteGrid ()
	Draw the palette grid specific to this palette type.

void	DrawContent (bool embedded)

virtual int	GetColorsPerRow () const =0
	Get the number of colors per row for grid layout.

virtual void	DrawCustomToolbarButtons ()
	Draw additional toolbar buttons (called after standard buttons)

virtual void	DrawCustomPanels ()
	Draw additional panels (called after main content)

void	DrawToolbar ()
	Draw standard toolbar with save/discard/undo/redo.

void	DrawPaletteSelector ()
	Draw palette selector dropdown.

void	DrawColorPicker ()
	Draw color picker for selected color.

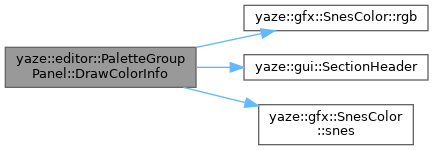

void	DrawColorInfo ()
	Draw color info panel with RGB/SNES/Hex values.

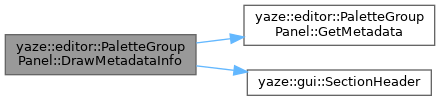

void	DrawMetadataInfo ()
	Draw palette metadata info panel.

void	DrawBatchOperationsPopup ()
	Draw batch operations popup.

gfx::SnesPalette *	GetMutablePalette (int index)
	Get mutable palette by index.

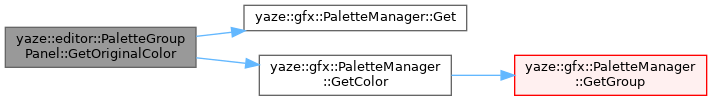

gfx::SnesColor	GetOriginalColor (int palette_index, int color_index) const
	Get original color from ROM (for reset/comparison)

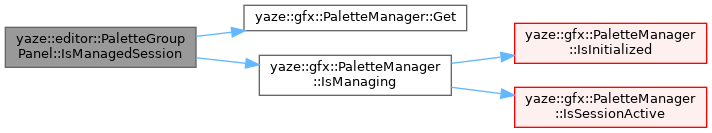

bool	IsManagedSession () const
	Return true only while PaletteManager is bound to this panel's session.

void	MarkModified (int palette_index, int color_index)
	Mark palette as modified.

void	ClearModified (int palette_index)
	Clear modified flags for palette.

Protected Member Functions inherited from yaze::editor::WindowContent
void	InvalidateCache ()
	Invalidate all cached computations.

template<typename T >
T &	GetCached (const std::string &key, std::function< T()> compute)
	Get or compute a cached value.

bool	IsCacheValid () const
	Check if cache has been invalidated.

void	ClearCache ()
	Clear all cached values (more aggressive than InvalidateCache)

Protected Attributes
std::string	group_name_

std::string	display_name_

Rom *	rom_

zelda3::GameData *	game_data_ = nullptr

const project::YazeProject *	project_ = nullptr

bool	show_ = false

int	selected_palette_ = 0

int	selected_color_ = -1

ImGuiID	active_picker_ = 0

bool	picker_cancelled_ = false

bool	show_snes_format_ = true

bool	show_hex_format_ = true

ToastManager *	toast_manager_ = nullptr

Detailed Description

Base class for palette group editing cards.

Provides common functionality for all palette group editors:

ROM persistence with transaction-based writes
Undo/redo history management
Modified state tracking with visual indicators
Save/discard workflow
Common toolbar and color picker UI
WorkspaceWindowManager integration

Derived classes implement specific grid layouts and palette access.

Definition at line 76 of file palette_group_panel.h.

Constructor & Destructor Documentation

◆ PaletteGroupPanel()

yaze::editor::PaletteGroupPanel::PaletteGroupPanel	(	const std::string &	group_name,
		const std::string &	display_name,
		Rom *	rom,
		zelda3::GameData *	game_data = nullptr )

Construct a new Palette Group Panel.

Parameters

group_name	Internal palette group name (e.g., "ow_main", "dungeon_main")
display_name	Human-readable name for UI
rom	ROM instance for reading/writing palettes
game_data	GameData instance for palette access

Definition at line 137 of file palette_group_panel.cc.

◆ ~PaletteGroupPanel()

virtual yaze::editor::PaletteGroupPanel::~PaletteGroupPanel ( )

virtualdefault

Member Function Documentation

◆ SetGameData()

void yaze::editor::PaletteGroupPanel::SetGameData ( zelda3::GameData * game_data )

inline

Definition at line 90 of file palette_group_panel.h.

References game_data_.

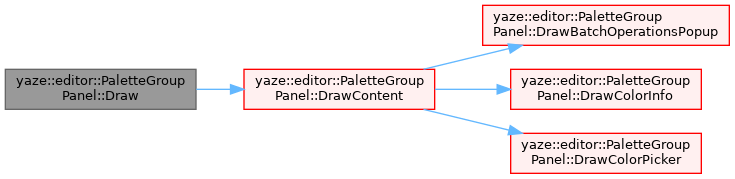

◆ Draw()

void yaze::editor::PaletteGroupPanel::Draw ( bool * p_open )

overridevirtual

Draw the card's ImGui UI.

Draw the card's ImGui UI

Implements yaze::editor::WindowContent.

Definition at line 149 of file palette_group_panel.cc.

References DrawContent().

Here is the call graph for this function:

◆ DrawEmbedded()

void yaze::editor::PaletteGroupPanel::DrawEmbedded ( )

Definition at line 153 of file palette_group_panel.cc.

References DrawContent().

Here is the call graph for this function:

◆ GetId()

std::string yaze::editor::PaletteGroupPanel::GetId ( ) const

inlineoverridevirtual

Unique identifier for this panel.

Returns: Panel ID in format "{category}.{name}" (e.g., "dungeon.room_selector")

IDs should be:

Lowercase with underscores
Prefixed with editor category
Unique across all panels

Implements yaze::editor::WindowContent.

Definition at line 107 of file palette_group_panel.h.

References group_name_.

◆ GetDisplayName()

std::string yaze::editor::PaletteGroupPanel::GetDisplayName ( ) const

inlineoverridevirtual

Human-readable name shown in menus and title bars.

Returns: Display name (e.g., "Room Selector")

Implements yaze::editor::WindowContent.

Definition at line 108 of file palette_group_panel.h.

References display_name_.

◆ GetIcon()

std::string yaze::editor::PaletteGroupPanel::GetIcon ( ) const

inlineoverridevirtual

Material Design icon for this panel.

Returns: Icon constant (e.g., ICON_MD_LIST)

Implements yaze::editor::WindowContent.

Reimplemented in yaze::editor::SpritePalettePanel, yaze::editor::SpritesAux1PalettePanel, yaze::editor::SpritesAux2PalettePanel, and yaze::editor::SpritesAux3PalettePanel.

Definition at line 109 of file palette_group_panel.h.

References ICON_MD_PALETTE.

◆ GetEditorCategory()

std::string yaze::editor::PaletteGroupPanel::GetEditorCategory ( ) const

inlineoverridevirtual

Editor category this panel belongs to.

Returns: Category name matching EditorType (e.g., "Dungeon", "Overworld")

Implements yaze::editor::WindowContent.

Definition at line 112 of file palette_group_panel.h.

◆ GetPresentationPolicy()

WindowPresentationPolicy yaze::editor::PaletteGroupPanel::GetPresentationPolicy ( ) const

inlineoverridevirtual

How this content is hosted and advertised by workspace chrome.

Every panel must override this and return one of the named policies (CoreWorkspace, EmbeddedTool, OptionalPopOut, Diagnostic). The base implementation returns an undeclared policy that keeps the historical listed pop-out behavior, but the panel admission audit (test/unit/editor/panel_admission_test.cc) fails until the panel chooses. See docs/internal/architecture/editor-ui-module-pattern.md, "Panel admission".

Reimplemented from yaze::editor::WindowContent.

Definition at line 114 of file palette_group_panel.h.

References yaze::editor::WindowPresentationPolicy::OptionalPopOut().

Here is the call graph for this function:

◆ GetPriority()

int yaze::editor::PaletteGroupPanel::GetPriority ( ) const

inlineoverridevirtual

Get display priority for menu ordering.

Returns: Priority value (lower = higher in list, default 50)

Reimplemented from yaze::editor::WindowContent.

Reimplemented in yaze::editor::SpritePalettePanel, yaze::editor::SpritesAux1PalettePanel, yaze::editor::SpritesAux2PalettePanel, and yaze::editor::SpritesAux3PalettePanel.

Definition at line 117 of file palette_group_panel.h.

◆ Show()

void yaze::editor::PaletteGroupPanel::Show ( )

inline

Definition at line 123 of file palette_group_panel.h.

References show_.

◆ Hide()

void yaze::editor::PaletteGroupPanel::Hide ( )

inline

Definition at line 124 of file palette_group_panel.h.

References show_.

◆ IsVisible()

bool yaze::editor::PaletteGroupPanel::IsVisible ( ) const

inline

Definition at line 125 of file palette_group_panel.h.

References show_.

◆ visibility_flag()

bool * yaze::editor::PaletteGroupPanel::visibility_flag ( )

inline

Definition at line 126 of file palette_group_panel.h.

References show_.

◆ SetToastManager()

void yaze::editor::PaletteGroupPanel::SetToastManager ( ToastManager * toast_manager )

inline

Definition at line 128 of file palette_group_panel.h.

References toast_manager_.

◆ SetProject()

void yaze::editor::PaletteGroupPanel::SetProject ( const project::YazeProject * project )

inline

Definition at line 131 of file palette_group_panel.h.

References project_.

◆ IsOwnedByRom()

bool yaze::editor::PaletteGroupPanel::IsOwnedByRom ( const Rom * rom ) const

inline

Definition at line 132 of file palette_group_panel.h.

References rom_.

◆ SaveToRom()

absl::Status yaze::editor::PaletteGroupPanel::SaveToRom ( )

Save all modified palettes to ROM.

Definition at line 686 of file palette_group_panel.cc.

References display_name_, yaze::gfx::PaletteManager::Get(), group_name_, yaze::project::YazeProject::hack_manifest, IsManagedSession(), yaze::core::HackManifest::loaded(), project_, yaze::project::YazeProject::rom_metadata, toast_manager_, yaze::editor::ValidateHackManifestSaveConflicts(), and yaze::project::RomMetadata::write_policy.

Referenced by DrawToolbar().

Here is the call graph for this function:

◆ DiscardChanges()

void yaze::editor::PaletteGroupPanel::DiscardChanges ( )

Discard all unsaved changes.

Definition at line 709 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::DiscardGroup(), yaze::gfx::PaletteManager::Get(), group_name_, IsManagedSession(), and selected_color_.

Referenced by DrawBatchOperationsPopup(), and DrawToolbar().

Here is the call graph for this function:

◆ ResetPalette()

void yaze::editor::PaletteGroupPanel::ResetPalette ( int palette_index )

Reset a specific palette to original ROM values.

Definition at line 720 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::Get(), group_name_, IsManagedSession(), and yaze::gfx::PaletteManager::ResetPalette().

Referenced by DrawPaletteSelector().

Here is the call graph for this function:

◆ ResetColor()

void yaze::editor::PaletteGroupPanel::ResetColor	(	int	palette_index,
		int	color_index )

Reset a specific color to original ROM value.

Definition at line 728 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::Get(), group_name_, IsManagedSession(), and yaze::gfx::PaletteManager::ResetColor().

Referenced by DrawColorPicker().

Here is the call graph for this function:

◆ SetColor()

void yaze::editor::PaletteGroupPanel::SetColor	(	int	palette_index,
		int	color_index,
		const gfx::SnesColor &	new_color )

Set a color value (records change for undo)

Definition at line 663 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::Get(), group_name_, IsManagedSession(), yaze::editor::kError, yaze::gfx::PaletteManager::SetColor(), yaze::editor::ToastManager::Show(), and toast_manager_.

Referenced by DrawColorPicker().

Here is the call graph for this function:

◆ Undo()

void yaze::editor::PaletteGroupPanel::Undo ( )

Definition at line 739 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::Get(), IsManagedSession(), and yaze::gfx::PaletteManager::Undo().

Referenced by DrawToolbar().

Here is the call graph for this function:

◆ Redo()

void yaze::editor::PaletteGroupPanel::Redo ( )

Definition at line 747 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::Get(), IsManagedSession(), and yaze::gfx::PaletteManager::Redo().

Referenced by DrawToolbar().

Here is the call graph for this function:

◆ CanUndo()

bool yaze::editor::PaletteGroupPanel::CanUndo ( ) const

Definition at line 792 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::CanUndo(), yaze::gfx::PaletteManager::Get(), and IsManagedSession().

Here is the call graph for this function:

◆ CanRedo()

bool yaze::editor::PaletteGroupPanel::CanRedo ( ) const

Definition at line 800 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::CanRedo(), yaze::gfx::PaletteManager::Get(), and IsManagedSession().

Here is the call graph for this function:

◆ ClearHistory()

void yaze::editor::PaletteGroupPanel::ClearHistory ( )

Definition at line 755 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::ClearHistory(), yaze::gfx::PaletteManager::Get(), and IsManagedSession().

Here is the call graph for this function:

◆ HasUnsavedChanges()

bool yaze::editor::PaletteGroupPanel::HasUnsavedChanges ( ) const

Definition at line 784 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::Get(), group_name_, yaze::gfx::PaletteManager::IsGroupModified(), and IsManagedSession().

Here is the call graph for this function:

◆ IsPaletteModified()

bool yaze::editor::PaletteGroupPanel::IsPaletteModified ( int palette_index ) const

Definition at line 765 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::Get(), group_name_, IsManagedSession(), and yaze::gfx::PaletteManager::IsPaletteModified().

Referenced by DrawPaletteSelector(), and DrawToolbar().

Here is the call graph for this function:

◆ IsColorModified()

bool yaze::editor::PaletteGroupPanel::IsColorModified	(	int	palette_index,
		int	color_index ) const

Definition at line 774 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::Get(), group_name_, yaze::gfx::PaletteManager::IsColorModified(), and IsManagedSession().

Referenced by DrawColorPicker(), and DrawPaletteGrid().

Here is the call graph for this function:

◆ GetSelectedPaletteIndex()

int yaze::editor::PaletteGroupPanel::GetSelectedPaletteIndex ( ) const

inline

Definition at line 176 of file palette_group_panel.h.

References selected_palette_.

◆ SetSelectedPaletteIndex()

void yaze::editor::PaletteGroupPanel::SetSelectedPaletteIndex ( int index )

Definition at line 157 of file palette_group_panel.cc.

References GetPaletteGroup(), selected_color_, and selected_palette_.

Here is the call graph for this function:

◆ GetSelectedColorIndex()

int yaze::editor::PaletteGroupPanel::GetSelectedColorIndex ( ) const

inline

Definition at line 179 of file palette_group_panel.h.

References selected_color_.

◆ SetSelectedColorIndex()

void yaze::editor::PaletteGroupPanel::SetSelectedColorIndex ( int index )

inline

Definition at line 180 of file palette_group_panel.h.

References selected_color_.

◆ ExportToJson()

std::string yaze::editor::PaletteGroupPanel::ExportToJson ( ) const

Definition at line 834 of file palette_group_panel.cc.

References yaze::Json::array(), display_name_, yaze::Json::dump(), GetPaletteGroup(), group_name_, and yaze::Json::object().

Here is the call graph for this function:

◆ ImportFromJson()

absl::Status yaze::editor::PaletteGroupPanel::ImportFromJson ( const std::string & json )

Definition at line 869 of file palette_group_panel.cc.

References yaze::Json::contains(), yaze::gfx::PaletteManager::Get(), GetPaletteGroup(), group_name_, yaze::Json::is_array(), yaze::Json::is_object(), IsManagedSession(), and yaze::Json::parse().

◆ ExportToClipboard()

std::string yaze::editor::PaletteGroupPanel::ExportToClipboard ( ) const

Definition at line 996 of file palette_group_panel.cc.

References GetPaletteGroup(), and selected_palette_.

Referenced by DrawBatchOperationsPopup(), DrawContent(), and DrawToolbar().

Here is the call graph for this function:

◆ ImportFromClipboard()

absl::Status yaze::editor::PaletteGroupPanel::ImportFromClipboard ( )

Definition at line 1016 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::Get(), GetMutablePalette(), group_name_, IsManagedSession(), and selected_palette_.

Referenced by DrawBatchOperationsPopup(), DrawContent(), and DrawToolbar().

Here is the call graph for this function:

◆ GetPaletteGroup() [1/2]

virtual gfx::PaletteGroup * yaze::editor::PaletteGroupPanel::GetPaletteGroup ( )

protectedpure virtual

Get the palette group for this card.

Implemented in yaze::editor::OverworldMainPalettePanel, yaze::editor::OverworldAnimatedPalettePanel, yaze::editor::DungeonMainPalettePanel, yaze::editor::SpritePalettePanel, yaze::editor::SpritesAux1PalettePanel, yaze::editor::SpritesAux2PalettePanel, yaze::editor::SpritesAux3PalettePanel, and yaze::editor::EquipmentPalettePanel.

Referenced by DrawPaletteSelector(), DrawToolbar(), ExportToClipboard(), ExportToJson(), GetMutablePalette(), ImportFromJson(), and SetSelectedPaletteIndex().

◆ GetPaletteGroup() [2/2]

virtual const gfx::PaletteGroup * yaze::editor::PaletteGroupPanel::GetPaletteGroup ( ) const

protectedpure virtual

Implemented in yaze::editor::OverworldMainPalettePanel, yaze::editor::OverworldAnimatedPalettePanel, yaze::editor::DungeonMainPalettePanel, yaze::editor::SpritePalettePanel, yaze::editor::SpritesAux1PalettePanel, yaze::editor::SpritesAux2PalettePanel, yaze::editor::SpritesAux3PalettePanel, and yaze::editor::EquipmentPalettePanel.

◆ GetMetadata()

virtual const PaletteGroupMetadata & yaze::editor::PaletteGroupPanel::GetMetadata ( ) const

protectedpure virtual

Get metadata for this palette group.

Implemented in yaze::editor::OverworldMainPalettePanel, yaze::editor::OverworldAnimatedPalettePanel, yaze::editor::DungeonMainPalettePanel, yaze::editor::SpritePalettePanel, yaze::editor::SpritesAux1PalettePanel, yaze::editor::SpritesAux2PalettePanel, yaze::editor::SpritesAux3PalettePanel, and yaze::editor::EquipmentPalettePanel.

Referenced by DrawMetadataInfo().

◆ DrawPaletteGrid()

void yaze::editor::PaletteGroupPanel::DrawPaletteGrid ( )

protected

Draw the palette grid specific to this palette type.

Definition at line 230 of file palette_group_panel.cc.

References yaze::gui::AutoRegisterLastItem(), GetColorsPerRow(), GetMutablePalette(), IsColorModified(), yaze::gui::PaletteColorButton(), selected_color_, and selected_palette_.

Referenced by DrawContent().

◆ DrawContent()

void yaze::editor::PaletteGroupPanel::DrawContent ( bool embedded )

protected

Definition at line 166 of file palette_group_panel.cc.

References DrawBatchOperationsPopup(), DrawColorInfo(), DrawColorPicker(), DrawCustomPanels(), DrawMetadataInfo(), DrawPaletteGrid(), DrawPaletteSelector(), DrawToolbar(), ExportToClipboard(), ICON_MD_MORE_HORIZ, ImportFromClipboard(), yaze::Rom::is_loaded(), IsManagedSession(), yaze::editor::kError, rom_, selected_color_, yaze::editor::ToastManager::Show(), yaze::gui::ThemedIconButton(), and toast_manager_.

Referenced by Draw(), and DrawEmbedded().

◆ GetColorsPerRow()

virtual int yaze::editor::PaletteGroupPanel::GetColorsPerRow ( ) const

protectedpure virtual

Get the number of colors per row for grid layout.

Implemented in yaze::editor::OverworldMainPalettePanel, yaze::editor::OverworldAnimatedPalettePanel, yaze::editor::DungeonMainPalettePanel, yaze::editor::SpritePalettePanel, yaze::editor::SpritesAux1PalettePanel, yaze::editor::SpritesAux2PalettePanel, yaze::editor::SpritesAux3PalettePanel, and yaze::editor::EquipmentPalettePanel.

Referenced by DrawPaletteGrid().

◆ DrawCustomToolbarButtons()

virtual void yaze::editor::PaletteGroupPanel::DrawCustomToolbarButtons ( )

inlineprotectedvirtual

Draw additional toolbar buttons (called after standard buttons)

Definition at line 220 of file palette_group_panel.h.

Referenced by DrawToolbar().

◆ DrawCustomPanels()

virtual void yaze::editor::PaletteGroupPanel::DrawCustomPanels ( )

inlineprotectedvirtual

Draw additional panels (called after main content)

Reimplemented in yaze::editor::SpritePalettePanel.

Definition at line 225 of file palette_group_panel.h.

Referenced by DrawContent().

◆ DrawToolbar()

void yaze::editor::PaletteGroupPanel::DrawToolbar ( )

protected

Draw standard toolbar with save/discard/undo/redo.

Definition at line 252 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::CanRedo(), yaze::gfx::PaletteManager::CanUndo(), yaze::gui::DangerButton(), DiscardChanges(), display_name_, DrawCustomToolbarButtons(), ExportToClipboard(), yaze::gfx::PaletteManager::Get(), GetPaletteGroup(), group_name_, ICON_MD_EDIT, ICON_MD_FILE_DOWNLOAD, ICON_MD_FILE_UPLOAD, ICON_MD_MORE_VERT, ICON_MD_REDO, ICON_MD_SAVE, ICON_MD_UNDO, ImportFromClipboard(), yaze::gfx::PaletteManager::IsGroupModified(), IsPaletteModified(), yaze::editor::kError, yaze::gui::PrimaryButton(), Redo(), SaveToRom(), yaze::editor::ToastManager::Show(), yaze::gui::ThemedIconButton(), toast_manager_, and Undo().

Referenced by DrawContent().

◆ DrawPaletteSelector()

void yaze::editor::PaletteGroupPanel::DrawPaletteSelector ( )

protected

Draw palette selector dropdown.

Definition at line 354 of file palette_group_panel.cc.

References GetPaletteGroup(), yaze::gui::LayoutHelpers::GetStandardInputWidth(), ICON_MD_RESTORE, IsPaletteModified(), ResetPalette(), selected_color_, selected_palette_, and yaze::gui::ThemedIconButton().

Referenced by DrawContent().

◆ DrawColorPicker()

void yaze::editor::PaletteGroupPanel::DrawColorPicker ( )

protected

Draw color picker for selected color.

Definition at line 406 of file palette_group_panel.cc.

References active_picker_, yaze::gui::AutoRegisterLastItem(), yaze::gui::WidgetIdRegistry::WidgetMetadata::bounds, yaze::gui::ConvertImVec4ToSnesColor(), yaze::gui::ConvertSnesColorToImVec4(), yaze::gui::WidgetIdRegistry::WidgetMetadata::enabled, yaze::gfx::PaletteManager::Get(), GetMutablePalette(), GetOriginalColor(), group_name_, ICON_MD_RESTORE, yaze::gui::WidgetIdRegistry::Instance(), IsColorModified(), yaze::editor::kError, yaze::gui::WidgetIdRegistry::WidgetMetadata::label, picker_cancelled_, yaze::gui::WidgetIdRegistry::RegisterWidget(), ResetColor(), yaze::gui::SectionHeader(), selected_color_, selected_palette_, SetColor(), yaze::editor::ToastManager::Show(), yaze::gui::ThemedButton(), toast_manager_, yaze::gui::WidgetIdRegistry::WidgetMetadata::visible, and yaze::gui::WidgetIdRegistry::WidgetMetadata::window_name.

Referenced by DrawContent().

◆ DrawColorInfo()

void yaze::editor::PaletteGroupPanel::DrawColorInfo ( )

protected

Draw color info panel with RGB/SNES/Hex values.

Definition at line 530 of file palette_group_panel.cc.

References GetMutablePalette(), yaze::gui::SectionHeader(), selected_color_, selected_palette_, show_hex_format_, and show_snes_format_.

Referenced by DrawContent().

Here is the call graph for this function:

◆ DrawMetadataInfo()

void yaze::editor::PaletteGroupPanel::DrawMetadataInfo ( )

protected

Draw palette metadata info panel.

Definition at line 571 of file palette_group_panel.cc.

References GetMetadata(), yaze::gui::SectionHeader(), and selected_palette_.

Referenced by DrawContent().

Here is the call graph for this function:

◆ DrawBatchOperationsPopup()

void yaze::editor::PaletteGroupPanel::DrawBatchOperationsPopup ( )

protected

Draw batch operations popup.

Definition at line 636 of file palette_group_panel.cc.

References DiscardChanges(), ExportToClipboard(), ImportFromClipboard(), yaze::gui::SectionHeader(), and yaze::gui::ThemedButton().

Referenced by DrawContent().

◆ GetMutablePalette()

gfx::SnesPalette * yaze::editor::PaletteGroupPanel::GetMutablePalette ( int index )

protected

Get mutable palette by index.

Definition at line 810 of file palette_group_panel.cc.

References GetPaletteGroup().

Referenced by DrawColorInfo(), DrawColorPicker(), DrawPaletteGrid(), and ImportFromClipboard().

Here is the call graph for this function:

◆ GetOriginalColor()

gfx::SnesColor yaze::editor::PaletteGroupPanel::GetOriginalColor	(	int	palette_index,
		int	color_index ) const

protected

Get original color from ROM (for reset/comparison)

Definition at line 818 of file palette_group_panel.cc.

References yaze::gfx::PaletteManager::Get(), yaze::gfx::PaletteManager::GetOriginalColor(), and group_name_.

Referenced by DrawColorPicker().

Here is the call graph for this function:

◆ IsManagedSession()

bool yaze::editor::PaletteGroupPanel::IsManagedSession ( ) const

protected

Return true only while PaletteManager is bound to this panel's session.

Definition at line 825 of file palette_group_panel.cc.

References game_data_, yaze::gfx::PaletteManager::Get(), and yaze::gfx::PaletteManager::IsManaging().

Referenced by CanRedo(), CanUndo(), ClearHistory(), DiscardChanges(), DrawContent(), HasUnsavedChanges(), ImportFromClipboard(), ImportFromJson(), IsColorModified(), IsPaletteModified(), Redo(), ResetColor(), ResetPalette(), SaveToRom(), SetColor(), and Undo().

Here is the call graph for this function:

◆ MarkModified()

void yaze::editor::PaletteGroupPanel::MarkModified	(	int	palette_index,
		int	color_index )

protected

Mark palette as modified.

◆ ClearModified()

void yaze::editor::PaletteGroupPanel::ClearModified ( int palette_index )

protected

Clear modified flags for palette.

Member Data Documentation

◆ group_name_

std::string yaze::editor::PaletteGroupPanel::group_name_

protected

Definition at line 286 of file palette_group_panel.h.

Referenced by DiscardChanges(), DrawColorPicker(), DrawToolbar(), ExportToJson(), GetId(), GetOriginalColor(), HasUnsavedChanges(), ImportFromClipboard(), ImportFromJson(), IsColorModified(), IsPaletteModified(), ResetColor(), ResetPalette(), SaveToRom(), and SetColor().

◆ display_name_

std::string yaze::editor::PaletteGroupPanel::display_name_

protected

Definition at line 287 of file palette_group_panel.h.

Referenced by DrawToolbar(), ExportToJson(), GetDisplayName(), and SaveToRom().

◆ rom_

Rom* yaze::editor::PaletteGroupPanel::rom_

protected

Definition at line 288 of file palette_group_panel.h.

Referenced by DrawContent(), and IsOwnedByRom().

◆ game_data_

zelda3::GameData* yaze::editor::PaletteGroupPanel::game_data_ = nullptr

protected

Definition at line 289 of file palette_group_panel.h.

◆ project_

const project::YazeProject* yaze::editor::PaletteGroupPanel::project_ = nullptr

protected

Definition at line 290 of file palette_group_panel.h.

Referenced by SaveToRom(), and SetProject().

◆ show_

bool yaze::editor::PaletteGroupPanel::show_ = false

protected

Definition at line 291 of file palette_group_panel.h.

Referenced by Hide(), IsVisible(), Show(), and visibility_flag().

◆ selected_palette_

int yaze::editor::PaletteGroupPanel::selected_palette_ = 0

protected

Definition at line 294 of file palette_group_panel.h.

Referenced by DrawColorInfo(), DrawColorPicker(), DrawMetadataInfo(), DrawPaletteGrid(), DrawPaletteSelector(), ExportToClipboard(), GetSelectedPaletteIndex(), ImportFromClipboard(), and SetSelectedPaletteIndex().

◆ selected_color_

int yaze::editor::PaletteGroupPanel::selected_color_ = -1

protected

Definition at line 295 of file palette_group_panel.h.

Referenced by DiscardChanges(), DrawColorInfo(), DrawColorPicker(), DrawContent(), DrawPaletteGrid(), DrawPaletteSelector(), GetSelectedColorIndex(), SetSelectedColorIndex(), and SetSelectedPaletteIndex().

◆ active_picker_

ImGuiID yaze::editor::PaletteGroupPanel::active_picker_ = 0

protected

Definition at line 299 of file palette_group_panel.h.

Referenced by DrawColorPicker().

◆ picker_cancelled_

bool yaze::editor::PaletteGroupPanel::picker_cancelled_ = false

protected

Definition at line 300 of file palette_group_panel.h.

Referenced by DrawColorPicker().

◆ show_snes_format_

bool yaze::editor::PaletteGroupPanel::show_snes_format_ = true

protected

Definition at line 303 of file palette_group_panel.h.

Referenced by DrawColorInfo().

◆ show_hex_format_

bool yaze::editor::PaletteGroupPanel::show_hex_format_ = true

protected

Definition at line 304 of file palette_group_panel.h.

Referenced by DrawColorInfo().

◆ toast_manager_

ToastManager* yaze::editor::PaletteGroupPanel::toast_manager_ = nullptr

protected

Definition at line 306 of file palette_group_panel.h.

Referenced by DrawColorPicker(), DrawContent(), DrawToolbar(), SaveToRom(), SetColor(), and SetToastManager().

The documentation for this class was generated from the following files:

src/app/editor/palette/palette_group_panel.h
src/app/editor/palette/palette_group_panel.cc

	yaze 0.3.2 Link to the Past ROM Editor

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ PaletteGroupPanel()

◆ ~PaletteGroupPanel()

Member Function Documentation

◆ SetGameData()

◆ Draw()

◆ DrawEmbedded()

◆ GetId()

◆ GetDisplayName()

◆ GetIcon()

◆ GetEditorCategory()

◆ GetPresentationPolicy()

◆ GetPriority()

◆ Show()

◆ Hide()

◆ IsVisible()

◆ visibility_flag()

◆ SetToastManager()

◆ SetProject()

◆ IsOwnedByRom()

◆ SaveToRom()

◆ DiscardChanges()

◆ ResetPalette()

◆ ResetColor()

◆ SetColor()

◆ Undo()

◆ Redo()

◆ CanUndo()

◆ CanRedo()

◆ ClearHistory()

◆ HasUnsavedChanges()

◆ IsPaletteModified()

◆ IsColorModified()

◆ GetSelectedPaletteIndex()

◆ SetSelectedPaletteIndex()

◆ GetSelectedColorIndex()

◆ SetSelectedColorIndex()

◆ ExportToJson()

◆ ImportFromJson()

◆ ExportToClipboard()

◆ ImportFromClipboard()

◆ GetPaletteGroup() [1/2]

◆ GetPaletteGroup() [2/2]

◆ GetMetadata()

◆ DrawPaletteGrid()

◆ DrawContent()

◆ GetColorsPerRow()

◆ DrawCustomToolbarButtons()

◆ DrawCustomPanels()

◆ DrawToolbar()

◆ DrawPaletteSelector()

◆ DrawColorPicker()

◆ DrawColorInfo()

◆ DrawMetadataInfo()

◆ DrawBatchOperationsPopup()

◆ GetMutablePalette()

◆ GetOriginalColor()

◆ IsManagedSession()

◆ MarkModified()

◆ ClearModified()

Member Data Documentation

◆ group_name_

◆ display_name_

◆ rom_

◆ game_data_

◆ project_

◆ show_

◆ selected_palette_

◆ selected_color_

◆ active_picker_

◆ picker_cancelled_

◆ show_snes_format_

◆ show_hex_format_

◆ toast_manager_
