yaze::editor::usage_preview::Tile16UsagePreview Class Reference

#include <usage_preview.h>

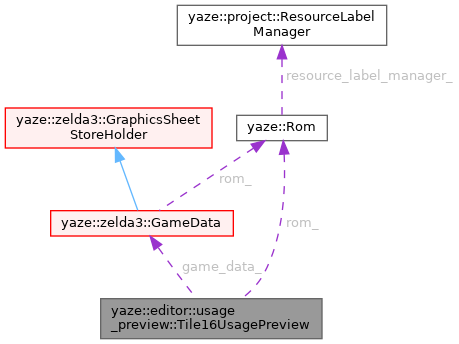

Collaboration diagram for yaze::editor::usage_preview::Tile16UsagePreview:

Public Member Functions
absl::Status	Configure (Rom *rom, zelda3::GameData *game_data, int area)
	Loads overworld area area (graphics and palette) and the tile16 table.
std::vector< int >	Tile16sUsingTile (uint16_t sheet, int tile_index) const
PreviewImage	Render (const SheetPixels &sheets, const std::vector< int > &tile16s, uint16_t sheet, int tile_index, std::vector< SDL_Rect > *highlights=nullptr)
int	area () const

Private Member Functions
std::vector< int >	TileIdsFor (uint16_t sheet, int tile_index) const

Private Attributes
Rom *	rom_ = nullptr
zelda3::GameData *	game_data_ = nullptr
int	area_ = -1
std::unique_ptr< zelda3::OverworldMap >	map_
std::vector< gfx::Tile16 >	tiles16_

Detailed Description

Definition at line 224 of file usage_preview.h.

Member Function Documentation

Configure()

absl::Status yaze::editor::usage_preview::Tile16UsagePreview::Configure	(	Rom *	rom,
		zelda3::GameData *	game_data,
		int	area )

Loads overworld area area (graphics and palette) and the tile16 table.

Definition at line 545 of file usage_preview.cc.

References area(), area_, game_data_, yaze::Rom::is_loaded(), yaze::zelda3::kNumOverworldAreas, map_, yaze::zelda3::ReadMap16Tiles(), rom_, and tiles16_.

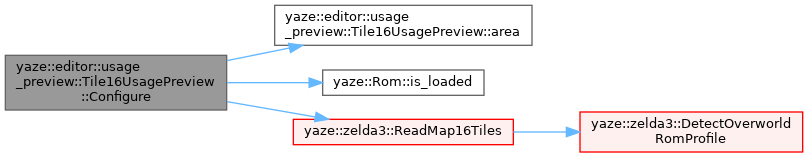

Here is the call graph for this function:

Tile16sUsingTile()

std::vector< int > yaze::editor::usage_preview::Tile16UsagePreview::Tile16sUsingTile	(	uint16_t	sheet,
		int	tile_index ) const

Tile16s in the loaded area's blockset that use 8x8 tile tile_index (0-63) of sheet, in any of the slots the area loads it into.

Definition at line 593 of file usage_preview.cc.

References TileIdsFor(), and tiles16_.

Here is the call graph for this function:

Render()

PreviewImage yaze::editor::usage_preview::Tile16UsagePreview::Render	(	const SheetPixels &	sheets,
		const std::vector< int > &	tile16s,
		uint16_t	sheet,
		int	tile_index,
		std::vector< SDL_Rect > *	highlights = nullptr )

Draws tile16s in rows of 8 (16x16 each) with sheets swapped in. Quadrants that use sheet/tile_index are listed in highlights as pixel rectangles.

Definition at line 611 of file usage_preview.cc.

References yaze::editor::usage_preview::PreviewImage::colors, yaze::editor::usage_preview::PreviewImage::height, yaze::editor::usage_preview::PreviewImage::index0_transparent, map_, yaze::editor::usage_preview::PreviewImage::pixels, TileIdsFor(), tiles16_, and yaze::editor::usage_preview::PreviewImage::width.

Here is the call graph for this function:

area()

int yaze::editor::usage_preview::Tile16UsagePreview::area ( ) const

inline

Definition at line 241 of file usage_preview.h.

References area_.

Referenced by Configure().

TileIdsFor()

std::vector< int > yaze::editor::usage_preview::Tile16UsagePreview::TileIdsFor ( uint16_t sheet, int tile_index ) const

private

Definition at line 577 of file usage_preview.cc.

References map_.

Referenced by Render(), and Tile16sUsingTile().

Member Data Documentation

rom_

Rom* yaze::editor::usage_preview::Tile16UsagePreview::rom_ = nullptr

private

Definition at line 246 of file usage_preview.h.

Referenced by Configure().

game_data_

zelda3::GameData* yaze::editor::usage_preview::Tile16UsagePreview::game_data_ = nullptr

private

Definition at line 247 of file usage_preview.h.

Referenced by Configure().

area_

int yaze::editor::usage_preview::Tile16UsagePreview::area_ = -1

private

Definition at line 248 of file usage_preview.h.

Referenced by area(), and Configure().

map_

std::unique_ptr<zelda3::OverworldMap> yaze::editor::usage_preview::Tile16UsagePreview::map_

private

Definition at line 249 of file usage_preview.h.

Referenced by Configure(), Render(), and TileIdsFor().

tiles16_

std::vector<gfx::Tile16> yaze::editor::usage_preview::Tile16UsagePreview::tiles16_

private

Definition at line 250 of file usage_preview.h.

Referenced by Configure(), Render(), and Tile16sUsingTile().

---

The documentation for this class was generated from the following files:

• src/app/editor/graphics/usage_preview.h
• src/app/editor/graphics/usage_preview.cc
