yaze::editor::usage_preview Namespace Reference

Namespaces
namespace	anonymous_namespace{usage_preview.cc}

Classes
struct	LiveRoomContext
struct	LoadedRoomSourceUses
struct	PreviewImage
struct	RoomTileReference
class	RoomUsagePreview
struct	SourceObjectUse
class	SpriteUsagePreview
class	Tile16UsagePreview

Typedefs
using	SheetPixels = std::map<uint16_t, std::vector<uint8_t>>
	Sheet id -> 4096 8bpp pixels (the GameData::graphics_buffer layout).
using	LiveRoomContexts = std::map<int, LiveRoomContext>
using	LiveRoomProvider = std::function<LiveRoomContexts()>

Functions
SheetPixels	SnapshotSessionSheets (const std::set< uint16_t > &ids, const zelda3::GameData *game_data)
SheetPixels	SnapshotArenaSheets (const std::set< uint16_t > &ids, const zelda3::GameData *game_data)
PreviewImage	SnapshotBitmap (const gfx::Bitmap &bitmap)
	Copies a palettized Bitmap (for example a room composite).
std::map< int, std::array< uint8_t, 16 > >	CollectRoomSheetBlocks (Rom *rom, zelda3::GameData *game_data, const std::map< int, zelda3::RoomGfxInfo > &rooms)
std::vector< int >	RoomsUsingSheet (const std::map< int, std::array< uint8_t, 16 > > &room_blocks, uint16_t sheet, bool include_sprites)
std::string	RoomContextLabel (const LiveRoomContext *live)
std::vector< SourceObjectUse >	FindSourceObjectUses (const std::vector< RoomTileReference > &references, const std::vector< GraphicsEditTarget > &targets, const zelda3::GameData *owner)
std::vector< LoadedRoomSourceUses >	FindLoadedRoomSourceUses (Rom *rom, zelda3::GameData *game_data, const LiveRoomContexts &rooms, const std::vector< GraphicsEditTarget > &targets)

Variables
constexpr size_t	kSheetBytes = 4096

Typedef Documentation

SheetPixels

using yaze::editor::usage_preview::SheetPixels = std::map<uint16_t, std::vector<uint8_t>>

Sheet id -> 4096 8bpp pixels (the GameData::graphics_buffer layout).

Definition at line 46 of file usage_preview.h.

LiveRoomContexts

using yaze::editor::usage_preview::LiveRoomContexts = std::map<int, LiveRoomContext>

Definition at line 88 of file usage_preview.h.

LiveRoomProvider

using yaze::editor::usage_preview::LiveRoomProvider = std::function<LiveRoomContexts()>

Definition at line 89 of file usage_preview.h.

Function Documentation

SnapshotSessionSheets()

SheetPixels yaze::editor::usage_preview::SnapshotSessionSheets	(	const std::set< uint16_t > &	ids,
		const zelda3::GameData *	game_data )

Definition at line 37 of file usage_preview.cc.

References yaze::zelda3::GraphicsSheetStore::Sheet(), and yaze::zelda3::GraphicsSheetStoreHolder::sheet_store.

Referenced by yaze::editor::UsagePreviewView::HashWatchedSheets(), yaze::editor::OverworldEditor::OpenGraphicsForTile16Quadrant(), yaze::editor::sprite_graphics_context::RenderCapturedFrame(), and yaze::editor::UsagePreviewView::Snapshot().

Here is the call graph for this function:

SnapshotArenaSheets()

SheetPixels yaze::editor::usage_preview::SnapshotArenaSheets	(	const std::set< uint16_t > &	ids,
		const zelda3::GameData *	game_data )

Compatibility reader for Arena display copies, not authoritative pixels. Copies sheets in ids. Sheets that are not loaded or not 128x32 8bpp are left out. Returns nothing when the Arena holds another ROM's sheets (its owner is not game_data).

Definition at line 52 of file usage_preview.cc.

References yaze::gfx::Arena::Get(), and kSheetBytes.

Here is the call graph for this function:

SnapshotBitmap()

PreviewImage yaze::editor::usage_preview::SnapshotBitmap

(

const gfx::Bitmap &

bitmap

)

Copies a palettized Bitmap (for example a room composite).

Definition at line 109 of file usage_preview.cc.

References yaze::editor::usage_preview::PreviewImage::colors, yaze::editor::usage_preview::PreviewImage::format, yaze::platform::GetSurfacePalette(), yaze::editor::usage_preview::PreviewImage::height, yaze::gfx::Bitmap::height(), yaze::gfx::Bitmap::is_active(), yaze::gfx::Bitmap::IsIndexed(), yaze::editor::usage_preview::PreviewImage::kIndexed, yaze::editor::usage_preview::PreviewImage::kRgba, yaze::editor::usage_preview::PreviewImage::pixels, yaze::gfx::Bitmap::surface(), yaze::gfx::Bitmap::vector(), yaze::editor::usage_preview::PreviewImage::width, and yaze::gfx::Bitmap::width().

Referenced by yaze::editor::DungeonEditorV2::OpenGraphicsEditorForObject(), and yaze::editor::usage_preview::RoomUsagePreview::Snapshot().

CollectRoomSheetBlocks()

std::map< int, std::array< uint8_t, 16 > > yaze::editor::usage_preview::CollectRoomSheetBlocks	(	Rom *	rom,
		zelda3::GameData *	game_data,
		const std::map< int, zelda3::RoomGfxInfo > &	rooms )

Graphics blocks (0-7 background, 8-15 sprites) per dungeon room, from Room::LoadRoomGraphics() with each room's header blockset and spriteset. Only the group tables are read; no room objects are loaded.

Definition at line 140 of file usage_preview.cc.

References yaze::zelda3::Room::blocks(), yaze::zelda3::Room::LoadRoomGraphics(), yaze::zelda3::Room::SetBlockset(), and yaze::zelda3::Room::SetSpriteset().

Referenced by yaze::editor::UsagePreviewView::EnsureTables().

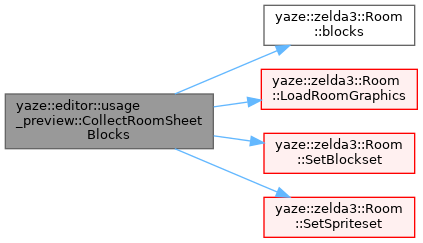

Here is the call graph for this function:

RoomsUsingSheet()

std::vector< int > yaze::editor::usage_preview::RoomsUsingSheet	(	const std::map< int, std::array< uint8_t, 16 > > &	room_blocks,
		uint16_t	sheet,
		bool	include_sprites )

Rooms whose background blocks (or, with include_sprites, sprite blocks) contain sheet. Sorted by room id.

Definition at line 160 of file usage_preview.cc.

Referenced by yaze::editor::UsagePreviewView::RefreshRoomContexts().

RoomContextLabel()

std::string yaze::editor::usage_preview::RoomContextLabel

(

const LiveRoomContext *

live

)

Definition at line 174 of file usage_preview.cc.

References yaze::editor::usage_preview::LiveRoomContext::entrance_slot.

FindSourceObjectUses()

std::vector< SourceObjectUse > yaze::editor::usage_preview::FindSourceObjectUses	(	const std::vector< RoomTileReference > &	references,
		const std::vector< GraphicsEditTarget > &	targets,
		const zelda3::GameData *	owner )

Definition at line 182 of file usage_preview.cc.

Referenced by FindLoadedRoomSourceUses().

FindLoadedRoomSourceUses()

std::vector< LoadedRoomSourceUses > yaze::editor::usage_preview::FindLoadedRoomSourceUses	(	Rom *	rom,
		zelda3::GameData *	game_data,
		const LiveRoomContexts &	rooms,
		const std::vector< GraphicsEditTarget > &	targets )

Definition at line 233 of file usage_preview.cc.

References yaze::editor::usage_preview::LoadedRoomSourceUses::error, FindSourceObjectUses(), yaze::editor::usage_preview::LoadedRoomSourceUses::objects, yaze::editor::usage_preview::LoadedRoomSourceUses::room_id, yaze::editor::usage_preview::RoomUsagePreview::tile_references(), yaze::editor::usage_preview::RoomUsagePreview::TraceLoadedRoom(), yaze::editor::usage_preview::RoomUsagePreview::unknown_objects(), and yaze::editor::usage_preview::LoadedRoomSourceUses::unknown_objects.

Referenced by yaze::editor::UsagePreviewView::ScanSharedUses().

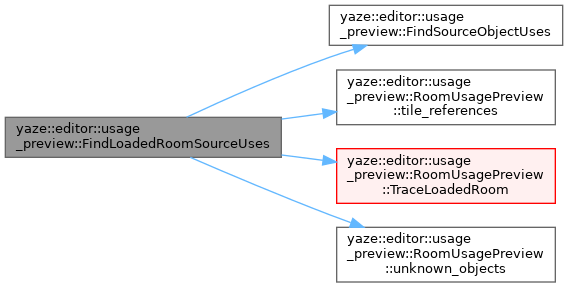

Here is the call graph for this function:

Variable Documentation

kSheetBytes

constexpr size_t yaze::editor::usage_preview::kSheetBytes = 4096

constexpr

Definition at line 43 of file usage_preview.h.

Referenced by yaze::editor::usage_preview::anonymous_namespace{usage_preview.cc}::CopySheet(), yaze::editor::usage_preview::SpriteUsagePreview::SheetOrRom(), and SnapshotArenaSheets().
