yaze::editor::ResourceWindowContent Class Reference

Base class for windows that edit specific ROM resources. More...

#include <resource_panel.h>

Inheritance diagram for yaze::editor::ResourceWindowContent:

Collaboration diagram for yaze::editor::ResourceWindowContent:

Public Member Functions
virtual	~ResourceWindowContent ()=default
virtual int	GetResourceId () const =0
	The numeric ID of the resource.
virtual std::string	GetResourceType () const =0
	The resource type name.
virtual std::string	GetResourceName () const
	Human-readable resource name.
std::string	GetId () const override
	Generated panel ID from resource type and ID.
std::string	GetDisplayName () const override
	Generated display name from resource name.
WindowLifecycle	GetWindowLifecycle () const override
	Resource windows use CrossEditor lifecycle for opt-in persistence.
virtual bool	AllowMultipleInstances () const
	Whether multiple instances of this resource type can be open.
virtual size_t	GetSessionId () const
	Get the session ID this resource belongs to.
void	SetSessionId (size_t session_id)
	Set the session ID for this resource panel.
virtual void	OnResourceModified ()
	Called when resource data changes externally.
virtual void	OnResourceDeleted ()
	Called when resource is deleted from ROM.
virtual	~ResourceWindowContent ()=default
virtual int	GetResourceId () const =0
	The numeric ID of the resource.
virtual std::string	GetResourceType () const =0
	The resource type name.
virtual std::string	GetResourceName () const
	Human-readable resource name.
std::string	GetId () const override
	Generated panel ID from resource type and ID.
std::string	GetDisplayName () const override
	Generated display name from resource name.
WindowLifecycle	GetWindowLifecycle () const override
	Resource windows use CrossEditor lifecycle for opt-in persistence.
virtual bool	AllowMultipleInstances () const
	Whether multiple instances of this resource type can be open.
virtual size_t	GetSessionId () const
	Get the session ID this resource belongs to.
void	SetSessionId (size_t session_id)
	Set the session ID for this resource panel.
virtual void	OnResourceModified ()
	Called when resource data changes externally.
virtual void	OnResourceDeleted ()
	Called when resource is deleted from ROM.
Public Member Functions inherited from yaze::editor::WindowContent
virtual	~WindowContent ()=default
virtual std::string	GetIcon () const =0
	Material Design icon for this panel.
virtual std::string	GetEditorCategory () const =0
	Editor category this panel belongs to.
virtual void	Draw (bool *p_open)=0
	Draw the panel content.
virtual void	OnFirstDraw ()
	Called once before the first Draw() in a session.
virtual bool	RequiresLazyInit () const
	Whether this panel uses lazy initialization.
void	InvalidateLazyInit ()
	Reset lazy init state so OnFirstDraw() runs again.
virtual void	OnOpen ()
	Called when panel becomes visible.
virtual void	OnClose ()
	Called when panel is hidden.
virtual void	OnFocus ()
	Called when panel receives focus.
virtual WindowContextScope	GetContextScope () const
	Optional context binding for this window (room/selection/etc)
virtual WindowScope	GetScope () const
	Get the registration scope for this window.
virtual bool	IsEnabled () const
	Check if this panel is currently enabled.
virtual std::string	GetDisabledTooltip () const
	Get tooltip text when panel is disabled.
virtual std::string	GetShortcutHint () const
	Get keyboard shortcut hint for display.
virtual int	GetPriority () const
	Get display priority for menu ordering.
virtual std::string	GetWorkflowGroup () const
	Optional workflow group for hack-centric actions.
virtual std::string	GetWorkflowLabel () const
	Optional workflow label for menus/command palette.
virtual std::string	GetWorkflowDescription () const
	Optional workflow description for menus/command palette.
virtual int	GetWorkflowPriority () const
	Optional workflow ordering priority (lower sorts first).
virtual float	GetPreferredWidth () const
	Get preferred width for this panel (optional)
virtual bool	PreferAutoHideTabBar () const
	Whether the dock node hosting this panel should auto-hide its tab bar.
virtual bool	IsVisibleByDefault () const
	Whether this panel should be visible by default.
virtual std::string	GetParentPanelId () const
	Get parent panel ID for cascade behavior.
virtual bool	CascadeCloseChildren () const
	Whether closing this panel should close child panels.
void	DrawWithLazyInit (bool *p_open)
	Execute lazy initialization if needed, then call Draw()

Protected Attributes
size_t	session_id_ = 0
	Session ID for multi-ROM editing (0 = single session)

Additional Inherited Members
Protected Member Functions inherited from yaze::editor::WindowContent
void	InvalidateCache ()
	Invalidate all cached computations.
template<typename T >
T &	GetCached (const std::string &key, std::function< T()> compute)
	Get or compute a cached value.
bool	IsCacheValid () const
	Check if cache has been invalidated.
void	ClearCache ()
	Clear all cached values (more aggressive than InvalidateCache)

Detailed Description

Base class for windows that edit specific ROM resources.

A ResourceWindowContent represents a window for editing a specific piece of data within a ROM, such as a dungeon room, a song, or a graphics sheet.

Key Features:

• Session-aware: Can distinguish between same resource in different ROMs
• Multi-instance: Multiple resources can be open simultaneously
• LRU managed: Oldest panels auto-close when limit reached

Panel ID Format

Resource panel IDs follow a specific format:

[{session}.]{category}.{resource_type}_{resource_id}[.{subpanel}]

Examples:
  dungeon.room_42           -- Room 42 (single session)
  s0.dungeon.room_42        -- Room 42 in session 0 (multi-session)
  s1.dungeon.room_42        -- Room 42 in session 1 (different ROM)
  music.song_5.piano_roll   -- Piano roll subpanel for song 5

Subclasses

Typical subclasses include:

• DungeonRoomPanel: Edits a specific room (0-295)
• MusicSongPanel: Edits a specific song with tracker/piano roll
• GraphicsSheetPanel: Edits a specific GFX sheet
• OverworldMapPanel: Edits a specific overworld map

Implementation

class DungeonRoomPanel : public ResourceWindowContent {
 public:
  DungeonRoomPanel(size_t session_id, int room_id, zelda3::Room* room)
      : room_id_(room_id), room_(room) {
    session_id_ = session_id;
  }

  int GetResourceId() const override { return room_id_; }
  std::string GetResourceType() const override { return "room"; }
  std::string GetIcon() const override { return ICON_MD_DOOR_FRONT; }
  std::string GetEditorCategory() const override { return "Dungeon"; }

  void Draw(bool* p_open) override {
    // Draw room canvas with objects, sprites, etc.
    DrawRoomCanvas();
  }

 private:
  int room_id_;
  zelda3::Room* room_;
};

See also

WindowContent - Base interface for all windows

WorkspaceWindowManager - Manages resource panel lifecycle and limits

Definition at line 71 of file resource_panel.h.

Constructor & Destructor Documentation

~ResourceWindowContent() [1/2]

virtual yaze::editor::ResourceWindowContent::~ResourceWindowContent ( )

virtualdefault

~ResourceWindowContent() [2/2]

virtual yaze::editor::ResourceWindowContent::~ResourceWindowContent ( )

virtualdefault

Member Function Documentation

GetResourceId() [1/2]

virtual int yaze::editor::ResourceWindowContent::GetResourceId ( ) const

pure virtual

The numeric ID of the resource.

Returns

Resource ID (room_id, song_index, sheet_id, map_id, etc.)

This is the primary key for the resource within its type.

Implemented in yaze::editor::DungeonRoomPanel.

Referenced by GetId(), and GetResourceName().

GetResourceType() [1/2]

virtual std::string yaze::editor::ResourceWindowContent::GetResourceType ( ) const

pure virtual

The resource type name.

Returns

Type string (e.g., "room", "song", "sheet", "map")

Used in panel ID generation and display.

Implemented in yaze::editor::DungeonRoomPanel.

Referenced by GetId(), GetResourceName(), and yaze::editor::WorkspaceWindowManager::TrackResourceWindow().

GetResourceName() [1/2]

virtual std::string yaze::editor::ResourceWindowContent::GetResourceName ( ) const

inlinevirtual

Human-readable resource name.

Returns

Friendly name (e.g., "Hyrule Castle Entrance", "Overworld Theme")

Default implementation returns "{type} {id}". Override to provide game-specific names from ROM data.

Reimplemented in yaze::editor::DungeonRoomPanel.

Definition at line 102 of file resource_panel.h.

References GetResourceId(), and GetResourceType().

Referenced by GetDisplayName().

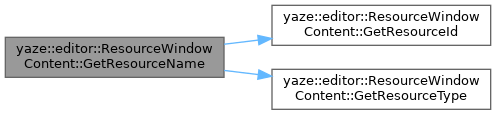

Here is the call graph for this function:

GetId() [1/2]

std::string yaze::editor::ResourceWindowContent::GetId ( ) const

inlineoverridevirtual

Generated panel ID from resource type and ID.

Returns

ID in format "{category}.{type}_{id}"

Implements yaze::editor::WindowContent.

Definition at line 114 of file resource_panel.h.

References yaze::editor::WindowContent::GetEditorCategory(), GetResourceId(), and GetResourceType().

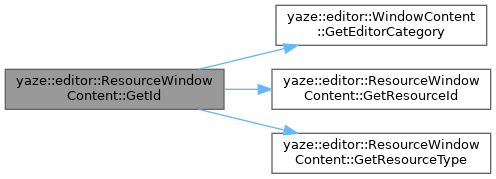

Here is the call graph for this function:

GetDisplayName() [1/2]

std::string yaze::editor::ResourceWindowContent::GetDisplayName ( ) const

inlineoverridevirtual

Generated display name from resource name.

Returns

The resource name

Implements yaze::editor::WindowContent.

Definition at line 123 of file resource_panel.h.

References GetResourceName().

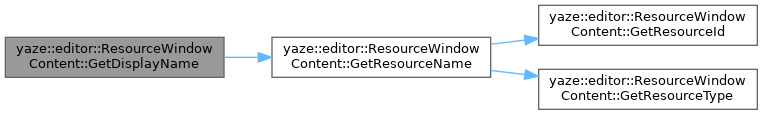

Here is the call graph for this function:

GetWindowLifecycle() [1/2]

WindowLifecycle yaze::editor::ResourceWindowContent::GetWindowLifecycle ( ) const

inlineoverridevirtual

Resource windows use CrossEditor lifecycle for opt-in persistence.

Returns

WindowLifecycle::CrossEditor

Resource panels (rooms, songs, etc.) can be pinned to persist across editor switches. By default, they're NOT pinned and will be hidden (but not closed) when switching to another editor.

Pin behavior:

• Open a room → NOT pinned, hidden when switching editors
• Pin it → stays visible across all editors
• Unpin it → hidden when switching editors
• Close via X → fully removed regardless of pin state

The drawing loops in each editor handle the category filtering.

Reimplemented from yaze::editor::WindowContent.

Definition at line 145 of file resource_panel.h.

References yaze::editor::CrossEditor.

AllowMultipleInstances() [1/2]

virtual bool yaze::editor::ResourceWindowContent::AllowMultipleInstances ( ) const

inlinevirtual

Whether multiple instances of this resource type can be open.

Returns

true to allow multiple (default), false for singleton behavior

Definition at line 153 of file resource_panel.h.

GetSessionId() [1/2]

virtual size_t yaze::editor::ResourceWindowContent::GetSessionId ( ) const

inlinevirtual

Get the session ID this resource belongs to.

Returns

Session ID (0 for single-ROM mode)

In multi-ROM editing mode, each loaded ROM gets a session ID. This allows the same resource (e.g., room 42) to be open for different ROMs simultaneously.

Definition at line 167 of file resource_panel.h.

References session_id_.

SetSessionId() [1/2]

void yaze::editor::ResourceWindowContent::SetSessionId ( size_t session_id )

inline

Set the session ID for this resource panel.

Parameters

session_id

The session ID to set

Definition at line 173 of file resource_panel.h.

References session_id_.

OnResourceModified() [1/2]

virtual void yaze::editor::ResourceWindowContent::OnResourceModified ( )

inlinevirtual

Called when resource data changes externally.

Override to refresh panel state when the underlying ROM data is modified by another editor or operation.

Reimplemented in yaze::editor::DungeonRoomPanel.

Definition at line 185 of file resource_panel.h.

OnResourceDeleted() [1/2]

virtual void yaze::editor::ResourceWindowContent::OnResourceDeleted ( )

inlinevirtual

Called when resource is deleted from ROM.

Default behavior: the panel should be closed. Override to implement custom cleanup or warnings.

Definition at line 193 of file resource_panel.h.

GetResourceId() [2/2]

virtual int yaze::editor::ResourceWindowContent::GetResourceId ( ) const

pure virtual

The numeric ID of the resource.

Returns

Resource ID (room_id, song_index, sheet_id, map_id, etc.)

This is the primary key for the resource within its type.

Implemented in yaze::editor::DungeonRoomPanel.

GetResourceType() [2/2]

virtual std::string yaze::editor::ResourceWindowContent::GetResourceType ( ) const

pure virtual

The resource type name.

Returns

Type string (e.g., "room", "song", "sheet", "map")

Used in panel ID generation and display.

Implemented in yaze::editor::DungeonRoomPanel.

GetResourceName() [2/2]

virtual std::string yaze::editor::ResourceWindowContent::GetResourceName ( ) const

inlinevirtual

Human-readable resource name.

Returns

Friendly name (e.g., "Hyrule Castle Entrance", "Overworld Theme")

Default implementation returns "{type} {id}". Override to provide game-specific names from ROM data.

Reimplemented in yaze::editor::DungeonRoomPanel.

Definition at line 102 of file resource_panel.h.

References GetResourceId(), and GetResourceType().

Here is the call graph for this function:

GetId() [2/2]

std::string yaze::editor::ResourceWindowContent::GetId ( ) const

inlineoverridevirtual

Generated panel ID from resource type and ID.

Returns

ID in format "{category}.{type}_{id}"

Implements yaze::editor::WindowContent.

Definition at line 114 of file resource_panel.h.

References yaze::editor::WindowContent::GetEditorCategory(), GetResourceId(), and GetResourceType().

Here is the call graph for this function:

GetDisplayName() [2/2]

std::string yaze::editor::ResourceWindowContent::GetDisplayName ( ) const

inlineoverridevirtual

Generated display name from resource name.

Returns

The resource name

Implements yaze::editor::WindowContent.

Definition at line 123 of file resource_panel.h.

References GetResourceName().

Here is the call graph for this function:

GetWindowLifecycle() [2/2]

WindowLifecycle yaze::editor::ResourceWindowContent::GetWindowLifecycle ( ) const

inlineoverridevirtual

Resource windows use CrossEditor lifecycle for opt-in persistence.

Returns

WindowLifecycle::CrossEditor

Resource panels (rooms, songs, etc.) can be pinned to persist across editor switches. By default, they're NOT pinned and will be hidden (but not closed) when switching to another editor.

Pin behavior:

• Open a room → NOT pinned, hidden when switching editors
• Pin it → stays visible across all editors
• Unpin it → hidden when switching editors
• Close via X → fully removed regardless of pin state

The drawing loops in each editor handle the category filtering.

Reimplemented from yaze::editor::WindowContent.

Definition at line 145 of file resource_panel.h.

References yaze::editor::CrossEditor.

AllowMultipleInstances() [2/2]

virtual bool yaze::editor::ResourceWindowContent::AllowMultipleInstances ( ) const

inlinevirtual

Whether multiple instances of this resource type can be open.

Returns

true to allow multiple (default), false for singleton behavior

Definition at line 153 of file resource_panel.h.

GetSessionId() [2/2]

virtual size_t yaze::editor::ResourceWindowContent::GetSessionId ( ) const

inlinevirtual

Get the session ID this resource belongs to.

Returns

Session ID (0 for single-ROM mode)

In multi-ROM editing mode, each loaded ROM gets a session ID. This allows the same resource (e.g., room 42) to be open for different ROMs simultaneously.

Definition at line 167 of file resource_panel.h.

References session_id_.

SetSessionId() [2/2]

void yaze::editor::ResourceWindowContent::SetSessionId ( size_t session_id )

inline

Set the session ID for this resource panel.

Parameters

session_id

The session ID to set

Definition at line 173 of file resource_panel.h.

References session_id_.

OnResourceModified() [2/2]

virtual void yaze::editor::ResourceWindowContent::OnResourceModified ( )

inlinevirtual

Called when resource data changes externally.

Override to refresh panel state when the underlying ROM data is modified by another editor or operation.

Reimplemented in yaze::editor::DungeonRoomPanel.

Definition at line 185 of file resource_panel.h.

OnResourceDeleted() [2/2]

virtual void yaze::editor::ResourceWindowContent::OnResourceDeleted ( )

inlinevirtual

Called when resource is deleted from ROM.

Default behavior: the panel should be closed. Override to implement custom cleanup or warnings.

Definition at line 193 of file resource_panel.h.

Member Data Documentation

session_id_

size_t yaze::editor::ResourceWindowContent::session_id_ = 0

protected

Session ID for multi-ROM editing (0 = single session)

Definition at line 199 of file resource_panel.h.

Referenced by yaze::editor::DungeonRoomPanel::DungeonRoomPanel(), GetSessionId(), and SetSessionId().

---

The documentation for this class was generated from the following files:

• src/app/editor/system/resource_panel.h
• src/app/editor/system/workspace/resource_panel.h
