WindowContent for music playback controls and status display. More...

#include <music_playback_control_panel.h>

Inheritance diagram for yaze::editor::MusicPlaybackControlPanel:

Public Member Functions
	MusicPlaybackControlPanel (zelda3::music::MusicBank music_bank, int current_song_index, music::MusicPlayer *music_player)

std::string	GetId () const override
	Unique identifier for this panel.

std::string	GetDisplayName () const override
	Human-readable name shown in menus and title bars.

std::string	GetIcon () const override
	Material Design icon for this panel.

std::string	GetEditorCategory () const override
	Editor category this panel belongs to.

int	GetPriority () const override
	Get display priority for menu ordering.

void	SetOnOpenSong (std::function< void(int)> callback)

void	SetOnOpenPianoRoll (std::function< void(int)> callback)

void	Draw (bool *p_open) override
	Draw the panel content.

Public Member Functions inherited from yaze::editor::WindowContent
virtual	~WindowContent ()=default

virtual void	OnFirstDraw ()
	Called once before the first Draw() in a session.

virtual bool	RequiresLazyInit () const
	Whether this panel uses lazy initialization.

void	InvalidateLazyInit ()
	Reset lazy init state so OnFirstDraw() runs again.

virtual void	OnOpen ()
	Called when panel becomes visible.

virtual void	OnClose ()
	Called when panel is hidden.

virtual void	OnFocus ()
	Called when panel receives focus.

virtual WindowLifecycle	GetWindowLifecycle () const
	Get the lifecycle category for this window.

virtual WindowContextScope	GetContextScope () const
	Optional context binding for this window (room/selection/etc)

virtual WindowScope	GetScope () const
	Get the registration scope for this window.

virtual bool	IsEnabled () const
	Check if this panel is currently enabled.

virtual std::string	GetDisabledTooltip () const
	Get tooltip text when panel is disabled.

virtual std::string	GetShortcutHint () const
	Get keyboard shortcut hint for display.

virtual std::string	GetWorkflowGroup () const
	Optional workflow group for hack-centric actions.

virtual std::string	GetWorkflowLabel () const
	Optional workflow label for menus/command palette.

virtual std::string	GetWorkflowDescription () const
	Optional workflow description for menus/command palette.

virtual int	GetWorkflowPriority () const
	Optional workflow ordering priority (lower sorts first).

virtual float	GetPreferredWidth () const
	Get preferred width for this panel (optional)

virtual bool	PreferAutoHideTabBar () const
	Whether the dock node hosting this panel should auto-hide its tab bar.

virtual bool	IsVisibleByDefault () const
	Whether this panel should be visible by default.

virtual std::string	GetParentPanelId () const
	Get parent panel ID for cascade behavior.

virtual bool	CascadeCloseChildren () const
	Whether closing this panel should close child panels.

void	DrawWithLazyInit (bool *p_open)
	Execute lazy initialization if needed, then call Draw()

Private Member Functions
void	DrawToolset ()

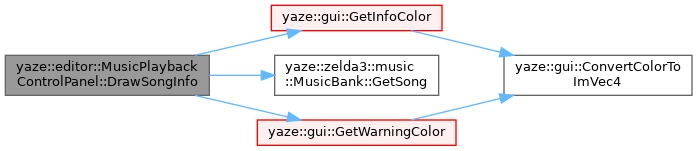

void	DrawSongInfo ()

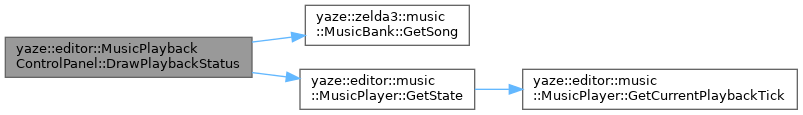

void	DrawPlaybackStatus ()

void	DrawQuickActions ()

void	DrawDebugControls ()

Private Attributes
zelda3::music::MusicBank *	music_bank_ = nullptr

int *	current_song_index_ = nullptr

music::MusicPlayer *	music_player_ = nullptr

int	current_volume_ = 100

std::function< void(int)>	on_open_song_

std::function< void(int)>	on_open_piano_roll_

bool	debug_paused_ = false

music::DspDebugStatus	cached_dsp_

music::AudioQueueStatus	cached_audio_

music::ApuDebugStatus	cached_apu_

std::array< music::ChannelState, 8 >	cached_channels_

int32_t	avg_queue_delta_ = 0

uint64_t	avg_cycle_rate_ = 0

std::chrono::steady_clock::time_point	last_stats_time_

uint64_t	last_cycles_for_rate_ = 0

uint32_t	last_queued_for_rate_ = 0

Additional Inherited Members
Protected Member Functions inherited from yaze::editor::WindowContent
void	InvalidateCache ()
	Invalidate all cached computations.

template<typename T >
T &	GetCached (const std::string &key, std::function< T()> compute)
	Get or compute a cached value.

bool	IsCacheValid () const
	Check if cache has been invalidated.

void	ClearCache ()
	Clear all cached values (more aggressive than InvalidateCache)

Detailed Description

WindowContent for music playback controls and status display.

Definition at line 29 of file music_playback_control_panel.h.

Constructor & Destructor Documentation

◆ MusicPlaybackControlPanel()

yaze::editor::MusicPlaybackControlPanel::MusicPlaybackControlPanel	(	zelda3::music::MusicBank *	music_bank,
		int *	current_song_index,
		music::MusicPlayer *	music_player )

inline

Definition at line 31 of file music_playback_control_panel.h.

Member Function Documentation

◆ GetId()

std::string yaze::editor::MusicPlaybackControlPanel::GetId ( ) const

inlineoverridevirtual

Unique identifier for this panel.

Returns: Panel ID in format "{category}.{name}" (e.g., "dungeon.room_selector")

IDs should be:

Lowercase with underscores
Prefixed with editor category
Unique across all panels

Implements yaze::editor::WindowContent.

Definition at line 42 of file music_playback_control_panel.h.

◆ GetDisplayName()

std::string yaze::editor::MusicPlaybackControlPanel::GetDisplayName ( ) const

inlineoverridevirtual

Human-readable name shown in menus and title bars.

Returns: Display name (e.g., "Room Selector")

Implements yaze::editor::WindowContent.

Definition at line 43 of file music_playback_control_panel.h.

◆ GetIcon()

std::string yaze::editor::MusicPlaybackControlPanel::GetIcon ( ) const

inlineoverridevirtual

Material Design icon for this panel.

Returns: Icon constant (e.g., ICON_MD_LIST)

Implements yaze::editor::WindowContent.

Definition at line 44 of file music_playback_control_panel.h.

References ICON_MD_PLAY_CIRCLE.

◆ GetEditorCategory()

std::string yaze::editor::MusicPlaybackControlPanel::GetEditorCategory ( ) const

inlineoverridevirtual

Editor category this panel belongs to.

Returns: Category name matching EditorType (e.g., "Dungeon", "Overworld")

Implements yaze::editor::WindowContent.

Definition at line 45 of file music_playback_control_panel.h.

◆ GetPriority()

int yaze::editor::MusicPlaybackControlPanel::GetPriority ( ) const

inlineoverridevirtual

Get display priority for menu ordering.

Returns: Priority value (lower = higher in list, default 50)

Reimplemented from yaze::editor::WindowContent.

Definition at line 46 of file music_playback_control_panel.h.

◆ SetOnOpenSong()

void yaze::editor::MusicPlaybackControlPanel::SetOnOpenSong ( std::function< void(int)> callback )

inline

Definition at line 52 of file music_playback_control_panel.h.

References on_open_song_.

◆ SetOnOpenPianoRoll()

void yaze::editor::MusicPlaybackControlPanel::SetOnOpenPianoRoll ( std::function< void(int)> callback )

inline

Definition at line 56 of file music_playback_control_panel.h.

References on_open_piano_roll_.

◆ Draw()

void yaze::editor::MusicPlaybackControlPanel::Draw ( bool * p_open )

inlineoverridevirtual

Draw the panel content.

Parameters

p_open Pointer to visibility flag (nullptr if not closable)

Called by WorkspaceWindowManager when the panel is visible. Do NOT call ImGui::Begin/End - the PanelWindow wrapper handles that. Just draw your content directly.

Implements yaze::editor::WindowContent.

Definition at line 64 of file music_playback_control_panel.h.

References current_song_index_, DrawDebugControls(), DrawPlaybackStatus(), DrawQuickActions(), DrawSongInfo(), DrawToolset(), ICON_MD_KEYBOARD, and music_bank_.
