Authoritative component for entity editing state and UI. More...

#include <entity_workbench.h>

Inheritance diagram for yaze::editor::OverworldEntityWorkbench:

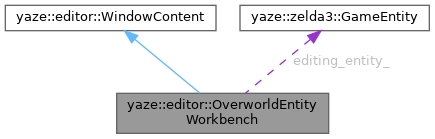

Collaboration diagram for yaze::editor::OverworldEntityWorkbench:

[legend]

Public Member Functions
	OverworldEntityWorkbench ()=default

std::string	GetId () const override
	Unique identifier for this panel.

std::string	GetWorkflowGroup () const override
	Optional workflow group for hack-centric actions.

std::string	GetDisplayName () const override
	Human-readable name shown in menus and title bars.

std::string	GetIcon () const override
	Material Design icon for this panel.

std::string	GetEditorCategory () const override
	Editor category this panel belongs to.

void	Draw (bool *p_open) override
	Draw the panel content.

void	SetActiveEntity (zelda3::GameEntity *entity)

void	OpenEditorFor (zelda3::GameEntity *entity)

void	OpenContextMenuFor (zelda3::GameEntity *entity)

void	DrawPopups ()

void	ProcessPendingInsertion (EntityMutationService *mutation_service)

zelda3::GameEntity *	DrawEntityContextMenu ()

Public Member Functions inherited from yaze::editor::WindowContent
virtual	~WindowContent ()=default

virtual void	OnFirstDraw ()
	Called once before the first Draw() in a session.

virtual bool	RequiresLazyInit () const
	Whether this panel uses lazy initialization.

void	InvalidateLazyInit ()
	Reset lazy init state so OnFirstDraw() runs again.

virtual void	OnOpen ()
	Called when panel becomes visible.

virtual void	OnClose ()
	Called when panel is hidden.

virtual void	OnFocus ()
	Called when panel receives focus.

virtual WindowLifecycle	GetWindowLifecycle () const
	Get the lifecycle category for this window.

virtual WindowContextScope	GetContextScope () const
	Optional context binding for this window (room/selection/etc)

virtual WindowScope	GetScope () const
	Get the registration scope for this window.

virtual WindowPresentationPolicy	GetPresentationPolicy () const
	How this content is hosted and advertised by workspace chrome.

virtual bool	IsEnabled () const
	Check if this panel is currently enabled.

virtual std::string	GetDisabledTooltip () const
	Get tooltip text when panel is disabled.

virtual std::string	GetShortcutHint () const
	Get keyboard shortcut hint for display.

virtual int	GetPriority () const
	Get display priority for menu ordering.

virtual std::string	GetWorkflowLabel () const
	Optional workflow label for menus/command palette.

virtual std::string	GetWorkflowDescription () const
	Optional workflow description for menus/command palette.

virtual int	GetWorkflowPriority () const
	Optional workflow ordering priority (lower sorts first).

virtual float	GetPreferredWidth () const
	Get preferred width for this panel (optional)

virtual bool	HasExactPreferredWidth () const
	Whether GetPreferredWidth() is an exact content width.

virtual float	GetPreferredHeight () const
	Get preferred height for this panel (optional)

virtual bool	PrefersFloating () const

virtual bool	PreferAutoHideTabBar () const
	Whether the dock node hosting this panel should auto-hide its tab bar.

virtual bool	IsVisibleByDefault () const
	Whether this panel should be visible by default.

virtual std::string	GetParentPanelId () const
	Get parent panel ID for cascade behavior.

virtual bool	CascadeCloseChildren () const
	Whether closing this panel should close child panels.

void	DrawWithLazyInit (bool *p_open)
	Execute lazy initialization if needed, then call Draw()

Private Attributes
zelda3::GameEntity *	editing_entity_ = nullptr

std::optional< zelda3::SpecialEntranceInspection >	special_entrances_

const Rom *	inspected_rom_ = nullptr

const uint8_t *	inspected_rom_data_ = nullptr

std::string	inspected_filename_

Static Private Attributes
static constexpr const char *	kContextMenuPopupId

Additional Inherited Members
Protected Member Functions inherited from yaze::editor::WindowContent
void	InvalidateCache ()
	Invalidate all cached computations.

template<typename T >
T &	GetCached (const std::string &key, std::function< T()> compute)
	Get or compute a cached value.

bool	IsCacheValid () const
	Check if cache has been invalidated.

void	ClearCache ()
	Clear all cached values (more aggressive than InvalidateCache)

Detailed Description

Authoritative component for entity editing state and UI.

This WindowContent manages the active editing context for overworld entities (items, sprites, entrances, exits). It hosts the property popups and tracks the "currently editing" entity state.

Definition at line 36 of file entity_workbench.h.

Constructor & Destructor Documentation

◆ OverworldEntityWorkbench()

yaze::editor::OverworldEntityWorkbench::OverworldEntityWorkbench ( )

default

Member Function Documentation

◆ GetId()

std::string yaze::editor::OverworldEntityWorkbench::GetId ( ) const

inlineoverridevirtual

Unique identifier for this panel.

Returns: Panel ID in format "{category}.{name}" (e.g., "dungeon.room_selector")

IDs should be:

Lowercase with underscores
Prefixed with editor category
Unique across all panels

Implements yaze::editor::WindowContent.

Definition at line 41 of file entity_workbench.h.

◆ GetWorkflowGroup()

std::string yaze::editor::OverworldEntityWorkbench::GetWorkflowGroup ( ) const

inlineoverridevirtual

Optional workflow group for hack-centric actions.

Returns: Non-empty group name to surface this panel in hack workflows.

Reimplemented from yaze::editor::WindowContent.

Definition at line 42 of file entity_workbench.h.

◆ GetDisplayName()

std::string yaze::editor::OverworldEntityWorkbench::GetDisplayName ( ) const

inlineoverridevirtual

Human-readable name shown in menus and title bars.

Returns: Display name (e.g., "Room Selector")

Implements yaze::editor::WindowContent.

Definition at line 43 of file entity_workbench.h.

◆ GetIcon()

std::string yaze::editor::OverworldEntityWorkbench::GetIcon ( ) const

inlineoverridevirtual

Material Design icon for this panel.

Returns: Icon constant (e.g., ICON_MD_LIST)

Implements yaze::editor::WindowContent.

Definition at line 44 of file entity_workbench.h.

References ICON_MD_EDIT.

◆ GetEditorCategory()

std::string yaze::editor::OverworldEntityWorkbench::GetEditorCategory ( ) const

inlineoverridevirtual

Editor category this panel belongs to.

Returns: Category name matching EditorType (e.g., "Dungeon", "Overworld")

Implements yaze::editor::WindowContent.

Definition at line 45 of file entity_workbench.h.

◆ Draw()

void yaze::editor::OverworldEntityWorkbench::Draw ( bool * p_open )

overridevirtual

Draw the panel content.

Parameters

p_open Pointer to visibility flag (nullptr if not closable)

Called by WorkspaceWindowManager when the panel is visible. Do NOT call ImGui::Begin/End - the PanelWindow wrapper handles that. Just draw your content directly.

Implements yaze::editor::WindowContent.

Definition at line 49 of file entity_workbench.cc.

References yaze::editor::CurrentOverworldWindowContext(), yaze::Rom::data(), yaze::Rom::filename(), yaze::zelda3::Zelda3Labels::GetLabel(), ICON_MD_SETTINGS, inspected_filename_, inspected_rom_, inspected_rom_data_, yaze::zelda3::InspectSpecialEntrances(), OpenEditorFor(), and special_entrances_.
