A session-aware status bar displayed at the bottom of the application. More...

#include <status_bar.h>

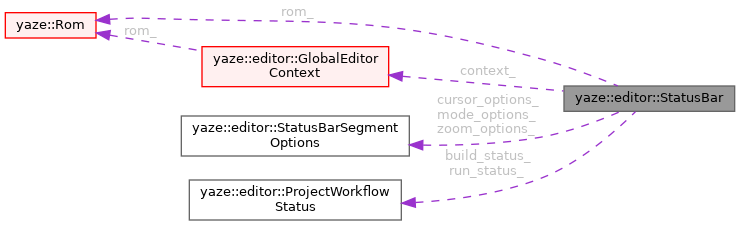

Collaboration diagram for yaze::editor::StatusBar:

[legend]

Classes
struct	CustomSegment

Public Member Functions
	StatusBar ()=default

	~StatusBar ()=default

void	Initialize (GlobalEditorContext *context)

void	SetEnabled (bool enabled)
	Enable or disable the status bar.

bool	IsEnabled () const

void	SetRom (Rom *rom)
	Set the current ROM for dirty status and filename display.

void	SetSessionInfo (size_t session_id, size_t total_sessions)
	Set session information.

void	SetCursorPosition (int x, int y, const char *label="Pos")
	Set cursor/mouse position in editor coordinates.

void	SetCursorPosition (int x, int y, const char *label, StatusBarSegmentOptions options)

void	ClearCursorPosition ()
	Clear cursor position (no cursor in editor)

void	SetSelection (int count, int width=0, int height=0)
	Set selection information.

void	ClearSelection ()
	Clear selection info.

void	SetZoom (float level)
	Set current zoom level.

void	SetZoom (float level, StatusBarSegmentOptions options)

void	ClearZoom ()
	Clear zoom display.

void	SetEditorMode (const std::string &mode)
	Set the current editor mode or tool.

void	SetEditorMode (const std::string &mode, StatusBarSegmentOptions options)

void	ClearEditorMode ()
	Clear editor mode display.

void	SetCustomSegment (const std::string &key, const std::string &value)
	Set a custom segment with key-value pair.

void	SetCustomSegment (const std::string &key, const std::string &value, StatusBarSegmentOptions options)

void	ClearCustomSegment (const std::string &key)
	Remove a custom segment.

void	ClearAllContext ()
	Clear all context (cursor, selection, zoom, mode, custom)

void	ClearEditorContributions ()
	Clear frame-scoped editor contributions.

void	SetAgentInfo (const std::string &provider, const std::string &model, bool active)

void	ClearAgentInfo ()

void	SetBuildStatus (const ProjectWorkflowStatus &status)

void	SetRunStatus (const ProjectWorkflowStatus &status)

void	ClearProjectWorkflowStatus ()

void	SetAgentToggleCallback (std::function< void()> callback)

void	Draw ()
	Draw the status bar.

float	GetHeight () const
	Get the height of the status bar.

Static Public Attributes
static constexpr float	kStatusBarHeight = 24.0f

static constexpr float	kStatusBarTouchHeight = 44.0f

Private Member Functions
void	HandleStatusUpdate (const StatusUpdateEvent &event)

void	DrawRomSegment ()

void	DrawSessionSegment ()

void	DrawCursorSegment ()

void	DrawSelectionSegment ()

void	DrawZoomSegment ()

void	DrawModeSegment ()

void	DrawAgentSegment ()

void	DrawProjectWorkflowSegment (const ProjectWorkflowStatus &status, const char *default_icon)

void	DrawCustomSegments ()

void	DrawSeparator ()

Private Attributes
GlobalEditorContext *	context_ = nullptr

bool	enabled_ = false

Rom *	rom_ = nullptr

size_t	session_id_ = 0

size_t	total_sessions_ = 1

bool	has_cursor_ = false

int	cursor_x_ = 0

int	cursor_y_ = 0

std::string	cursor_label_ = "Pos"

StatusBarSegmentOptions	cursor_options_

bool	has_selection_ = false

int	selection_count_ = 0

int	selection_width_ = 0

int	selection_height_ = 0

bool	has_zoom_ = false

float	zoom_level_ = 1.0f

StatusBarSegmentOptions	zoom_options_

bool	has_mode_ = false

std::string	editor_mode_

StatusBarSegmentOptions	mode_options_

std::vector< CustomSegment >	custom_segments_

bool	has_agent_ = false

bool	agent_active_ = false

std::string	agent_provider_

std::string	agent_model_

std::function< void()>	agent_toggle_callback_

ProjectWorkflowStatus	build_status_

ProjectWorkflowStatus	run_status_

Detailed Description

A session-aware status bar displayed at the bottom of the application.

The StatusBar sits outside the ImGui dockspace (like the sidebars) and displays:

ROM filename and dirty status indicator
Session number (when multiple ROMs open)
Cursor position (context-aware based on active editor)
Selection info (count, dimensions)
Zoom level
Current editor mode/tool

Each editor can update its relevant segments by calling the Set* methods or publishing StatusUpdateEvents to the event bus.

Usage:

status_bar_.Initialize(&editor_context);
// ...
editor_context.GetEventBus().Publish(StatusUpdateEvent::Cursor(x, y));

Definition at line 54 of file status_bar.h.

Constructor & Destructor Documentation

◆ StatusBar()

yaze::editor::StatusBar::StatusBar ( )

default

◆ ~StatusBar()

yaze::editor::StatusBar::~StatusBar ( )

default

Member Function Documentation

◆ Initialize()

void yaze::editor::StatusBar::Initialize ( GlobalEditorContext * context )

Definition at line 90 of file status_bar.cc.

References ClearSelection(), context_, yaze::editor::GlobalEditorContext::GetEventBus(), HandleStatusUpdate(), SetSelection(), SetZoom(), and yaze::EventBus::Subscribe().

Referenced by yaze::editor::EditorManager::EditorManager().

◆ SetEnabled()

void yaze::editor::StatusBar::SetEnabled ( bool enabled )

inline

Enable or disable the status bar.

Definition at line 68 of file status_bar.h.

References enabled_.

Referenced by yaze::editor::MenuOrchestrator::AddAppearanceMenuItems(), yaze::editor::SettingsPanel::DrawAppearanceSettings(), yaze::editor::EditorManager::LoadAssets(), and yaze::editor::EditorManager::LoadAssetsLazy().

◆ IsEnabled()

bool yaze::editor::StatusBar::IsEnabled ( ) const

inline

Definition at line 69 of file status_bar.h.

References enabled_.

◆ SetRom()

void yaze::editor::StatusBar::SetRom ( Rom * rom )

inline

Set the current ROM for dirty status and filename display.

Definition at line 74 of file status_bar.h.

References rom_.

Referenced by yaze::editor::EditorManager::DrawInterface().

◆ SetSessionInfo()

void yaze::editor::StatusBar::SetSessionInfo	(	size_t	session_id,
		size_t	total_sessions )

Set session information.

Parameters

session_id	Current session index (0-based)
total_sessions	Total number of open sessions

Definition at line 140 of file status_bar.cc.

References session_id_, and total_sessions_.

Referenced by yaze::editor::EditorManager::DrawInterface().

◆ SetCursorPosition() [1/2]

void yaze::editor::StatusBar::SetCursorPosition	(	int	x,
		int	y,
		const char *	label = "Pos" )

Set cursor/mouse position in editor coordinates.

Parameters

x	X coordinate (tile, pixel, or editor-specific)
y	Y coordinate (tile, pixel, or editor-specific)
label	Optional label (e.g., "Tile", "Pos", "Map")

Definition at line 145 of file status_bar.cc.

References cursor_label_, cursor_options_, cursor_x_, cursor_y_, and has_cursor_.

Referenced by HandleStatusUpdate().

◆ SetCursorPosition() [2/2]

void yaze::editor::StatusBar::SetCursorPosition	(	int	x,
		int	y,
		const char *	label,
		StatusBarSegmentOptions	options )

Definition at line 153 of file status_bar.cc.

References cursor_label_, cursor_options_, cursor_x_, cursor_y_, and has_cursor_.

◆ ClearCursorPosition()

void yaze::editor::StatusBar::ClearCursorPosition ( )

Clear cursor position (no cursor in editor)

Definition at line 162 of file status_bar.cc.

References cursor_options_, and has_cursor_.

Referenced by ClearAllContext().

◆ SetSelection()

void yaze::editor::StatusBar::SetSelection	(	int	count,
		int	width = 0,
		int	height = 0 )

Set selection information.

Parameters

count	Number of selected items
width	Width of selection (optional, 0 to hide)
height	Height of selection (optional, 0 to hide)

Definition at line 167 of file status_bar.cc.

References has_selection_, selection_count_, selection_height_, and selection_width_.

Referenced by yaze::editor::GraphicsEditor::ContributeStatus(), HandleStatusUpdate(), and Initialize().

◆ ClearSelection()

void yaze::editor::StatusBar::ClearSelection ( )

Clear selection info.

Definition at line 174 of file status_bar.cc.

References has_selection_.

Referenced by ClearAllContext(), and Initialize().

◆ SetZoom() [1/2]

void yaze::editor::StatusBar::SetZoom ( float level )

Set current zoom level.

Parameters

level Zoom multiplier (e.g., 1.0, 2.0, 0.5)

Definition at line 178 of file status_bar.cc.

References has_zoom_, zoom_level_, and zoom_options_.

Referenced by HandleStatusUpdate(), and Initialize().

◆ SetZoom() [2/2]

void yaze::editor::StatusBar::SetZoom	(	float	level,
		StatusBarSegmentOptions	options )

Definition at line 184 of file status_bar.cc.

References has_zoom_, zoom_level_, and zoom_options_.

◆ ClearZoom()

void yaze::editor::StatusBar::ClearZoom ( )

Clear zoom display.

Definition at line 190 of file status_bar.cc.

References has_zoom_, and zoom_options_.

Referenced by ClearAllContext().

◆ SetEditorMode() [1/2]

void yaze::editor::StatusBar::SetEditorMode ( const std::string & mode )

Set the current editor mode or tool.

Parameters

mode	Mode string (e.g., "Draw", "Select", "Entity")

Definition at line 195 of file status_bar.cc.

References editor_mode_, has_mode_, and mode_options_.

Referenced by yaze::editor::DungeonEditorV2::ContributeStatus(), yaze::editor::OverworldEditor::ContributeStatus(), and HandleStatusUpdate().

◆ SetEditorMode() [2/2]

void yaze::editor::StatusBar::SetEditorMode	(	const std::string &	mode,
		StatusBarSegmentOptions	options )

Definition at line 201 of file status_bar.cc.

References editor_mode_, has_mode_, and mode_options_.

◆ ClearEditorMode()

void yaze::editor::StatusBar::ClearEditorMode ( )

Clear editor mode display.

Definition at line 208 of file status_bar.cc.

References editor_mode_, has_mode_, and mode_options_.

Referenced by ClearAllContext(), and ClearEditorContributions().

◆ SetCustomSegment() [1/2]

void yaze::editor::StatusBar::SetCustomSegment	(	const std::string &	key,
		const std::string &	value )

Set a custom segment with key-value pair.

Parameters

key	Segment identifier
value	Value to display

Definition at line 214 of file status_bar.cc.

References SetCustomSegment().

Referenced by yaze::editor::DungeonEditorV2::ContributeStatus(), yaze::editor::GraphicsEditor::ContributeStatus(), yaze::editor::OverworldEditor::ContributeStatus(), and SetCustomSegment().

Here is the call graph for this function:

◆ SetCustomSegment() [2/2]

void yaze::editor::StatusBar::SetCustomSegment	(	const std::string &	key,
		const std::string &	value,
		StatusBarSegmentOptions	options )

Definition at line 219 of file status_bar.cc.

References custom_segments_.

◆ ClearCustomSegment()

void yaze::editor::StatusBar::ClearCustomSegment ( const std::string & key )

Remove a custom segment.

Definition at line 232 of file status_bar.cc.

References custom_segments_.

◆ ClearAllContext()

void yaze::editor::StatusBar::ClearAllContext ( )

Clear all context (cursor, selection, zoom, mode, custom)

Definition at line 239 of file status_bar.cc.

References ClearCursorPosition(), ClearEditorMode(), ClearSelection(), ClearZoom(), and custom_segments_.

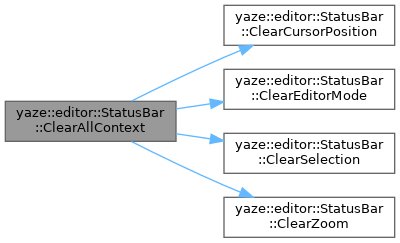

Here is the call graph for this function:

◆ ClearEditorContributions()

void yaze::editor::StatusBar::ClearEditorContributions ( )

Clear frame-scoped editor contributions.

Use this before calling Editor::ContributeStatus() each frame. It resets mode/custom segments without wiping event-driven cursor, selection, or zoom state that may still be owned by older editors.

Definition at line 247 of file status_bar.cc.

References ClearEditorMode(), and custom_segments_.

Referenced by yaze::editor::EditorManager::DrawInterface(), and HandleStatusUpdate().

Here is the call graph for this function:

◆ SetAgentInfo()

void yaze::editor::StatusBar::SetAgentInfo	(	const std::string &	provider,
		const std::string &	model,
		bool	active )

Definition at line 252 of file status_bar.cc.

References agent_active_, agent_model_, agent_provider_, and has_agent_.

Referenced by yaze::editor::EditorManager::DrawInterface().

◆ ClearAgentInfo()

void yaze::editor::StatusBar::ClearAgentInfo ( )

Definition at line 260 of file status_bar.cc.

References agent_active_, agent_model_, agent_provider_, and has_agent_.

Referenced by yaze::editor::EditorManager::DrawInterface().

◆ SetBuildStatus()

void yaze::editor::StatusBar::SetBuildStatus ( const ProjectWorkflowStatus & status )

inline

Definition at line 174 of file status_bar.h.

References build_status_.

Referenced by yaze::editor::anonymous_namespace{editor_manager.cc}::UpdateBuildWorkflowStatus().

◆ SetRunStatus()

void yaze::editor::StatusBar::SetRunStatus ( const ProjectWorkflowStatus & status )

inline

Definition at line 177 of file status_bar.h.

References run_status_.

Referenced by yaze::editor::anonymous_namespace{editor_manager.cc}::UpdateRunWorkflowStatus().

◆ ClearProjectWorkflowStatus()

void yaze::editor::StatusBar::ClearProjectWorkflowStatus ( )

inline

Definition at line 178 of file status_bar.h.

References build_status_, and run_status_.

Referenced by yaze::editor::EditorManager::DrawInterface(), and yaze::editor::EditorManager::LoadProjectWithRom().

◆ SetAgentToggleCallback()

void yaze::editor::StatusBar::SetAgentToggleCallback ( std::function< void()> callback )

inline

Definition at line 182 of file status_bar.h.

References agent_toggle_callback_.

Referenced by yaze::editor::EditorManager::InitializeSubsystems().

◆ Draw()

void yaze::editor::StatusBar::Draw ( )

Draw the status bar.

Should be called each frame. The status bar positions itself at the bottom of the viewport, outside the dockspace.

Definition at line 267 of file status_bar.cc.

References agent_model_, agent_provider_, yaze::gui::LayoutHelpers::SafeAreaInsets::bottom, build_status_, DrawAgentSegment(), DrawCursorSegment(), DrawCustomSegments(), DrawModeSegment(), DrawProjectWorkflowSegment(), DrawRomSegment(), DrawSelectionSegment(), DrawSeparator(), DrawSessionSegment(), DrawZoomSegment(), editor_mode_, enabled_, GetHeight(), yaze::gui::GetOutlineVec4(), yaze::gui::LayoutHelpers::GetSafeAreaInsets(), yaze::gui::GetSurfaceContainerVec4(), has_agent_, has_cursor_, has_mode_, has_selection_, has_zoom_, ICON_MD_BUILD, ICON_MD_PLAY_ARROW, ICON_MD_SMART_TOY, yaze::gui::LayoutHelpers::IsTouchDevice(), run_status_, total_sessions_, and yaze::editor::ProjectWorkflowStatus::visible.

Referenced by yaze::editor::EditorManager::DrawInterface().

◆ GetHeight()

float yaze::editor::StatusBar::GetHeight ( ) const

Get the height of the status bar.

Returns: Height in pixels (0 if disabled)

Definition at line 80 of file status_bar.cc.

References enabled_, yaze::gui::LayoutHelpers::IsTouchDevice(), kStatusBarHeight, and kStatusBarTouchHeight.

Referenced by Draw(), and yaze::editor::LayoutCoordinator::GetBottomLayoutOffset().

Here is the call graph for this function:

◆ HandleStatusUpdate()

void yaze::editor::StatusBar::HandleStatusUpdate ( const StatusUpdateEvent & event )

private

◆ DrawRomSegment()

void yaze::editor::StatusBar::DrawRomSegment ( )

private

Definition at line 462 of file status_bar.cc.

References yaze::gui::ColoredText(), yaze::gui::ColoredTextF(), yaze::gui::ConvertColorToImVec4(), yaze::Rom::dirty(), yaze::gui::ThemeManager::Get(), yaze::gui::ThemeManager::GetCurrentTheme(), yaze::gui::GetTextSecondaryVec4(), ICON_MD_DESCRIPTION, ICON_MD_FIBER_MANUAL_RECORD, yaze::Rom::is_loaded(), rom_, and yaze::Rom::short_name().

Referenced by Draw().

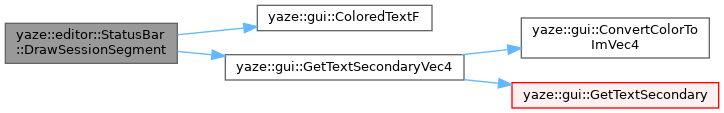

◆ DrawSessionSegment()

void yaze::editor::StatusBar::DrawSessionSegment ( )

private

Definition at line 486 of file status_bar.cc.

References yaze::gui::ColoredTextF(), yaze::gui::GetTextSecondaryVec4(), ICON_MD_LAYERS, session_id_, and total_sessions_.

Referenced by Draw().

Here is the call graph for this function:

◆ DrawCursorSegment()

void yaze::editor::StatusBar::DrawCursorSegment ( )

private

Definition at line 495 of file status_bar.cc.

References yaze::gui::ColoredTextF(), cursor_label_, cursor_options_, cursor_x_, cursor_y_, and yaze::gui::GetTextSecondaryVec4().

Referenced by Draw().

Here is the call graph for this function:

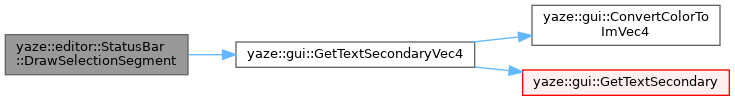

◆ DrawSelectionSegment()

void yaze::editor::StatusBar::DrawSelectionSegment ( )

private

Definition at line 501 of file status_bar.cc.

References yaze::gui::GetTextSecondaryVec4(), ICON_MD_SELECT_ALL, selection_count_, selection_height_, and selection_width_.

Referenced by Draw().

Here is the call graph for this function:

◆ DrawZoomSegment()

void yaze::editor::StatusBar::DrawZoomSegment ( )

private

Definition at line 513 of file status_bar.cc.

References yaze::gui::ColoredTextF(), yaze::gui::GetTextSecondaryVec4(), ICON_MD_ZOOM_IN, yaze::editor::StatusBarSegmentOptions::on_click, yaze::editor::StatusBarSegmentOptions::tooltip, zoom_level_, and zoom_options_.

Referenced by Draw().

Here is the call graph for this function:

◆ DrawModeSegment()

void yaze::editor::StatusBar::DrawModeSegment ( )

private

Definition at line 529 of file status_bar.cc.

References yaze::gui::ColoredTextF(), editor_mode_, yaze::gui::GetTextSecondaryVec4(), and mode_options_.

Referenced by Draw().

Here is the call graph for this function:

◆ DrawAgentSegment()

void yaze::editor::StatusBar::DrawAgentSegment ( )

private

Definition at line 400 of file status_bar.cc.

References agent_active_, agent_model_, agent_provider_, agent_toggle_callback_, yaze::gui::GetPrimaryVec4(), yaze::gui::GetSurfaceContainerHighestVec4(), yaze::gui::GetSurfaceContainerHighVec4(), yaze::gui::GetTextSecondaryVec4(), ICON_MD_SMART_TOY, and yaze::gui::ThemedButton().

Referenced by Draw().

◆ DrawProjectWorkflowSegment()

void yaze::editor::StatusBar::DrawProjectWorkflowSegment	(	const ProjectWorkflowStatus &	status,
		const char *	default_icon )

private

Definition at line 437 of file status_bar.cc.

References yaze::gui::ColoredTextF(), yaze::editor::ProjectWorkflowStatus::detail, yaze::editor::ProjectWorkflowStatus::label, yaze::editor::ProjectWorkflowStatus::output_tail, yaze::editor::ProjectWorkflowStatus::state, and yaze::editor::ProjectWorkflowStatus::summary.

Referenced by Draw().

Here is the call graph for this function:

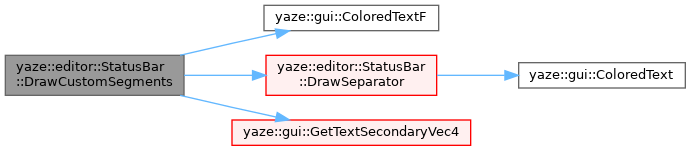

◆ DrawCustomSegments()

void yaze::editor::StatusBar::DrawCustomSegments ( )

private

Definition at line 534 of file status_bar.cc.

References yaze::gui::ColoredTextF(), custom_segments_, DrawSeparator(), and yaze::gui::GetTextSecondaryVec4().

Referenced by Draw().

Here is the call graph for this function:

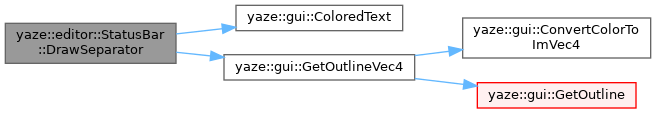

◆ DrawSeparator()

void yaze::editor::StatusBar::DrawSeparator ( )

private

Definition at line 543 of file status_bar.cc.

References yaze::gui::ColoredText(), and yaze::gui::GetOutlineVec4().

Referenced by Draw(), and DrawCustomSegments().

Here is the call graph for this function:

Member Data Documentation

◆ kStatusBarHeight

constexpr float yaze::editor::StatusBar::kStatusBarHeight = 24.0f

staticconstexpr

Definition at line 204 of file status_bar.h.

Referenced by GetHeight().

◆ kStatusBarTouchHeight

constexpr float yaze::editor::StatusBar::kStatusBarTouchHeight = 44.0f

staticconstexpr

Definition at line 205 of file status_bar.h.

Referenced by GetHeight().

◆ context_

GlobalEditorContext* yaze::editor::StatusBar::context_ = nullptr

private

Definition at line 222 of file status_bar.h.

Referenced by Initialize().

◆ enabled_

bool yaze::editor::StatusBar::enabled_ = false

private

Definition at line 223 of file status_bar.h.

Referenced by Draw(), GetHeight(), IsEnabled(), and SetEnabled().

◆ rom_

Rom* yaze::editor::StatusBar::rom_ = nullptr

private

Definition at line 224 of file status_bar.h.

Referenced by DrawRomSegment(), and SetRom().

◆ session_id_

size_t yaze::editor::StatusBar::session_id_ = 0

private

Definition at line 227 of file status_bar.h.

Referenced by DrawSessionSegment(), and SetSessionInfo().

◆ total_sessions_

size_t yaze::editor::StatusBar::total_sessions_ = 1

private

Definition at line 228 of file status_bar.h.

Referenced by Draw(), DrawSessionSegment(), and SetSessionInfo().

◆ has_cursor_

bool yaze::editor::StatusBar::has_cursor_ = false

private

Definition at line 231 of file status_bar.h.

Referenced by ClearCursorPosition(), Draw(), SetCursorPosition(), and SetCursorPosition().

◆ cursor_x_

int yaze::editor::StatusBar::cursor_x_ = 0

private

Definition at line 232 of file status_bar.h.

Referenced by DrawCursorSegment(), SetCursorPosition(), and SetCursorPosition().

◆ cursor_y_

int yaze::editor::StatusBar::cursor_y_ = 0

private

Definition at line 233 of file status_bar.h.

Referenced by DrawCursorSegment(), SetCursorPosition(), and SetCursorPosition().

◆ cursor_label_

std::string yaze::editor::StatusBar::cursor_label_ = "Pos"

private

Definition at line 234 of file status_bar.h.

Referenced by DrawCursorSegment(), SetCursorPosition(), and SetCursorPosition().

◆ cursor_options_

StatusBarSegmentOptions yaze::editor::StatusBar::cursor_options_

private

Definition at line 235 of file status_bar.h.

Referenced by ClearCursorPosition(), DrawCursorSegment(), SetCursorPosition(), and SetCursorPosition().

◆ has_selection_

bool yaze::editor::StatusBar::has_selection_ = false

private

Definition at line 238 of file status_bar.h.

Referenced by ClearSelection(), Draw(), and SetSelection().

◆ selection_count_

int yaze::editor::StatusBar::selection_count_ = 0

private

Definition at line 239 of file status_bar.h.

Referenced by DrawSelectionSegment(), and SetSelection().

◆ selection_width_

int yaze::editor::StatusBar::selection_width_ = 0

private

Definition at line 240 of file status_bar.h.

Referenced by DrawSelectionSegment(), and SetSelection().

◆ selection_height_

int yaze::editor::StatusBar::selection_height_ = 0

private

Definition at line 241 of file status_bar.h.

Referenced by DrawSelectionSegment(), and SetSelection().

◆ has_zoom_

bool yaze::editor::StatusBar::has_zoom_ = false

private

Definition at line 244 of file status_bar.h.

Referenced by ClearZoom(), Draw(), SetZoom(), and SetZoom().

◆ zoom_level_

float yaze::editor::StatusBar::zoom_level_ = 1.0f

private

Definition at line 245 of file status_bar.h.

Referenced by DrawZoomSegment(), SetZoom(), and SetZoom().

◆ zoom_options_

StatusBarSegmentOptions yaze::editor::StatusBar::zoom_options_

private

Definition at line 246 of file status_bar.h.

Referenced by ClearZoom(), DrawZoomSegment(), SetZoom(), and SetZoom().

◆ has_mode_

bool yaze::editor::StatusBar::has_mode_ = false

private

Definition at line 249 of file status_bar.h.

Referenced by ClearEditorMode(), Draw(), SetEditorMode(), and SetEditorMode().

◆ editor_mode_

std::string yaze::editor::StatusBar::editor_mode_

private

Definition at line 250 of file status_bar.h.

Referenced by ClearEditorMode(), Draw(), DrawModeSegment(), SetEditorMode(), and SetEditorMode().

◆ mode_options_

StatusBarSegmentOptions yaze::editor::StatusBar::mode_options_

private

Definition at line 251 of file status_bar.h.

Referenced by ClearEditorMode(), DrawModeSegment(), SetEditorMode(), and SetEditorMode().

◆ custom_segments_

std::vector<CustomSegment> yaze::editor::StatusBar::custom_segments_

private

Definition at line 259 of file status_bar.h.

Referenced by ClearAllContext(), ClearCustomSegment(), ClearEditorContributions(), DrawCustomSegments(), and SetCustomSegment().

◆ has_agent_

bool yaze::editor::StatusBar::has_agent_ = false

private

Definition at line 262 of file status_bar.h.

Referenced by ClearAgentInfo(), Draw(), and SetAgentInfo().

◆ agent_active_

bool yaze::editor::StatusBar::agent_active_ = false

private

Definition at line 263 of file status_bar.h.

Referenced by ClearAgentInfo(), DrawAgentSegment(), and SetAgentInfo().

◆ agent_provider_

std::string yaze::editor::StatusBar::agent_provider_

private

Definition at line 264 of file status_bar.h.

Referenced by ClearAgentInfo(), Draw(), DrawAgentSegment(), and SetAgentInfo().

◆ agent_model_

std::string yaze::editor::StatusBar::agent_model_

private

Definition at line 265 of file status_bar.h.

Referenced by ClearAgentInfo(), Draw(), DrawAgentSegment(), and SetAgentInfo().

◆ agent_toggle_callback_

std::function<void()> yaze::editor::StatusBar::agent_toggle_callback_

private

Definition at line 266 of file status_bar.h.

Referenced by DrawAgentSegment(), and SetAgentToggleCallback().

◆ build_status_

ProjectWorkflowStatus yaze::editor::StatusBar::build_status_

private

Definition at line 268 of file status_bar.h.

Referenced by ClearProjectWorkflowStatus(), Draw(), and SetBuildStatus().

◆ run_status_

ProjectWorkflowStatus yaze::editor::StatusBar::run_status_

private

Definition at line 269 of file status_bar.h.

Referenced by ClearProjectWorkflowStatus(), Draw(), and SetRunStatus().

The documentation for this class was generated from the following files:

src/app/editor/menu/status_bar.h
src/app/editor/menu/status_bar.cc

	yaze 0.3.2 Link to the Past ROM Editor

Classes

Public Member Functions

Static Public Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ StatusBar()

◆ ~StatusBar()

Member Function Documentation

◆ Initialize()

◆ SetEnabled()

◆ IsEnabled()

◆ SetRom()

◆ SetSessionInfo()

◆ SetCursorPosition() [1/2]

◆ SetCursorPosition() [2/2]

◆ ClearCursorPosition()

◆ SetSelection()

◆ ClearSelection()

◆ SetZoom() [1/2]

◆ SetZoom() [2/2]

◆ ClearZoom()

◆ SetEditorMode() [1/2]

◆ SetEditorMode() [2/2]

◆ ClearEditorMode()

◆ SetCustomSegment() [1/2]

◆ SetCustomSegment() [2/2]

◆ ClearCustomSegment()

◆ ClearAllContext()

◆ ClearEditorContributions()

◆ SetAgentInfo()

◆ ClearAgentInfo()

◆ SetBuildStatus()

◆ SetRunStatus()

◆ ClearProjectWorkflowStatus()

◆ SetAgentToggleCallback()

◆ Draw()

◆ GetHeight()

◆ HandleStatusUpdate()

◆ DrawRomSegment()

◆ DrawSessionSegment()

◆ DrawCursorSegment()

◆ DrawSelectionSegment()

◆ DrawZoomSegment()

◆ DrawModeSegment()

◆ DrawAgentSegment()

◆ DrawProjectWorkflowSegment()

◆ DrawCustomSegments()

◆ DrawSeparator()

Member Data Documentation

◆ kStatusBarHeight

◆ kStatusBarTouchHeight

◆ context_

◆ enabled_

◆ rom_

◆ session_id_

◆ total_sessions_

◆ has_cursor_

◆ cursor_x_

◆ cursor_y_

◆ cursor_label_

◆ cursor_options_

◆ has_selection_

◆ selection_count_

◆ selection_width_

◆ selection_height_

◆ has_zoom_

◆ zoom_level_

◆ zoom_options_

◆ has_mode_

◆ editor_mode_

◆ mode_options_

◆ custom_segments_

◆ has_agent_

◆ agent_active_

◆ agent_provider_

◆ agent_model_

◆ agent_toggle_callback_

◆ build_status_
