yaze::editor::Tile16Editor Class Reference

Popup window to edit Tile16 data. More...

#include <tile16_editor.h>

Inheritance diagram for yaze::editor::Tile16Editor:

Classes
struct	LayoutScratch

Public Member Functions
	Tile16Editor (Rom *rom, gfx::Tilemap *tile16_blockset)
absl::Status	Initialize (gfx::Bitmap &tile16_blockset_bmp, gfx::Bitmap &current_gfx_bmp, std::array< uint8_t, 0x200 > &all_tiles_types)
absl::Status	Update ()
absl::Status	UpdateAsPanel ()
	Update the editor content without MenuBar (for WindowContent usage)
void	DrawContextMenu ()
	Draw context menu with editor actions.
void	DrawTile16Editor ()
absl::Status	UpdateBlockset ()
void	DrawScratchSpace ()

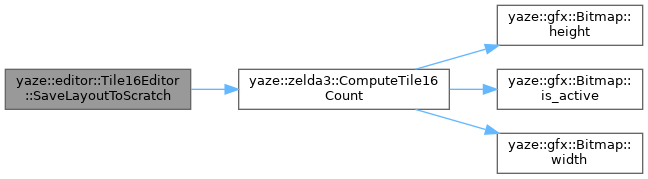

absl::Status	SaveLayoutToScratch (int slot)

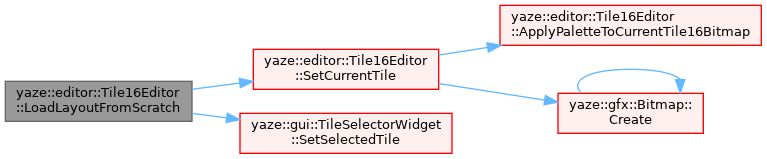

absl::Status	LoadLayoutFromScratch (int slot)
absl::Status	DrawToCurrentTile16 (ImVec2 pos, const gfx::Bitmap *source_tile=nullptr)
absl::Status	HandleTile16CanvasClick (const ImVec2 &tile_position, bool left_click, bool right_click)
absl::Status	UpdateTile16Edit ()
absl::Status	LoadTile8 ()
absl::Status	SetCurrentTile (int id)
void	RequestTileSwitch (int target_tile_id)

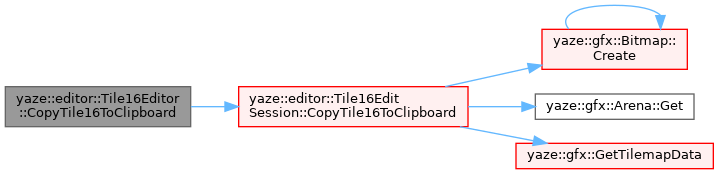

absl::Status	CopyTile16ToClipboard (int tile_id)
absl::Status	PasteTile16FromClipboard ()

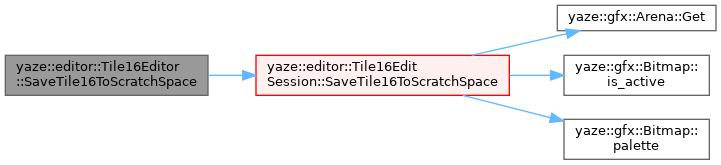

absl::Status	SaveTile16ToScratchSpace (int slot)

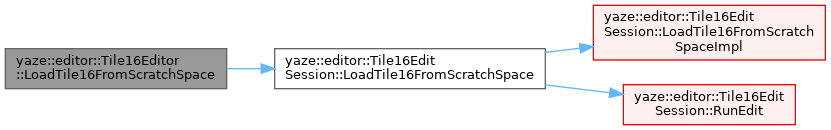

absl::Status	LoadTile16FromScratchSpace (int slot)
absl::Status	ClearScratchSpace (int slot)
absl::Status	FlipTile16Horizontal ()
absl::Status	FlipTile16Vertical ()

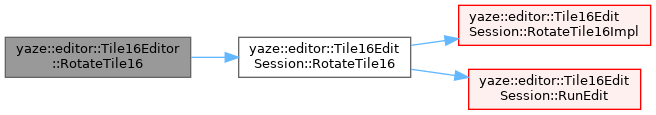

absl::Status	RotateTile16 ()

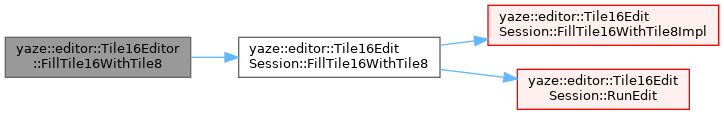

absl::Status	FillTile16WithTile8 (int tile8_id)

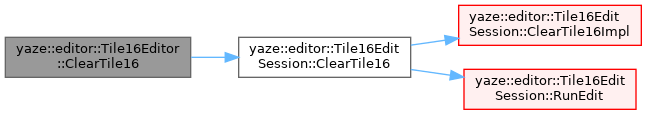

absl::Status	ClearTile16 ()
absl::Status	CyclePalette (bool forward=true)
absl::Status	ApplyPaletteToAll (uint8_t palette_id)
absl::Status	ApplyPaletteToQuadrant (int quadrant, uint8_t palette_id)

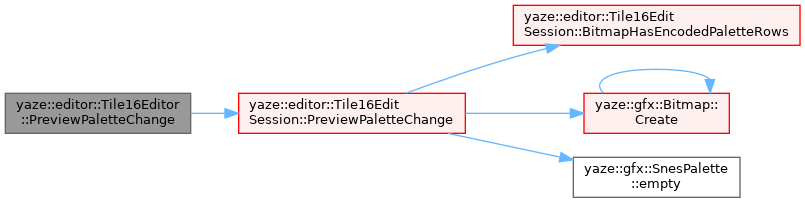

absl::Status	PreviewPaletteChange (uint8_t palette_id)
absl::Status	Undo ()
absl::Status	Redo ()

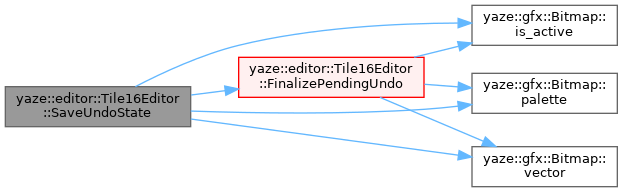

void	SaveUndoState ()
void	EnableLivePreview (bool enable)
absl::Status	UpdateLivePreview ()
absl::Status	ValidateTile16Data ()
bool	IsTile16Valid (int tile_id) const

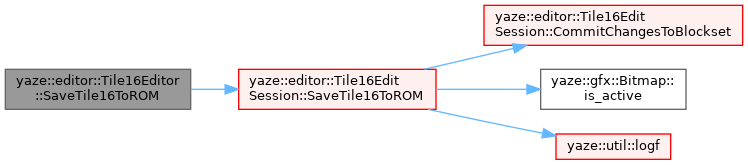

absl::Status	SaveTile16ToROM ()
	Write current tile16 data directly to ROM (bypasses pending system)

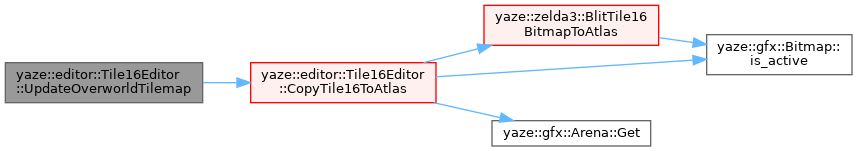

absl::Status	UpdateOverworldTilemap ()
	Update the overworld tilemap to reflect tile changes.

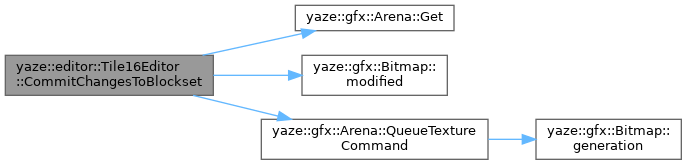

absl::Status	CommitChangesToBlockset ()
	Commit pending changes to the blockset atlas.

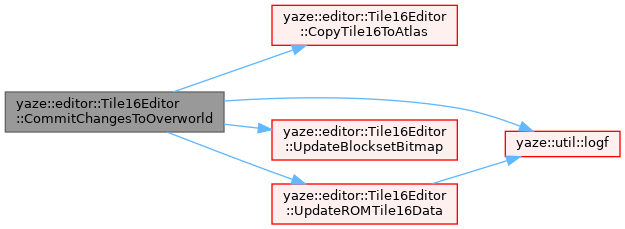

absl::Status	CommitChangesToOverworld ()
	Single-tile commit: ROM + blockset + parent refresh callback. Prefer CommitAllChanges() from the main UI; kept for integration tests.
absl::Status	DiscardChanges ()
	Discard current tile's changes (single tile)
bool	has_pending_changes () const
	Check if any tiles have uncommitted changes.
int	pending_changes_count () const
	Get count of tiles with pending changes.
bool	is_tile_modified (int tile_id) const
	Check if a specific tile has pending changes.
const gfx::Bitmap *	GetPendingTileBitmap (int tile_id) const
	Get preview bitmap for a pending tile (nullptr if not modified)

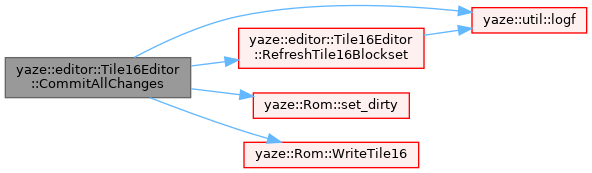

absl::Status	CommitAllChanges ()
	Write all pending changes to ROM and notify parent.

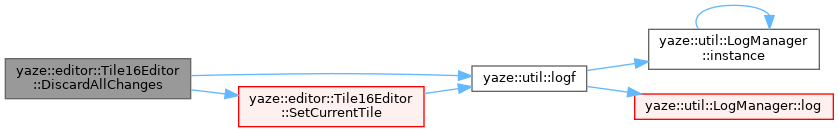

void	DiscardAllChanges ()
	Discard all pending changes (revert to ROM state)
void	DiscardCurrentTileChanges ()
	Discard only the current tile's pending changes.

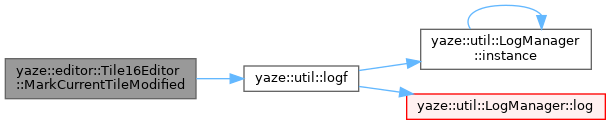

void	MarkCurrentTileModified ()
	Mark the current tile as having pending changes.

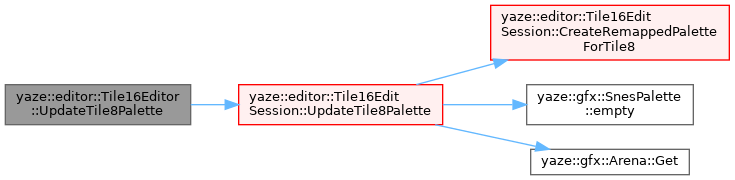

absl::Status	UpdateTile8Palette (int tile8_id)
	Update palette for a specific tile8.

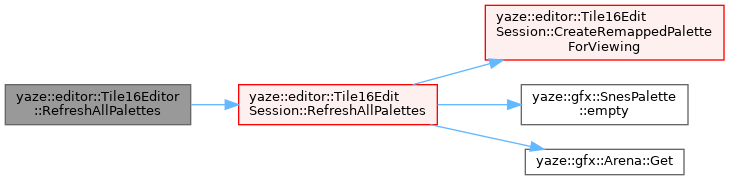

absl::Status	RefreshAllPalettes ()
	Refresh all tile8 palettes after a palette change.
void	DrawPaletteSettings ()
	Draw palette settings UI.
int	GetActualPaletteSlot (int palette_button, int sheet_index) const
	Calculate actual palette slot from button.
int	GetSheetIndexForTile8 (int tile8_id) const
	Determine which graphics sheet contains a tile8.
int	GetActualPaletteSlotForCurrentTile16 () const
	Get the palette slot for the current tile being edited.

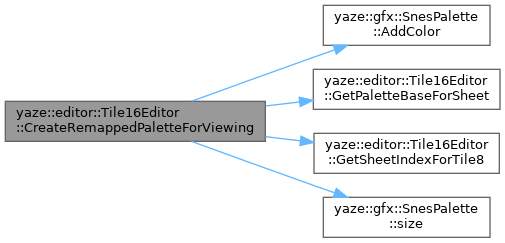

gfx::SnesPalette	CreateRemappedPaletteForViewing (const gfx::SnesPalette &source, int target_row) const
	Create a remapped palette for viewing with user-selected palette.
int	GetEncodedPaletteRow (uint8_t pixel_value) const
	Get the encoded palette row for a pixel value.

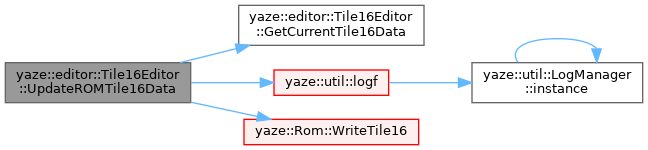

absl::Status	UpdateROMTile16Data ()
absl::Status	RefreshTile16Blockset ()
gfx::Tile16 *	GetCurrentTile16Data ()

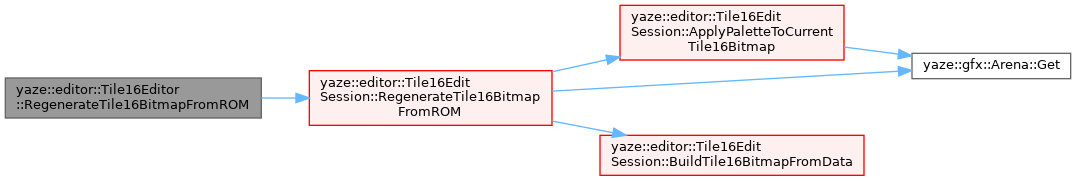

absl::Status	RegenerateTile16BitmapFromROM ()

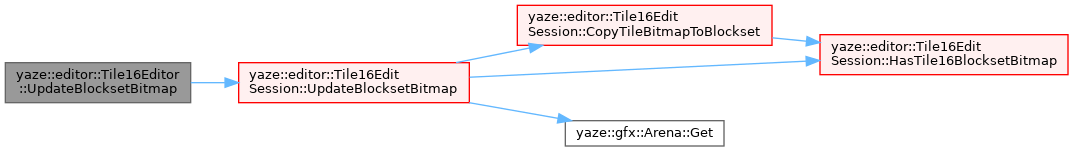

absl::Status	UpdateBlocksetBitmap ()

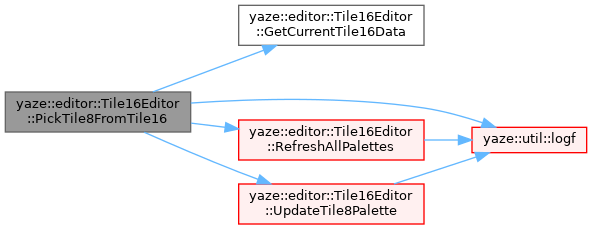

absl::Status	PickTile8FromTile16 (const ImVec2 &position)
void	DrawManualTile8Inputs ()
void	SetRom (Rom *rom)
Rom *	rom () const
void	SetGameData (zelda3::GameData *game_data)
zelda3::GameData *	game_data () const

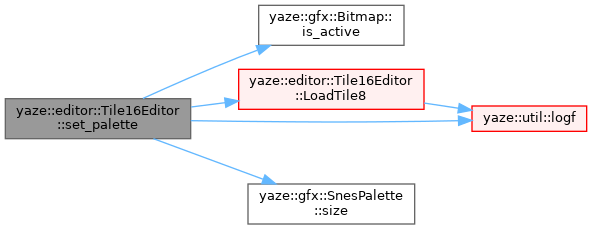

void	set_palette (const gfx::SnesPalette &palette)
void	set_on_changes_committed (std::function< absl::Status(const std::vector< Tile16Commit > &)> callback)
void	set_on_current_tile_changed (std::function< void(int)> callback)
int	current_palette () const
void	set_current_palette (int palette)
const gfx::Bitmap &	Tile8PreviewBitmapForTesting () const
int	current_tile16 () const
int	selected_tile16_for_testing () const
int	current_tile8 () const
int	active_quadrant () const
void	set_active_quadrant (int quadrant)
Tile16EditMode	edit_mode () const
void	set_edit_mode (Tile16EditMode mode)

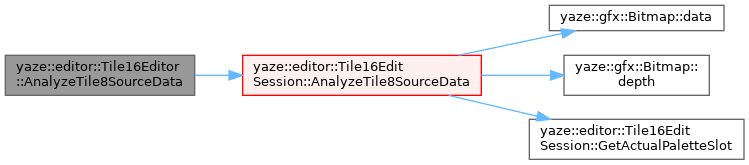

void	AnalyzeTile8SourceData () const

Static Public Member Functions
static ImVec2	Tile16PreviewDisplayPixelToTilePosition (const ImVec2 &display_position)

Private Member Functions

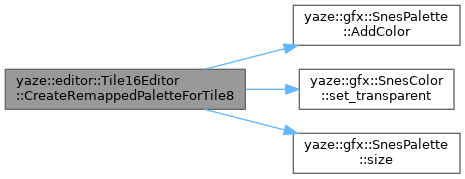

gfx::SnesPalette	CreateRemappedPaletteForTile8 (const gfx::SnesPalette &source, int target_row, int tile8_id) const
void	FinalizePendingUndo ()
	Finalize any pending undo snapshot by capturing current state as "after" and pushing a Tile16EditAction to undo_manager_.

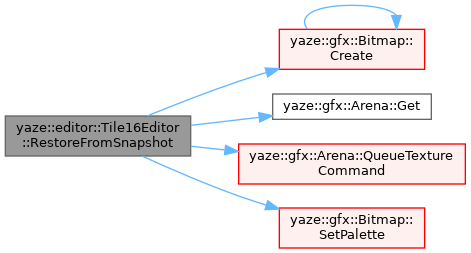

void	RestoreFromSnapshot (const Tile16Snapshot &snapshot)
	Restore editor state from a Tile16Snapshot (used by undo actions).
void	ApplyPaletteToCurrentTile16Bitmap ()

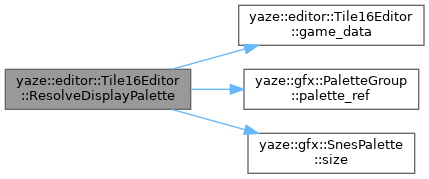

const gfx::SnesPalette *	ResolveDisplayPalette () const

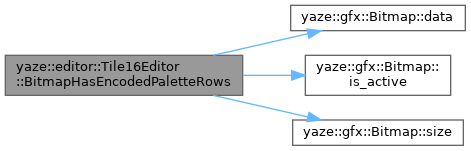

bool	BitmapHasEncodedPaletteRows (const gfx::Bitmap &bitmap) const

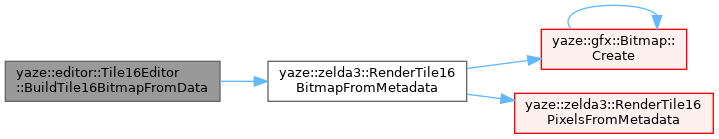

absl::Status	BuildTile16BitmapFromData (const gfx::Tile16 &tile_data, gfx::Bitmap *output_bitmap) const

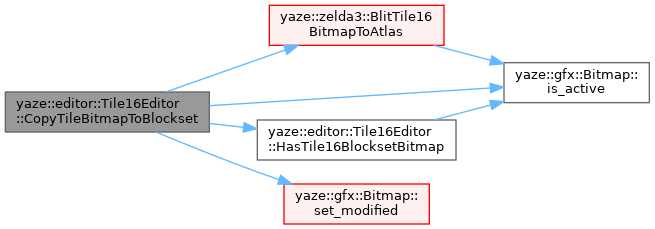

void	CopyTileBitmapToBlockset (int tile_id, const gfx::Bitmap &tile_bitmap)

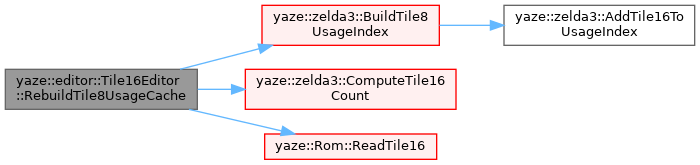

absl::Status	RebuildTile8UsageCache ()
void	DrawTile8UsageOverlay ()
void	HandleKeyboardShortcuts ()
bool	HasCurrentGfxBitmap () const
bool	HasTile16BlocksetBitmap () const
void	CopyTile16ToAtlas (int tile_id)
absl::Status	DrawCompactActionStatusRow (bool has_pending, bool current_tile_pending, int pending_count, bool *show_debug_info, bool *show_advanced_controls)
absl::Status	DrawBrushAndTilePaletteControls (bool show_debug_info)
absl::Status	DrawTile8SourcePanel (float preferred_height=0.0f)
absl::Status	HandleTile8SourceSelection (bool right_clicked, float display_scale)
absl::Status	DrawPrimaryActionControls ()

Private Attributes
Rom *	rom_ = nullptr
zelda3::GameData *	game_data_ = nullptr
bool	map_blockset_loaded_ = false
bool	x_flip = false
bool	y_flip = false
bool	priority_tile = false
int	tile_size
int	current_tile16_ = 0
int	current_tile8_ = 0
uint8_t	current_palette_ = 0
int	active_quadrant_ = 0
Tile16EditMode	edit_mode_ = Tile16EditMode::kPaint
Tile16ClipboardData	clipboard_tile16_
std::array< Tile16ScratchData, 4 >	scratch_space_
std::array< LayoutScratch, 4 >	layout_scratch_
UndoManager	undo_manager_
std::optional< Tile16Snapshot >	pending_undo_before_
bool	live_preview_enabled_ = true
gfx::Bitmap	preview_tile16_
bool	preview_dirty_ = false
gfx::Bitmap	tile8_preview_bmp_
std::vector< int >	selected_tiles_
int	selection_start_tile_ = -1
bool	multi_select_mode_ = false
bool	auto_tile_mode_ = false
bool	grid_snap_enabled_ = true
bool	show_tile_info_ = true
bool	show_palette_preview_ = true
bool	show_tile_grid_ = true
bool	show_tile_collision_ids_ = false
int	tile8_stamp_size_ = 1
bool	highlight_tile8_usage_ = false
float	tile8_source_display_scale_ = 4.0f
zelda3::Tile8UsageIndex	tile8_usage_cache_
bool	tile8_usage_cache_dirty_ = true
bool	show_palette_settings_ = false
int	current_palette_group_ = 0
uint8_t	palette_normalization_mask_
bool	auto_normalize_pixels_
std::chrono::steady_clock::time_point	last_edit_time_
bool	batch_mode_ = false
std::map< int, gfx::Tile16 >	pending_tile16_changes_
std::map< int, gfx::Bitmap >	pending_tile16_bitmaps_
bool	show_unsaved_changes_dialog_ = false
int	pending_tile_switch_target_ = -1
bool	has_rom_write_history_ = false
int	last_rom_write_count_ = 0
std::chrono::steady_clock::time_point	last_rom_write_time_ {}
int	jump_to_tile_id_ = 0
bool	scroll_to_current_ = false
int	current_page_ = 0
util::NotifyValue< uint32_t >	notify_tile16
util::NotifyValue< uint8_t >	notify_palette
std::array< uint8_t, 0x200 >	all_tiles_types_
gui::Canvas	blockset_canvas_
gui::TileSelectorWidget	blockset_selector_
gfx::Bitmap *	tile16_blockset_bmp_ = nullptr
gui::Canvas	tile16_edit_canvas_
gfx::Bitmap	current_tile16_bmp_
gui::Canvas	tile8_source_canvas_
gfx::Bitmap *	current_gfx_bmp_ = nullptr
gui::Table	tile_edit_table_
gfx::Tilemap *	tile16_blockset_ = nullptr
std::vector< zelda3::Tile8PixelData >	current_gfx_individual_
PaletteEditor	palette_editor_
gfx::SnesPalette	palette_
gfx::SnesPalette	overworld_palette_
absl::Status	status_
std::function< absl::Status(const std::vector< Tile16Commit > &)	on_changes_committed_ )
std::function< void(int)>	on_current_tile_changed_
gfx::Tile16	current_tile16_data_

Static Private Attributes
static constexpr int	kTilesPerPage = 64
static constexpr int	kTilesPerRow = 8

Additional Inherited Members
Static Protected Attributes inherited from yaze::gfx::GfxContext
static std::unordered_map< uint8_t, gfx::Paletteset >	palettesets_

Detailed Description

Popup window to edit Tile16 data.

Provides visual editing of 16x16 tiles composed of four 8x8 sub-tiles. Uses a pending changes system to prevent accidental ROM modifications.

See also

README.md for architecture overview and workflow documentation

Definition at line 133 of file tile16_editor.h.

Constructor & Destructor Documentation

Tile16Editor()

yaze::editor::Tile16Editor::Tile16Editor ( Rom * rom, gfx::Tilemap * tile16_blockset )

inline

Definition at line 135 of file tile16_editor.h.

Member Function Documentation

Initialize()

absl::Status yaze::editor::Tile16Editor::Initialize	(	gfx::Bitmap &	tile16_blockset_bmp,
		gfx::Bitmap &	current_gfx_bmp,
		std::array< uint8_t, 0x200 > &	all_tiles_types )

Definition at line 89 of file tile16_editor.cc.

References yaze::gui::AddTableColumn(), all_tiles_types_, yaze::gui::TileSelectorWidget::AttachCanvas(), blockset_canvas_, blockset_selector_, yaze::gfx::Bitmap::Create(), yaze::gfx::Arena::CREATE, current_gfx_bmp_, current_tile16_, current_tile16_bmp_, current_tile8_, yaze::gui::Canvas::custom_labels_enabled(), yaze::gfx::Arena::Get(), yaze::util::HexByte(), yaze::gui::Canvas::InitializeDefaults(), yaze::gui::Canvas::InitializePaletteEditor(), yaze::editor::kTile16PixelCount, yaze::editor::kTile16Size, map_blockset_loaded_, yaze::gui::Canvas::mutable_labels(), yaze::gfx::Bitmap::palette(), priority_tile, yaze::gfx::Arena::QueueTextureCommand(), RETURN_IF_ERROR, rom_, yaze::gui::Canvas::SetAutoResize(), SetCurrentTile(), yaze::gfx::Bitmap::SetPalette(), yaze::gui::TileSelectorWidget::SetTileCount(), show_tile_collision_ids_, tile16_blockset_, tile16_blockset_bmp_, tile16_edit_canvas_, tile8_source_canvas_, tile_edit_table_, x_flip, and y_flip.

Referenced by yaze::editor::OverworldEditor::Load(), and yaze::test::RomDependentTestSuite::RunTile16EditorTest().

Update()

absl::Status yaze::editor::Tile16Editor::Update

(

)

Definition at line 155 of file tile16_editor.cc.

References ClearScratchSpace(), CommitAllChanges(), CommitChangesToBlockset(), CopyTile16ToClipboard(), current_tile16_, yaze::gui::Canvas::custom_labels_enabled(), yaze::gui::DangerButton(), DrawPaletteSettings(), DrawTile16Editor(), EnableLivePreview(), HandleKeyboardShortcuts(), live_preview_enabled_, LoadTile16FromScratchSpace(), yaze::util::logf(), map_blockset_loaded_, PasteTile16FromClipboard(), pending_tile16_bitmaps_, pending_tile16_changes_, pending_tile_switch_target_, RETURN_IF_ERROR, SaveTile16ToScratchSpace(), scratch_space_, SetCurrentTile(), show_unsaved_changes_dialog_, status_, yaze::gui::SuccessButton(), tile8_source_canvas_, and UpdateLivePreview().

UpdateAsPanel()

absl::Status yaze::editor::Tile16Editor::UpdateAsPanel

(

)

Update the editor content without MenuBar (for WindowContent usage)

This is the panel-friendly version that doesn't require ImGuiWindowFlags_MenuBar. Menu items are available through the context menu instead.

Definition at line 322 of file tile16_editor.cc.

References CommitAllChanges(), current_tile16_, yaze::gui::DangerButton(), DrawContextMenu(), DrawPaletteSettings(), DrawTile16Editor(), HandleKeyboardShortcuts(), ICON_MD_MENU, yaze::util::logf(), map_blockset_loaded_, pending_tile16_bitmaps_, pending_tile16_changes_, pending_tile_switch_target_, RETURN_IF_ERROR, SetCurrentTile(), show_unsaved_changes_dialog_, yaze::gui::SuccessButton(), and UpdateLivePreview().

DrawContextMenu()

void yaze::editor::Tile16Editor::DrawContextMenu

(

)

Draw context menu with editor actions.

Contains the same actions as the MenuBar but in context menu form. Call this when right-clicking or from a menu button.

Definition at line 431 of file tile16_editor.cc.

References ClearScratchSpace(), ClearTile16(), CommitAllChanges(), CommitChangesToBlockset(), CopyTile16ToClipboard(), current_tile16_, yaze::gui::Canvas::custom_labels_enabled(), EnableLivePreview(), FlipTile16Horizontal(), FlipTile16Vertical(), live_preview_enabled_, LoadTile16FromScratchSpace(), PasteTile16FromClipboard(), RotateTile16(), SaveTile16ToScratchSpace(), scratch_space_, show_tile_collision_ids_, show_tile_grid_, status_, and tile8_source_canvas_.

Referenced by UpdateAsPanel().

DrawTile16Editor()

void yaze::editor::Tile16Editor::DrawTile16Editor

(

)

Definition at line 317 of file tile16_editor.cc.

References status_, and UpdateTile16Edit().

Referenced by Update(), and UpdateAsPanel().

Here is the call graph for this function:

UpdateBlockset()

absl::Status yaze::editor::Tile16Editor::UpdateBlockset

(

)

Definition at line 512 of file tile16_editor.cc.

References yaze::gui::BeginCanvas(), yaze::gui::BeginChildWithScrollbar(), yaze::gui::BeginPadding(), blockset_canvas_, blockset_selector_, current_tile16_, yaze::gui::CanvasFrameOptions::draw_context_menu, yaze::gui::CanvasFrameOptions::draw_grid, yaze::gui::CanvasFrameOptions::draw_overlay, yaze::gui::TileSelectorWidget::DrawFilterBar(), yaze::gui::EndCanvas(), yaze::gui::EndPadding(), yaze::gui::TileSelectorWidget::GetSelectedTileID(), yaze::gui::CanvasFrameOptions::grid_step, yaze::util::logf(), yaze::gui::TileSelectorWidget::Render(), yaze::gui::CanvasFrameOptions::render_popups, RequestTileSwitch(), yaze::gui::TileSelectorWidget::SetSelectedTile(), tile16_blockset_bmp_, and yaze::gui::CanvasFrameOptions::use_child_window.

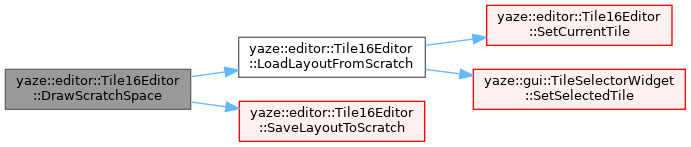

DrawScratchSpace()

void yaze::editor::Tile16Editor::DrawScratchSpace

(

)

Definition at line 3290 of file tile16_editor.cc.

References layout_scratch_, LoadLayoutFromScratch(), SaveLayoutToScratch(), and status_.

Referenced by UpdateTile16Edit().

Here is the call graph for this function:

SaveLayoutToScratch()

absl::Status yaze::editor::Tile16Editor::SaveLayoutToScratch

(

int

slot

)

Definition at line 3317 of file tile16_editor.cc.

References yaze::zelda3::ComputeTile16Count(), current_tile16_, layout_scratch_, and tile16_blockset_.

Referenced by DrawScratchSpace().

Here is the call graph for this function:

LoadLayoutFromScratch()

absl::Status yaze::editor::Tile16Editor::LoadLayoutFromScratch

(

int

slot

)

Definition at line 3343 of file tile16_editor.cc.

References blockset_selector_, layout_scratch_, RETURN_IF_ERROR, scroll_to_current_, selected_tiles_, selection_start_tile_, SetCurrentTile(), and yaze::gui::TileSelectorWidget::SetSelectedTile().

Referenced by DrawScratchSpace().

Here is the call graph for this function:

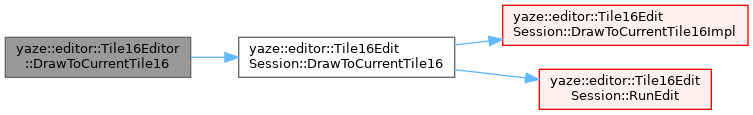

DrawToCurrentTile16()

absl::Status yaze::editor::Tile16Editor::DrawToCurrentTile16	(	ImVec2	pos,
		const gfx::Bitmap *	source_tile = nullptr )

Definition at line 686 of file tile16_editor.cc.

References active_quadrant_, ApplyPaletteToCurrentTile16Bitmap(), ASSIGN_OR_RETURN, yaze::gfx::Tilemap::atlas, BuildTile16BitmapFromData(), yaze::zelda3::BuildTile16StampMutations(), CopyTileBitmapToBlockset(), yaze::gfx::Bitmap::Create(), current_gfx_bmp_, current_gfx_individual_, current_palette_, yaze::zelda3::Tile16StampRequest::current_tile16, current_tile16_, current_tile16_bmp_, current_tile16_data_, yaze::zelda3::Tile16StampRequest::current_tile16_id, current_tile8_, yaze::gfx::Arena::Get(), HasTile16BlocksetBitmap(), yaze::gfx::Bitmap::is_active(), yaze::editor::kTile16Size, yaze::editor::kTile8Size, kTilesPerRow, last_edit_time_, live_preview_enabled_, yaze::util::logf(), MarkCurrentTileModified(), yaze::zelda3::Tile16StampRequest::max_tile16_id, yaze::zelda3::Tile16StampRequest::max_tile8_id, yaze::gfx::Bitmap::palette(), yaze::zelda3::Tile16StampRequest::palette_id, pending_tile16_bitmaps_, pending_tile16_changes_, preview_dirty_, yaze::zelda3::Tile16StampRequest::priority, priority_tile, yaze::zelda3::Tile16StampRequest::quadrant_index, yaze::gfx::Arena::QueueTextureCommand(), RETURN_IF_ERROR, SaveUndoState(), yaze::zelda3::Tile16StampRequest::selected_tile8_id, yaze::gfx::Bitmap::set_modified(), yaze::gfx::Bitmap::SetPalette(), yaze::gfx::SnesPalette::size(), yaze::zelda3::Tile16StampRequest::stamp_size, tile16_blockset_, tile16_blockset_bmp_, yaze::zelda3::Tile16StampRequest::tile16_row_stride, yaze::zelda3::Tile16StampRequest::tile8_row_stride, tile8_stamp_size_, tile8_usage_cache_dirty_, yaze::gfx::Arena::UPDATE, UpdateOverworldTilemap(), yaze::gfx::Bitmap::vector(), yaze::gfx::Bitmap::width(), x_flip, yaze::zelda3::Tile16StampRequest::x_flip, y_flip, and yaze::zelda3::Tile16StampRequest::y_flip.

Referenced by HandleTile16CanvasClick().

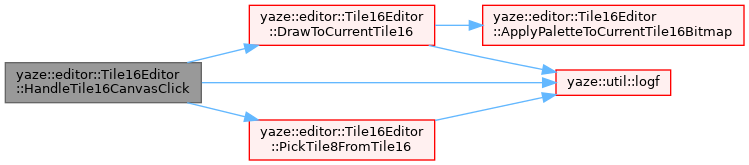

HandleTile16CanvasClick()

absl::Status yaze::editor::Tile16Editor::HandleTile16CanvasClick	(	const ImVec2 &	tile_position,
		bool	left_click,
		bool	right_click )

Definition at line 793 of file tile16_editor.cc.

References DrawToCurrentTile16(), edit_mode_, yaze::editor::kPaint, yaze::editor::kPick, yaze::editor::kUsageProbe, yaze::util::logf(), PickTile8FromTile16(), and RETURN_IF_ERROR.

Referenced by UpdateTile16Edit().

Here is the call graph for this function:

Tile16PreviewDisplayPixelToTilePosition()

ImVec2 yaze::editor::Tile16Editor::Tile16PreviewDisplayPixelToTilePosition ( const ImVec2 & display_position )

static

Definition at line 824 of file tile16_editor.cc.

References yaze::editor::kTile8DisplayScale.

Referenced by UpdateTile16Edit().

UpdateTile16Edit()

absl::Status yaze::editor::Tile16Editor::UpdateTile16Edit

(

)

Definition at line 830 of file tile16_editor.cc.

References AnalyzeTile8SourceData(), yaze::gui::BeginCanvas(), blockset_canvas_, blockset_selector_, yaze::gui::CanvasFrameOptions::canvas_size, yaze::zelda3::ComputeTile16Count(), yaze::gfx::Bitmap::Create(), yaze::gfx::Arena::CREATE, CreateRemappedPaletteForViewing(), current_gfx_bmp_, current_gfx_individual_, current_page_, current_palette_, current_tile16_, current_tile16_bmp_, current_tile8_, yaze::gui::CanvasFrameOptions::draw_context_menu, yaze::gui::CanvasFrameOptions::draw_grid, yaze::gui::CanvasFrameOptions::draw_overlay, yaze::gui::Canvas::DrawBitmap(), DrawBrushAndTilePaletteControls(), DrawCompactActionStatusRow(), DrawManualTile8Inputs(), DrawPaletteSettings(), DrawPrimaryActionControls(), DrawScratchSpace(), DrawTile8SourcePanel(), DrawTile8UsageOverlay(), yaze::gui::Canvas::DrawTilePainter(), edit_mode_, yaze::gfx::SnesPalette::empty(), yaze::gui::EndCanvas(), yaze::gfx::Arena::Get(), GetActualPaletteSlot(), GetActualPaletteSlotForCurrentTile16(), yaze::gui::TileSelectorWidget::GetSelectedTileID(), GetSheetIndexForTile8(), yaze::gui::CanvasFrameOptions::grid_step, HandleTile16CanvasClick(), has_pending_changes(), HOVER_HINT, yaze::gfx::Bitmap::is_active(), is_tile_modified(), jump_to_tile_id_, yaze::editor::kPaint, yaze::editor::kPick, yaze::editor::kTile8DisplayScale, yaze::editor::kTile8PixelCount, yaze::editor::kTile8Size, kTilesPerPage, kTilesPerRow, yaze::editor::kUsageProbe, yaze::util::logf(), yaze::gfx::Bitmap::mutable_data(), overworld_palette_, yaze::gfx::Bitmap::palette(), palette_, pending_changes_count(), priority_tile, yaze::gfx::Arena::QueueTextureCommand(), RefreshTile16Blockset(), yaze::gui::TileSelectorWidget::Render(), yaze::gui::CanvasFrameOptions::render_popups, RequestTileSwitch(), RETURN_IF_ERROR, scroll_to_current_, yaze::gui::TileSelectorWidget::ScrollToTile(), yaze::gfx::Bitmap::SetPalette(), yaze::gui::TileSelectorWidget::SetSelectedTile(), show_palette_settings_, show_tile_grid_, yaze::gui::Canvas::ShowAdvancedCanvasProperties(), yaze::gui::Canvas::ShowScalingControls(), yaze::gfx::SnesPalette::size(), yaze::gfx::Bitmap::texture(), tile16_blockset_, tile16_blockset_bmp_, tile16_edit_canvas_, Tile16PreviewDisplayPixelToTilePosition(), tile8_preview_bmp_, tile8_source_canvas_, tile8_stamp_size_, yaze::gfx::Arena::UPDATE, yaze::gfx::Bitmap::UpdateSurfacePixels(), yaze::gui::CanvasFrameOptions::use_child_window, x_flip, y_flip, and yaze::gui::Canvas::zero_point().

Referenced by DrawTile16Editor().

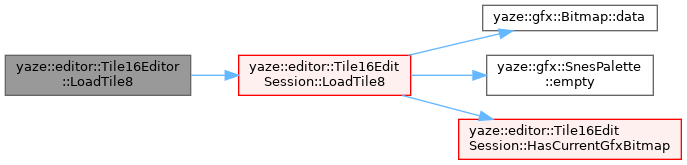

LoadTile8()

absl::Status yaze::editor::Tile16Editor::LoadTile8

(

)

Definition at line 1823 of file tile16_editor.cc.

References auto_normalize_pixels_, current_gfx_bmp_, current_gfx_individual_, yaze::gfx::Bitmap::data(), yaze::gfx::SnesPalette::empty(), HasCurrentGfxBitmap(), yaze::gfx::Bitmap::height(), yaze::util::logf(), palette_normalization_mask_, RefreshAllPalettes(), ResolveDisplayPalette(), RETURN_IF_ERROR, rom_, yaze::gui::Canvas::SetCanvasSize(), yaze::gfx::Bitmap::size(), tile8_source_canvas_, tile8_source_display_scale_, and yaze::gfx::Bitmap::width().

Referenced by DrawPaletteSettings(), FillTile16WithTile8(), RegenerateTile16BitmapFromROM(), and set_palette().

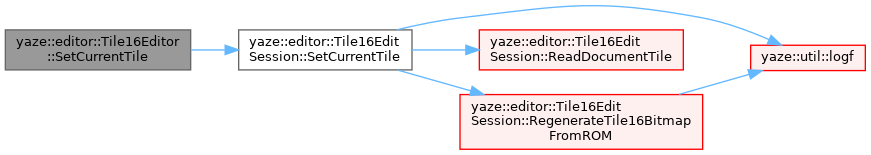

SetCurrentTile()

absl::Status yaze::editor::Tile16Editor::SetCurrentTile

(

int

id

)

Definition at line 1894 of file tile16_editor.cc.

References ASSIGN_OR_RETURN, blockset_selector_, current_tile16_, current_tile16_bmp_, current_tile16_data_, FinalizePendingUndo(), jump_to_tile_id_, yaze::zelda3::kTile16Ptr, yaze::util::logf(), on_current_tile_changed_, pending_tile16_bitmaps_, pending_tile16_changes_, yaze::Rom::ReadTile16(), RegenerateTile16BitmapFromROM(), RETURN_IF_ERROR, rom_, yaze::gui::TileSelectorWidget::SetSelectedTile(), and tile16_blockset_.

Referenced by DiscardAllChanges(), DiscardChanges(), DiscardCurrentTileChanges(), DrawManualTile8Inputs(), Initialize(), LoadLayoutFromScratch(), yaze::editor::TilePaintingManager::PickTile16FromHoveredCanvas(), yaze::editor::OverworldEditor::RequestTile16Selection(), RequestTileSwitch(), yaze::test::RomDependentTestSuite::RunTile16EditorTest(), Update(), and UpdateAsPanel().

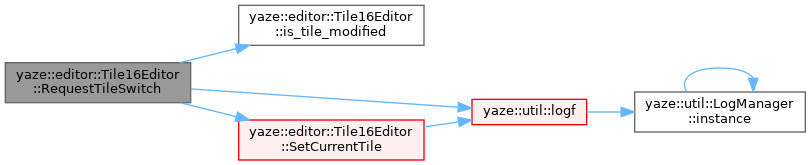

RequestTileSwitch()

void yaze::editor::Tile16Editor::RequestTileSwitch

(

int

target_tile_id

)

Definition at line 1941 of file tile16_editor.cc.

References current_tile16_, is_tile_modified(), yaze::util::logf(), pending_tile_switch_target_, rom_, SetCurrentTile(), show_unsaved_changes_dialog_, and tile16_blockset_.

Referenced by yaze::editor::OverworldEditor::RequestTile16Selection(), UpdateBlockset(), and UpdateTile16Edit().

Here is the call graph for this function:

CopyTile16ToClipboard()

absl::Status yaze::editor::Tile16Editor::CopyTile16ToClipboard

(

int

tile_id

)

Definition at line 1978 of file tile16_editor.cc.

References ASSIGN_OR_RETURN, yaze::gfx::Tilemap::atlas, yaze::editor::Tile16ClipboardData::bitmap, clipboard_tile16_, yaze::gfx::Bitmap::Create(), yaze::gfx::Arena::CREATE, current_tile16_, current_tile16_bmp_, current_tile16_data_, yaze::gfx::Arena::Get(), yaze::gfx::GetTilemapData(), yaze::editor::Tile16ClipboardData::has_data, yaze::gfx::Bitmap::is_active(), yaze::zelda3::kTile16Ptr, yaze::editor::kTile16Size, yaze::gfx::Bitmap::palette(), pending_tile16_bitmaps_, pending_tile16_changes_, yaze::gfx::Arena::QueueTextureCommand(), yaze::Rom::ReadTile16(), rom_, yaze::gfx::Bitmap::SetPalette(), tile16_blockset_, yaze::editor::Tile16ClipboardData::tile_data, and yaze::gfx::Bitmap::vector().

Referenced by DrawContextMenu(), DrawPrimaryActionControls(), HandleKeyboardShortcuts(), and Update().

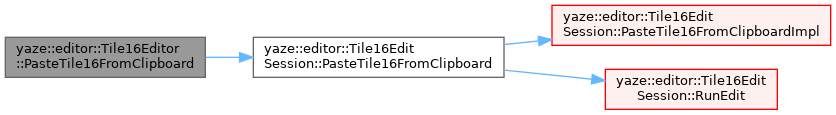

PasteTile16FromClipboard()

absl::Status yaze::editor::Tile16Editor::PasteTile16FromClipboard

(

)

Definition at line 2028 of file tile16_editor.cc.

References ApplyPaletteToCurrentTile16Bitmap(), yaze::editor::Tile16ClipboardData::bitmap, clipboard_tile16_, yaze::gfx::Bitmap::Create(), yaze::gfx::Arena::CREATE, current_tile16_bmp_, current_tile16_data_, yaze::gfx::Arena::Get(), yaze::editor::Tile16ClipboardData::has_data, yaze::gfx::Bitmap::is_active(), yaze::editor::kTile16Size, live_preview_enabled_, MarkCurrentTileModified(), yaze::gfx::Bitmap::palette(), yaze::gfx::Arena::QueueTextureCommand(), RegenerateTile16BitmapFromROM(), RETURN_IF_ERROR, SaveUndoState(), yaze::gfx::Bitmap::SetPalette(), yaze::editor::Tile16ClipboardData::tile_data, UpdateBlocksetBitmap(), UpdateOverworldTilemap(), and yaze::gfx::Bitmap::vector().

Referenced by DrawContextMenu(), DrawPrimaryActionControls(), HandleKeyboardShortcuts(), and Update().

SaveTile16ToScratchSpace()

absl::Status yaze::editor::Tile16Editor::SaveTile16ToScratchSpace

(

int

slot

)

Definition at line 2057 of file tile16_editor.cc.

References yaze::gfx::Arena::CREATE, current_tile16_bmp_, current_tile16_data_, yaze::gfx::Arena::Get(), yaze::gfx::Bitmap::is_active(), yaze::editor::kNumScratchSlots, yaze::editor::kTile16Size, yaze::gfx::Bitmap::palette(), yaze::gfx::Arena::QueueTextureCommand(), scratch_space_, and yaze::gfx::Bitmap::vector().

Referenced by DrawContextMenu(), and Update().

LoadTile16FromScratchSpace()

absl::Status yaze::editor::Tile16Editor::LoadTile16FromScratchSpace

(

int

slot

)

Definition at line 2078 of file tile16_editor.cc.

References ApplyPaletteToCurrentTile16Bitmap(), yaze::gfx::Bitmap::Create(), yaze::gfx::Arena::CREATE, current_tile16_bmp_, current_tile16_data_, yaze::gfx::Arena::Get(), yaze::editor::kNumScratchSlots, yaze::editor::kTile16Size, live_preview_enabled_, MarkCurrentTileModified(), yaze::gfx::Arena::QueueTextureCommand(), RegenerateTile16BitmapFromROM(), RETURN_IF_ERROR, SaveUndoState(), scratch_space_, yaze::gfx::Bitmap::SetPalette(), UpdateBlocksetBitmap(), and UpdateOverworldTilemap().

Referenced by DrawContextMenu(), and Update().

ClearScratchSpace()

absl::Status yaze::editor::Tile16Editor::ClearScratchSpace

(

int

slot

)

Definition at line 2111 of file tile16_editor.cc.

References yaze::editor::kNumScratchSlots, and scratch_space_.

Referenced by DrawContextMenu(), and Update().

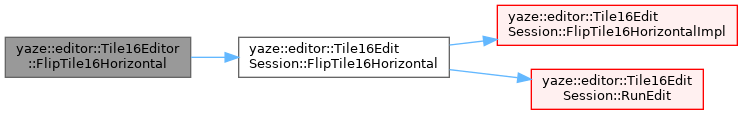

FlipTile16Horizontal()

absl::Status yaze::editor::Tile16Editor::FlipTile16Horizontal

(

)

Definition at line 2121 of file tile16_editor.cc.

References current_tile16_bmp_, current_tile16_data_, yaze::zelda3::HorizontalFlipTile16(), yaze::gfx::Bitmap::is_active(), live_preview_enabled_, MarkCurrentTileModified(), RegenerateTile16BitmapFromROM(), RETURN_IF_ERROR, SaveUndoState(), UpdateBlocksetBitmap(), and UpdateOverworldTilemap().

Referenced by DrawContextMenu(), and HandleKeyboardShortcuts().

FlipTile16Vertical()

absl::Status yaze::editor::Tile16Editor::FlipTile16Vertical

(

)

Definition at line 2142 of file tile16_editor.cc.

References current_tile16_bmp_, current_tile16_data_, yaze::gfx::Bitmap::is_active(), live_preview_enabled_, MarkCurrentTileModified(), RegenerateTile16BitmapFromROM(), RETURN_IF_ERROR, SaveUndoState(), UpdateBlocksetBitmap(), UpdateOverworldTilemap(), and yaze::zelda3::VerticalFlipTile16().

Referenced by DrawContextMenu(), and HandleKeyboardShortcuts().

RotateTile16()

absl::Status yaze::editor::Tile16Editor::RotateTile16

(

)

Definition at line 2163 of file tile16_editor.cc.

References current_tile16_bmp_, current_tile16_data_, yaze::gfx::Bitmap::is_active(), live_preview_enabled_, MarkCurrentTileModified(), RegenerateTile16BitmapFromROM(), RETURN_IF_ERROR, yaze::zelda3::RotateTile16Clockwise(), SaveUndoState(), UpdateBlocksetBitmap(), and UpdateOverworldTilemap().

Referenced by DrawContextMenu(), and HandleKeyboardShortcuts().

FillTile16WithTile8()

absl::Status yaze::editor::Tile16Editor::FillTile16WithTile8

(

int

tile8_id

)

Definition at line 2186 of file tile16_editor.cc.

References current_gfx_individual_, current_palette_, current_tile16_data_, HasCurrentGfxBitmap(), live_preview_enabled_, LoadTile8(), MarkCurrentTileModified(), priority_tile, RegenerateTile16BitmapFromROM(), RETURN_IF_ERROR, SaveUndoState(), UpdateBlocksetBitmap(), UpdateOverworldTilemap(), x_flip, and y_flip.

Referenced by HandleKeyboardShortcuts().

ClearTile16()

absl::Status yaze::editor::Tile16Editor::ClearTile16

(

)

Definition at line 2221 of file tile16_editor.cc.

References current_palette_, current_tile16_bmp_, current_tile16_data_, yaze::gfx::Bitmap::is_active(), live_preview_enabled_, MarkCurrentTileModified(), RegenerateTile16BitmapFromROM(), RETURN_IF_ERROR, SaveUndoState(), UpdateBlocksetBitmap(), and UpdateOverworldTilemap().

Referenced by DrawContextMenu(), DrawPrimaryActionControls(), and HandleKeyboardShortcuts().

CyclePalette()

absl::Status yaze::editor::Tile16Editor::CyclePalette

(

bool

forward = true

)

Definition at line 2247 of file tile16_editor.cc.

References current_palette_, yaze::util::logf(), RefreshAllPalettes(), and RETURN_IF_ERROR.

Referenced by HandleKeyboardShortcuts().

Here is the call graph for this function:

ApplyPaletteToAll()

absl::Status yaze::editor::Tile16Editor::ApplyPaletteToAll

(

uint8_t

palette_id

)

Definition at line 2312 of file tile16_editor.cc.

References current_palette_, current_tile16_, GetCurrentTile16Data(), live_preview_enabled_, yaze::util::logf(), MarkCurrentTileModified(), RegenerateTile16BitmapFromROM(), RETURN_IF_ERROR, SaveUndoState(), yaze::zelda3::SetTile16AllQuadrantPalettes(), UpdateBlocksetBitmap(), and UpdateOverworldTilemap().

Referenced by DrawBrushAndTilePaletteControls().

ApplyPaletteToQuadrant()

absl::Status yaze::editor::Tile16Editor::ApplyPaletteToQuadrant	(	int	quadrant,
		uint8_t	palette_id )

Definition at line 2345 of file tile16_editor.cc.

References current_palette_, current_tile16_, GetCurrentTile16Data(), live_preview_enabled_, yaze::util::logf(), MarkCurrentTileModified(), RegenerateTile16BitmapFromROM(), RETURN_IF_ERROR, SaveUndoState(), yaze::zelda3::SetTile16QuadrantPalette(), UpdateBlocksetBitmap(), and UpdateOverworldTilemap().

Referenced by DrawBrushAndTilePaletteControls().

PreviewPaletteChange()

absl::Status yaze::editor::Tile16Editor::PreviewPaletteChange

(

uint8_t

palette_id

)

Definition at line 2265 of file tile16_editor.cc.

References auto_normalize_pixels_, BitmapHasEncodedPaletteRows(), yaze::gfx::Bitmap::Create(), current_tile16_bmp_, current_tile8_, yaze::gfx::SnesPalette::empty(), yaze::gfx::Arena::Get(), GetActualPaletteSlot(), GetSheetIndexForTile8(), yaze::gfx::Bitmap::is_active(), preview_dirty_, preview_tile16_, yaze::gfx::Arena::QueueTextureCommand(), ResolveDisplayPalette(), yaze::gfx::Bitmap::SetPalette(), yaze::gfx::Bitmap::SetPaletteWithTransparent(), show_palette_preview_, yaze::gfx::SnesPalette::size(), yaze::gfx::Arena::UPDATE, and yaze::gfx::Bitmap::vector().

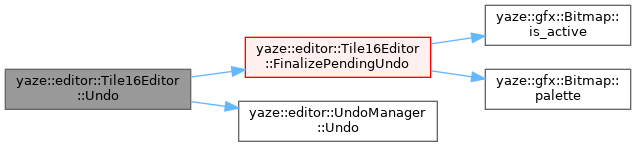

Undo()

absl::Status yaze::editor::Tile16Editor::Undo

(

)

Definition at line 2446 of file tile16_editor.cc.

References FinalizePendingUndo(), yaze::editor::UndoManager::Undo(), and undo_manager_.

Referenced by DrawCompactActionStatusRow(), and HandleKeyboardShortcuts().

Here is the call graph for this function:

Redo()

absl::Status yaze::editor::Tile16Editor::Redo

(

)

Definition at line 2451 of file tile16_editor.cc.

References yaze::editor::UndoManager::Redo(), and undo_manager_.

Referenced by DrawCompactActionStatusRow(), and HandleKeyboardShortcuts().

Here is the call graph for this function:

SaveUndoState()

void yaze::editor::Tile16Editor::SaveUndoState

(

)

Definition at line 2425 of file tile16_editor.cc.

References yaze::editor::Tile16Snapshot::bitmap_data, yaze::editor::Tile16Snapshot::bitmap_palette, current_palette_, current_tile16_, current_tile16_bmp_, current_tile16_data_, FinalizePendingUndo(), yaze::gfx::Bitmap::is_active(), yaze::editor::Tile16Snapshot::palette, yaze::gfx::Bitmap::palette(), pending_undo_before_, yaze::editor::Tile16Snapshot::priority, priority_tile, yaze::editor::Tile16Snapshot::tile_data, yaze::editor::Tile16Snapshot::tile_id, yaze::gfx::Bitmap::vector(), x_flip, yaze::editor::Tile16Snapshot::x_flip, y_flip, and yaze::editor::Tile16Snapshot::y_flip.

Referenced by ApplyPaletteToAll(), ApplyPaletteToQuadrant(), ClearTile16(), DrawToCurrentTile16(), FillTile16WithTile8(), FlipTile16Horizontal(), FlipTile16Vertical(), LoadTile16FromScratchSpace(), PasteTile16FromClipboard(), and RotateTile16().

Here is the call graph for this function:

EnableLivePreview()

void yaze::editor::Tile16Editor::EnableLivePreview ( bool enable )

inline

Definition at line 209 of file tile16_editor.h.

References live_preview_enabled_.

Referenced by DrawContextMenu(), and Update().

UpdateLivePreview()

absl::Status yaze::editor::Tile16Editor::UpdateLivePreview

(

)

Definition at line 3497 of file tile16_editor.cc.

References auto_normalize_pixels_, BitmapHasEncodedPaletteRows(), yaze::gfx::Bitmap::Create(), current_palette_, current_tile16_bmp_, current_tile8_, yaze::gfx::SnesPalette::empty(), yaze::gfx::Arena::Get(), GetActualPaletteSlot(), GetSheetIndexForTile8(), yaze::gfx::Bitmap::is_active(), live_preview_enabled_, preview_dirty_, preview_tile16_, yaze::gfx::Arena::QueueTextureCommand(), ResolveDisplayPalette(), yaze::gfx::Bitmap::SetPalette(), yaze::gfx::Bitmap::SetPaletteWithTransparent(), yaze::gfx::SnesPalette::size(), yaze::gfx::Arena::UPDATE, and yaze::gfx::Bitmap::vector().

Referenced by Update(), and UpdateAsPanel().

ValidateTile16Data()

absl::Status yaze::editor::Tile16Editor::ValidateTile16Data

(

)

Definition at line 2455 of file tile16_editor.cc.

References current_palette_, and tile16_blockset_.

IsTile16Valid()

bool yaze::editor::Tile16Editor::IsTile16Valid

(

int

tile_id

)

const

Definition at line 2471 of file tile16_editor.cc.

References tile16_blockset_.

SaveTile16ToROM()

absl::Status yaze::editor::Tile16Editor::SaveTile16ToROM

(

)

Write current tile16 data directly to ROM (bypasses pending system)

Definition at line 2476 of file tile16_editor.cc.

References CommitChangesToBlockset(), current_tile16_, current_tile16_bmp_, has_rom_write_history_, yaze::gfx::Bitmap::is_active(), last_rom_write_count_, last_rom_write_time_, yaze::util::logf(), pending_tile16_bitmaps_, pending_tile16_changes_, RETURN_IF_ERROR, rom_, yaze::Rom::set_dirty(), tile8_usage_cache_dirty_, UpdateOverworldTilemap(), and UpdateROMTile16Data().

UpdateOverworldTilemap()

absl::Status yaze::editor::Tile16Editor::UpdateOverworldTilemap

(

)

Update the overworld tilemap to reflect tile changes.

Definition at line 2508 of file tile16_editor.cc.

References CopyTile16ToAtlas(), current_tile16_, and tile16_blockset_.

Referenced by ApplyPaletteToAll(), ApplyPaletteToQuadrant(), ClearTile16(), DrawManualTile8Inputs(), DrawToCurrentTile16(), FillTile16WithTile8(), FlipTile16Horizontal(), FlipTile16Vertical(), LoadTile16FromScratchSpace(), PasteTile16FromClipboard(), RotateTile16(), and SaveTile16ToROM().

Here is the call graph for this function:

CommitChangesToBlockset()

absl::Status yaze::editor::Tile16Editor::CommitChangesToBlockset

(

)

Commit pending changes to the blockset atlas.

Definition at line 2523 of file tile16_editor.cc.

References yaze::gfx::Tilemap::atlas, yaze::gfx::Arena::Get(), yaze::gfx::Bitmap::modified(), yaze::gfx::Arena::QueueTextureCommand(), tile16_blockset_, and yaze::gfx::Arena::UPDATE.

Referenced by DrawContextMenu(), HandleKeyboardShortcuts(), SaveTile16ToROM(), and Update().

Here is the call graph for this function:

CommitChangesToOverworld()

absl::Status yaze::editor::Tile16Editor::CommitChangesToOverworld

(

)

Single-tile commit: ROM + blockset + parent refresh callback. Prefer CommitAllChanges() from the main UI; kept for integration tests.

Definition at line 2543 of file tile16_editor.cc.

References CopyTile16ToAtlas(), current_tile16_, current_tile16_data_, has_rom_write_history_, last_rom_write_count_, last_rom_write_time_, yaze::util::logf(), on_changes_committed_, pending_tile16_bitmaps_, pending_tile16_changes_, RETURN_IF_ERROR, tile8_usage_cache_dirty_, UpdateBlocksetBitmap(), and UpdateROMTile16Data().

Here is the call graph for this function:

DiscardChanges()

absl::Status yaze::editor::Tile16Editor::DiscardChanges

(

)

Discard current tile's changes (single tile)

Definition at line 2574 of file tile16_editor.cc.

References current_tile16_, yaze::util::logf(), pending_tile16_bitmaps_, pending_tile16_changes_, RETURN_IF_ERROR, SetCurrentTile(), and tile8_usage_cache_dirty_.

Here is the call graph for this function:

has_pending_changes()

bool yaze::editor::Tile16Editor::has_pending_changes ( ) const

inline

Check if any tiles have uncommitted changes.

Definition at line 253 of file tile16_editor.h.

References pending_tile16_changes_.

Referenced by yaze::editor::OverworldEditor::Update(), yaze::editor::MapRefreshCoordinator::UpdateBlocksetWithPendingTileChanges(), and UpdateTile16Edit().

pending_changes_count()

int yaze::editor::Tile16Editor::pending_changes_count ( ) const

inline

Get count of tiles with pending changes.

Definition at line 256 of file tile16_editor.h.

References pending_tile16_changes_.

Referenced by UpdateTile16Edit().

is_tile_modified()

bool yaze::editor::Tile16Editor::is_tile_modified ( int tile_id ) const

inline

Check if a specific tile has pending changes.

Definition at line 261 of file tile16_editor.h.

References pending_tile16_changes_.

Referenced by yaze::editor::OverworldEditor::RequestTile16Selection(), RequestTileSwitch(), yaze::editor::MapRefreshCoordinator::UpdateBlocksetWithPendingTileChanges(), and UpdateTile16Edit().

GetPendingTileBitmap()

const gfx::Bitmap * yaze::editor::Tile16Editor::GetPendingTileBitmap ( int tile_id ) const

inline

Get preview bitmap for a pending tile (nullptr if not modified)

Definition at line 267 of file tile16_editor.h.

References pending_tile16_bitmaps_.

Referenced by yaze::editor::MapRefreshCoordinator::UpdateBlocksetWithPendingTileChanges().

CommitAllChanges()

absl::Status yaze::editor::Tile16Editor::CommitAllChanges

(

)

Write all pending changes to ROM and notify parent.

Definition at line 2588 of file tile16_editor.cc.

References has_rom_write_history_, yaze::zelda3::kTile16Ptr, last_rom_write_count_, last_rom_write_time_, yaze::util::logf(), on_changes_committed_, pending_tile16_bitmaps_, pending_tile16_changes_, RefreshTile16Blockset(), RETURN_IF_ERROR, rom_, yaze::Rom::set_dirty(), tile8_usage_cache_dirty_, and yaze::Rom::WriteTile16().

Referenced by DrawCompactActionStatusRow(), DrawContextMenu(), DrawManualTile8Inputs(), HandleKeyboardShortcuts(), Update(), and UpdateAsPanel().

Here is the call graph for this function:

DiscardAllChanges()

void yaze::editor::Tile16Editor::DiscardAllChanges

(

)

Discard all pending changes (revert to ROM state)

Definition at line 2631 of file tile16_editor.cc.

References current_tile16_, yaze::util::logf(), pending_tile16_bitmaps_, pending_tile16_changes_, SetCurrentTile(), and tile8_usage_cache_dirty_.

Referenced by DrawCompactActionStatusRow().

Here is the call graph for this function:

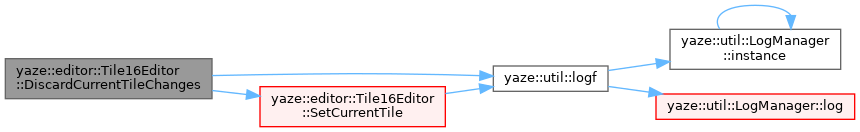

DiscardCurrentTileChanges()

void yaze::editor::Tile16Editor::DiscardCurrentTileChanges

(

)

Discard only the current tile's pending changes.

Definition at line 2651 of file tile16_editor.cc.

References current_tile16_, yaze::util::logf(), pending_tile16_bitmaps_, pending_tile16_changes_, SetCurrentTile(), and tile8_usage_cache_dirty_.

Referenced by DrawCompactActionStatusRow().

Here is the call graph for this function:

MarkCurrentTileModified()

void yaze::editor::Tile16Editor::MarkCurrentTileModified

(

)

Mark the current tile as having pending changes.

Definition at line 2668 of file tile16_editor.cc.

References current_tile16_, current_tile16_bmp_, current_tile16_data_, yaze::util::logf(), pending_tile16_bitmaps_, pending_tile16_changes_, preview_dirty_, and tile8_usage_cache_dirty_.

Referenced by ApplyPaletteToAll(), ApplyPaletteToQuadrant(), ClearTile16(), DrawManualTile8Inputs(), DrawToCurrentTile16(), FillTile16WithTile8(), FlipTile16Horizontal(), FlipTile16Vertical(), LoadTile16FromScratchSpace(), PasteTile16FromClipboard(), and RotateTile16().

Here is the call graph for this function:

UpdateTile8Palette()

absl::Status yaze::editor::Tile16Editor::UpdateTile8Palette

(

int

tile8_id

)

Update palette for a specific tile8.

Definition at line 2932 of file tile16_editor.cc.

References CreateRemappedPaletteForTile8(), current_gfx_bmp_, current_gfx_individual_, current_palette_, yaze::gfx::SnesPalette::empty(), yaze::gfx::Arena::Get(), GetActualPaletteSlot(), GetSheetIndexForTile8(), HasCurrentGfxBitmap(), yaze::util::logf(), yaze::gfx::Arena::QueueTextureCommand(), ResolveDisplayPalette(), rom_, yaze::gfx::Bitmap::set_modified(), yaze::gfx::Bitmap::SetPalette(), yaze::gfx::SnesPalette::size(), and yaze::gfx::Arena::UPDATE.

Referenced by HandleTile8SourceSelection(), and PickTile8FromTile16().

RefreshAllPalettes()

absl::Status yaze::editor::Tile16Editor::RefreshAllPalettes

(

)

Refresh all tile8 palettes after a palette change.

Definition at line 2971 of file tile16_editor.cc.

References CreateRemappedPaletteForViewing(), current_gfx_bmp_, current_gfx_individual_, current_palette_, current_tile16_bmp_, yaze::gfx::SnesPalette::empty(), yaze::gfx::Arena::Get(), HasCurrentGfxBitmap(), yaze::gfx::Bitmap::is_active(), yaze::util::logf(), yaze::gfx::Arena::QueueTextureCommand(), RegenerateTile16BitmapFromROM(), ResolveDisplayPalette(), rom_, yaze::gfx::Bitmap::set_modified(), yaze::gfx::Bitmap::SetPalette(), yaze::gfx::SnesPalette::size(), and yaze::gfx::Arena::UPDATE.

Referenced by CyclePalette(), DrawBrushAndTilePaletteControls(), HandleKeyboardShortcuts(), LoadTile8(), and PickTile8FromTile16().

DrawPaletteSettings()

void yaze::editor::Tile16Editor::DrawPaletteSettings

(

)

Draw palette settings UI.

Definition at line 3133 of file tile16_editor.cc.

References yaze::gui::Canvas::ApplyROMPalette(), auto_normalize_pixels_, current_gfx_bmp_, current_gfx_individual_, current_palette_, current_palette_group_, current_tile8_, yaze::gfx::SnesPalette::empty(), HOVER_HINT, LoadTile8(), yaze::util::logf(), yaze::gfx::Bitmap::palette(), palette_, palette_normalization_mask_, ResolveDisplayPalette(), rom_, show_palette_settings_, yaze::gui::Canvas::ShowColorAnalysis(), yaze::gui::Canvas::ShowPaletteEditor(), yaze::gfx::SnesPalette::size(), tile16_edit_canvas_, and tile8_source_canvas_.

Referenced by Update(), UpdateAsPanel(), and UpdateTile16Edit().

GetActualPaletteSlot()

int yaze::editor::Tile16Editor::GetActualPaletteSlot	(	int	palette_button,
		int	sheet_index ) const

Calculate actual palette slot from button.

Parameters

palette_button	User-selected palette (0-7)
sheet_index	Graphics sheet the tile8 belongs to (diagnostic only)

Returns

Final palette slot index in 256-color palette

This mirrors the Tile16 metadata render path: (pixel & 0x0F) + (palette_button * 0x10).

Definition at line 2793 of file tile16_editor.cc.

Referenced by AnalyzeTile8SourceData(), DrawBrushAndTilePaletteControls(), GetActualPaletteSlotForCurrentTile16(), PreviewPaletteChange(), UpdateLivePreview(), UpdateTile16Edit(), and UpdateTile8Palette().

GetSheetIndexForTile8()

int yaze::editor::Tile16Editor::GetSheetIndexForTile8

(

int

tile8_id

)

const

Determine which graphics sheet contains a tile8.

Parameters

tile8_id

Tile8 ID from the graphics buffer

Returns

Graphics chunk index (0-15) based on tile position

Definition at line 2801 of file tile16_editor.cc.

Referenced by PreviewPaletteChange(), UpdateLivePreview(), UpdateTile16Edit(), and UpdateTile8Palette().

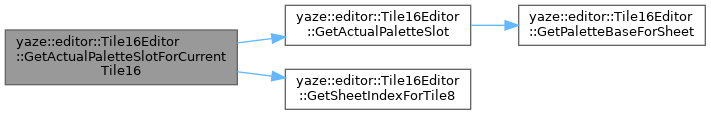

GetActualPaletteSlotForCurrentTile16()

int yaze::editor::Tile16Editor::GetActualPaletteSlotForCurrentTile16

(

)

const

Get the palette slot for the current tile being edited.

Returns

Palette slot based on current_palette_

Definition at line 2810 of file tile16_editor.cc.

References current_palette_, and GetActualPaletteSlot().

Referenced by ApplyPaletteToCurrentTile16Bitmap(), DrawBrushAndTilePaletteControls(), and UpdateTile16Edit().

Here is the call graph for this function:

CreateRemappedPaletteForViewing()

gfx::SnesPalette yaze::editor::Tile16Editor::CreateRemappedPaletteForViewing	(	const gfx::SnesPalette &	source,
		int	target_row ) const

Create a remapped palette for viewing with user-selected palette.

Parameters

source	Full 256-color palette
target_row	User-selected Tile16 palette row (0-7)

Returns

Remapped 256-color palette where all pixels map to target row

Definition at line 2814 of file tile16_editor.cc.

References CreateRemappedPaletteForTile8(), and current_tile8_.

Referenced by RefreshAllPalettes(), and UpdateTile16Edit().

Here is the call graph for this function:

GetEncodedPaletteRow()

int yaze::editor::Tile16Editor::GetEncodedPaletteRow

(

uint8_t

pixel_value

)

const

Get the encoded palette row for a pixel value.

Parameters

pixel_value

Raw pixel value from the graphics buffer

Returns

Palette row (0-15) that this pixel would use

Definition at line 2856 of file tile16_editor.cc.

Referenced by AnalyzeTile8SourceData().

UpdateROMTile16Data()

absl::Status yaze::editor::Tile16Editor::UpdateROMTile16Data

(

)

Definition at line 566 of file tile16_editor.cc.

References current_tile16_, GetCurrentTile16Data(), yaze::zelda3::kTile16Ptr, yaze::util::logf(), RETURN_IF_ERROR, rom_, and yaze::Rom::WriteTile16().

Referenced by CommitChangesToOverworld(), and SaveTile16ToROM().

Here is the call graph for this function:

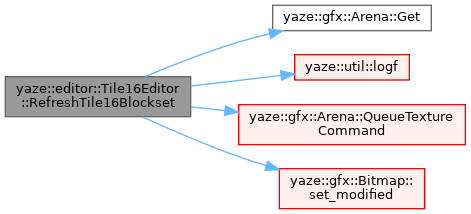

RefreshTile16Blockset()

absl::Status yaze::editor::Tile16Editor::RefreshTile16Blockset

(

)

Definition at line 580 of file tile16_editor.cc.

References yaze::gfx::Tilemap::atlas, yaze::gfx::Arena::Get(), yaze::util::logf(), yaze::gfx::Arena::QueueTextureCommand(), yaze::gfx::Bitmap::set_modified(), tile16_blockset_, and yaze::gfx::Arena::UPDATE.

Referenced by CommitAllChanges(), and UpdateTile16Edit().

Here is the call graph for this function:

GetCurrentTile16Data()

gfx::Tile16 * yaze::editor::Tile16Editor::GetCurrentTile16Data

(

)

Definition at line 559 of file tile16_editor.cc.

References current_tile16_data_, and rom_.

Referenced by ApplyPaletteToAll(), ApplyPaletteToQuadrant(), DrawBrushAndTilePaletteControls(), DrawManualTile8Inputs(), PickTile8FromTile16(), RegenerateTile16BitmapFromROM(), and UpdateROMTile16Data().

RegenerateTile16BitmapFromROM()

absl::Status yaze::editor::Tile16Editor::RegenerateTile16BitmapFromROM

(

)

Definition at line 654 of file tile16_editor.cc.

References ApplyPaletteToCurrentTile16Bitmap(), BuildTile16BitmapFromData(), yaze::gfx::Arena::CREATE, current_gfx_individual_, current_tile16_, current_tile16_bmp_, yaze::gfx::Arena::Get(), GetCurrentTile16Data(), HasCurrentGfxBitmap(), LoadTile8(), yaze::util::logf(), yaze::gfx::Arena::QueueTextureCommand(), and RETURN_IF_ERROR.

Referenced by ApplyPaletteToAll(), ApplyPaletteToQuadrant(), ClearTile16(), DrawManualTile8Inputs(), FillTile16WithTile8(), FlipTile16Horizontal(), FlipTile16Vertical(), LoadTile16FromScratchSpace(), PasteTile16FromClipboard(), RefreshAllPalettes(), RotateTile16(), and SetCurrentTile().

UpdateBlocksetBitmap()

absl::Status yaze::editor::Tile16Editor::UpdateBlocksetBitmap

(

)

Definition at line 625 of file tile16_editor.cc.

References yaze::gfx::Tilemap::atlas, CopyTileBitmapToBlockset(), current_tile16_, current_tile16_bmp_, yaze::gfx::Arena::Get(), HasTile16BlocksetBitmap(), yaze::gfx::Bitmap::is_active(), yaze::gfx::Arena::QueueTextureCommand(), tile16_blockset_, tile16_blockset_bmp_, and yaze::gfx::Arena::UPDATE.

Referenced by ApplyPaletteToAll(), ApplyPaletteToQuadrant(), ClearTile16(), CommitChangesToOverworld(), DrawManualTile8Inputs(), FillTile16WithTile8(), FlipTile16Horizontal(), FlipTile16Vertical(), LoadTile16FromScratchSpace(), PasteTile16FromClipboard(), and RotateTile16().

PickTile8FromTile16()

absl::Status yaze::editor::Tile16Editor::PickTile8FromTile16

(

const ImVec2 &

position

)

Definition at line 2749 of file tile16_editor.cc.

References active_quadrant_, current_palette_, current_tile16_, current_tile8_, GetCurrentTile16Data(), yaze::gfx::TileInfo::horizontal_mirror_, yaze::gfx::TileInfo::id_, yaze::util::logf(), yaze::gfx::TileInfo::over_, yaze::gfx::TileInfo::palette_, priority_tile, RefreshAllPalettes(), RETURN_IF_ERROR, rom_, UpdateTile8Palette(), yaze::gfx::TileInfo::vertical_mirror_, x_flip, and y_flip.

Referenced by HandleTile16CanvasClick().

Here is the call graph for this function:

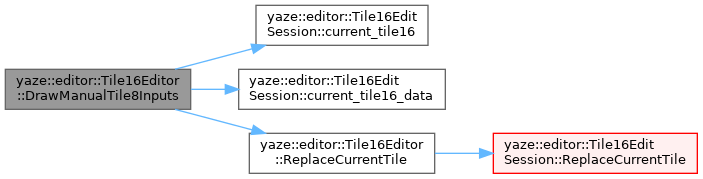

DrawManualTile8Inputs()

void yaze::editor::Tile16Editor::DrawManualTile8Inputs

(

)

Definition at line 3376 of file tile16_editor.cc.

References CommitAllChanges(), current_tile16_, GetCurrentTile16Data(), yaze::gfx::TileInfo::horizontal_mirror_, yaze::gfx::TileInfo::id_, live_preview_enabled_, MarkCurrentTileModified(), yaze::gfx::TileInfo::over_, yaze::gfx::TileInfo::palette_, RegenerateTile16BitmapFromROM(), RETURN_IF_ERROR, rom_, SetCurrentTile(), UpdateBlocksetBitmap(), UpdateOverworldTilemap(), and yaze::gfx::TileInfo::vertical_mirror_.

Referenced by UpdateTile16Edit().

SetRom()

void yaze::editor::Tile16Editor::SetRom ( Rom * rom )

inline

Definition at line 351 of file tile16_editor.h.

References rom(), and rom_.

Referenced by yaze::editor::OverworldEditor::Load().

Here is the call graph for this function:

rom()

Rom * yaze::editor::Tile16Editor::rom ( ) const

inline

Definition at line 352 of file tile16_editor.h.

References rom_.

Referenced by SetRom().

SetGameData()

void yaze::editor::Tile16Editor::SetGameData ( zelda3::GameData * game_data )

inline

Definition at line 353 of file tile16_editor.h.

References game_data(), and game_data_.

Referenced by yaze::editor::OverworldEditor::SetGameData().

Here is the call graph for this function:

game_data()

zelda3::GameData * yaze::editor::Tile16Editor::game_data ( ) const

inline

Definition at line 354 of file tile16_editor.h.

References game_data_.

Referenced by ResolveDisplayPalette(), and SetGameData().

set_palette()

void yaze::editor::Tile16Editor::set_palette ( const gfx::SnesPalette & palette )

inline

Definition at line 357 of file tile16_editor.h.

References current_gfx_bmp_, yaze::gfx::Bitmap::is_active(), LoadTile8(), yaze::util::logf(), overworld_palette_, palette_, rom_, and yaze::gfx::SnesPalette::size().

Referenced by yaze::editor::OverworldEditor::Load(), yaze::editor::MapRefreshCoordinator::RefreshMapPalette(), and yaze::editor::MapRefreshCoordinator::RefreshTile16Blockset().

Here is the call graph for this function:

set_on_changes_committed()

void yaze::editor::Tile16Editor::set_on_changes_committed ( std::function< absl::Status(const std::vector< Tile16Commit > &)> callback )

inline

Definition at line 389 of file tile16_editor.h.

References on_changes_committed_.

Referenced by yaze::editor::OverworldEditor::Load().

set_on_current_tile_changed()

void yaze::editor::Tile16Editor::set_on_current_tile_changed ( std::function< void(int)> callback )

inline

Optional: invoked after every successful SetCurrentTile (keeps overworld paint selection aligned with the Tile16 editor, including dialog paths).

Definition at line 396 of file tile16_editor.h.

References on_current_tile_changed_.

Referenced by yaze::editor::OverworldEditor::Load().

current_palette()

int yaze::editor::Tile16Editor::current_palette ( ) const

inline

Definition at line 401 of file tile16_editor.h.

References current_palette_.

set_current_palette()

void yaze::editor::Tile16Editor::set_current_palette ( int palette )

inline

Definition at line 402 of file tile16_editor.h.

References current_palette_.

Tile8PreviewBitmapForTesting()

const gfx::Bitmap & yaze::editor::Tile16Editor::Tile8PreviewBitmapForTesting ( ) const

inline

Definition at line 405 of file tile16_editor.h.

References tile8_preview_bmp_.

current_tile16()

int yaze::editor::Tile16Editor::current_tile16 ( ) const

inline

Definition at line 408 of file tile16_editor.h.

References current_tile16_.

Referenced by yaze::editor::OverworldEditor::RequestTile16Selection().

selected_tile16_for_testing()

int yaze::editor::Tile16Editor::selected_tile16_for_testing ( ) const

inline

Definition at line 409 of file tile16_editor.h.

References blockset_selector_, and yaze::gui::TileSelectorWidget::GetSelectedTileID().

Here is the call graph for this function:

current_tile8()

int yaze::editor::Tile16Editor::current_tile8 ( ) const

inline

Definition at line 412 of file tile16_editor.h.

References current_tile8_.

active_quadrant()

int yaze::editor::Tile16Editor::active_quadrant ( ) const

inline

Definition at line 413 of file tile16_editor.h.

References active_quadrant_.

set_active_quadrant()

void yaze::editor::Tile16Editor::set_active_quadrant ( int quadrant )

inline

Definition at line 414 of file tile16_editor.h.

References active_quadrant_.

edit_mode()

Tile16EditMode yaze::editor::Tile16Editor::edit_mode ( ) const

inline

Definition at line 417 of file tile16_editor.h.

References edit_mode_.

set_edit_mode()

void yaze::editor::Tile16Editor::set_edit_mode ( Tile16EditMode mode )

inline

Definition at line 418 of file tile16_editor.h.

References edit_mode_.

AnalyzeTile8SourceData()

void yaze::editor::Tile16Editor::AnalyzeTile8SourceData

(

)

const

Definition at line 3027 of file tile16_editor.cc.

References current_gfx_bmp_, current_gfx_individual_, current_palette_, yaze::gfx::Bitmap::data(), yaze::gfx::Bitmap::depth(), GetActualPaletteSlot(), GetEncodedPaletteRow(), HasCurrentGfxBitmap(), yaze::gfx::Bitmap::height(), yaze::util::logf(), overworld_palette_, yaze::gfx::Bitmap::palette(), palette_, yaze::gfx::Bitmap::size(), yaze::gfx::SnesPalette::size(), and yaze::gfx::Bitmap::width().

Referenced by UpdateTile16Edit().

CreateRemappedPaletteForTile8()

gfx::SnesPalette yaze::editor::Tile16Editor::CreateRemappedPaletteForTile8 ( const gfx::SnesPalette & source, int target_row, int tile8_id ) const

private

Definition at line 2819 of file tile16_editor.cc.

References yaze::gfx::SnesPalette::AddColor(), yaze::gfx::SnesColor::set_transparent(), and yaze::gfx::SnesPalette::size().

Referenced by CreateRemappedPaletteForViewing(), and UpdateTile8Palette().

Here is the call graph for this function:

FinalizePendingUndo()

void yaze::editor::Tile16Editor::FinalizePendingUndo ( )

private

Finalize any pending undo snapshot by capturing current state as "after" and pushing a Tile16EditAction to undo_manager_.

Definition at line 2395 of file tile16_editor.cc.

References yaze::editor::Tile16Snapshot::bitmap_data, yaze::editor::Tile16Snapshot::bitmap_palette, current_palette_, current_tile16_, current_tile16_bmp_, current_tile16_data_, yaze::gfx::Bitmap::is_active(), yaze::editor::Tile16Snapshot::palette, yaze::gfx::Bitmap::palette(), pending_undo_before_, yaze::editor::Tile16Snapshot::priority, priority_tile, yaze::editor::UndoManager::Push(), RestoreFromSnapshot(), yaze::editor::Tile16Snapshot::tile_data, yaze::editor::Tile16Snapshot::tile_id, undo_manager_, yaze::gfx::Bitmap::vector(), x_flip, yaze::editor::Tile16Snapshot::x_flip, y_flip, and yaze::editor::Tile16Snapshot::y_flip.

Referenced by SaveUndoState(), SetCurrentTile(), and Undo().

RestoreFromSnapshot()

void yaze::editor::Tile16Editor::RestoreFromSnapshot ( const Tile16Snapshot & snapshot )

private

Restore editor state from a Tile16Snapshot (used by undo actions).

Definition at line 2379 of file tile16_editor.cc.

References yaze::editor::Tile16Snapshot::bitmap_data, yaze::editor::Tile16Snapshot::bitmap_palette, yaze::gfx::Bitmap::Create(), current_palette_, current_tile16_, current_tile16_bmp_, current_tile16_data_, yaze::gfx::Arena::Get(), yaze::editor::Tile16Snapshot::palette, pending_tile16_bitmaps_, pending_tile16_changes_, yaze::editor::Tile16Snapshot::priority, priority_tile, yaze::gfx::Arena::QueueTextureCommand(), yaze::gfx::Bitmap::SetPalette(), yaze::editor::Tile16Snapshot::tile_data, yaze::editor::Tile16Snapshot::tile_id, yaze::gfx::Arena::UPDATE, x_flip, yaze::editor::Tile16Snapshot::x_flip, y_flip, and yaze::editor::Tile16Snapshot::y_flip.

Referenced by FinalizePendingUndo().

Here is the call graph for this function:

ApplyPaletteToCurrentTile16Bitmap()

void yaze::editor::Tile16Editor::ApplyPaletteToCurrentTile16Bitmap ( )

private

Definition at line 2896 of file tile16_editor.cc.

References auto_normalize_pixels_, BitmapHasEncodedPaletteRows(), current_tile16_bmp_, yaze::gfx::SnesPalette::empty(), yaze::gfx::Arena::Get(), GetActualPaletteSlotForCurrentTile16(), yaze::gfx::Bitmap::is_active(), yaze::gfx::Arena::QueueTextureCommand(), ResolveDisplayPalette(), yaze::gfx::Bitmap::set_modified(), yaze::gfx::Bitmap::SetPalette(), yaze::gfx::Bitmap::SetPaletteWithTransparent(), yaze::gfx::SnesPalette::size(), and yaze::gfx::Arena::UPDATE.

Referenced by DrawToCurrentTile16(), LoadTile16FromScratchSpace(), PasteTile16FromClipboard(), and RegenerateTile16BitmapFromROM().

ResolveDisplayPalette()

const gfx::SnesPalette * yaze::editor::Tile16Editor::ResolveDisplayPalette ( ) const

private

Definition at line 2869 of file tile16_editor.cc.

References game_data(), yaze::gfx::PaletteGroupMap::overworld_main, overworld_palette_, palette_, yaze::zelda3::GameData::palette_groups, yaze::gfx::PaletteGroup::palette_ref(), and yaze::gfx::SnesPalette::size().

Referenced by ApplyPaletteToCurrentTile16Bitmap(), DrawPaletteSettings(), LoadTile8(), PreviewPaletteChange(), RefreshAllPalettes(), UpdateLivePreview(), and UpdateTile8Palette().

Here is the call graph for this function:

BitmapHasEncodedPaletteRows()

bool yaze::editor::Tile16Editor::BitmapHasEncodedPaletteRows ( const gfx::Bitmap & bitmap ) const

private

Definition at line 2882 of file tile16_editor.cc.

References yaze::gfx::Bitmap::data(), yaze::gfx::Bitmap::is_active(), and yaze::gfx::Bitmap::size().

Referenced by ApplyPaletteToCurrentTile16Bitmap(), PreviewPaletteChange(), and UpdateLivePreview().

Here is the call graph for this function:

BuildTile16BitmapFromData()

absl::Status yaze::editor::Tile16Editor::BuildTile16BitmapFromData ( const gfx::Tile16 & tile_data, gfx::Bitmap * output_bitmap ) const

private

Definition at line 599 of file tile16_editor.cc.

References current_gfx_individual_, and yaze::zelda3::RenderTile16BitmapFromMetadata().

Referenced by DrawToCurrentTile16(), and RegenerateTile16BitmapFromROM().

Here is the call graph for this function:

CopyTileBitmapToBlockset()

void yaze::editor::Tile16Editor::CopyTileBitmapToBlockset ( int tile_id, const gfx::Bitmap & tile_bitmap )

private

Definition at line 605 of file tile16_editor.cc.

References yaze::gfx::Tilemap::atlas, yaze::zelda3::BlitTile16BitmapToAtlas(), HasTile16BlocksetBitmap(), yaze::gfx::Bitmap::is_active(), yaze::gfx::Bitmap::set_modified(), tile16_blockset_, and tile16_blockset_bmp_.

Referenced by DrawToCurrentTile16(), and UpdateBlocksetBitmap().

Here is the call graph for this function:

RebuildTile8UsageCache()

absl::Status yaze::editor::Tile16Editor::RebuildTile8UsageCache ( )

private

Definition at line 2683 of file tile16_editor.cc.

References yaze::zelda3::BuildTile8UsageIndex(), yaze::zelda3::ComputeTile16Count(), yaze::zelda3::kTile16Ptr, pending_tile16_changes_, yaze::Rom::ReadTile16(), RETURN_IF_ERROR, rom_, tile16_blockset_, tile8_usage_cache_, and tile8_usage_cache_dirty_.

Referenced by DrawTile8UsageOverlay().

Here is the call graph for this function:

DrawTile8UsageOverlay()

void yaze::editor::Tile16Editor::DrawTile8UsageOverlay ( )

private

Definition at line 2704 of file tile16_editor.cc.

References blockset_canvas_, current_tile8_, yaze::gui::Canvas::GetGlobalScale(), highlight_tile8_usage_, yaze::zelda3::kMaxTile8UsageId, yaze::editor::kTile16Size, yaze::util::logf(), RebuildTile8UsageCache(), tile16_blockset_bmp_, tile8_usage_cache_, tile8_usage_cache_dirty_, yaze::gfx::Bitmap::width(), and yaze::gui::Canvas::zero_point().

Referenced by UpdateTile16Edit().

HandleKeyboardShortcuts()

void yaze::editor::Tile16Editor::HandleKeyboardShortcuts ( )

private

Definition at line 3553 of file tile16_editor.cc.

References active_quadrant_, ClearTile16(), CommitAllChanges(), CommitChangesToBlockset(), CopyTile16ToClipboard(), current_gfx_individual_, current_palette_, current_tile16_, current_tile8_, CyclePalette(), edit_mode_, FillTile16WithTile8(), FlipTile16Horizontal(), FlipTile16Vertical(), yaze::editor::kPaint, yaze::editor::kPick, yaze::editor::kUsageProbe, yaze::editor::Tile16NumericShortcutResult::palette_id, PasteTile16FromClipboard(), yaze::editor::Tile16NumericShortcutResult::quadrant_focus, Redo(), RefreshAllPalettes(), yaze::editor::ResolveTile16NumericShortcut(), RotateTile16(), status_, and Undo().

Referenced by Update(), and UpdateAsPanel().

HasCurrentGfxBitmap()

bool yaze::editor::Tile16Editor::HasCurrentGfxBitmap ( ) const

inlineprivate

Definition at line 595 of file tile16_editor.h.

References current_gfx_bmp_, and yaze::gfx::Bitmap::is_active().

Referenced by AnalyzeTile8SourceData(), FillTile16WithTile8(), LoadTile8(), RefreshAllPalettes(), RegenerateTile16BitmapFromROM(), and UpdateTile8Palette().

Here is the call graph for this function:

HasTile16BlocksetBitmap()

bool yaze::editor::Tile16Editor::HasTile16BlocksetBitmap ( ) const

inlineprivate

Definition at line 599 of file tile16_editor.h.

References yaze::gfx::Bitmap::is_active(), and tile16_blockset_bmp_.

Referenced by CopyTileBitmapToBlockset(), DrawToCurrentTile16(), and UpdateBlocksetBitmap().

Here is the call graph for this function:

CopyTile16ToAtlas()

void yaze::editor::Tile16Editor::CopyTile16ToAtlas ( int tile_id )

private

Definition at line 3649 of file tile16_editor.cc.

References yaze::gfx::Tilemap::atlas, yaze::zelda3::BlitTile16BitmapToAtlas(), current_tile16_bmp_, yaze::gfx::Arena::Get(), yaze::gfx::Bitmap::is_active(), yaze::gfx::Arena::QueueTextureCommand(), yaze::gfx::Bitmap::set_modified(), tile16_blockset_, and yaze::gfx::Arena::UPDATE.

Referenced by CommitChangesToOverworld(), and UpdateOverworldTilemap().

DrawCompactActionStatusRow()

absl::Status yaze::editor::Tile16Editor::DrawCompactActionStatusRow ( bool has_pending, bool current_tile_pending, int pending_count, bool * show_debug_info, bool * show_advanced_controls )

private

Definition at line 1374 of file tile16_editor.cc.

References yaze::editor::Tile16ActionControlState::can_discard_all, yaze::editor::Tile16ActionControlState::can_discard_current, yaze::editor::Tile16ActionControlState::can_redo, yaze::editor::Tile16ActionControlState::can_undo, yaze::editor::Tile16ActionControlState::can_write_pending, yaze::editor::UndoManager::CanRedo(), yaze::editor::UndoManager::CanUndo(), CommitAllChanges(), yaze::editor::ComputeTile16ActionControlState(), yaze::editor::ComputeTile16ActionRowCount(), yaze::editor::ComputeTile16CompactActionColumnCount(), current_tile16_, yaze::gui::DangerButton(), DiscardAllChanges(), DiscardCurrentTileChanges(), edit_mode_, has_rom_write_history_, last_rom_write_count_, last_rom_write_time_, Redo(), yaze::gui::SuccessButton(), Undo(), and undo_manager_.

Referenced by UpdateTile16Edit().

DrawBrushAndTilePaletteControls()

absl::Status yaze::editor::Tile16Editor::DrawBrushAndTilePaletteControls ( bool show_debug_info )

private

Definition at line 1515 of file tile16_editor.cc.

References yaze::gui::ButtonColorSet::active, active_quadrant_, ApplyPaletteToAll(), ApplyPaletteToQuadrant(), yaze::gui::ButtonColorSet::button, yaze::editor::ComputeTile16PaletteButtonSize(), current_palette_, yaze::gui::GetAccentColor(), GetActualPaletteSlot(), GetActualPaletteSlotForCurrentTile16(), GetCurrentTile16Data(), yaze::gui::GetPrimaryButtonColors(), yaze::gui::GetSuccessButtonColors(), yaze::gui::GetSuccessColor(), yaze::gui::GetThemeColor(), yaze::gfx::TileInfo::horizontal_mirror_, HOVER_HINT, yaze::gui::ButtonColorSet::hovered, yaze::gfx::TileInfo::id_, yaze::util::logf(), yaze::gfx::TileInfo::over_, yaze::gfx::TileInfo::palette_, RefreshAllPalettes(), RETURN_IF_ERROR, yaze::gui::Success, yaze::gui::ThemedText(), and yaze::gfx::TileInfo::vertical_mirror_.

Referenced by UpdateTile16Edit().

DrawTile8SourcePanel()

absl::Status yaze::editor::Tile16Editor::DrawTile8SourcePanel ( float preferred_height = 0.0f )

private

Definition at line 1712 of file tile16_editor.cc.

References yaze::gui::BeginCanvas(), yaze::editor::ComputeTile8SourceDisplayScale(), yaze::editor::ComputeTile8SourcePanelHeight(), yaze::editor::ComputeTile8UsageHighlight(), current_gfx_bmp_, yaze::gui::Canvas::custom_labels_enabled(), yaze::gui::CanvasFrameOptions::draw_context_menu, yaze::gui::CanvasFrameOptions::draw_grid, yaze::gui::CanvasFrameOptions::draw_overlay, yaze::gui::Canvas::DrawBitmap(), yaze::gui::Canvas::DrawTileSelector(), edit_mode_, yaze::gui::EndCanvas(), yaze::gui::CanvasFrameOptions::grid_step, HandleTile8SourceSelection(), yaze::gfx::Bitmap::height(), highlight_tile8_usage_, yaze::gfx::Bitmap::is_active(), yaze::editor::kUsageProbe, yaze::gui::CanvasFrameOptions::render_popups, RETURN_IF_ERROR, yaze::gui::Canvas::set_draggable(), yaze::gui::Canvas::SetCanvasSize(), show_tile_collision_ids_, show_tile_grid_, tile8_source_canvas_, tile8_source_display_scale_, yaze::gui::CanvasFrameOptions::use_child_window, and yaze::gfx::Bitmap::width().

Referenced by UpdateTile16Edit().

HandleTile8SourceSelection()

absl::Status yaze::editor::Tile16Editor::HandleTile8SourceSelection ( bool right_clicked, float display_scale )

private

Definition at line 1782 of file tile16_editor.cc.

References yaze::editor::ComputeTile8IndexFromCanvasMouse(), current_gfx_bmp_, current_gfx_individual_, current_tile8_, yaze::util::logf(), RETURN_IF_ERROR, tile8_source_canvas_, tile8_usage_cache_dirty_, UpdateTile8Palette(), yaze::gfx::Bitmap::width(), and yaze::gui::Canvas::zero_point().

Referenced by DrawTile8SourcePanel().

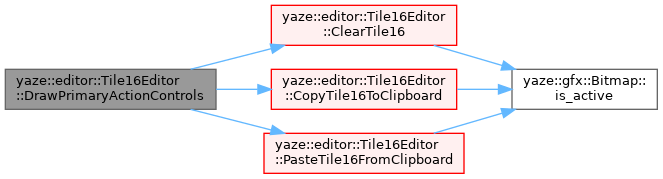

DrawPrimaryActionControls()

absl::Status yaze::editor::Tile16Editor::DrawPrimaryActionControls ( )

private

Definition at line 1806 of file tile16_editor.cc.

References ClearTile16(), CopyTile16ToClipboard(), current_tile16_, PasteTile16FromClipboard(), and RETURN_IF_ERROR.

Referenced by UpdateTile16Edit().

Here is the call graph for this function:

Member Data Documentation

rom_

Rom* yaze::editor::Tile16Editor::rom_ = nullptr

private

Definition at line 424 of file tile16_editor.h.

Referenced by CommitAllChanges(), CopyTile16ToClipboard(), DrawManualTile8Inputs(), DrawPaletteSettings(), GetCurrentTile16Data(), Initialize(), LoadTile8(), PickTile8FromTile16(), RebuildTile8UsageCache(), RefreshAllPalettes(), RequestTileSwitch(), rom(), SaveTile16ToROM(), set_palette(), SetCurrentTile(), SetRom(), UpdateROMTile16Data(), and UpdateTile8Palette().

game_data_

zelda3::GameData* yaze::editor::Tile16Editor::game_data_ = nullptr

private

Definition at line 425 of file tile16_editor.h.

Referenced by game_data(), and SetGameData().

map_blockset_loaded_

bool yaze::editor::Tile16Editor::map_blockset_loaded_ = false

private

Definition at line 426 of file tile16_editor.h.

Referenced by Initialize(), Update(), and UpdateAsPanel().

x_flip

bool yaze::editor::Tile16Editor::x_flip = false

private

Definition at line 427 of file tile16_editor.h.

Referenced by DrawToCurrentTile16(), FillTile16WithTile8(), FinalizePendingUndo(), Initialize(), PickTile8FromTile16(), RestoreFromSnapshot(), SaveUndoState(), and UpdateTile16Edit().

y_flip

bool yaze::editor::Tile16Editor::y_flip = false

private

Definition at line 428 of file tile16_editor.h.

Referenced by DrawToCurrentTile16(), FillTile16WithTile8(), FinalizePendingUndo(), Initialize(), PickTile8FromTile16(), RestoreFromSnapshot(), SaveUndoState(), and UpdateTile16Edit().

priority_tile

bool yaze::editor::Tile16Editor::priority_tile = false

private

Definition at line 429 of file tile16_editor.h.

Referenced by DrawToCurrentTile16(), FillTile16WithTile8(), FinalizePendingUndo(), Initialize(), PickTile8FromTile16(), RestoreFromSnapshot(), SaveUndoState(), and UpdateTile16Edit().

tile_size

int yaze::editor::Tile16Editor::tile_size

private

Definition at line 435 of file tile16_editor.h.

current_tile16_

int yaze::editor::Tile16Editor::current_tile16_ = 0

private

Definition at line 436 of file tile16_editor.h.

Referenced by ApplyPaletteToAll(), ApplyPaletteToQuadrant(), CommitChangesToOverworld(), CopyTile16ToClipboard(), current_tile16(), DiscardAllChanges(), DiscardChanges(), DiscardCurrentTileChanges(), DrawCompactActionStatusRow(), DrawContextMenu(), DrawManualTile8Inputs(), DrawPrimaryActionControls(), DrawToCurrentTile16(), FinalizePendingUndo(), HandleKeyboardShortcuts(), Initialize(), MarkCurrentTileModified(), PickTile8FromTile16(), RegenerateTile16BitmapFromROM(), RequestTileSwitch(), RestoreFromSnapshot(), SaveLayoutToScratch(), SaveTile16ToROM(), SaveUndoState(), SetCurrentTile(), Update(), UpdateAsPanel(), UpdateBlockset(), UpdateBlocksetBitmap(), UpdateOverworldTilemap(), UpdateROMTile16Data(), and UpdateTile16Edit().

current_tile8_

int yaze::editor::Tile16Editor::current_tile8_ = 0

private

Definition at line 437 of file tile16_editor.h.

Referenced by CreateRemappedPaletteForViewing(), current_tile8(), DrawPaletteSettings(), DrawTile8UsageOverlay(), DrawToCurrentTile16(), HandleKeyboardShortcuts(), HandleTile8SourceSelection(), Initialize(), PickTile8FromTile16(), PreviewPaletteChange(), UpdateLivePreview(), and UpdateTile16Edit().

current_palette_

uint8_t yaze::editor::Tile16Editor::current_palette_ = 0

private

Definition at line 438 of file tile16_editor.h.

Referenced by AnalyzeTile8SourceData(), ApplyPaletteToAll(), ApplyPaletteToQuadrant(), ClearTile16(), current_palette(), CyclePalette(), DrawBrushAndTilePaletteControls(), DrawPaletteSettings(), DrawToCurrentTile16(), FillTile16WithTile8(), FinalizePendingUndo(), GetActualPaletteSlotForCurrentTile16(), HandleKeyboardShortcuts(), PickTile8FromTile16(), RefreshAllPalettes(), RestoreFromSnapshot(), SaveUndoState(), set_current_palette(), UpdateLivePreview(), UpdateTile16Edit(), UpdateTile8Palette(), and ValidateTile16Data().

active_quadrant_

int yaze::editor::Tile16Editor::active_quadrant_ = 0

private

Definition at line 439 of file tile16_editor.h.

Referenced by active_quadrant(), DrawBrushAndTilePaletteControls(), DrawToCurrentTile16(), HandleKeyboardShortcuts(), PickTile8FromTile16(), and set_active_quadrant().

edit_mode_

Tile16EditMode yaze::editor::Tile16Editor::edit_mode_ = Tile16EditMode::kPaint

private

Definition at line 440 of file tile16_editor.h.

Referenced by DrawCompactActionStatusRow(), DrawTile8SourcePanel(), edit_mode(), HandleKeyboardShortcuts(), HandleTile16CanvasClick(), set_edit_mode(), and UpdateTile16Edit().

clipboard_tile16_

Tile16ClipboardData yaze::editor::Tile16Editor::clipboard_tile16_

private

Definition at line 443 of file tile16_editor.h.

Referenced by CopyTile16ToClipboard(), and PasteTile16FromClipboard().

scratch_space_

std::array<Tile16ScratchData, 4> yaze::editor::Tile16Editor::scratch_space_

private

Definition at line 446 of file tile16_editor.h.

Referenced by ClearScratchSpace(), DrawContextMenu(), LoadTile16FromScratchSpace(), SaveTile16ToScratchSpace(), and Update().

layout_scratch_

std::array<LayoutScratch, 4> yaze::editor::Tile16Editor::layout_scratch_

private

Definition at line 454 of file tile16_editor.h.

Referenced by DrawScratchSpace(), LoadLayoutFromScratch(), and SaveLayoutToScratch().

undo_manager_

UndoManager yaze::editor::Tile16Editor::undo_manager_

private

Definition at line 457 of file tile16_editor.h.

Referenced by DrawCompactActionStatusRow(), FinalizePendingUndo(), Redo(), and Undo().

pending_undo_before_

std::optional<Tile16Snapshot> yaze::editor::Tile16Editor::pending_undo_before_

private

Definition at line 458 of file tile16_editor.h.

Referenced by FinalizePendingUndo(), and SaveUndoState().

live_preview_enabled_

bool yaze::editor::Tile16Editor::live_preview_enabled_ = true

private

Definition at line 468 of file tile16_editor.h.

Referenced by ApplyPaletteToAll(), ApplyPaletteToQuadrant(), ClearTile16(), DrawContextMenu(), DrawManualTile8Inputs(), DrawToCurrentTile16(), EnableLivePreview(), FillTile16WithTile8(), FlipTile16Horizontal(), FlipTile16Vertical(), LoadTile16FromScratchSpace(), PasteTile16FromClipboard(), RotateTile16(), Update(), and UpdateLivePreview().

preview_tile16_

gfx::Bitmap yaze::editor::Tile16Editor::preview_tile16_

private

Definition at line 469 of file tile16_editor.h.

Referenced by PreviewPaletteChange(), and UpdateLivePreview().

preview_dirty_

bool yaze::editor::Tile16Editor::preview_dirty_ = false

private

Definition at line 470 of file tile16_editor.h.

Referenced by DrawToCurrentTile16(), MarkCurrentTileModified(), PreviewPaletteChange(), and UpdateLivePreview().

tile8_preview_bmp_

gfx::Bitmap yaze::editor::Tile16Editor::tile8_preview_bmp_

private

Definition at line 472 of file tile16_editor.h.

Referenced by Tile8PreviewBitmapForTesting(), and UpdateTile16Edit().

selected_tiles_

std::vector<int> yaze::editor::Tile16Editor::selected_tiles_

private

Definition at line 475 of file tile16_editor.h.

Referenced by LoadLayoutFromScratch().

selection_start_tile_

int yaze::editor::Tile16Editor::selection_start_tile_ = -1

private

Definition at line 476 of file tile16_editor.h.

Referenced by LoadLayoutFromScratch().

multi_select_mode_

bool yaze::editor::Tile16Editor::multi_select_mode_ = false

private

Definition at line 477 of file tile16_editor.h.

auto_tile_mode_

bool yaze::editor::Tile16Editor::auto_tile_mode_ = false

private

Definition at line 480 of file tile16_editor.h.

grid_snap_enabled_

bool yaze::editor::Tile16Editor::grid_snap_enabled_ = true

private

Definition at line 481 of file tile16_editor.h.

show_tile_info_

bool yaze::editor::Tile16Editor::show_tile_info_ = true

private

Definition at line 482 of file tile16_editor.h.

show_palette_preview_

bool yaze::editor::Tile16Editor::show_palette_preview_ = true

private

Definition at line 483 of file tile16_editor.h.

Referenced by PreviewPaletteChange().

show_tile_grid_

bool yaze::editor::Tile16Editor::show_tile_grid_ = true

private

Definition at line 484 of file tile16_editor.h.

Referenced by DrawContextMenu(), DrawTile8SourcePanel(), and UpdateTile16Edit().

show_tile_collision_ids_

bool yaze::editor::Tile16Editor::show_tile_collision_ids_ = false

private

Definition at line 485 of file tile16_editor.h.

Referenced by DrawContextMenu(), DrawTile8SourcePanel(), and Initialize().

tile8_stamp_size_

int yaze::editor::Tile16Editor::tile8_stamp_size_ = 1

private

Definition at line 486 of file tile16_editor.h.

Referenced by DrawToCurrentTile16(), and UpdateTile16Edit().

highlight_tile8_usage_

bool yaze::editor::Tile16Editor::highlight_tile8_usage_ = false

private

Definition at line 487 of file tile16_editor.h.

Referenced by DrawTile8SourcePanel(), and DrawTile8UsageOverlay().

tile8_source_display_scale_

float yaze::editor::Tile16Editor::tile8_source_display_scale_ = 4.0f

private

Definition at line 488 of file tile16_editor.h.

Referenced by DrawTile8SourcePanel(), and LoadTile8().

tile8_usage_cache_

zelda3::Tile8UsageIndex yaze::editor::Tile16Editor::tile8_usage_cache_

private

Definition at line 490 of file tile16_editor.h.

Referenced by DrawTile8UsageOverlay(), and RebuildTile8UsageCache().

tile8_usage_cache_dirty_

bool yaze::editor::Tile16Editor::tile8_usage_cache_dirty_ = true

private

Definition at line 491 of file tile16_editor.h.

Referenced by CommitAllChanges(), CommitChangesToOverworld(), DiscardAllChanges(), DiscardChanges(), DiscardCurrentTileChanges(), DrawTile8UsageOverlay(), DrawToCurrentTile16(), HandleTile8SourceSelection(), MarkCurrentTileModified(), RebuildTile8UsageCache(), and SaveTile16ToROM().

show_palette_settings_

bool yaze::editor::Tile16Editor::show_palette_settings_ = false

private

Definition at line 494 of file tile16_editor.h.

Referenced by DrawPaletteSettings(), and UpdateTile16Edit().

current_palette_group_

int yaze::editor::Tile16Editor::current_palette_group_ = 0

private

Definition at line 495 of file tile16_editor.h.

Referenced by DrawPaletteSettings().

palette_normalization_mask_

uint8_t yaze::editor::Tile16Editor::palette_normalization_mask_

private

Initial value:

=
      0xFF

Definition at line 496 of file tile16_editor.h.

Referenced by DrawPaletteSettings(), and LoadTile8().

auto_normalize_pixels_

bool yaze::editor::Tile16Editor::auto_normalize_pixels_

private

Initial value:

=
      false

Definition at line 498 of file tile16_editor.h.

Referenced by ApplyPaletteToCurrentTile16Bitmap(), DrawPaletteSettings(), LoadTile8(), PreviewPaletteChange(), and UpdateLivePreview().

last_edit_time_

std::chrono::steady_clock::time_point yaze::editor::Tile16Editor::last_edit_time_

private

Definition at line 502 of file tile16_editor.h.

Referenced by DrawToCurrentTile16().

batch_mode_

bool yaze::editor::Tile16Editor::batch_mode_ = false

private

Definition at line 503 of file tile16_editor.h.

pending_tile16_changes_

std::map<int, gfx::Tile16> yaze::editor::Tile16Editor::pending_tile16_changes_

private

Definition at line 506 of file tile16_editor.h.

Referenced by CommitAllChanges(), CommitChangesToOverworld(), CopyTile16ToClipboard(), DiscardAllChanges(), DiscardChanges(), DiscardCurrentTileChanges(), DrawToCurrentTile16(), has_pending_changes(), is_tile_modified(), MarkCurrentTileModified(), pending_changes_count(), RebuildTile8UsageCache(), RestoreFromSnapshot(), SaveTile16ToROM(), SetCurrentTile(), Update(), and UpdateAsPanel().

pending_tile16_bitmaps_

std::map<int, gfx::Bitmap> yaze::editor::Tile16Editor::pending_tile16_bitmaps_

private

Definition at line 507 of file tile16_editor.h.

Referenced by CommitAllChanges(), CommitChangesToOverworld(), CopyTile16ToClipboard(), DiscardAllChanges(), DiscardChanges(), DiscardCurrentTileChanges(), DrawToCurrentTile16(), GetPendingTileBitmap(), MarkCurrentTileModified(), RestoreFromSnapshot(), SaveTile16ToROM(), SetCurrentTile(), Update(), and UpdateAsPanel().

show_unsaved_changes_dialog_

bool yaze::editor::Tile16Editor::show_unsaved_changes_dialog_ = false

private

Definition at line 508 of file tile16_editor.h.

Referenced by RequestTileSwitch(), Update(), and UpdateAsPanel().

pending_tile_switch_target_

int yaze::editor::Tile16Editor::pending_tile_switch_target_ = -1

private

Definition at line 509 of file tile16_editor.h.

Referenced by RequestTileSwitch(), Update(), and UpdateAsPanel().

has_rom_write_history_

bool yaze::editor::Tile16Editor::has_rom_write_history_ = false

private

Definition at line 510 of file tile16_editor.h.

Referenced by CommitAllChanges(), CommitChangesToOverworld(), DrawCompactActionStatusRow(), and SaveTile16ToROM().

last_rom_write_count_

int yaze::editor::Tile16Editor::last_rom_write_count_ = 0

private

Definition at line 511 of file tile16_editor.h.

Referenced by CommitAllChanges(), CommitChangesToOverworld(), DrawCompactActionStatusRow(), and SaveTile16ToROM().

last_rom_write_time_

std::chrono::steady_clock::time_point yaze::editor::Tile16Editor::last_rom_write_time_ {}

private

Definition at line 512 of file tile16_editor.h.

Referenced by CommitAllChanges(), CommitChangesToOverworld(), DrawCompactActionStatusRow(), and SaveTile16ToROM().

jump_to_tile_id_

int yaze::editor::Tile16Editor::jump_to_tile_id_ = 0

private

Definition at line 515 of file tile16_editor.h.

Referenced by SetCurrentTile(), and UpdateTile16Edit().

scroll_to_current_

bool yaze::editor::Tile16Editor::scroll_to_current_ = false

private

Definition at line 516 of file tile16_editor.h.

Referenced by LoadLayoutFromScratch(), and UpdateTile16Edit().

current_page_

int yaze::editor::Tile16Editor::current_page_ = 0

private

Definition at line 517 of file tile16_editor.h.

Referenced by UpdateTile16Edit().

kTilesPerPage

constexpr int yaze::editor::Tile16Editor::kTilesPerPage = 64

staticconstexprprivate

Definition at line 518 of file tile16_editor.h.

Referenced by UpdateTile16Edit().

kTilesPerRow

constexpr int yaze::editor::Tile16Editor::kTilesPerRow = 8

staticconstexprprivate

Definition at line 519 of file tile16_editor.h.

Referenced by DrawToCurrentTile16(), and UpdateTile16Edit().

notify_tile16

util::NotifyValue<uint32_t> yaze::editor::Tile16Editor::notify_tile16

private

Definition at line 521 of file tile16_editor.h.

notify_palette

util::NotifyValue<uint8_t> yaze::editor::Tile16Editor::notify_palette

private

Definition at line 522 of file tile16_editor.h.

all_tiles_types_

std::array<uint8_t, 0x200> yaze::editor::Tile16Editor::all_tiles_types_

private

Definition at line 524 of file tile16_editor.h.

Referenced by Initialize().

blockset_canvas_

gui::Canvas yaze::editor::Tile16Editor::blockset_canvas_

private

Initial value:

{
      "blocksetCanvas", ImVec2(kTilesheetEditorWidth, kTilesheetEditorHeight),
      gui::CanvasGridSize::k32x32}

Definition at line 527 of file tile16_editor.h.

Referenced by DrawTile8UsageOverlay(), Initialize(), UpdateBlockset(), and UpdateTile16Edit().

blockset_selector_

gui::TileSelectorWidget yaze::editor::Tile16Editor::blockset_selector_

private

Initial value:

{
      "Tile16BlocksetSelector",
      gui::TileSelectorWidget::Config{.show_hover_tooltip = true}}

Definition at line 530 of file tile16_editor.h.

Referenced by Initialize(), LoadLayoutFromScratch(), selected_tile16_for_testing(), SetCurrentTile(), UpdateBlockset(), and UpdateTile16Edit().

tile16_blockset_bmp_

gfx::Bitmap* yaze::editor::Tile16Editor::tile16_blockset_bmp_ = nullptr

private

Definition at line 533 of file tile16_editor.h.

Referenced by CopyTileBitmapToBlockset(), DrawTile8UsageOverlay(), DrawToCurrentTile16(), HasTile16BlocksetBitmap(), Initialize(), UpdateBlockset(), UpdateBlocksetBitmap(), and UpdateTile16Edit().

tile16_edit_canvas_

gui::Canvas yaze::editor::Tile16Editor::tile16_edit_canvas_

private

Initial value:

{
      "Tile16EditCanvas",
      ImVec2(64, 64),
      gui::CanvasGridSize::k8x8, 8.0F}

Definition at line 537 of file tile16_editor.h.

Referenced by DrawPaletteSettings(), Initialize(), and UpdateTile16Edit().

current_tile16_bmp_

gfx::Bitmap yaze::editor::Tile16Editor::current_tile16_bmp_

private

Definition at line 541 of file tile16_editor.h.

Referenced by ApplyPaletteToCurrentTile16Bitmap(), ClearTile16(), CopyTile16ToAtlas(), CopyTile16ToClipboard(), DrawToCurrentTile16(), FinalizePendingUndo(), FlipTile16Horizontal(), FlipTile16Vertical(), Initialize(), LoadTile16FromScratchSpace(), MarkCurrentTileModified(), PasteTile16FromClipboard(), PreviewPaletteChange(), RefreshAllPalettes(), RegenerateTile16BitmapFromROM(), RestoreFromSnapshot(), RotateTile16(), SaveTile16ToROM(), SaveTile16ToScratchSpace(), SaveUndoState(), SetCurrentTile(), UpdateBlocksetBitmap(), UpdateLivePreview(), and UpdateTile16Edit().

tile8_source_canvas_

gui::Canvas yaze::editor::Tile16Editor::tile8_source_canvas_

private

Initial value:

{
      "Tile8SourceCanvas",
      ImVec2(gfx::kTilesheetWidth * 8, gfx::kTilesheetHeight * 0x10 * 8),
      gui::CanvasGridSize::k32x32}

Definition at line 544 of file tile16_editor.h.

Referenced by DrawContextMenu(), DrawPaletteSettings(), DrawTile8SourcePanel(), HandleTile8SourceSelection(), Initialize(), LoadTile8(), Update(), and UpdateTile16Edit().

current_gfx_bmp_

gfx::Bitmap* yaze::editor::Tile16Editor::current_gfx_bmp_ = nullptr

private

Definition at line 548 of file tile16_editor.h.

Referenced by AnalyzeTile8SourceData(), DrawPaletteSettings(), DrawTile8SourcePanel(), DrawToCurrentTile16(), HandleTile8SourceSelection(), HasCurrentGfxBitmap(), Initialize(), LoadTile8(), RefreshAllPalettes(), set_palette(), UpdateTile16Edit(), and UpdateTile8Palette().

tile_edit_table_

gui::Table yaze::editor::Tile16Editor::tile_edit_table_

private

Initial value:

{"##TileEditTable", 3, ImGuiTableFlags_Borders,
                              ImVec2(0, 0)}

Definition at line 550 of file tile16_editor.h.

Referenced by Initialize().

tile16_blockset_

gfx::Tilemap* yaze::editor::Tile16Editor::tile16_blockset_ = nullptr

private

Definition at line 553 of file tile16_editor.h.

Referenced by CommitChangesToBlockset(), CopyTile16ToAtlas(), CopyTile16ToClipboard(), CopyTileBitmapToBlockset(), DrawToCurrentTile16(), Initialize(), IsTile16Valid(), RebuildTile8UsageCache(), RefreshTile16Blockset(), RequestTileSwitch(), SaveLayoutToScratch(), SetCurrentTile(), UpdateBlocksetBitmap(), UpdateOverworldTilemap(), UpdateTile16Edit(), and ValidateTile16Data().

current_gfx_individual_

std::vector<zelda3::Tile8PixelData> yaze::editor::Tile16Editor::current_gfx_individual_

private

Definition at line 554 of file tile16_editor.h.

Referenced by AnalyzeTile8SourceData(), BuildTile16BitmapFromData(), DrawPaletteSettings(), DrawToCurrentTile16(), FillTile16WithTile8(), HandleKeyboardShortcuts(), HandleTile8SourceSelection(), LoadTile8(), RefreshAllPalettes(), RegenerateTile16BitmapFromROM(), UpdateTile16Edit(), and UpdateTile8Palette().

palette_editor_

PaletteEditor yaze::editor::Tile16Editor::palette_editor_

private

Definition at line 556 of file tile16_editor.h.

palette_

gfx::SnesPalette yaze::editor::Tile16Editor::palette_

private

Definition at line 557 of file tile16_editor.h.

Referenced by AnalyzeTile8SourceData(), DrawPaletteSettings(), ResolveDisplayPalette(), set_palette(), and UpdateTile16Edit().

overworld_palette_

gfx::SnesPalette yaze::editor::Tile16Editor::overworld_palette_

private

Definition at line 558 of file tile16_editor.h.

Referenced by AnalyzeTile8SourceData(), ResolveDisplayPalette(), set_palette(), and UpdateTile16Edit().

status_

absl::Status yaze::editor::Tile16Editor::status_

private

Definition at line 560 of file tile16_editor.h.

Referenced by DrawContextMenu(), DrawScratchSpace(), DrawTile16Editor(), HandleKeyboardShortcuts(), and Update().

on_changes_committed_

std::function<absl::Status(const std::vector<Tile16Commit>&) yaze::editor::Tile16Editor::on_changes_committed_)

private

Definition at line 564 of file tile16_editor.h.

Referenced by CommitAllChanges(), CommitChangesToOverworld(), and set_on_changes_committed().

on_current_tile_changed_

std::function<void(int)> yaze::editor::Tile16Editor::on_current_tile_changed_

private

Definition at line 565 of file tile16_editor.h.

Referenced by set_on_current_tile_changed(), and SetCurrentTile().

current_tile16_data_

gfx::Tile16 yaze::editor::Tile16Editor::current_tile16_data_

private

Definition at line 568 of file tile16_editor.h.

Referenced by ClearTile16(), CommitChangesToOverworld(), CopyTile16ToClipboard(), DrawToCurrentTile16(), FillTile16WithTile8(), FinalizePendingUndo(), FlipTile16Horizontal(), FlipTile16Vertical(), GetCurrentTile16Data(), LoadTile16FromScratchSpace(), MarkCurrentTileModified(), PasteTile16FromClipboard(), RestoreFromSnapshot(), RotateTile16(), SaveTile16ToScratchSpace(), SaveUndoState(), and SetCurrentTile().

---

The documentation for this class was generated from the following files:

• src/app/editor/overworld/tile16_editor.h
• src/app/editor/overworld/tile16_editor.cc
