yaze::gfx::PaletteManager Class Reference

Centralized palette management system. More...

#include <palette_manager.h>

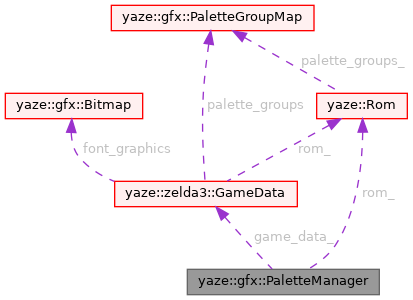

Collaboration diagram for yaze::gfx::PaletteManager:

Classes
struct	SaveTransactionSnapshot
struct	SessionState

Public Types
using	ChangeCallback = std::function<void(const PaletteChangeEvent&)>

Public Member Functions
	PaletteManager (const PaletteManager &)=delete
PaletteManager &	operator= (const PaletteManager &)=delete
	PaletteManager (PaletteManager &&)=delete
PaletteManager &	operator= (PaletteManager &&)=delete
void	Initialize (zelda3::GameData *game_data)
	Initialize the palette manager with GameData.
void	Initialize (Rom *rom)
	Legacy initialization with ROM (deprecated, use GameData version)
bool	IsInitialized () const
	Check if manager is initialized.
void	ActivateSession (zelda3::GameData *game_data)
	Select the palette state for a ROM session without resnapshotting it.
bool	IsSessionActive (const zelda3::GameData *game_data) const
	Check whether this exact GameData is the active palette session.
bool	IsManaging (const zelda3::GameData *game_data) const
	Check whether the manager is bound to this exact GameData and ROM.
void	ReleaseSession (const zelda3::GameData *game_data)
	Forget all palette tracking for a closing or reloaded ROM session.
void	ResetForTesting ()
	Reset all state for test isolation.
SnesColor	GetColor (const std::string &group_name, int palette_index, int color_index) const
	Get a color from a palette.
absl::Status	SetColor (const std::string &group_name, int palette_index, int color_index, const SnesColor &new_color)
	Set a color in a palette (records change for undo)
absl::Status	ResetColor (const std::string &group_name, int palette_index, int color_index)
	Reset a single color to its original ROM value.

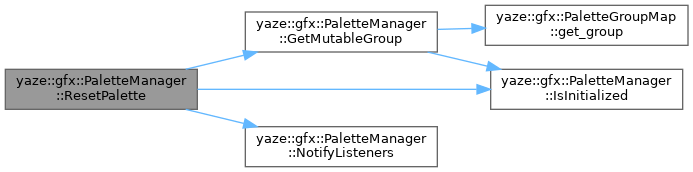

absl::Status	ResetPalette (const std::string &group_name, int palette_index)
	Reset an entire palette to original ROM values.
bool	HasUnsavedChanges () const
	Check if there are ANY unsaved changes.
bool	HasUnsavedChanges (const zelda3::GameData *game_data) const
	Check a specific ROM session without changing the active binding.
std::vector< std::string >	GetModifiedGroups () const
	Get list of modified palette group names.
bool	IsGroupModified (const std::string &group_name) const
	Check if a specific palette group has modifications.
bool	IsPaletteModified (const std::string &group_name, int palette_index) const
	Check if a specific palette is modified.
bool	IsColorModified (const std::string &group_name, int palette_index, int color_index) const
	Check if a specific color is modified.
size_t	GetModifiedColorCount () const
	Get count of modified colors across all groups.
size_t	GetModifiedColorCount (const zelda3::GameData *game_data) const
	Count modified colors for a specific ROM session.

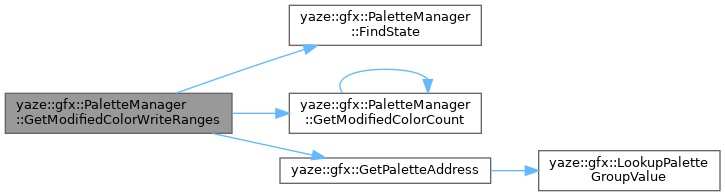

std::vector< std::pair< uint32_t, uint32_t > >	GetModifiedColorWriteRanges () const
	Get exact, coalesced half-open ROM ranges for modified colors.
std::vector< std::pair< uint32_t, uint32_t > >	GetModifiedColorWriteRanges (const zelda3::GameData *game_data) const
	Get modified-color ranges for a session without activating it.
absl::Status	SaveGroup (const std::string &group_name)
	Save a specific palette group to ROM.
absl::Status	SaveAllToRom ()
	Save ALL modified palettes to ROM.

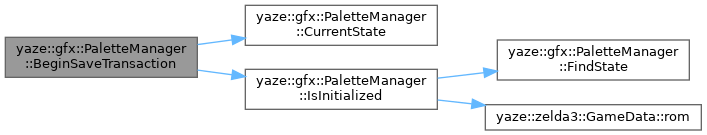

absl::Status	BeginSaveTransaction ()
void	RollbackSaveTransaction ()
void	CommitSaveTransaction ()
void	DiscardGroup (const std::string &group_name)
	Discard changes for a specific group.
void	DiscardAllChanges ()
	Discard ALL unsaved changes.
absl::Status	ApplyPreviewChanges ()
	Apply preview changes to other editors without saving to ROM.
void	Undo ()
	Undo the most recent change.
void	Redo ()
	Redo the most recently undone change.
bool	CanUndo () const
	Check if undo is available.
bool	CanRedo () const
	Check if redo is available.
size_t	GetUndoStackSize () const
	Get size of undo stack.
size_t	GetRedoStackSize () const
	Get size of redo stack.
void	ClearHistory ()
	Clear undo/redo history.
int	RegisterChangeListener (ChangeCallback callback)
	Register a callback for palette change events.
void	UnregisterChangeListener (int callback_id)
	Unregister a change listener.
void	BeginBatch ()
	Begin a batch operation (groups multiple changes into one undo step)
void	EndBatch ()
	End a batch operation.
bool	InBatch () const
	Check if currently in a batch operation.

Static Public Member Functions
static PaletteManager &	Get ()
	Get the singleton instance.

Private Member Functions
	PaletteManager ()=default
	~PaletteManager ()=default
PaletteGroup *	GetMutableGroup (const std::string &group_name)
	Helper: Get mutable palette group.
const PaletteGroup *	GetGroup (const std::string &group_name) const
	Helper: Get const palette group.
SnesColor	GetOriginalColor (const std::string &group_name, int palette_index, int color_index) const
	Helper: Get original color from snapshot.
void	RecordChange (const PaletteColorChange &change)
	Helper: Record a change for undo.

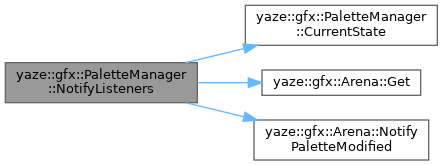

void	NotifyListeners (const PaletteChangeEvent &event)
	Helper: Notify all listeners of an event.

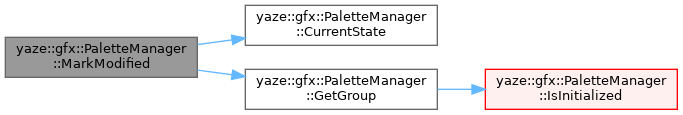

void	MarkModified (const std::string &group_name, int palette_index, int color_index)
	Helper: Mark a color as modified.
void	ClearModifiedFlags (const std::string &group_name)
	Helper: Clear modified flags for a group.
SessionState *	CurrentState ()
const SessionState *	CurrentState () const
const SessionState *	FindState (const zelda3::GameData *game_data) const

Private Attributes
zelda3::GameData *	game_data_ = nullptr
	GameData instance (not owned) - preferred.
Rom *	rom_ = nullptr
	ROM instance (not owned) - legacy, used when game_data_ is null.
std::unordered_map< const zelda3::GameData *, SessionState >	session_states_
	Per-GameData state. RomSession owns the keys and releases them on teardown.
SessionState	unbound_state_
	State used only before a GameData session is selected (legacy/tests).
std::unordered_map< int, ChangeCallback >	change_listeners_
	Change listeners.
int	next_callback_id_ = 1

Static Private Attributes
static constexpr size_t	kMaxUndoHistory = 500

Detailed Description

Centralized palette management system.

Singleton coordinator for ALL palette editing operations. Provides:

• Global dirty tracking across all palette groups
• Transaction-based editing with automatic ROM synchronization
• Unified undo/redo stack shared across all editors
• Batch operations (save all, discard all)
• Change notifications via observer pattern
• Conflict resolution when multiple editors modify same palette

Thread-safety: This class is NOT thread-safe. All operations must be called from the main UI thread.

Definition at line 76 of file palette_manager.h.

Member Typedef Documentation

ChangeCallback

using yaze::gfx::PaletteManager::ChangeCallback = std::function<void(const PaletteChangeEvent&)>

Definition at line 78 of file palette_manager.h.

Constructor & Destructor Documentation

PaletteManager() [1/3]

yaze::gfx::PaletteManager::PaletteManager ( const PaletteManager & )

delete

PaletteManager() [2/3]

yaze::gfx::PaletteManager::PaletteManager ( PaletteManager && )

delete

PaletteManager() [3/3]

yaze::gfx::PaletteManager::PaletteManager ( )

privatedefault

~PaletteManager()

yaze::gfx::PaletteManager::~PaletteManager ( )

privatedefault

Member Function Documentation

Get()

static PaletteManager & yaze::gfx::PaletteManager::Get ( )

inlinestatic

Get the singleton instance.

Definition at line 81 of file palette_manager.h.

Referenced by yaze::gui::PaletteEditorWidget::ApplyDungeonRenderColorEdit(), yaze::editor::DungeonEditorV2::BeginSaveTransaction(), yaze::editor::PaletteGroupPanel::CanRedo(), yaze::editor::PaletteGroupPanel::CanUndo(), yaze::editor::PaletteGroupPanel::ClearHistory(), yaze::editor::DungeonEditorV2::CollectWriteRanges(), yaze::editor::DungeonEditorV2::CommitSaveTransaction(), yaze::editor::PaletteGroupPanel::DiscardChanges(), yaze::editor::EditorManager::DiscardPendingRomBackupRestore(), yaze::editor::PaletteEditor::DrawCategorizedPaletteList(), yaze::editor::PaletteEditor::DrawControlPanel(), yaze::gui::PaletteEditorWidget::DrawDungeonRenderColorPicker(), yaze::editor::PaletteGroupPanel::DrawToolbar(), yaze::editor::EditorManager::EnsureGameDataLoaded(), yaze::editor::PaletteGroupPanel::GetOriginalColor(), yaze::editor::EditorManager::HandleSessionClosed(), yaze::editor::EditorManager::HandleSessionCreated(), yaze::editor::EditorManager::HandleSessionSwitched(), yaze::editor::PaletteGroupPanel::HasUnsavedChanges(), yaze::editor::PaletteGroupPanel::ImportFromClipboard(), yaze::editor::PaletteGroupPanel::ImportFromJson(), yaze::editor::PaletteGroupPanel::IsColorModified(), yaze::editor::PaletteGroupPanel::IsManagedSession(), yaze::editor::PaletteGroupPanel::IsPaletteModified(), yaze::editor::SessionCoordinator::IsSessionModified(), yaze::editor::DungeonEditorV2::Load(), yaze::editor::PaletteEditor::Load(), yaze::editor::EditorManager::LoadAssets(), yaze::editor::EditorManager::PendingPaletteColorCountForSession(), yaze::editor::PaletteGroupPanel::Redo(), yaze::editor::PaletteEditor::Redo(), yaze::editor::EditorManager::ReplaceActiveSessionRom(), yaze::editor::PaletteGroupPanel::ResetColor(), yaze::editor::PaletteGroupPanel::ResetPalette(), yaze::editor::DungeonEditorV2::RollbackSaveTransaction(), yaze::editor::DungeonEditorV2::Save(), yaze::editor::PaletteEditor::Save(), yaze::editor::DungeonEditorV2::SaveRoom(), yaze::editor::PaletteGroupPanel::SaveToRom(), yaze::editor::EditorManager::SessionHasPendingRomWork(), yaze::editor::PaletteGroupPanel::SetColor(), yaze::editor::PaletteGroupPanel::Undo(), yaze::editor::PaletteEditor::Undo(), and yaze::editor::RomSession::~RomSession().

operator=() [1/2]

PaletteManager & yaze::gfx::PaletteManager::operator= ( const PaletteManager & )

delete

operator=() [2/2]

PaletteManager & yaze::gfx::PaletteManager::operator= ( PaletteManager && )

delete

Initialize() [1/2]

void yaze::gfx::PaletteManager::Initialize

(

zelda3::GameData *

game_data

)

Initialize the palette manager with GameData.

Parameters

game_data

Pointer to GameData instance (must outlive PaletteManager)

Definition at line 56 of file palette_manager.cc.

References ActivateSession(), CurrentState(), game_data_, yaze::gfx::PaletteGroupMap::get_group(), and yaze::zelda3::GameData::palette_groups.

Referenced by yaze::editor::EditorManager::EnsureGameDataLoaded(), yaze::editor::DungeonEditorV2::Load(), yaze::editor::PaletteEditor::Load(), and yaze::editor::EditorManager::LoadAssets().

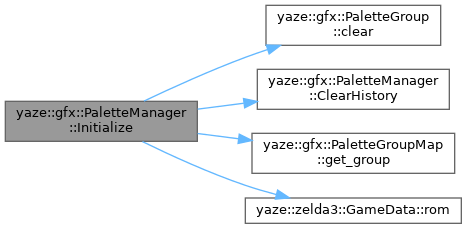

Here is the call graph for this function:

Initialize() [2/2]

void yaze::gfx::PaletteManager::Initialize

(

Rom *

rom

)

Legacy initialization with ROM (deprecated, use GameData version)

Parameters

rom	Pointer to ROM instance (must outlive PaletteManager)

Definition at line 118 of file palette_manager.cc.

References game_data_, rom_, and unbound_state_.

IsInitialized()

bool yaze::gfx::PaletteManager::IsInitialized

(

)

const

Check if manager is initialized.

Definition at line 40 of file palette_manager.cc.

References FindState(), game_data_, yaze::zelda3::GameData::rom(), and rom_.

Referenced by ApplyPreviewChanges(), BeginSaveTransaction(), DiscardAllChanges(), DiscardGroup(), GetGroup(), GetMutableGroup(), IsManaging(), ResetPalette(), SaveAllToRom(), SaveGroup(), and SetColor().

Here is the call graph for this function:

ActivateSession()

void yaze::gfx::PaletteManager::ActivateSession

(

zelda3::GameData *

game_data

)

Select the palette state for a ROM session without resnapshotting it.

Session activation may happen before GameData assets are loaded. Initialize() creates the original-palette snapshot once those assets are available.

Definition at line 48 of file palette_manager.cc.

References game_data_, yaze::zelda3::GameData::rom(), rom_, and session_states_.

Referenced by yaze::editor::EditorManager::HandleSessionClosed(), yaze::editor::EditorManager::HandleSessionCreated(), yaze::editor::EditorManager::HandleSessionSwitched(), Initialize(), and yaze::editor::EditorManager::ReplaceActiveSessionRom().

Here is the call graph for this function:

IsSessionActive()

bool yaze::gfx::PaletteManager::IsSessionActive

(

const zelda3::GameData *

game_data

)

const

Check whether this exact GameData is the active palette session.

Unlike IsManaging(), this may be true before lazy-loaded palette assets have been initialized.

Definition at line 98 of file palette_manager.cc.

References game_data_, yaze::zelda3::GameData::rom(), and rom_.

Referenced by IsManaging().

Here is the call graph for this function:

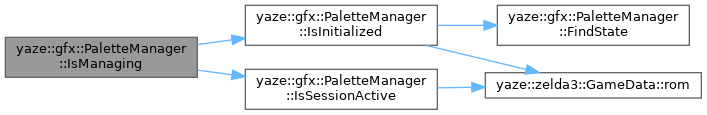

IsManaging()

bool yaze::gfx::PaletteManager::IsManaging

(

const zelda3::GameData *

game_data

)

const

Check whether the manager is bound to this exact GameData and ROM.

Definition at line 103 of file palette_manager.cc.

References IsInitialized(), and IsSessionActive().

Referenced by yaze::editor::PaletteGroupPanel::IsManagedSession().

Here is the call graph for this function:

ReleaseSession()

void yaze::gfx::PaletteManager::ReleaseSession

(

const zelda3::GameData *

game_data

)

Forget all palette tracking for a closing or reloaded ROM session.

Definition at line 107 of file palette_manager.cc.

References game_data_, rom_, and session_states_.

Referenced by yaze::editor::EditorManager::LoadAssets(), yaze::editor::EditorManager::ReplaceActiveSessionRom(), and yaze::editor::RomSession::~RomSession().

ResetForTesting()

void yaze::gfx::PaletteManager::ResetForTesting

(

)

Reset all state for test isolation.

Definition at line 129 of file palette_manager.cc.

References change_listeners_, game_data_, next_callback_id_, rom_, session_states_, and unbound_state_.

GetColor()

SnesColor yaze::gfx::PaletteManager::GetColor	(	const std::string &	group_name,
		int	palette_index,
		int	color_index ) const

Get a color from a palette.

Parameters

group_name	Palette group name
palette_index	Palette index within group
color_index	Color index within palette

Returns

The color, or default SnesColor if invalid indices

Definition at line 140 of file palette_manager.cc.

References GetGroup().

Referenced by yaze::gui::PaletteEditorWidget::DrawDungeonRenderColorPicker(), and yaze::editor::PaletteGroupPanel::GetOriginalColor().

Here is the call graph for this function:

SetColor()

absl::Status yaze::gfx::PaletteManager::SetColor	(	const std::string &	group_name,
		int	palette_index,
		int	color_index,
		const SnesColor &	new_color )

Set a color in a palette (records change for undo)

Parameters

group_name	Palette group name
palette_index	Palette index within group
color_index	Color index within palette
new_color	The new color value

Returns

Status of the operation

Definition at line 155 of file palette_manager.cc.

References yaze::gfx::PaletteManager::SessionState::batch_changes, CurrentState(), GetMutableGroup(), InBatch(), IsInitialized(), yaze::gfx::PaletteChangeEvent::kColorChanged, MarkModified(), NotifyListeners(), and RecordChange().

Referenced by ResetColor(), and yaze::editor::PaletteGroupPanel::SetColor().

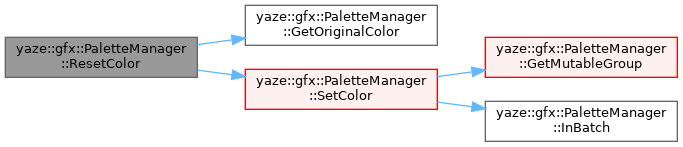

ResetColor()

absl::Status yaze::gfx::PaletteManager::ResetColor	(	const std::string &	group_name,
		int	palette_index,
		int	color_index )

Reset a single color to its original ROM value.

Definition at line 218 of file palette_manager.cc.

References GetOriginalColor(), and SetColor().

Referenced by yaze::editor::PaletteGroupPanel::ResetColor().

Here is the call graph for this function:

ResetPalette()

absl::Status yaze::gfx::PaletteManager::ResetPalette	(	const std::string &	group_name,
		int	palette_index )

Reset an entire palette to original ROM values.

Definition at line 224 of file palette_manager.cc.

References CurrentState(), GetMutableGroup(), IsInitialized(), yaze::gfx::PaletteChangeEvent::kPaletteReset, and NotifyListeners().

Referenced by yaze::editor::PaletteGroupPanel::ResetPalette().

Here is the call graph for this function:

HasUnsavedChanges() [1/2]

bool yaze::gfx::PaletteManager::HasUnsavedChanges

(

)

const

Check if there are ANY unsaved changes.

Definition at line 272 of file palette_manager.cc.

References CurrentState(), and yaze::gfx::PaletteManager::SessionState::modified_palettes.

Referenced by yaze::editor::PaletteEditor::DrawControlPanel(), and yaze::editor::EditorManager::SessionHasPendingRomWork().

Here is the call graph for this function:

HasUnsavedChanges() [2/2]

bool yaze::gfx::PaletteManager::HasUnsavedChanges

(

const zelda3::GameData *

game_data

)

const

Check a specific ROM session without changing the active binding.

Definition at line 276 of file palette_manager.cc.

References FindState().

Here is the call graph for this function:

GetModifiedGroups()

std::vector< std::string > yaze::gfx::PaletteManager::GetModifiedGroups

(

)

const

Get list of modified palette group names.

Definition at line 282 of file palette_manager.cc.

References CurrentState(), and yaze::gfx::PaletteManager::SessionState::modified_palettes.

Referenced by ApplyPreviewChanges(), DiscardAllChanges(), and SaveAllToRom().

Here is the call graph for this function:

IsGroupModified()

bool yaze::gfx::PaletteManager::IsGroupModified

(

const std::string &

group_name

)

const

Check if a specific palette group has modifications.

Definition at line 290 of file palette_manager.cc.

References CurrentState(), and yaze::gfx::PaletteManager::SessionState::modified_palettes.

Referenced by yaze::editor::PaletteEditor::DrawCategorizedPaletteList(), yaze::editor::PaletteGroupPanel::DrawToolbar(), and yaze::editor::PaletteGroupPanel::HasUnsavedChanges().

Here is the call graph for this function:

IsPaletteModified()

bool yaze::gfx::PaletteManager::IsPaletteModified	(	const std::string &	group_name,
		int	palette_index ) const

Check if a specific palette is modified.

Definition at line 295 of file palette_manager.cc.

References CurrentState(), and yaze::gfx::PaletteManager::SessionState::modified_palettes.

Referenced by yaze::editor::PaletteGroupPanel::IsPaletteModified().

Here is the call graph for this function:

IsColorModified()

bool yaze::gfx::PaletteManager::IsColorModified	(	const std::string &	group_name,
		int	palette_index,
		int	color_index ) const

Check if a specific color is modified.

Definition at line 304 of file palette_manager.cc.

References CurrentState(), and yaze::gfx::PaletteManager::SessionState::modified_colors.

Referenced by yaze::editor::PaletteGroupPanel::IsColorModified().

Here is the call graph for this function:

GetModifiedColorCount() [1/2]

size_t yaze::gfx::PaletteManager::GetModifiedColorCount

(

)

const

Get count of modified colors across all groups.

Definition at line 319 of file palette_manager.cc.

References game_data_, and GetModifiedColorCount().

Referenced by yaze::editor::PaletteEditor::DrawControlPanel(), GetModifiedColorCount(), GetModifiedColorWriteRanges(), and yaze::editor::EditorManager::PendingPaletteColorCountForSession().

Here is the call graph for this function:

GetModifiedColorCount() [2/2]

size_t yaze::gfx::PaletteManager::GetModifiedColorCount

(

const zelda3::GameData *

game_data

)

const

Count modified colors for a specific ROM session.

Definition at line 323 of file palette_manager.cc.

References FindState().

Here is the call graph for this function:

GetModifiedColorWriteRanges() [1/2]

std::vector< std::pair< uint32_t, uint32_t > > yaze::gfx::PaletteManager::GetModifiedColorWriteRanges

(

)

const

Get exact, coalesced half-open ROM ranges for modified colors.

Definition at line 340 of file palette_manager.cc.

References game_data_, and GetModifiedColorWriteRanges().

Referenced by GetModifiedColorWriteRanges().

Here is the call graph for this function:

GetModifiedColorWriteRanges() [2/2]

std::vector< std::pair< uint32_t, uint32_t > > yaze::gfx::PaletteManager::GetModifiedColorWriteRanges

(

const zelda3::GameData *

game_data

)

const

Get modified-color ranges for a session without activating it.

Definition at line 345 of file palette_manager.cc.

References FindState(), GetModifiedColorCount(), and yaze::gfx::GetPaletteAddress().

Here is the call graph for this function:

SaveGroup()

absl::Status yaze::gfx::PaletteManager::SaveGroup

(

const std::string &

group_name

)

Save a specific palette group to ROM.

Definition at line 379 of file palette_manager.cc.

References ClearModifiedFlags(), CurrentState(), game_data_, yaze::gfx::Arena::Get(), GetMutableGroup(), yaze::gfx::GetPaletteAddress(), IsInitialized(), yaze::gfx::PaletteChangeEvent::kGroupSaved, yaze::gfx::PaletteManager::SessionState::modified_colors, yaze::gfx::PaletteManager::SessionState::modified_palettes, NotifyListeners(), yaze::gfx::Arena::NotifyPaletteModified(), yaze::gfx::PaletteManager::SessionState::original_palettes, RETURN_IF_ERROR, yaze::zelda3::GameData::rom(), rom_, yaze::Rom::set_dirty(), and yaze::Rom::WriteShort().

Referenced by SaveAllToRom(), and yaze::editor::PaletteGroupPanel::SaveToRom().

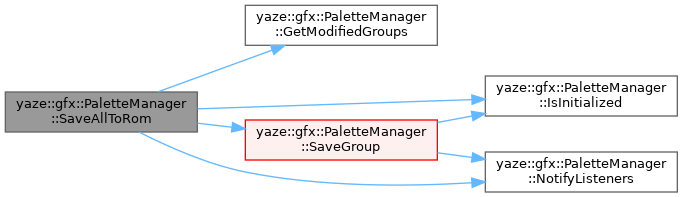

SaveAllToRom()

absl::Status yaze::gfx::PaletteManager::SaveAllToRom

(

)

Save ALL modified palettes to ROM.

Definition at line 448 of file palette_manager.cc.

References GetModifiedGroups(), IsInitialized(), yaze::gfx::PaletteChangeEvent::kAllSaved, NotifyListeners(), RETURN_IF_ERROR, and SaveGroup().

Referenced by yaze::editor::PaletteEditor::DrawControlPanel().

Here is the call graph for this function:

BeginSaveTransaction()

absl::Status yaze::gfx::PaletteManager::BeginSaveTransaction

(

)

Definition at line 465 of file palette_manager.cc.

References CurrentState(), IsInitialized(), and yaze::gfx::PaletteManager::SaveTransactionSnapshot::original_palettes.

Here is the call graph for this function:

RollbackSaveTransaction()

void yaze::gfx::PaletteManager::RollbackSaveTransaction

(

)

Definition at line 481 of file palette_manager.cc.

References CurrentState().

Referenced by yaze::editor::DungeonEditorV2::RollbackSaveTransaction().

Here is the call graph for this function:

CommitSaveTransaction()

void yaze::gfx::PaletteManager::CommitSaveTransaction

(

)

Definition at line 495 of file palette_manager.cc.

References CurrentState(), and yaze::gfx::PaletteManager::SessionState::save_transaction_snapshot.

Referenced by yaze::editor::DungeonEditorV2::CommitSaveTransaction().

Here is the call graph for this function:

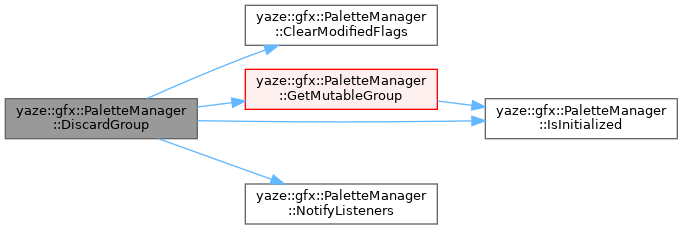

DiscardGroup()

void yaze::gfx::PaletteManager::DiscardGroup

(

const std::string &

group_name

)

Discard changes for a specific group.

Definition at line 523 of file palette_manager.cc.

References ClearModifiedFlags(), CurrentState(), GetMutableGroup(), IsInitialized(), yaze::gfx::PaletteChangeEvent::kGroupDiscarded, yaze::gfx::PaletteManager::SessionState::modified_palettes, NotifyListeners(), and yaze::gfx::PaletteManager::SessionState::original_palettes.

Referenced by DiscardAllChanges(), and yaze::editor::PaletteGroupPanel::DiscardChanges().

DiscardAllChanges()

void yaze::gfx::PaletteManager::DiscardAllChanges

(

)

Discard ALL unsaved changes.

Definition at line 558 of file palette_manager.cc.

References ClearHistory(), DiscardGroup(), GetModifiedGroups(), IsInitialized(), yaze::gfx::PaletteChangeEvent::kAllDiscarded, and NotifyListeners().

Referenced by yaze::editor::PaletteEditor::DrawControlPanel().

ApplyPreviewChanges()

absl::Status yaze::gfx::PaletteManager::ApplyPreviewChanges

(

)

Apply preview changes to other editors without saving to ROM.

This triggers bitmap propagation notification so other editors can refresh their visuals with the modified palettes. Use this for "live preview" functionality before committing to ROM.

Returns

Status of the operation

Definition at line 499 of file palette_manager.cc.

References yaze::gfx::Arena::Get(), GetModifiedGroups(), IsInitialized(), yaze::gfx::PaletteChangeEvent::kAllSaved, NotifyListeners(), and yaze::gfx::Arena::NotifyPaletteModified().

Referenced by yaze::editor::PaletteEditor::DrawControlPanel().

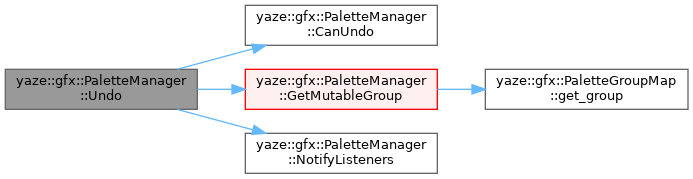

Undo()

void yaze::gfx::PaletteManager::Undo

(

)

Undo the most recent change.

Definition at line 578 of file palette_manager.cc.

References CanUndo(), CurrentState(), GetMutableGroup(), yaze::gfx::PaletteChangeEvent::group_name, yaze::gfx::PaletteChangeEvent::kColorChanged, MarkModified(), NotifyListeners(), yaze::gfx::PaletteManager::SessionState::redo_stack, and yaze::gfx::PaletteManager::SessionState::undo_stack.

Referenced by yaze::editor::PaletteGroupPanel::Undo(), and yaze::editor::PaletteEditor::Undo().

Redo()

void yaze::gfx::PaletteManager::Redo

(

)

Redo the most recently undone change.

Definition at line 606 of file palette_manager.cc.

References CanRedo(), CurrentState(), GetMutableGroup(), yaze::gfx::PaletteChangeEvent::group_name, yaze::gfx::PaletteChangeEvent::kColorChanged, MarkModified(), NotifyListeners(), yaze::gfx::PaletteManager::SessionState::redo_stack, and yaze::gfx::PaletteManager::SessionState::undo_stack.

Referenced by yaze::editor::PaletteGroupPanel::Redo(), and yaze::editor::PaletteEditor::Redo().

CanUndo()

bool yaze::gfx::PaletteManager::CanUndo

(

)

const

Check if undo is available.

Definition at line 639 of file palette_manager.cc.

References CurrentState(), and yaze::gfx::PaletteManager::SessionState::undo_stack.

Referenced by yaze::editor::PaletteGroupPanel::CanUndo(), yaze::editor::PaletteGroupPanel::DrawToolbar(), and Undo().

Here is the call graph for this function:

CanRedo()

bool yaze::gfx::PaletteManager::CanRedo

(

)

const

Check if redo is available.

Definition at line 643 of file palette_manager.cc.

References CurrentState(), and yaze::gfx::PaletteManager::SessionState::redo_stack.

Referenced by yaze::editor::PaletteGroupPanel::CanRedo(), yaze::editor::PaletteGroupPanel::DrawToolbar(), and Redo().

Here is the call graph for this function:

GetUndoStackSize()

size_t yaze::gfx::PaletteManager::GetUndoStackSize

(

)

const

Get size of undo stack.

Definition at line 647 of file palette_manager.cc.

References CurrentState(), and yaze::gfx::PaletteManager::SessionState::undo_stack.

Here is the call graph for this function:

GetRedoStackSize()

size_t yaze::gfx::PaletteManager::GetRedoStackSize

(

)

const

Get size of redo stack.

Definition at line 651 of file palette_manager.cc.

References CurrentState(), and yaze::gfx::PaletteManager::SessionState::redo_stack.

Here is the call graph for this function:

ClearHistory()

void yaze::gfx::PaletteManager::ClearHistory

(

)

Clear undo/redo history.

Definition at line 634 of file palette_manager.cc.

References CurrentState(), yaze::gfx::PaletteManager::SessionState::redo_stack, and yaze::gfx::PaletteManager::SessionState::undo_stack.

Referenced by yaze::editor::PaletteGroupPanel::ClearHistory(), and DiscardAllChanges().

Here is the call graph for this function:

RegisterChangeListener()

int yaze::gfx::PaletteManager::RegisterChangeListener

(

ChangeCallback

callback

)

Register a callback for palette change events.

Returns

Unique ID for this callback (use to unregister)

Definition at line 657 of file palette_manager.cc.

References change_listeners_, and next_callback_id_.

UnregisterChangeListener()

void yaze::gfx::PaletteManager::UnregisterChangeListener

(

int

callback_id

)

Unregister a change listener.

Definition at line 663 of file palette_manager.cc.

References change_listeners_.

BeginBatch()

void yaze::gfx::PaletteManager::BeginBatch

(

)

Begin a batch operation (groups multiple changes into one undo step)

Note

Must be paired with EndBatch()

Definition at line 669 of file palette_manager.cc.

References yaze::gfx::PaletteManager::SessionState::batch_changes, yaze::gfx::PaletteManager::SessionState::batch_depth, and CurrentState().

Here is the call graph for this function:

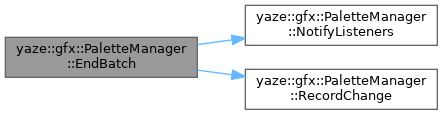

EndBatch()

void yaze::gfx::PaletteManager::EndBatch

(

)

End a batch operation.

Definition at line 676 of file palette_manager.cc.

References yaze::gfx::PaletteManager::SessionState::batch_changes, yaze::gfx::PaletteManager::SessionState::batch_depth, CurrentState(), yaze::gfx::PaletteChangeEvent::group_name, yaze::gfx::PaletteChangeEvent::kColorChanged, NotifyListeners(), and RecordChange().

Here is the call graph for this function:

InBatch()

bool yaze::gfx::PaletteManager::InBatch

(

)

const

Check if currently in a batch operation.

Definition at line 700 of file palette_manager.cc.

References yaze::gfx::PaletteManager::SessionState::batch_depth, and CurrentState().

Referenced by SetColor().

Here is the call graph for this function:

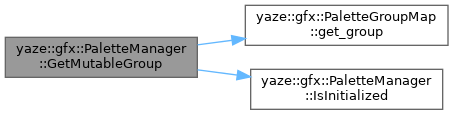

GetMutableGroup()

PaletteGroup * yaze::gfx::PaletteManager::GetMutableGroup ( const std::string & group_name )

private

Helper: Get mutable palette group.

Definition at line 706 of file palette_manager.cc.

References game_data_, yaze::gfx::PaletteGroupMap::get_group(), IsInitialized(), and yaze::zelda3::GameData::palette_groups.

Referenced by DiscardGroup(), Redo(), ResetPalette(), SaveGroup(), SetColor(), and Undo().

Here is the call graph for this function:

GetGroup()

const PaletteGroup * yaze::gfx::PaletteManager::GetGroup ( const std::string & group_name ) const

private

Helper: Get const palette group.

Definition at line 720 of file palette_manager.cc.

References game_data_, IsInitialized(), and yaze::zelda3::GameData::palette_groups.

Referenced by GetColor(), and MarkModified().

Here is the call graph for this function:

GetOriginalColor()

SnesColor yaze::gfx::PaletteManager::GetOriginalColor ( const std::string & group_name, int palette_index, int color_index ) const

private

Helper: Get original color from snapshot.

Definition at line 736 of file palette_manager.cc.

References CurrentState().

Referenced by ResetColor().

Here is the call graph for this function:

RecordChange()

void yaze::gfx::PaletteManager::RecordChange ( const PaletteColorChange & change )

private

Helper: Record a change for undo.

Definition at line 754 of file palette_manager.cc.

References CurrentState(), kMaxUndoHistory, yaze::gfx::PaletteManager::SessionState::redo_stack, and yaze::gfx::PaletteManager::SessionState::undo_stack.

Referenced by EndBatch(), and SetColor().

Here is the call graph for this function:

NotifyListeners()

void yaze::gfx::PaletteManager::NotifyListeners ( const PaletteChangeEvent & event )

private

Helper: Notify all listeners of an event.

Definition at line 766 of file palette_manager.cc.

References change_listeners_.

Referenced by ApplyPreviewChanges(), DiscardAllChanges(), DiscardGroup(), EndBatch(), Redo(), ResetPalette(), SaveAllToRom(), SaveGroup(), SetColor(), and Undo().

MarkModified()

void yaze::gfx::PaletteManager::MarkModified ( const std::string & group_name, int palette_index, int color_index )

private

Helper: Mark a color as modified.

Definition at line 772 of file palette_manager.cc.

References CurrentState(), and GetGroup().

Referenced by Redo(), SetColor(), and Undo().

Here is the call graph for this function:

ClearModifiedFlags()

void yaze::gfx::PaletteManager::ClearModifiedFlags ( const std::string & group_name )

private

Helper: Clear modified flags for a group.

Definition at line 822 of file palette_manager.cc.

References CurrentState(), yaze::gfx::PaletteManager::SessionState::modified_colors, and yaze::gfx::PaletteManager::SessionState::modified_palettes.

Referenced by DiscardGroup(), and SaveGroup().

Here is the call graph for this function:

CurrentState() [1/2]

PaletteManager::SessionState * yaze::gfx::PaletteManager::CurrentState ( )

private

Definition at line 16 of file palette_manager.cc.

References game_data_, session_states_, and unbound_state_.

Referenced by BeginBatch(), BeginSaveTransaction(), CanRedo(), CanUndo(), ClearHistory(), ClearModifiedFlags(), CommitSaveTransaction(), DiscardGroup(), EndBatch(), GetModifiedGroups(), GetOriginalColor(), GetRedoStackSize(), GetUndoStackSize(), HasUnsavedChanges(), InBatch(), Initialize(), IsColorModified(), IsGroupModified(), IsPaletteModified(), MarkModified(), RecordChange(), Redo(), ResetPalette(), RollbackSaveTransaction(), SaveGroup(), SetColor(), and Undo().

CurrentState() [2/2]

const PaletteManager::SessionState * yaze::gfx::PaletteManager::CurrentState ( ) const

private

Definition at line 23 of file palette_manager.cc.

References game_data_, session_states_, and unbound_state_.

FindState()

const PaletteManager::SessionState * yaze::gfx::PaletteManager::FindState ( const zelda3::GameData * game_data ) const

private

Definition at line 31 of file palette_manager.cc.

References session_states_.

Referenced by GetModifiedColorCount(), GetModifiedColorWriteRanges(), HasUnsavedChanges(), and IsInitialized().

Member Data Documentation

game_data_

zelda3::GameData* yaze::gfx::PaletteManager::game_data_ = nullptr

private

GameData instance (not owned) - preferred.

Definition at line 396 of file palette_manager.h.

Referenced by ActivateSession(), CurrentState(), CurrentState(), GetGroup(), GetModifiedColorCount(), GetModifiedColorWriteRanges(), GetMutableGroup(), Initialize(), Initialize(), IsInitialized(), IsSessionActive(), ReleaseSession(), ResetForTesting(), and SaveGroup().

rom_

Rom* yaze::gfx::PaletteManager::rom_ = nullptr

private

ROM instance (not owned) - legacy, used when game_data_ is null.

Definition at line 399 of file palette_manager.h.

Referenced by ActivateSession(), Initialize(), IsInitialized(), IsSessionActive(), ReleaseSession(), ResetForTesting(), and SaveGroup().

session_states_

std::unordered_map<const zelda3::GameData*, SessionState> yaze::gfx::PaletteManager::session_states_

private

Per-GameData state. RomSession owns the keys and releases them on teardown.

Definition at line 402 of file palette_manager.h.

Referenced by ActivateSession(), CurrentState(), CurrentState(), FindState(), ReleaseSession(), and ResetForTesting().

unbound_state_

SessionState yaze::gfx::PaletteManager::unbound_state_

private

State used only before a GameData session is selected (legacy/tests).

Definition at line 405 of file palette_manager.h.

Referenced by CurrentState(), CurrentState(), Initialize(), and ResetForTesting().

kMaxUndoHistory

constexpr size_t yaze::gfx::PaletteManager::kMaxUndoHistory = 500

staticconstexprprivate

Definition at line 407 of file palette_manager.h.

Referenced by RecordChange().

change_listeners_

std::unordered_map<int, ChangeCallback> yaze::gfx::PaletteManager::change_listeners_

private

Change listeners.

Definition at line 410 of file palette_manager.h.

Referenced by NotifyListeners(), RegisterChangeListener(), ResetForTesting(), and UnregisterChangeListener().

next_callback_id_

int yaze::gfx::PaletteManager::next_callback_id_ = 1

private

Definition at line 411 of file palette_manager.h.

Referenced by RegisterChangeListener(), and ResetForTesting().

---

The documentation for this class was generated from the following files:

• src/app/gfx/util/palette_manager.h
• src/app/gfx/util/palette_manager.cc
